BMW 5 Series E34 3D-printable parts

Dimensioned replacement glovebox damper pin for BMW E21, E28, E30, E31, E34, E38, E39, E46 and E60/E61. The creator identifies BMW pin 51161828956 and shows the physical result installed. Verify damper eye and panel thickness before fitting.

Printed cap wrench for the 76 mm, 14-flute oil-filter housing associated with BMW 11421715960. The creator physically demonstrates the tool and lists E30, E36, E46, E34 and Z3 applications; confirm cap size before applying torque.

Replacement side covers for BMW Reverse RDS, non-RDS, Bavaria and Business radios used in E30, E32, E34 and E36. The source shows physical fit and finish; BMWFans confirms covering cap 65126907823.

Replacement front engine wiring holder for E30 M20 and creator-listed E28/E34 applications, physically compared with the original. BMWFans confirms holder 11141716134. Use ASA, ABS or another engine-bay-rated material and inspect for heat distortion.

Replacement beauty cap for M50, M52 and M54 engine-cover fasteners, physically shown on the engine. BMWFans identifies the exact component as cap 11121726089 and confirms E34, E36, E38, E39, E46, E53, E60/E61, E65/E66, E83, E85 and Z3 applications. Use engine-bay-rated material and keep it clear of hot or moving parts.

Replacement roof hook for the accessory rear roller sunshade used on BMW E28, E30 and E34. It was reproduced from an original part and physically installed. BMW accessory number 82129413178 identifies the discontinued black two-piece roof-hook set; 82129413177 is the different white lower-hook style. Confirm headliner mounting, accessory configuration and color before fitting.

Four clip-in replacement gear-knob shapes for the BMW E34 and the creator-listed classic BMW chassis. The design was developed around the common BMW latching stem and includes an installed physical example. Confirm the lever's clip profile and preserve full shift travel before driving; the grouped API fitments reproduce only chassis families explicitly listed by the creator.

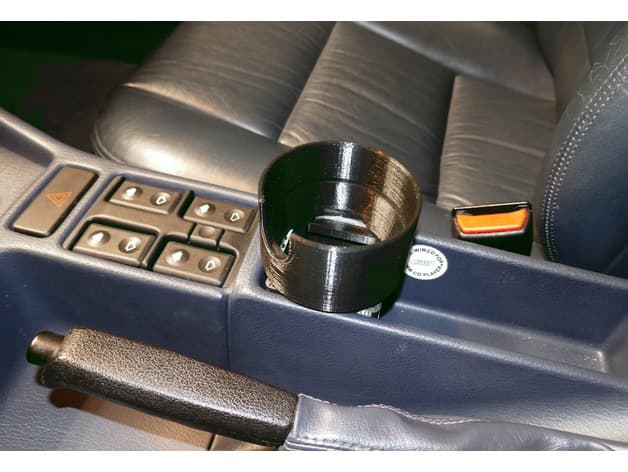

Two-piece cup holder physically fitted in the center-console tray of a 1990 E34 525i. Its foot resists tipping, the lower bore is 64 mm and the upper opening is 82 mm with a mug-handle slot. Adjust the press fit in the actual console before bonding the halves and check shifter and handbrake clearance.

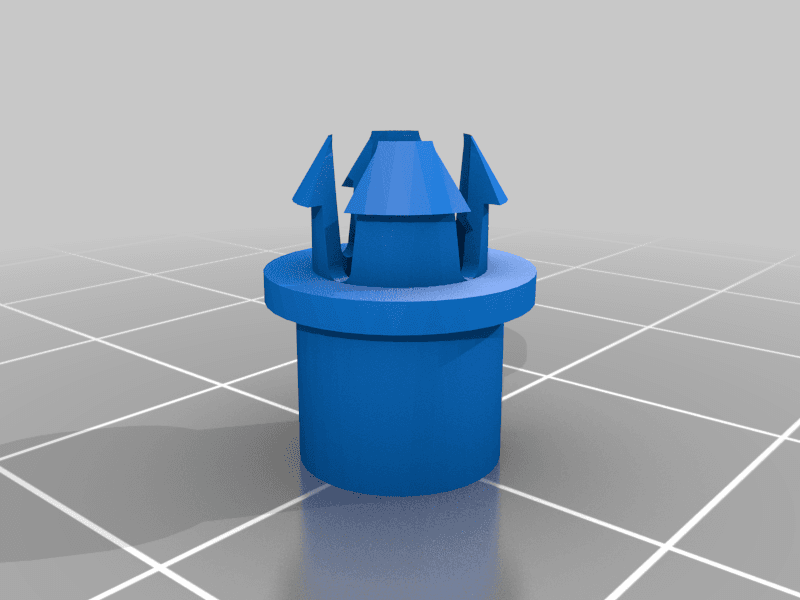

Replacement clip copied from the surviving original on an E34 climate-control actuator. It snaps into the actuator while the flap-control arm clips into its center. Print in a heat-tolerant engineering material and compare both snap features with an intact original before cycling the HVAC system.

Replacement internal clip for E32/E34 headlamp adjusters using the M5×0.8 bolts in headlamp assemblies 63121394252 and 63121378368. Those numbers identify the surrounding assemblies rather than the printed clip, so they are not assigned as OEM numbers. Reuse sound adjuster bolts and verify beam aim after installation.

Two-piece repair bushing for the riveted rear window-regulator slider used on BMW E32, E34 and E36. The creator built it for a personal repair so the original rivet can remain in place, and retained the two halves with friction plus an O-ring. Inspect the regulator, lubricate the guide correctly and confirm smooth glass travel before refitting trim.

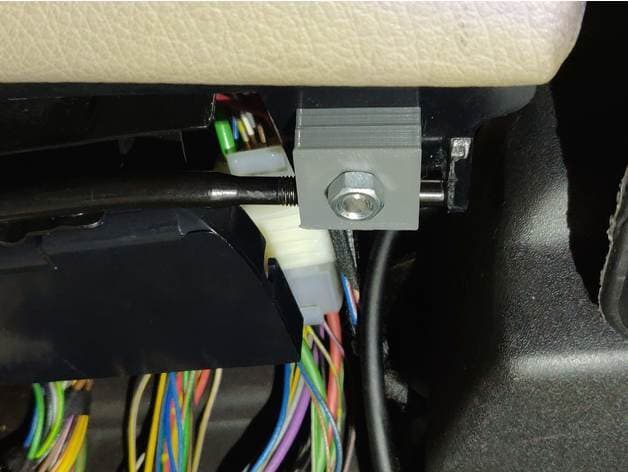

Replacement lower glovebox hinge reproduced from the intact hinge in an E34 and physically installed. It substitutes an M6 screw and nut for the original locking lever; two hinges are used per glovebox. Tighten only enough for free movement and confirm the door latches without stressing the glovebox shell.

Center-console housing built and installed in an E34 for three 52 mm auxiliary gauges, with an on/off switch and two USB sockets. The source also identifies E32 fitment and supplies a wiring diagram. Treat it as a housing only: use fused automotive wiring, preserve control clearance and verify console dimensions before trimming or upholstery.

Replacement medium-gray lock clip for the E34 luggage-compartment carpet, reproduced against the original shown by the creator. BMW catalogs identify the exact component as 51478102980, produced from April 1988 across E34 sedan applications with LHD/RHD and manual/automatic variants. Match carpet and trim hole condition before use.

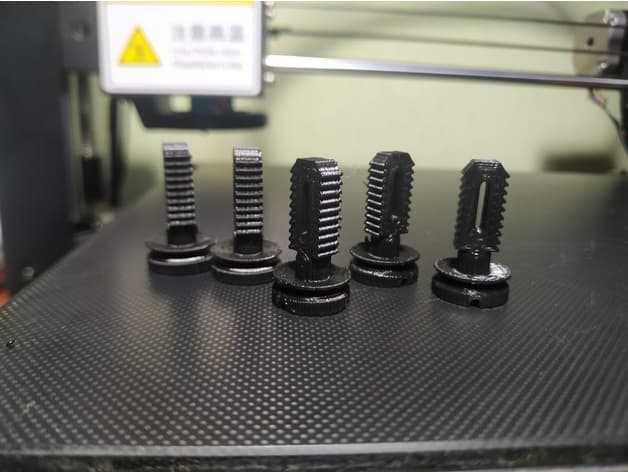

Replacement push clip for attaching the lower interior side panel in a BMW E34. The source is chassis-specific and supplies the mating clip geometry. Compare stem diameter and panel thickness with the surviving fastener and use a flexible, heat-tolerant material so removal does not damage the trim.

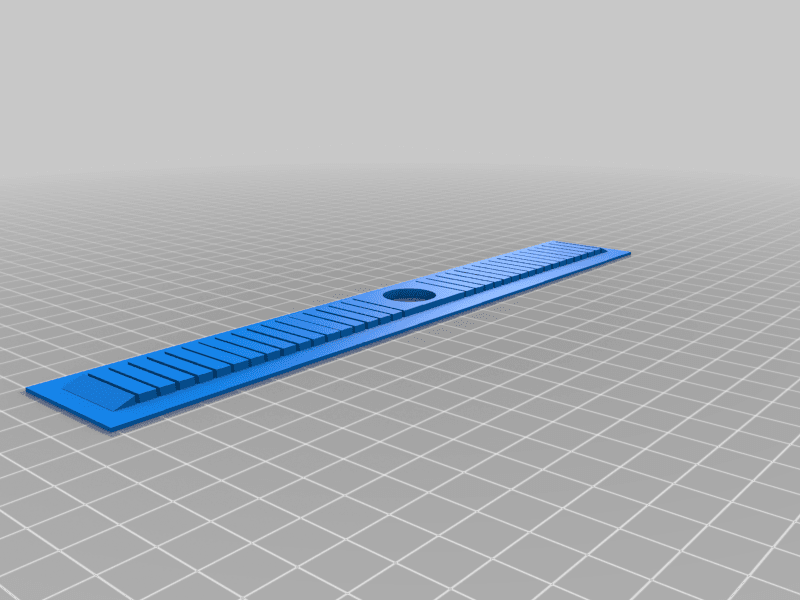

Flexible replacement strip for the E34 automatic selector gate, with a 16 mm opening for the shifter stalk. The creator specifies TPU at roughly 50% infill. Verify selector travel through every position and ensure the strip cannot bind, bunch up or interfere with the shift-lock mechanism.

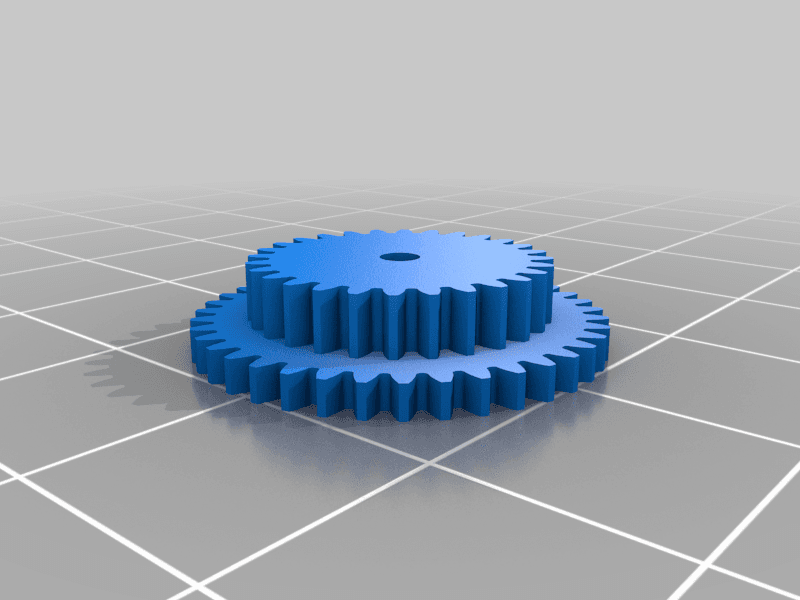

Three replacement gears for the mechanical odometer in the early E34 LOW instrument cluster. The creator limits the set to start-of-production through September 1990 clusters used in 518i, 520i, 524td, 525td and 525tds variants. Compare the cluster face and tooth counts before disassembly; later or HIGH clusters are not represented.

Dual cup holder installed in the center-console tray of the creator's classic BMW and explicitly released for E32/E34 preservation. It is a distinct two-container layout from the selected single-cup design. Verify tray width, handbrake and selector clearance, and secure the insert so it cannot move under braking.

Replacement black blanking cover for an unused dashboard switch opening on BMW E32, E34, E36 and Z3. The source gives interchange number 51161963979, which BMWFans confirms as black cover 1963979 produced from April 1987; the alternate 51161963987 could not be catalog-confirmed and is intentionally omitted. Check color, opening and switch-bank configuration.

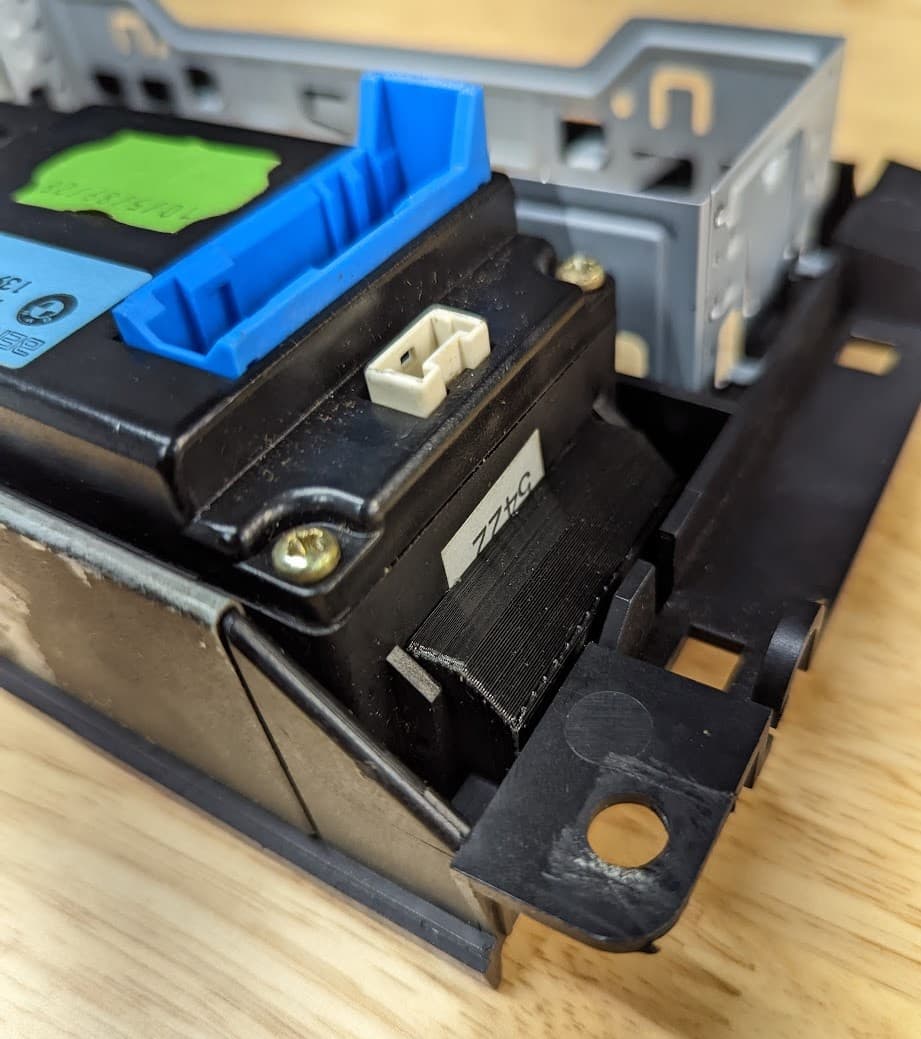

Replacement retaining clip for the automatic climate-control unit in an E34 M5. The creator physically installed the PETG print, sanded the nibs slightly and reports that it holds the unit. This differs from the separate HVAC actuator-arm clip; compare the installed clip and remove only minimal material for a secure snap fit.

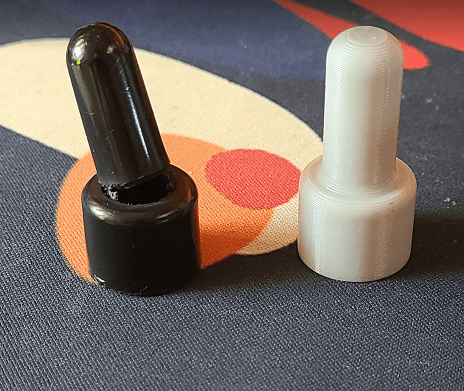

Thread-forming replacement cap for the roof telephone antenna on an E34 Touring. The creator printed it in PETG, formed the thread with gentle heat and painted the physical part satin black. This is body- and antenna-option-specific; confirm the Touring roof fitting and thread diameter before heating or installation.

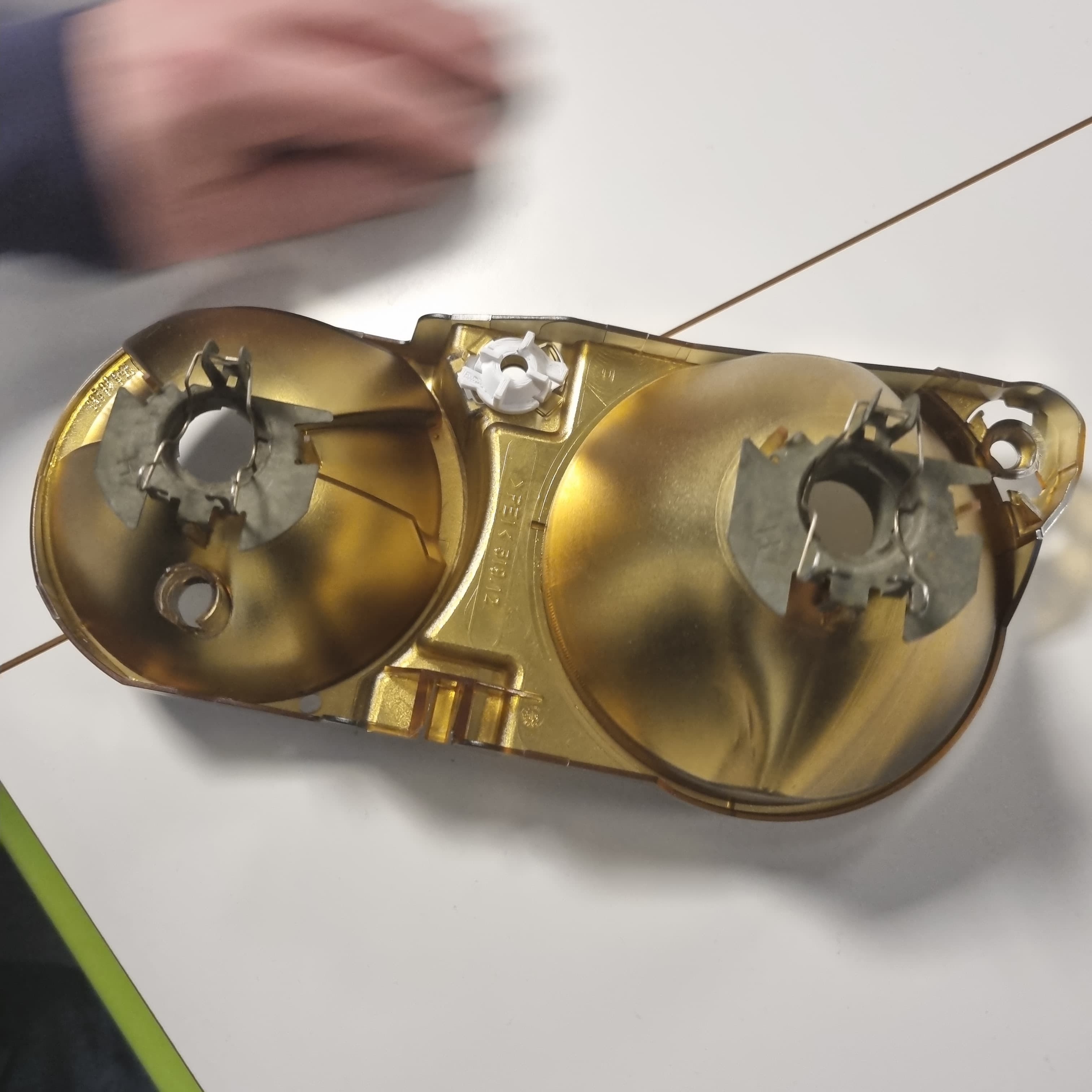

Replacement clip for retaining the rear lamp reflector on a BMW E34 when the small fastener is damaged but the reflector assembly remains serviceable. The source shows the original lamp hardware and recommends PETG with tree supports. Compare the clip pocket and reflector condition before installation; no parent lamp number is assigned.

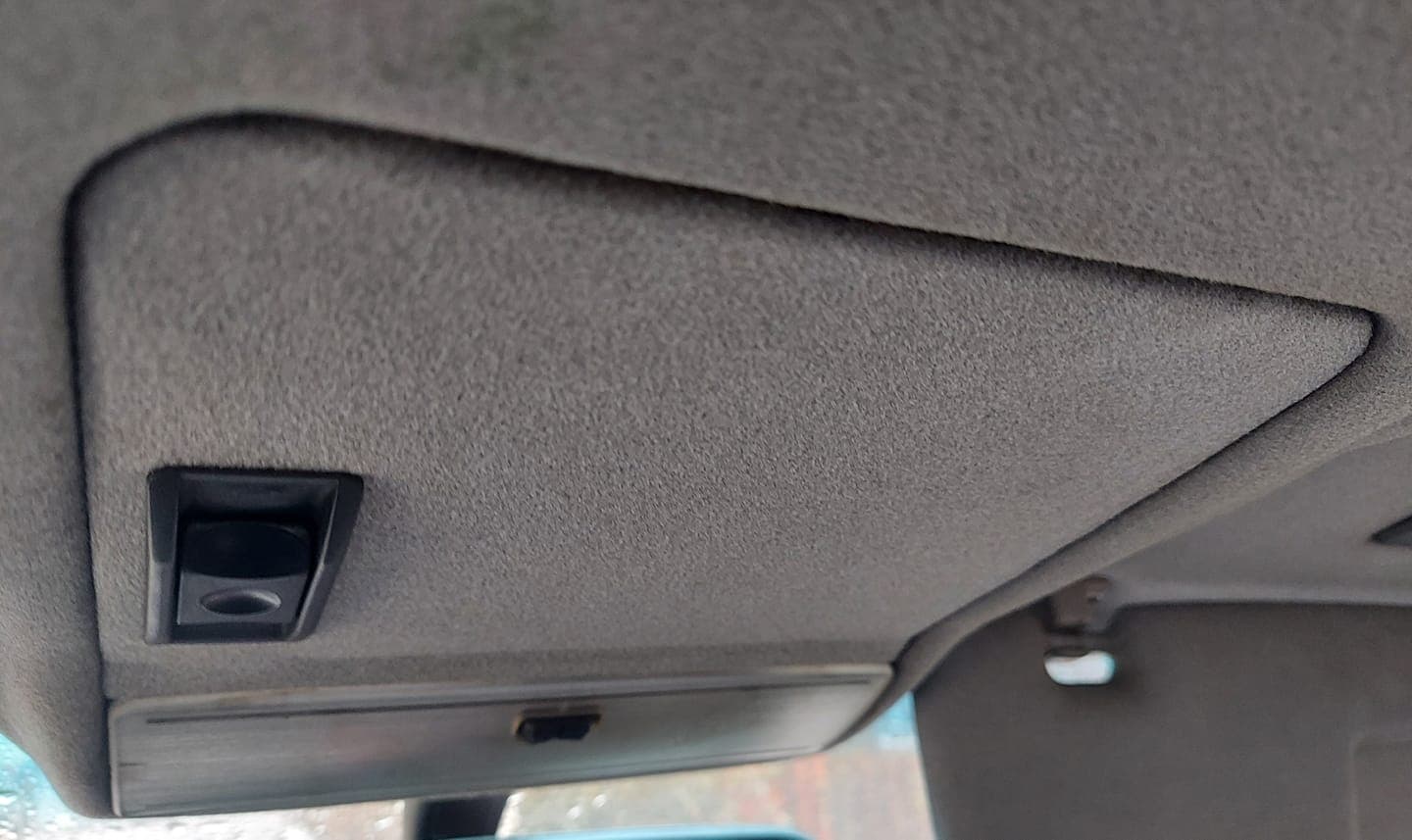

Replacement 158.2×191.0×12.8 mm headliner cover for the E34 sunroof-control area, supplied as STL and STEP and shown against the installed roof console. The creator recommends ABS or PETG at full infill. Verify sunroof switch, interior-light and headliner opening configuration because option and trim variations are not interchangeable.

Battery-retaining spacer reproduced from BMW component 61211350825 for E30, E34, E39 and E46. BMWFans identifies it as spacer 1350825 and confirms those chassis among broader BMW usage. Match battery size, tray slot and hold-down engagement, and do not use it to compensate for an incorrect battery or damaged clamp.
