Triple 52 mm Gauge Console

ABS · PETG1 FILECC-BY-NCDashboard

PART RECORDREF 1341

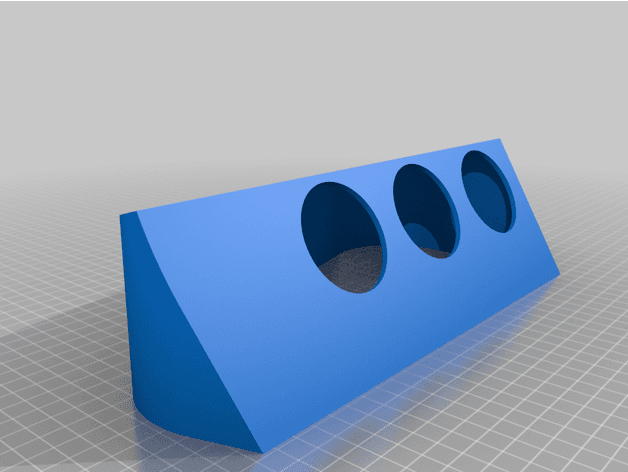

PART: Triple 52 mm Gauge Console
OEM: —
FITS: 5 Series E34, 7 Series E32

Loading 3D viewer...

PART ID · BIMMER-3D / 1341QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

7 PLATES

PLATE 01 / 07No caption recorded

Build sheet

MAN-1341

[01]E34_E32_Zusatzinstrumentehalter_Einbau-2.stlE34_E32_Zusatzinstrumentehalter_Einbau-2.stl.STL
[02]Bounding box272.289 × 135.000 × 80.000 mm
[03]Volume183,711.871 mm³

Field notes

BY BO PROSCH (PROSCH)

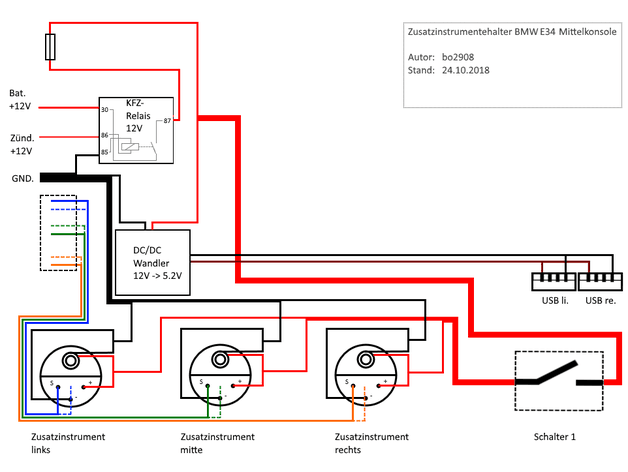

Center-console housing built and installed in an E34 for three 52 mm auxiliary gauges, with an on/off switch and two USB sockets. The source also identifies E32 fitment and supplies a wiring diagram. Treat it as a housing only: use fused automotive wiring, preserve control clearance and verify console dimensions before trimming or upholstery.

View original source ↗
