PART №1339
FROMBIMMER-3D-PARTSDESTWORKBENCH31 JUL 2026
Rear Window-Regulator Bushing
ABS · Nylon · PETGMULTI-PART1 FILECC-BYDoors
- PART
- Rear Window-Regulator Bushing
- OEM
- —
- FITS
- 3 Series E36, 5 Series E34, 7 Series E32
Loading 3D viewer...
PART ID · BIMMER-3D / 1339QTY 1 · STLHANDLE · NO SUPPORTS
Field photographs
4 PLATES
PLATE 01 / 04No caption recorded
Build sheet
MAN-1339- [01]BMW_Regulator_Bushing.stlBMW_Regulator_Bushing.stl.STL
- [02]Bounding box53.017 × 26.000 × 9.998 mm
- [03]Volume2,526.698 mm³
Field notes

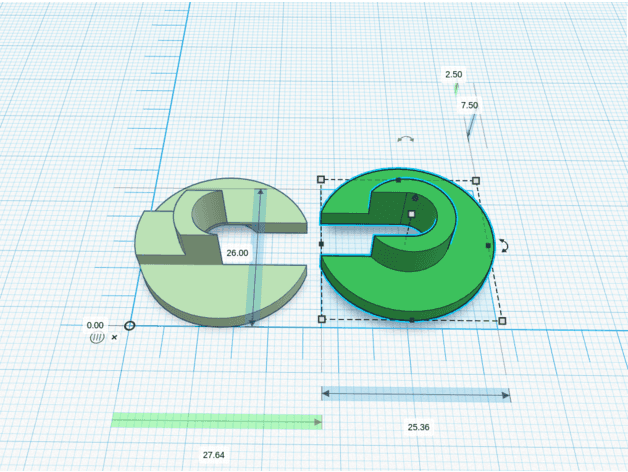

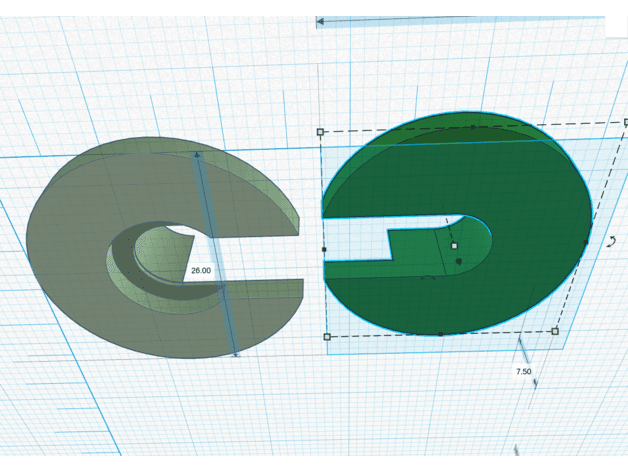

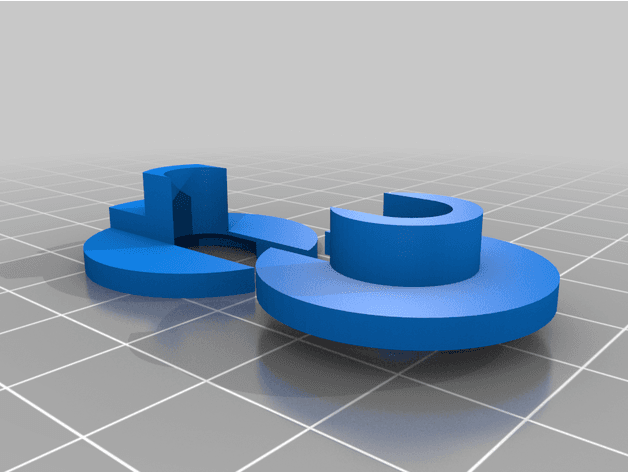

BY RICH DEV (EIRSOFT)Two-piece repair bushing for the riveted rear window-regulator slider used on BMW E32, E34 and E36. The creator built it for a personal repair so the original rivet can remain in place, and retained the two halves with friction plus an O-ring. Inspect the regulator, lubricate the guide correctly and confirm smooth glass travel before refitting trim.
