76 mm × 14-Flute Oil-Filter Cap Wrench

ABS · Nylon1 FILECC-BY-NCMechanical

PART RECORDREF 1092

PART: 76 mm × 14-Flute Oil-Filter Cap Wrench
OEM: —
FITS: 3 Series E30, 3 Series E36, 3 Series E46, 5 Series E34, Z3 E36/7 / E36/8

Loading 3D viewer...

PART ID · BIMMER-3D / 1092QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

4 PLATES

PLATE 01 / 04No caption recorded

Build sheet

MAN-1092

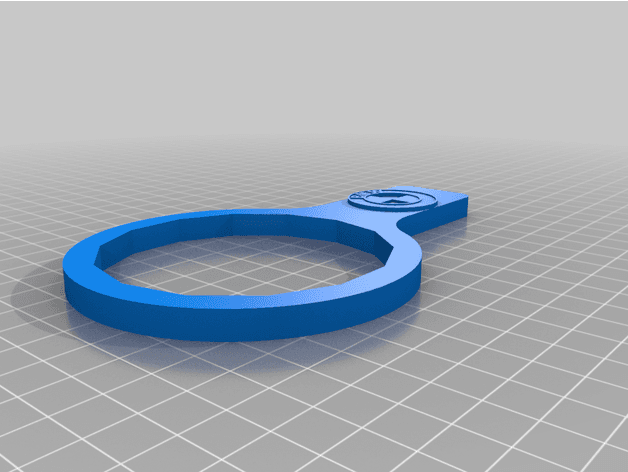

[01]BmwWrench.stlBmwWrench.stl.STL
[02]Bounding box143.763 × 89.993 × 8.500 mm
[03]Volume25,857.209 mm³

Field notes

BY GRZEGORZ KIJAS (GRZECHU16)

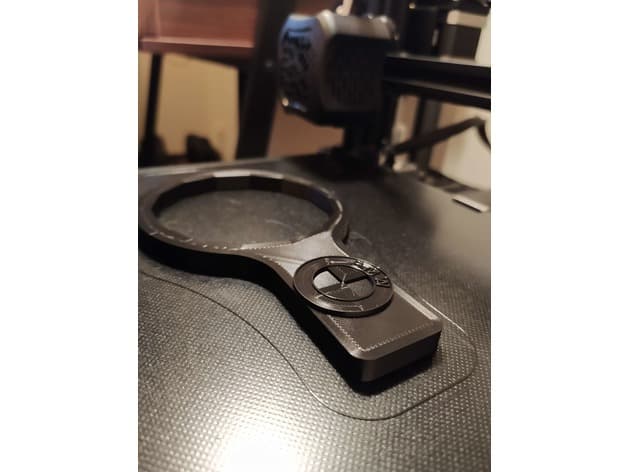

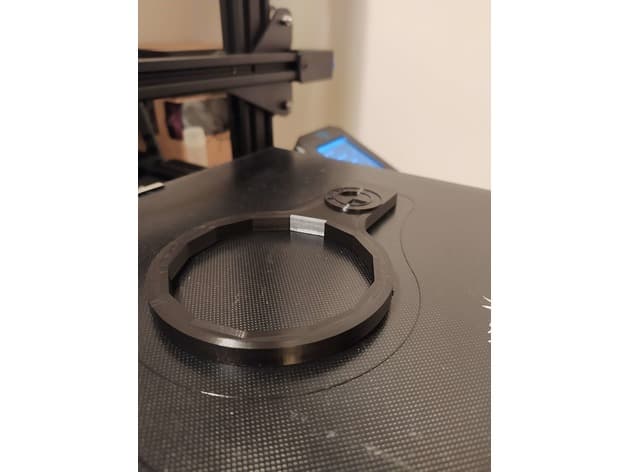

Printed cap wrench for the 76 mm, 14-flute oil-filter housing associated with BMW 11421715960. The creator physically demonstrates the tool and lists E30, E36, E46, E34 and Z3 applications; confirm cap size before applying torque.

View original source ↗
