Automatic Climate-Control Retaining Clip

ABS · PETG1 FILECC-BYDashboard

PART RECORDREF 1348

PART: Automatic Climate-Control Retaining Clip
OEM: —
FITS: 5 Series E34

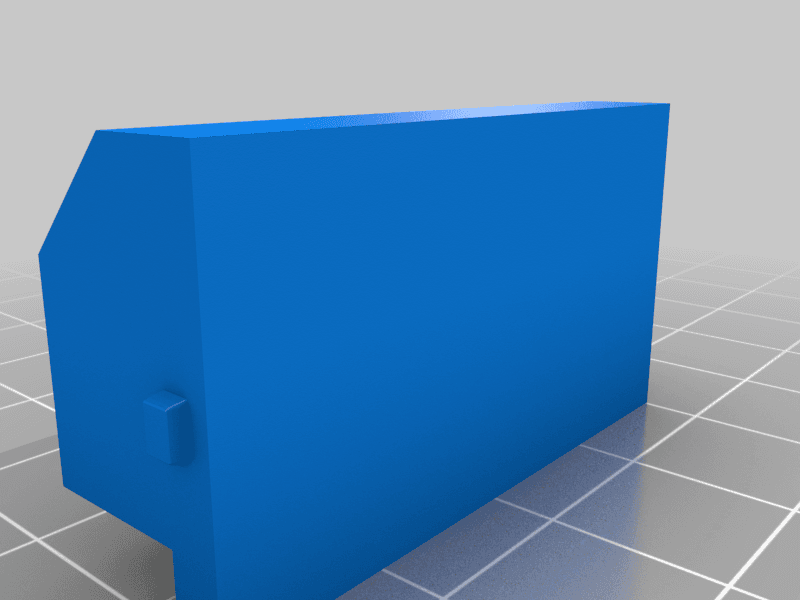

Loading 3D viewer...

PART ID · BIMMER-3D / 1348QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

3 PLATES

PLATE 01 / 03No caption recorded

Build sheet

MAN-1348

[01]E34_CC_Clip.stlE34_CC_Clip.stl.STL
[02]Bounding box42.000 × 22.000 × 12.000 mm
[03]Volume8,259.787 mm³

Field notes

BY KARL BUTCHER (AN1ONCHIGURH)

Replacement retaining clip for the automatic climate-control unit in an E34 M5. The creator physically installed the PETG print, sanded the nibs slightly and reports that it holds the unit. This differs from the separate HVAC actuator-arm clip; compare the installed clip and remove only minimal material for a secure snap fit.
