Glovebox Hinge Repair

ABS · Nylon · PETG1 FILECC-BYInterior

PART RECORDREF 1340

PART: Glovebox Hinge Repair
OEM: —
FITS: 5 Series E34

Loading 3D viewer...

PART ID · BIMMER-3D / 1340QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

10 PLATES

PLATE 01 / 10No caption recorded

Build sheet

MAN-1340

[01]BMW_Glove_Box_Hinge.stlBMW_Glove_Box_Hinge.stl.STL
[02]Bounding box54.500 × 24.000 × 9.000 mm
[03]Volume5,585.592 mm³

Field notes

BY RICH DEV (EIRSOFT)

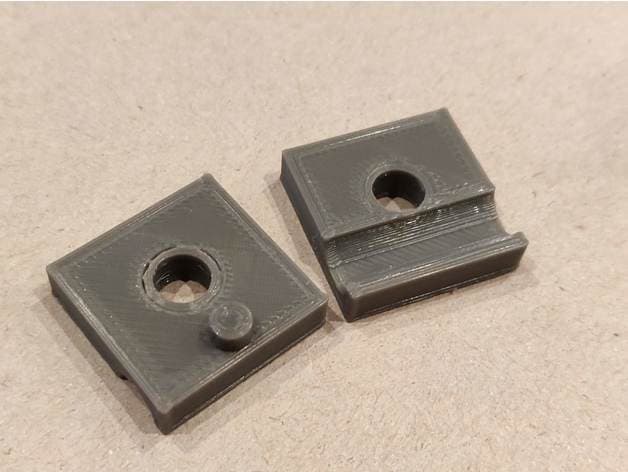

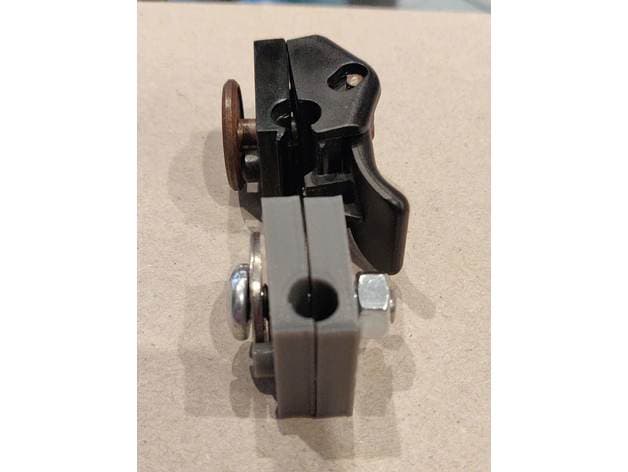

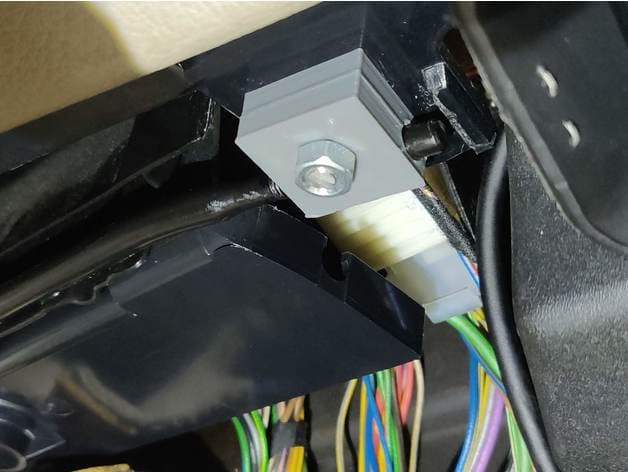

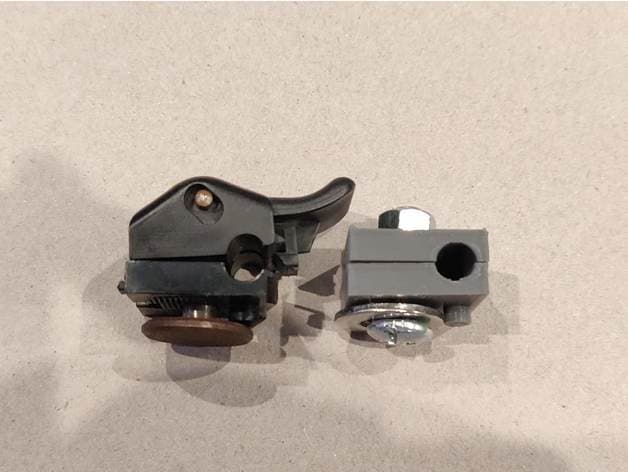

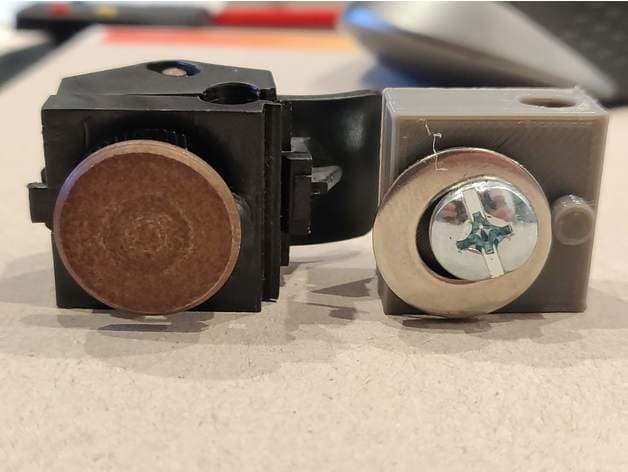

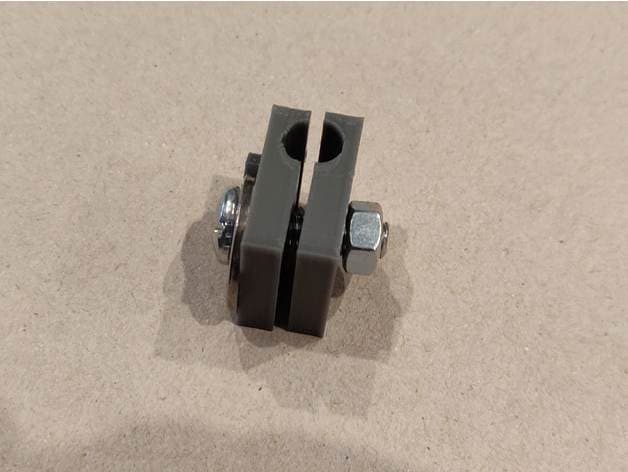

Replacement lower glovebox hinge reproduced from the intact hinge in an E34 and physically installed. It substitutes an M6 screw and nut for the original locking lever; two hinges are used per glovebox. Tighten only enough for free movement and confirm the door latches without stressing the glovebox shell.
