PART №1328
FROMBIMMER-3D-PARTSDESTWORKBENCH31 JUL 2026

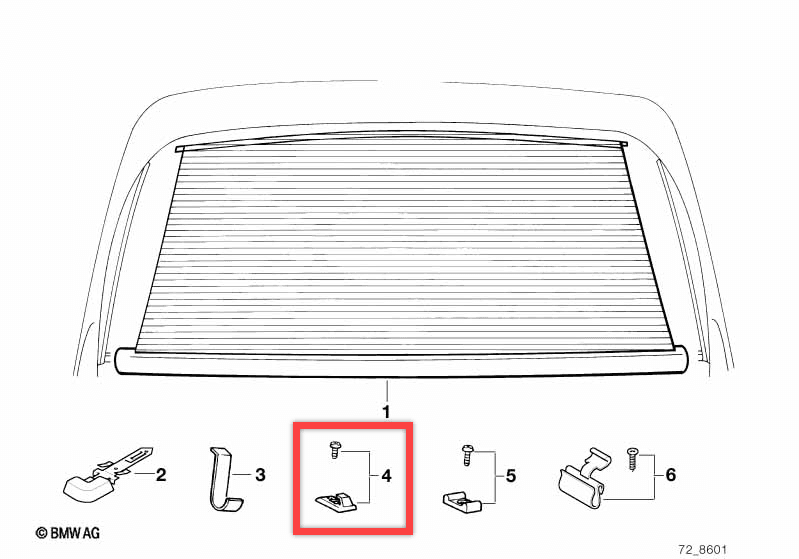

Rear-Sunshade Roof Hook
REPLACES OEM82129413178
ABS · PETG1 FILECC-BY-NC-SAHeadlining
- PART
- Rear-Sunshade Roof Hook
- OEM
- 82129413178
- FITS
- 3 Series E30, 5 Series E28, 5 Series E34
Loading 3D viewer...
PART ID · BIMMER-3D / 1328QTY 1 · STLHANDLE · NO SUPPORTS

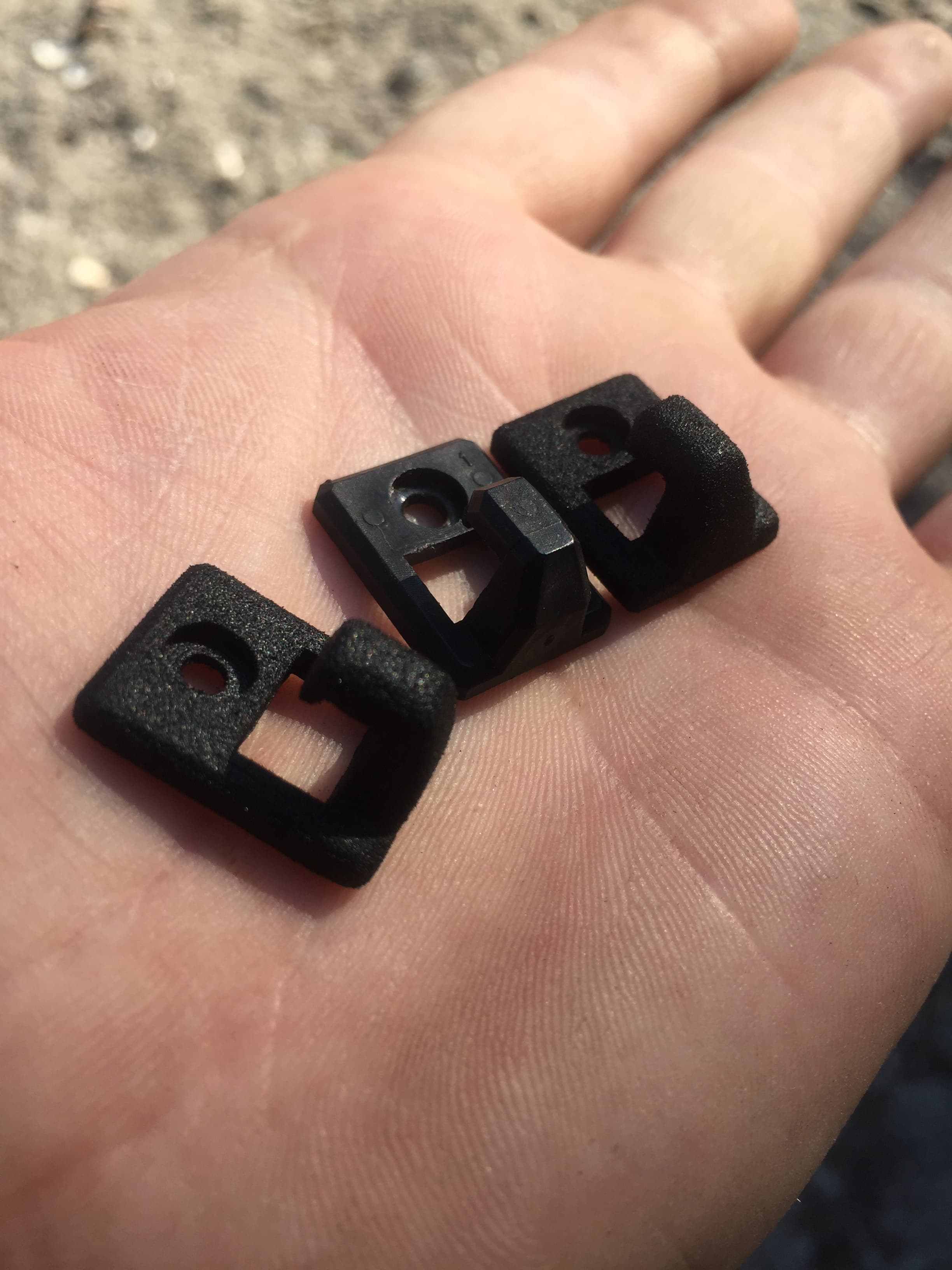

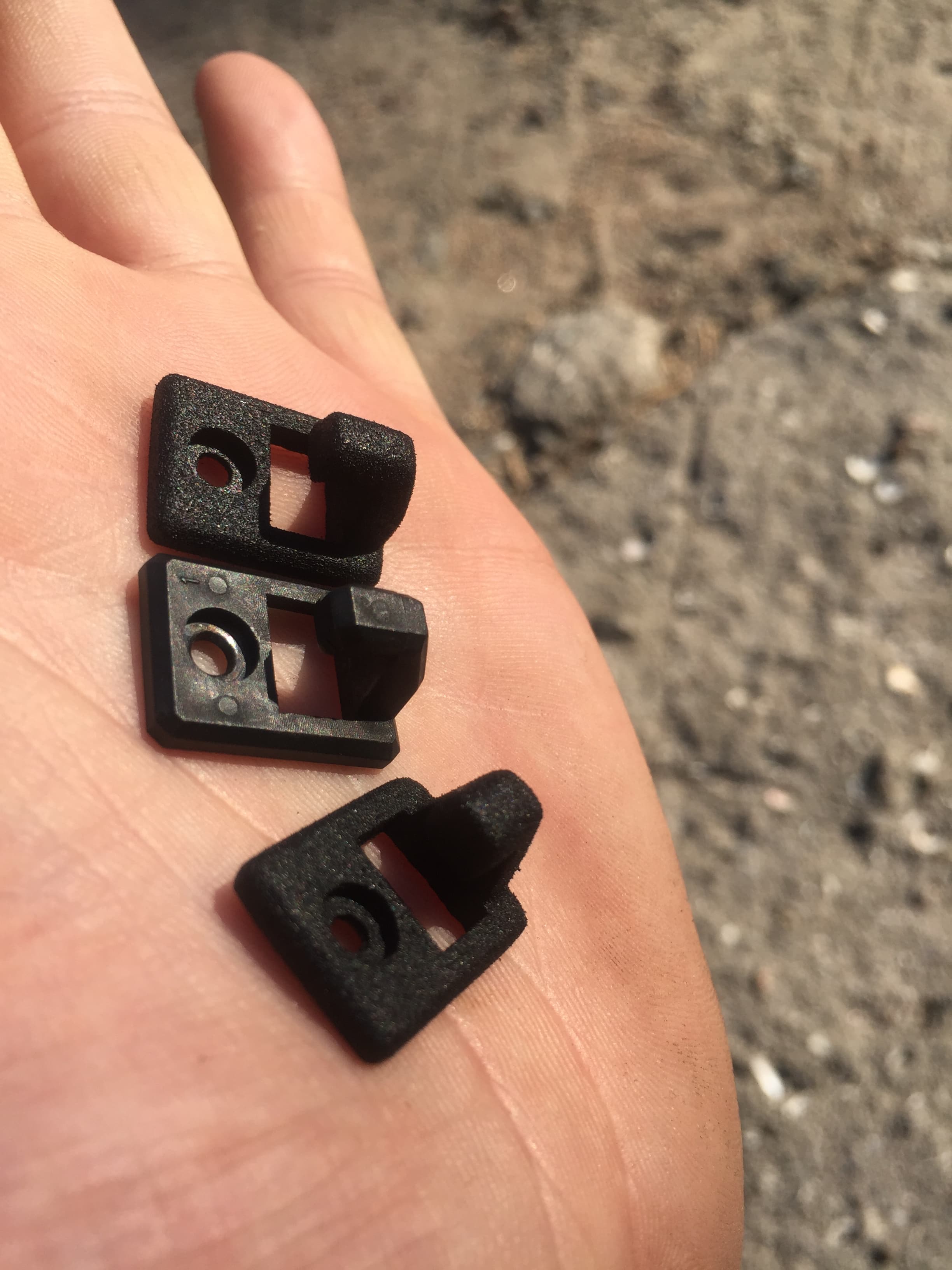

Field photographs
5 PLATES
PLATE 01 / 05No caption recorded
Build sheet

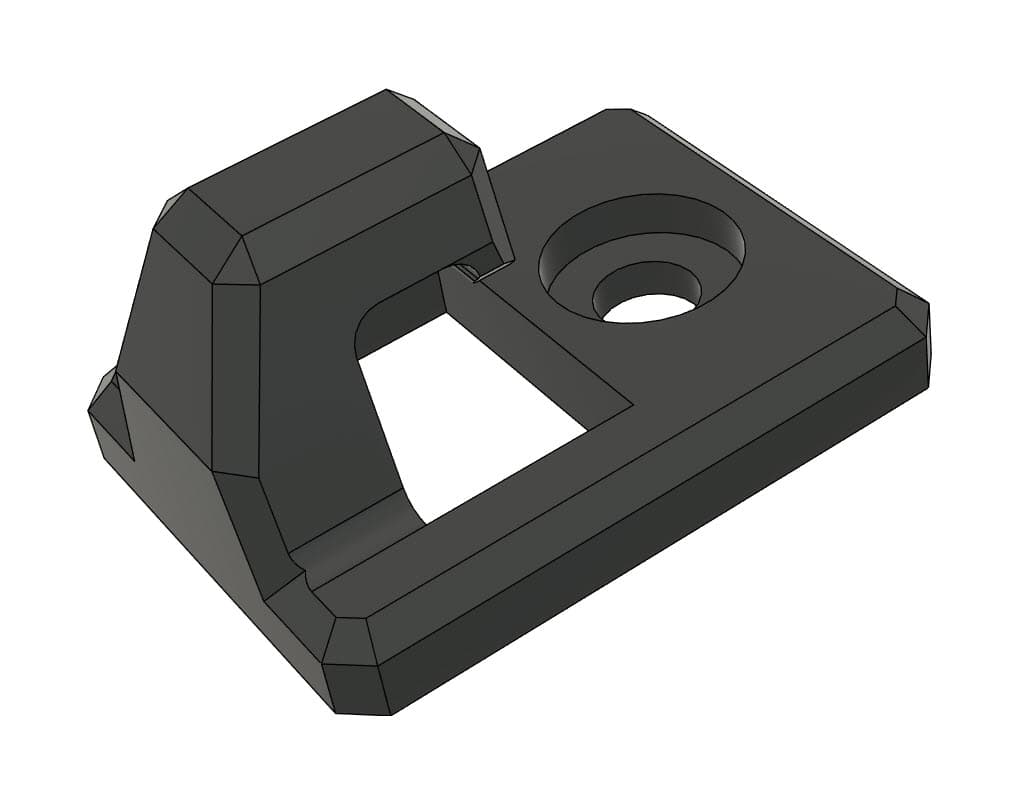

MAN-1328- [01]BmwE30_rearSunShadeRoofHook (82 12 9 413 178) v5.stlBmwE30_rearSunShadeRoofHook (82 12 9 413 178) v5.stl.STL
- [02]Bounding box19.500 × 14.700 × 10.600 mm
- [03]Volume764.995 mm³
Field notes
BY KOTYARKO_OReplacement roof hook for the accessory rear roller sunshade used on BMW E28, E30 and E34. It was reproduced from an original part and physically installed. BMW accessory number 82129413178 identifies the discontinued black two-piece roof-hook set; 82129413177 is the different white lower-hook style. Confirm headliner mounting, accessory configuration and color before fitting.
