M20 Engine Wiring Holder

REPLACES OEM11141716134

ABS · Nylon1 FILEPublic DomainElectrical

PART RECORDREF 1126

PART: M20 Engine Wiring Holder
OEM: 11141716134
FITS: 3 Series E30, 5 Series E28, 5 Series E34

Loading 3D viewer...

PART ID · BIMMER-3D / 1126QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

2 PLATES

PLATE 01 / 02No caption recorded

Build sheet

MAN-1126

[01]BMW e30 Holder 11141716134 v4.stlBMW e30 Holder 11141716134 v4.stl.STL
[02]Bounding box27.230 × 18.837 × 9.840 mm
[03]Volume1,249.648 mm³

Field notes

BY CYRILLINK

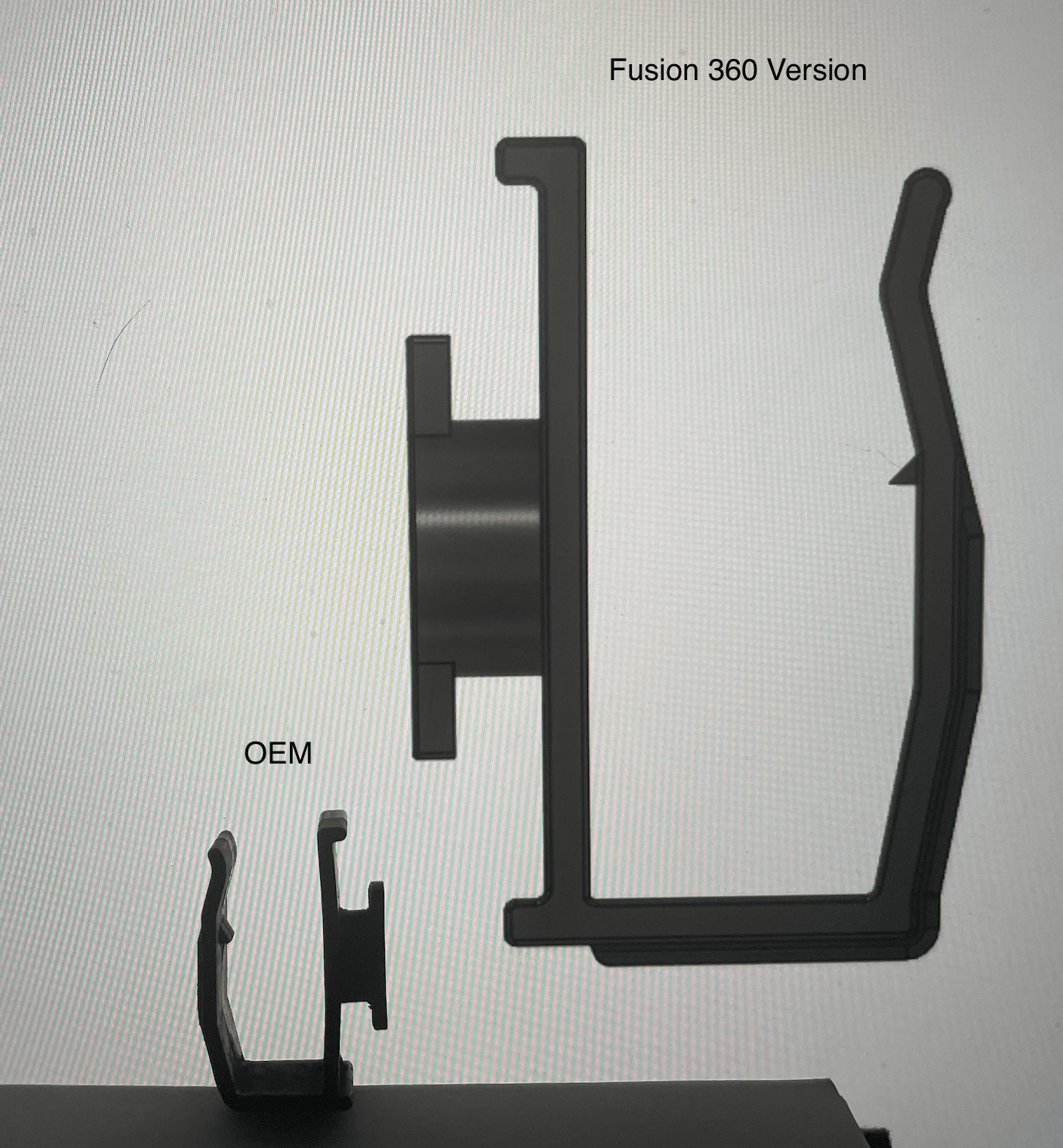

Replacement front engine wiring holder for E30 M20 and creator-listed E28/E34 applications, physically compared with the original. BMWFans confirms holder 11141716134. Use ASA, ABS or another engine-bay-rated material and inspect for heat distortion.
