Rear-Reflector Retaining Clip

PETG1 FILECC-BY-NCLights

PART RECORDREF 1350

PART: Rear-Reflector Retaining Clip
OEM: —
FITS: 5 Series E34

Loading 3D viewer...

PART ID · BIMMER-3D / 1350QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

3 PLATES

PLATE 01 / 03No caption recorded

Build sheet

MAN-1350

[01]Stefans plastbit v3.stlStefans plastbit v3.stl.STL
[02]Bounding box29.200 × 22.800 × 13.400 mm
[03]Volume1,659.01 mm³

Field notes

BY BEBBO

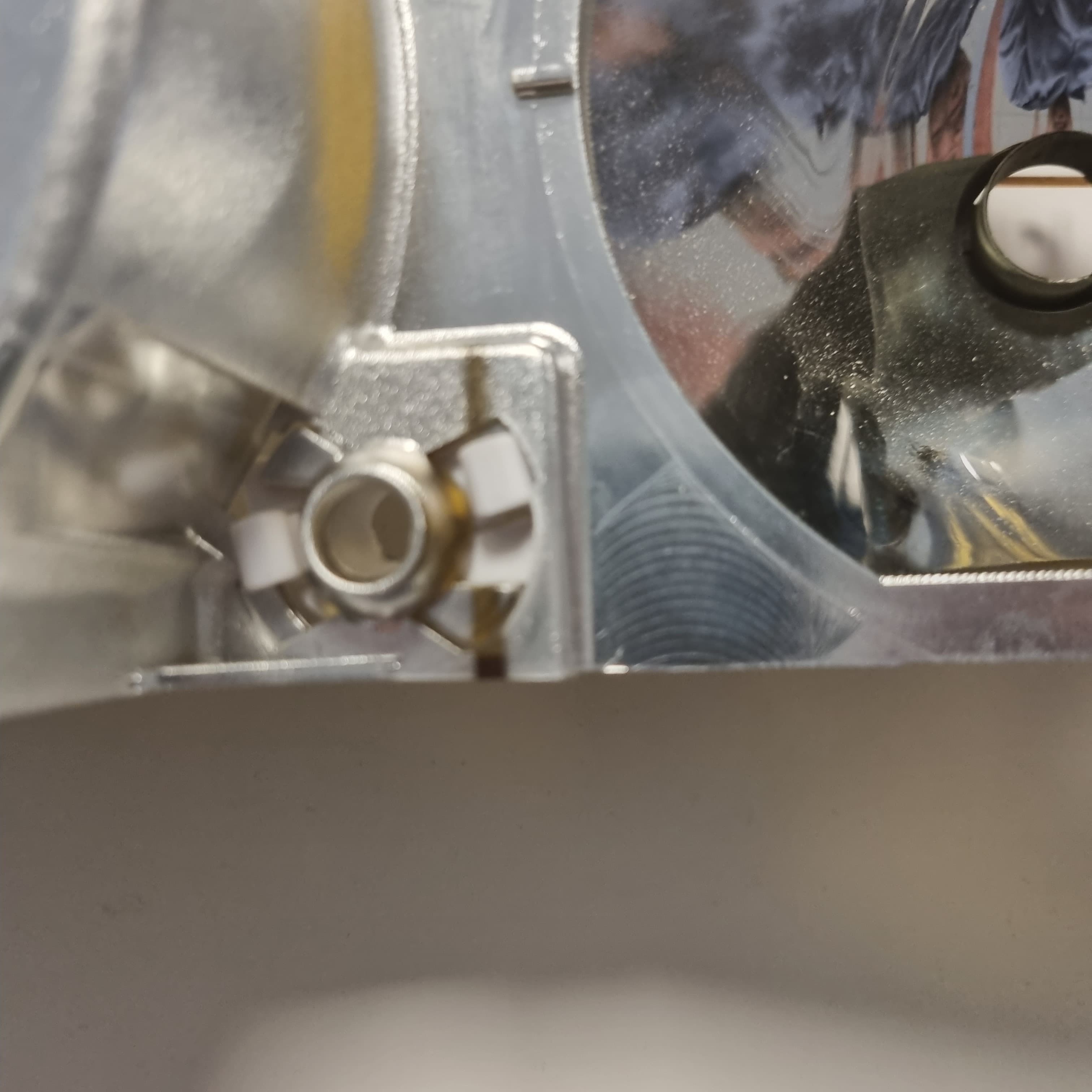

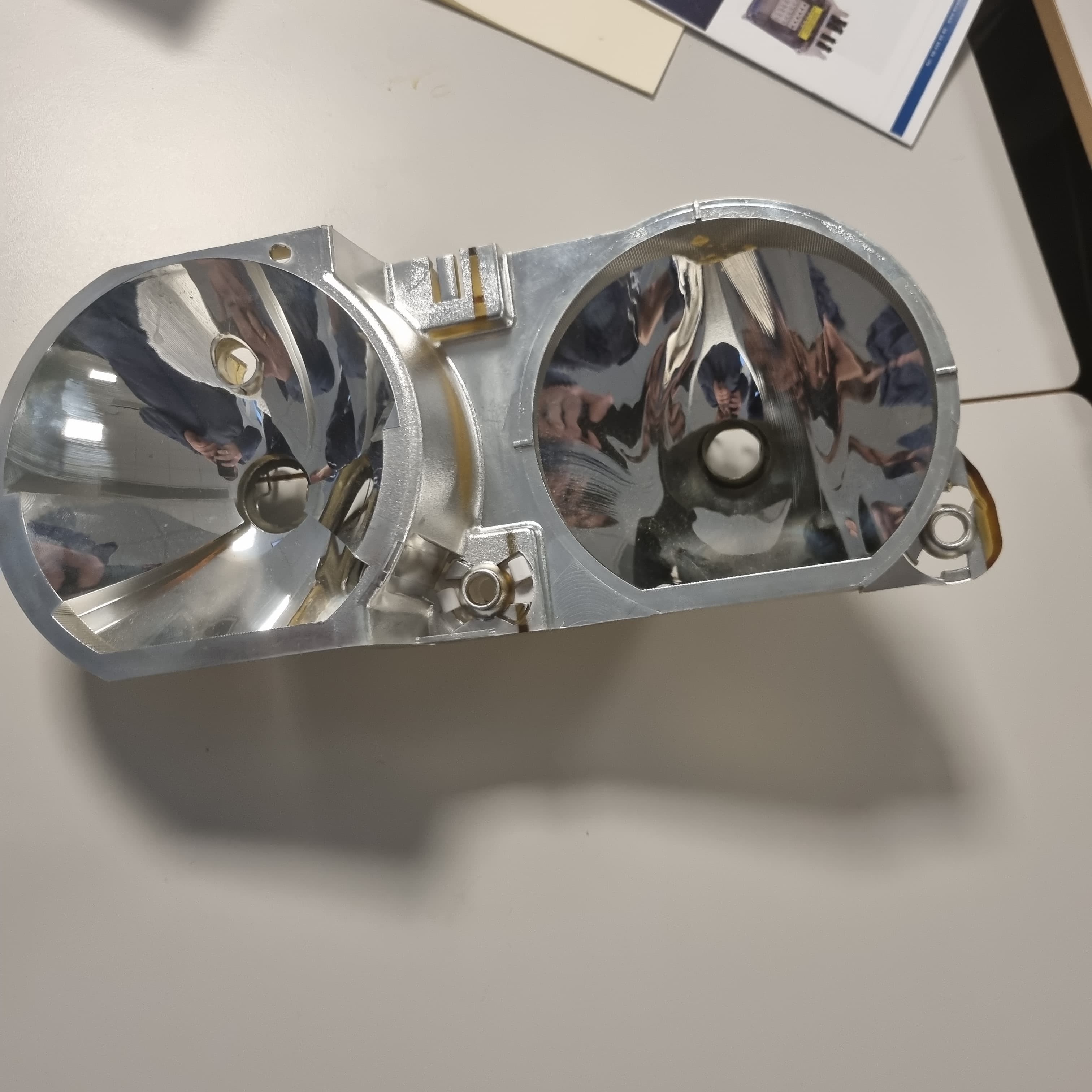

Replacement clip for retaining the rear lamp reflector on a BMW E34 when the small fastener is damaged but the reflector assembly remains serviceable. The source shows the original lamp hardware and recommends PETG with tree supports. Compare the clip pocket and reflector condition before installation; no parent lamp number is assigned.

View original source ↗
