Glovebox Damper Pin

REPLACES OEM51161828956

ABS · PETG1 FILECC-BY-NC-SAInterior

PART RECORDREF 1085

PART: Glovebox Damper Pin
OEM: 51161828956
FITS: 3 Series E21, 3 Series E30, 3 Series E46, 5 Series E28, 5 Series E34, 5 Series E39, 5 Series E60 / E61, 7 Series E38, 8 Series E31

Loading 3D viewer...

PART ID · BIMMER-3D / 1085QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

5 PLATES

PLATE 01 / 05No caption recorded

Build sheet

MAN-1085

[01]bmwe30_gloveboxdamperpin51-16-1-828-956-v7.stlbmwe30_gloveboxdamperpin51-16-1-828-956-v7.stl.STL
[02]Bounding box16.200 × 8.998 × 8.997 mm
[03]Volume346.511 mm³

Field notes

BY KOTYARKO_O

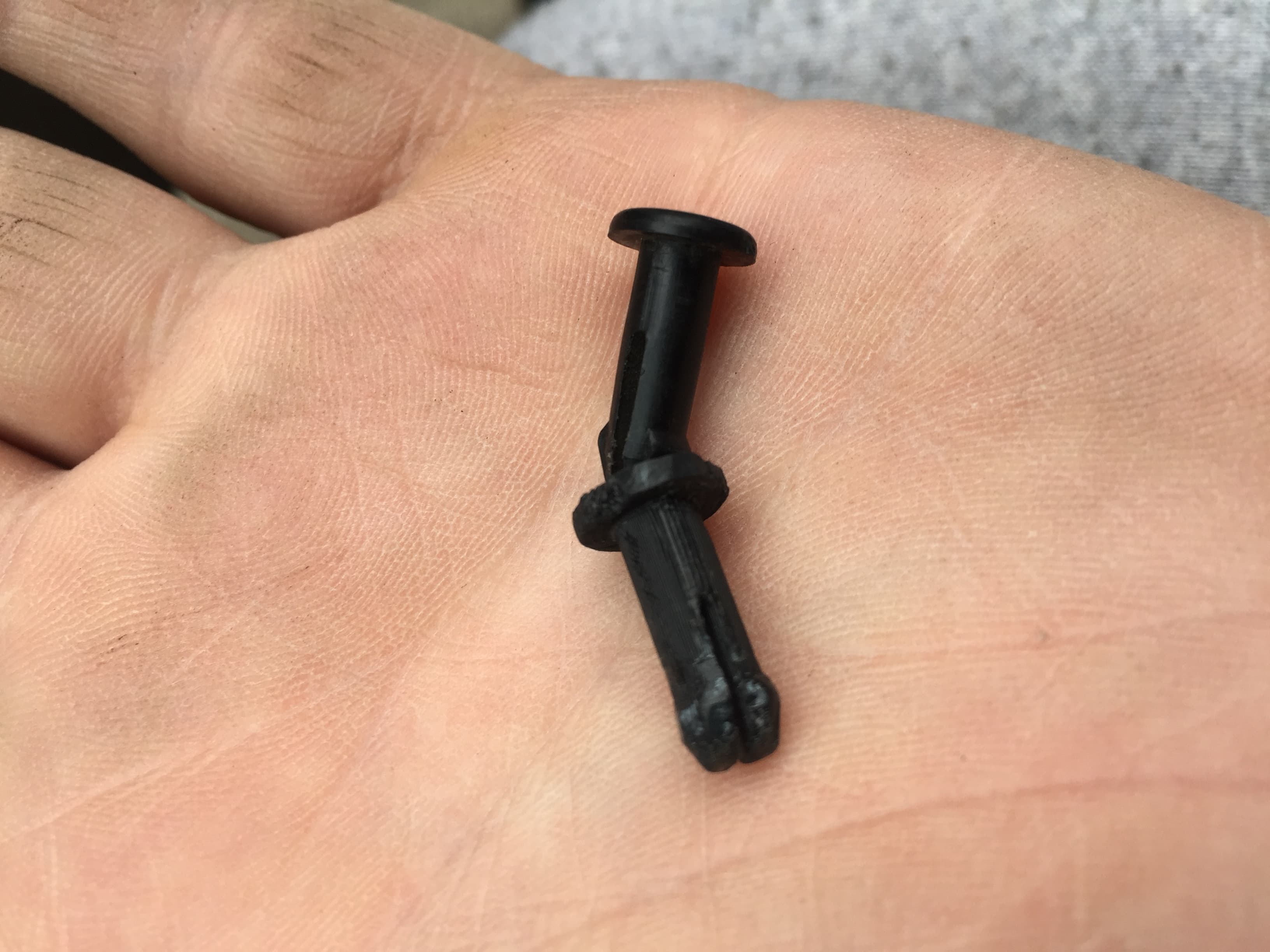

Dimensioned replacement glovebox damper pin for BMW E21, E28, E30, E31, E34, E38, E39, E46 and E60/E61. The creator identifies BMW pin 51161828956 and shows the physical result installed. Verify damper eye and panel thickness before fitting.

View original source ↗
