Battery Retaining Spacer

REPLACES OEM61211350825

ABS · PETG1 FILECC-BY-NC-SAElectrical

PART RECORDREF 1352

PART: Battery Retaining Spacer
OEM: 61211350825
FITS: 3 Series E30, 3 Series E46, 5 Series E34, 5 Series E39

Loading 3D viewer...

PART ID · BIMMER-3D / 1352QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

6 PLATES

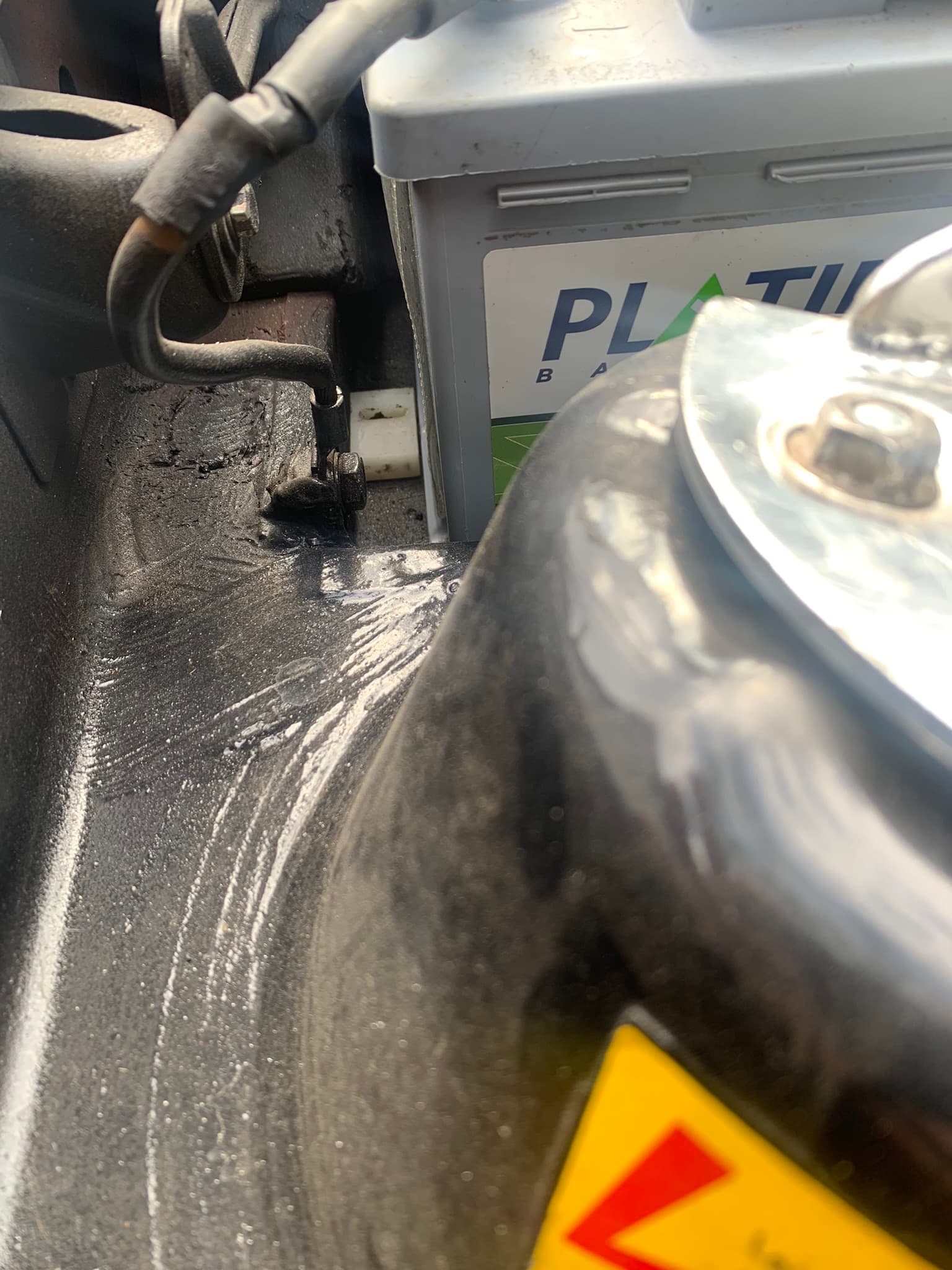

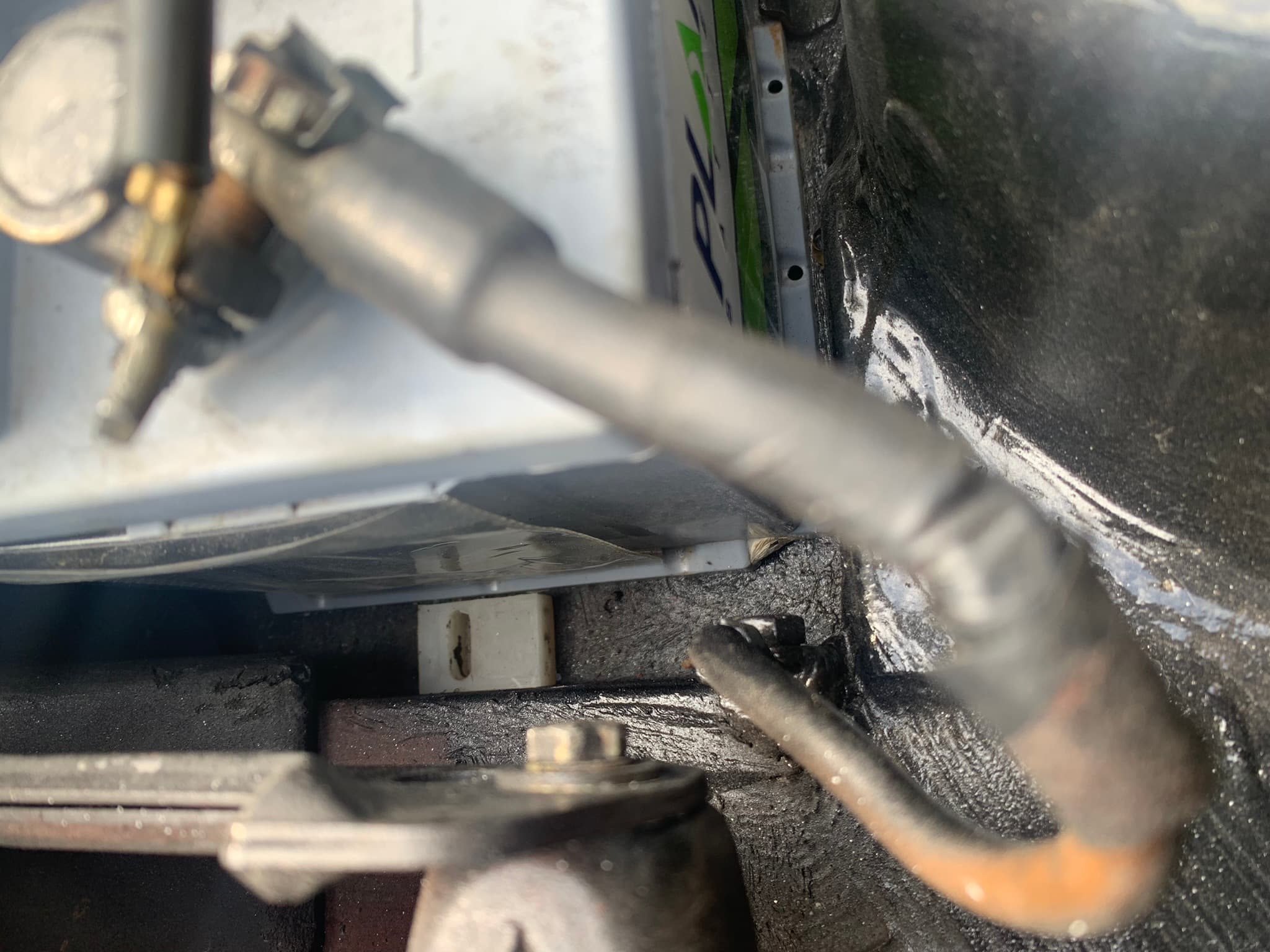

PLATE 01 / 06No caption recorded

Build sheet

MAN-1352

[01]bmwe30_batteryspacer61-21-1-350-825-v4.stlbmwe30_batteryspacer61-21-1-350-825-v4.stl.STL
[02]Bounding box33.500 × 22.500 × 20.500 mm
[03]Volume5,568.825 mm³

Field notes

BY KOTYARKO_O

Battery-retaining spacer reproduced from BMW component 61211350825 for E30, E34, E39 and E46. BMWFans identifies it as spacer 1350825 and confirms those chassis among broader BMW usage. Match battery size, tray slot and hold-down engagement, and do not use it to compensate for an incorrect battery or damaged clamp.

View original source ↗
