Lower Side-Panel Clip

ABS · Nylon · PETG1 FILECC-BYTrim Clips

PART RECORDREF 1343

PART: Lower Side-Panel Clip
OEM: —
FITS: 5 Series E34

Loading 3D viewer...

PART ID · BIMMER-3D / 1343QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

2 PLATES

PLATE 01 / 02No caption recorded

Build sheet

MAN-1343

[01]side_panel_clip.STLside_panel_clip.STL.STL
[02]Bounding box25.000 × 14.000 × 14.000 mm
[03]Volume1,095.55 mm³

Field notes

BY DMITRIY DMITRIY (BALINOF)

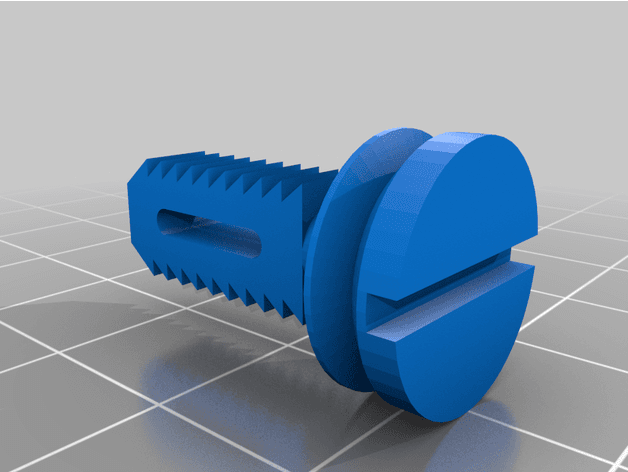

Replacement push clip for attaching the lower interior side panel in a BMW E34. The source is chassis-specific and supplies the mating clip geometry. Compare stem diameter and panel thickness with the surviving fastener and use a flexible, heat-tolerant material so removal does not damage the trim.

View original source ↗
