PART №1335
FROMBIMMER-3D-PARTSDESTWORKBENCH31 JUL 2026
Clip-In Gear Knob Set
ABS · PETGMULTI-PART4 FILESCC-BY-NC-SAInterior
- PART
- Clip-In Gear Knob Set
- OEM
- —
- FITS
- 1 Series E81 / E82 / E87 / E88, 3 Series E30, 3 Series E36, 3 Series E46, 5 Series E28, 5 Series E34, 5 Series E39, 5 Series E60 / E61, 6 Series E24, 7 Series E32, 7 Series E38, 8 Series E31, X3 E83, X5 E53, Z3 E36/7 / E36/8, Z4 E85 / E86, Z4 E89
Loading 3D viewer...
PART ID · BIMMER-3D / 1335QTY 4 · STLHANDLE · NO SUPPORTS
Field photographs
5 PLATES
PLATE 01 / 05No caption recorded
Build sheet

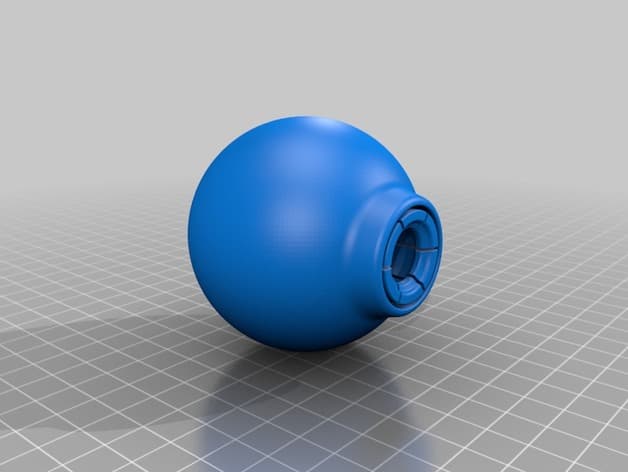

MAN-1335- [01]GearknobRound.stlGearknobRound.stl.STL

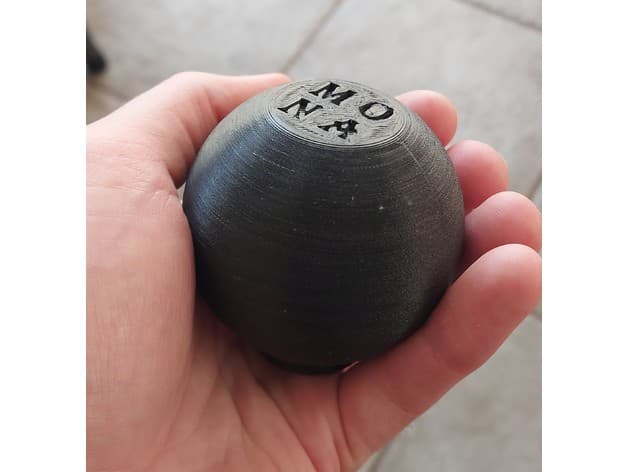

- [02]GearknobRoundMona.stlGearknobRoundMona.stl.STL

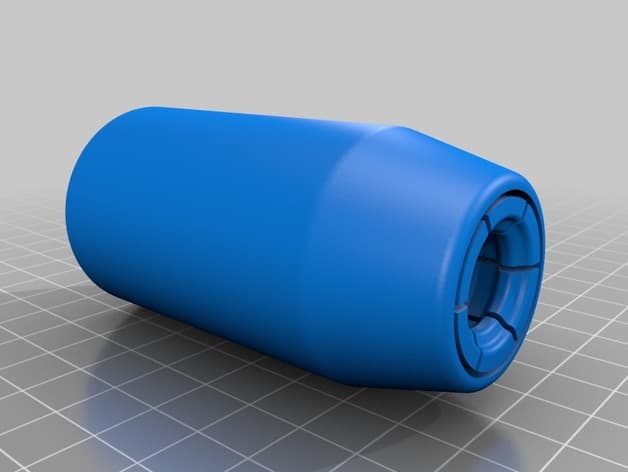

- [03]GearknobSlim.stlGearknobSlim.stl.STL

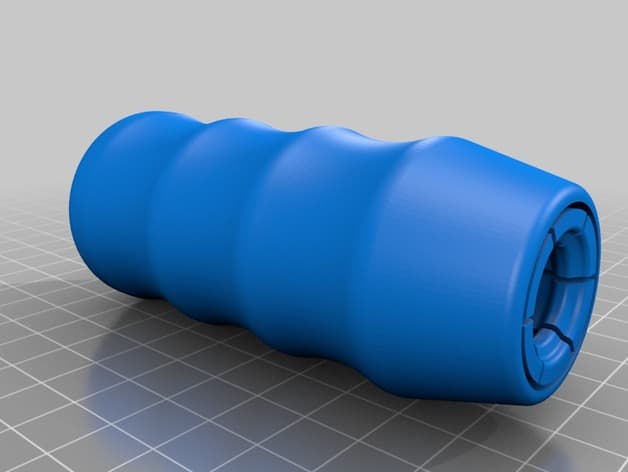

- [04]GearknobSlimRibbedV2.stlGearknobSlimRibbedV2.stl.STL
- [05]Bounding box151.478 × 97.500 × 64.500 mm
- [06]Volume309,252.203 mm³
Field notes
BY ADRIAN MARTINESCU (SOMETHIN6)Four clip-in replacement gear-knob shapes for the BMW E34 and the creator-listed classic BMW chassis. The design was developed around the common BMW latching stem and includes an installed physical example. Confirm the lever's clip profile and preserve full shift travel before driving; the grouped API fitments reproduce only chassis families explicitly listed by the creator.
