BMW 3 Series E36 3D-printable parts

Replacement clip for BMW door-sill/entry trim panels. The creator explicitly lists E21, E30, E36, E39, E46, E81/E82/E88, F20, E85 and related applications and identifies genuine BMW clip 51471840960. Verify the receiving-hole and trim thickness before fitting.

Printed cap wrench for the 76 mm, 14-flute oil-filter housing associated with BMW 11421715960. The creator physically demonstrates the tool and lists E30, E36, E46, E34 and Z3 applications; confirm cap size before applying torque.

Replacement side covers for BMW Reverse RDS, non-RDS, Bavaria and Business radios used in E30, E32, E34 and E36. The source shows physical fit and finish; BMWFans confirms covering cap 65126907823.

Straight and 90-degree two-piece shells for repairing disintegrated 2.5 mm watertight terminals on BMW E30, E36 and E46. The source shows completed physical connectors. Bond with suitable RTV and verify terminal lock, polarity, insulation and sealing.

Replacement plastic grommet used at E30 grille and rear license-plate mounting points, physically compared with the original. The creator also lists E36, E46, E90 and E92 applications; BMWFans confirms grommet 51131840154.

Two-piece conversion for the factory 1992–1999 E36 cupholder module, flattening and widening the support for modern cans and cups. The creator used the installed insert and documents 318i, 325i, 328i and M3 fitment. Use cabin-heat-resistant material and confirm the module still clips securely.

Left and right adapters for installing standard 5.25-inch rear speakers in the BMW E36 318ti Compact without cutting the original housings. The source shows the printed adapters, speaker assembly and installed housings. Verify speaker depth, wiring clearance and screw retention.

Three-gauge panel for the E36 sunglasses cubby, physically installed after widening the side clips by 2 mm. The uploaded orientation is for RHD; the creator directs LHD cars to mirror the model. Cutting the original cubby is required, so dry-fit the panel and preserve OBC and switch clearance.

Replacement beauty cap for M50, M52 and M54 engine-cover fasteners, physically shown on the engine. BMWFans identifies the exact component as cap 11121726089 and confirms E34, E36, E38, E39, E46, E53, E60/E61, E65/E66, E83, E85 and Z3 applications. Use engine-bay-rated material and keep it clear of hot or moving parts.

Contour spacer demonstrated with aftermarket side repeaters on BMW bodywork. The creator lists E36 from October 1996, E46 sedan/Touring, E60/E61, E81/E82/E87/E88 and E90–E93 applications. Test one side before mirroring and verify the repeater remains weather-sealed and positively retained.

14 mm hex-drive hand tool for the star-shaped cell caps on the original battery in a 1999 E36. The source shows both the printed wrench and matching battery caps. Use only with the battery isolated, wear eye protection, and do not short the terminals.

Adapter for a standard 100 mm rear ceiling speaker in a 1998 E36 318i Touring. The source physically shows the printed ring, speaker and installed assembly. Confirm cone, magnet, wiring and headliner clearance before fastening.

Replacement push rivet for the 16 mm rear carpet holes in BMW E36 luggage compartments. The creator shows the finished print installed in carpet. Print in a tough material, test removal on one location, and do not force it into a smaller opening.

Small repair cap for a damaged front-door tweeter grille on a BMW E36 325i. The source photo shows the original damage and repaired physical cover. Verify the cap cannot contact the speaker cone or loosen into the door.

Eight left/right repair rails for broken BMW E36 Coupe and M3 Coupe door-panel attachment areas. The source documents the physical repair and installed door panel. Bond and clamp each section on the correct side, allow full cure, and verify window and latch clearance.

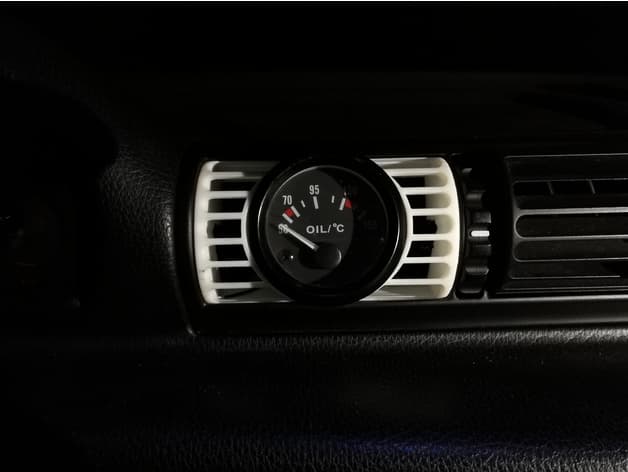

Replacement centre-vent insert measured from a BMW E36 323ti Compact and physically installed with a 52 mm gauge. It sacrifices vent airflow at that position; use cabin-heat-resistant material and verify gauge, wiring and dashboard clearance.

Press-fit E36 centre-console storage tray with separate coin and small-item areas, physically shown installed between the seats. Confirm it does not obstruct the handbrake, seat-belt buckles or seat travel.

Replacement interior door-trim clip traced from the original and modified for strength. The source physically compares the printed clip with the original. Test one clip for panel alignment and removal before replacing the full set.

Grooved replacement hook for the E36 Compact parcel-shelf cord, refined from the original model and physically compared with the stock hook. Print in a tough material and verify the cord releases without cracking the shelf.

Fourth-iteration replacement for the small slider-rail clip used in creator-listed E36, E39, E46 and E53 sunroofs. The source shows the physical print and a working demonstration. Use heat-resistant material and verify full sunroof travel, anti-pinch operation and water sealing before driving.

Left/right parcel-shelf support pin for BMW E36 Compact and E46 Compact, physically installed by the creator. BMWFans confirms the exact right support as 51468146708. Use a tough material and verify shelf engagement without overloading the side trim.

Multi-part repair set for BMW E36 passenger air-vent knobs, arms, plugs, lever, washer and connectors. The creator physically assembled and installed the revised parts. Select the matching left/right pieces and verify every louvre moves freely without binding.

Replacement tow-eye opening cover for the E36 M-Technic/M3-style rear bumper, physically compared with the original and shown installed. The creator reports a tight fit and optional spring-clip provision. The nearby catalog number identifies the parent trim panel, so no OEM number is assigned.

Service driver sized to install 168 mm differential output seals to the original depth on four-cylinder E36 and creator-listed Z3 applications. The source shows the physical tool on the differential. Use with a flat striking plate, measure seal depth, and inspect the seal lip before assembly.

Replacement holder for the BMW E36 engine-bay inspection lamp, physically printed by the creator. Use ABS, nylon or another engine-bay-rated material, secure the lamp wiring away from heat and moving components, and verify the lamp cannot detach.

67 mm cupholder and 54 mm reducer for the square opening ahead of the armrest in an E36 Compact. The source shows both sizes physically installed with 250 ml and 500 ml cans. Verify handbrake, shifter and armrest clearance before use.

50 mm inner-diameter service sleeve for pressing output-flange seals out of the 168 mm differential on a 1995 E36 318ti. The source shows the physical tool and flange. Support the housing correctly, keep the tool square, and do not reuse a damaged seal.

Blank plate for the E36 standard or M-style bumper fog-lamp opening, physically shown installed. The creator provides screw or drilled tie mounting. Use exterior-rated material and verify the plate is securely retained and does not obstruct required lighting or cooling.

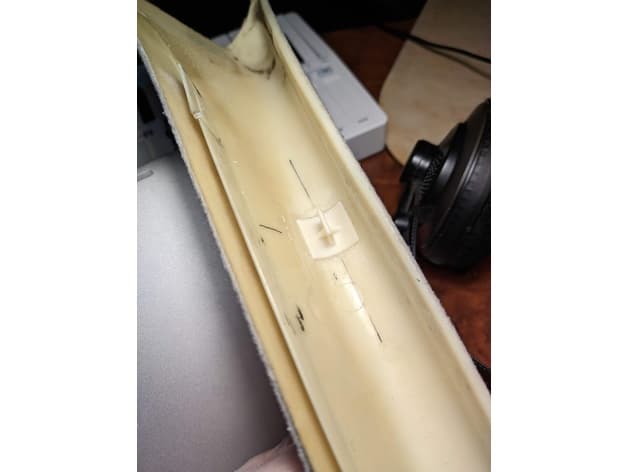

Three glue-in repair bases for the different upper, middle and lower clip positions on BMW E36 A-pillar trim. The source physically shows the damaged trim and provides position-specific geometry. Mark each original location and verify the trim remains secure around any curtain-free wiring or seals.

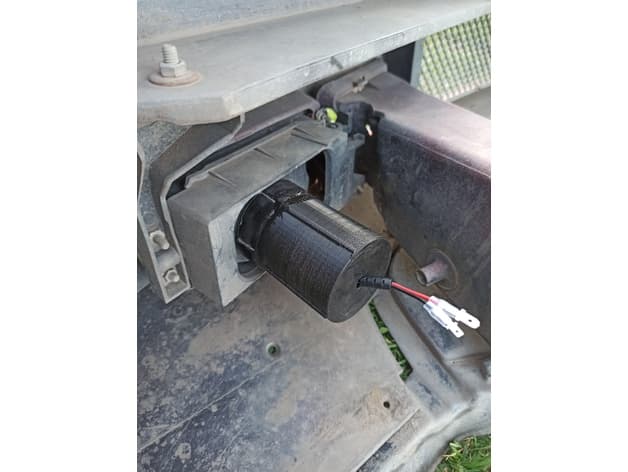

Rear-cap extension physically fitted to an original BMW E36 fog lamp to clear the cooling fan on an LED replacement bulb while retaining the stock cap. Check bulb legality, connector strain, weather sealing, lamp clearance and heat before road use.

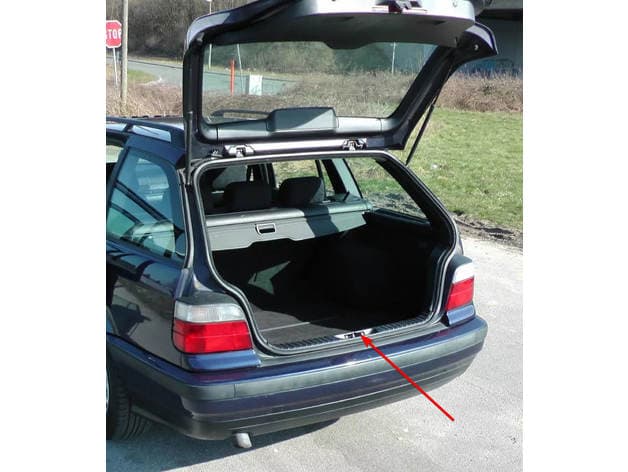

Direct replacement retainer for the BMW E36 Touring tailgate trim, physically shown installed at the lower edge of the open tailgate. Print in a tough material and confirm every stud and clip seats without distorting the trim.

Replacement spacer for the front drink recess in the BMW E36 factory centre-console cupholder, physically shown installed. The creator lists accessory number 82111469119, but it was not independently resolved to this printed subcomponent and is intentionally omitted.

Replacement inner translucent rocker for the BMW E36 power-window switch, physically compared with the original switch. The listed 61318365300 identifies the complete switch assembly, not this printed insert, so no OEM number is assigned. Use heat-resistant translucent material and verify return, illumination and anti-pinch operation.

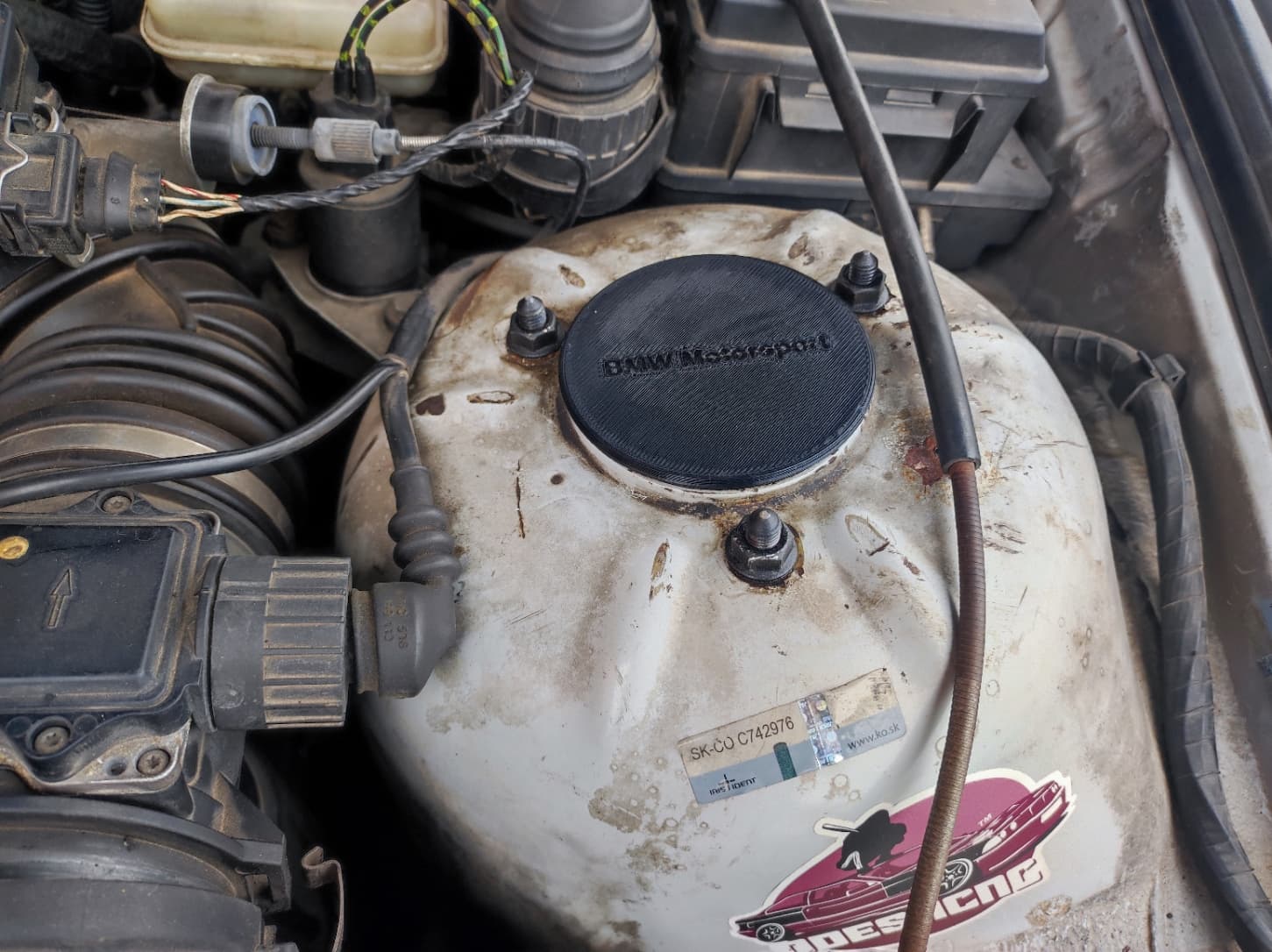

Protective cap for the upper front strut bearing on a BMW E36, physically shown printed and installed in the engine bay. Use engine-bay-rated material and confirm it clears the strut brace, nut and suspension movement.

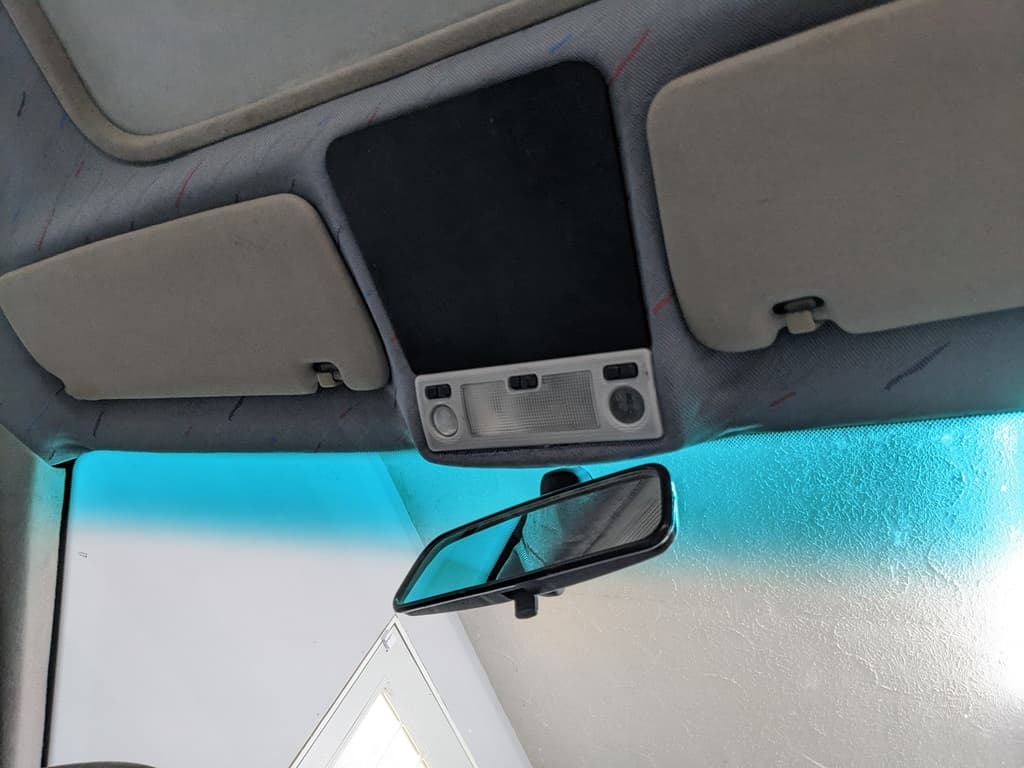

Replacement sunroof-motor cover for BMW E36 Coupe, with separate switch-cutout and plain versions plus the source 3MF. The source shows a finished print and physical installation. Use cabin-heat-resistant material and verify switch, motor, headliner and retaining-clip clearance.

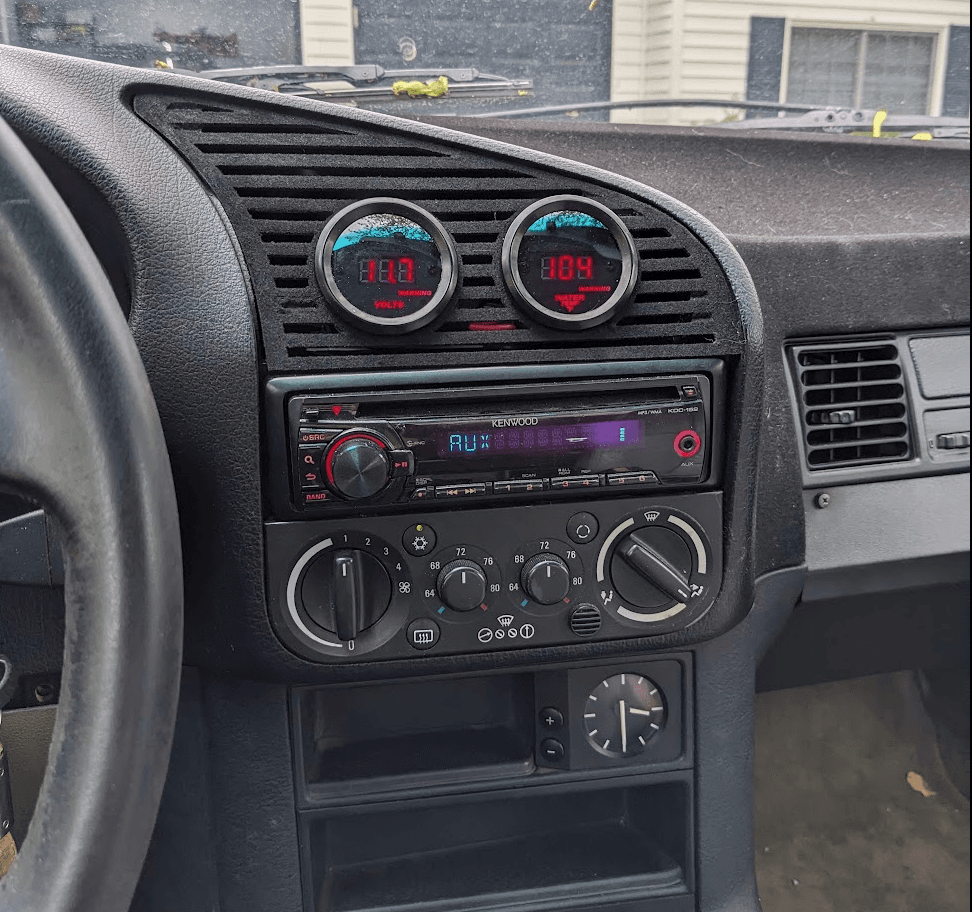

Two-gauge replacement for the BMW E36 centre vent. Only the physically printed and installed double-52 mm variant is retained from the source; its other untested variants are excluded. Confirm gauge depth, wiring, visibility and remaining demist airflow.

Two-file AEM-style and generic 52 mm gauge mount for the BMW E36 driver-side vent, physically installed and photographed. It preserves the centre vent but replaces airflow at this position. Verify gauge depth, wiring, sightline and steering clearance.

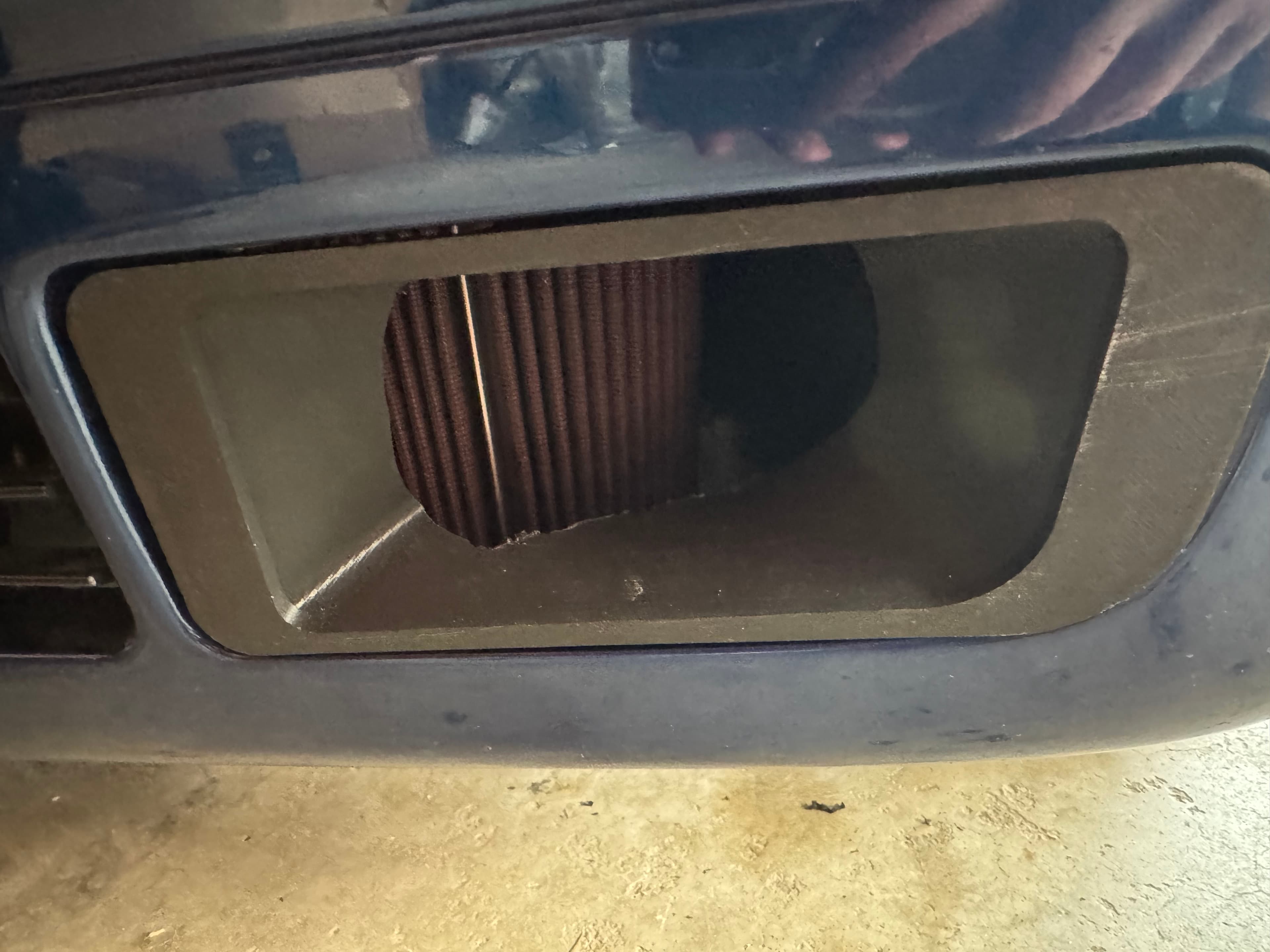

Four-piece E36 bumper-inlet duct inspired by the Dinan layout and physically shown installed between the bumper opening and air filter. Print in heat- and impact-resistant material, bond the sections securely, and verify filter, fan, belt, water-ingress and road-clearance conditions on the exact car.

Replacement left/right lower clip-holder geometry for BMW E36 Compact door panels, supplied because the holders were available only with complete discontinued door cards. The source shows physical prints. Match the original position, bond securely and verify window and latch clearance.

I used it for my BMW E46 and it is very sturdy. You can use a 32mm Hex Nut or a 1/2" square wrench to open the oil filter cap. The Tool on the picture was an earlier smaller version but it broke. Use the specified automotive-grade material, keep the tool square and inspect the serviced component before reassembly.

Adjustable clutch-pedal stop body for manual-transmission BMW E28 and other listed classic BMW chassis. Assembly requires an M10 screw, two M10 nuts, a 40 mm washer and a genuine-style rubber cap. Adjust only far enough to remove excess pedal travel while preserving complete clutch disengagement, then lock the nuts securely and re-check operation before driving.

Four clip-in replacement gear-knob shapes for the BMW E34 and the creator-listed classic BMW chassis. The design was developed around the common BMW latching stem and includes an installed physical example. Confirm the lever's clip profile and preserve full shift travel before driving; the grouped API fitments reproduce only chassis families explicitly listed by the creator.

Two-piece repair bushing for the riveted rear window-regulator slider used on BMW E32, E34 and E36. The creator built it for a personal repair so the original rivet can remain in place, and retained the two halves with friction plus an O-ring. Inspect the regulator, lubricate the guide correctly and confirm smooth glass travel before refitting trim.

Replacement black blanking cover for an unused dashboard switch opening on BMW E32, E34, E36 and Z3. The source gives interchange number 51161963979, which BMWFans confirms as black cover 1963979 produced from April 1987; the alternate 51161963987 could not be catalog-confirmed and is intentionally omitted. Check color, opening and switch-bank configuration.

Update: Few of those broke using PLA 0.8 width, infill 10-25%. I suggest you print with 3 layers width (or more?). I will do a redesign to fix the weak point from printing prescriptive. This is my design for BMW floor mat holder (E36 E46 E38 E39) . Top part fits nice and works like a charm. I would say it even holds better than original one. As for the washer (bottom one) I haven't got it in real life so I've designed whatever I thought was suitable. Tested with PLA. Lay it down to print upside down. For now tests are held only in V1 version. Version 1: - Design created. Printed with CURA supports Version 2: - Added supports included in file. Gap is 0.15mm - Redesign of top part "head" - Added washer BMW part number (exemplary) 51478116564 51478183027 51478183028 51478183029 51471881521 Only the creator-tested V1 fastener is retained; the untested V2 washer and supported variant are excluded. Verify dimensions against the original part and confirm full operation before regular use.

Replacement for BMW OEM part 51478230749 (Support for Tension Strap). Used to secure the trunk floor panel in BMW E39 E36 models. Printing recommendation: For maximum strength, print the part at a 45° angle using supports. This print orientation improves layer adhesion in the areas subjected to the highest load, resulting in a stronger and more durable part. BMW catalog lists support 51478230749 from 1996-09 and records bilateral interchangeability with superseded 51478197822; retain the creator-listed E36/E39 fitment. Verify dimensions against the original part and confirm full operation before regular use.
