Double 52 mm Centre-Vent Gauge Panel

ABS · PETG1 FILECC-BYDashboard

PART RECORDREF 1174

PART: Double 52 mm Centre-Vent Gauge Panel
OEM: —
FITS: 3 Series E36

Loading 3D viewer...

PART ID · BIMMER-3D / 1174QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

4 PLATES

PLATE 01 / 04No caption recorded

Build sheet

MAN-1174

[01]e36-centervent-double.stle36-centervent-double.stl.STL
[02]Bounding box241.442 × 117.124 × 40.127 mm
[03]Volume34,857.168 mm³

Field notes

BY RICHARD FRANKS

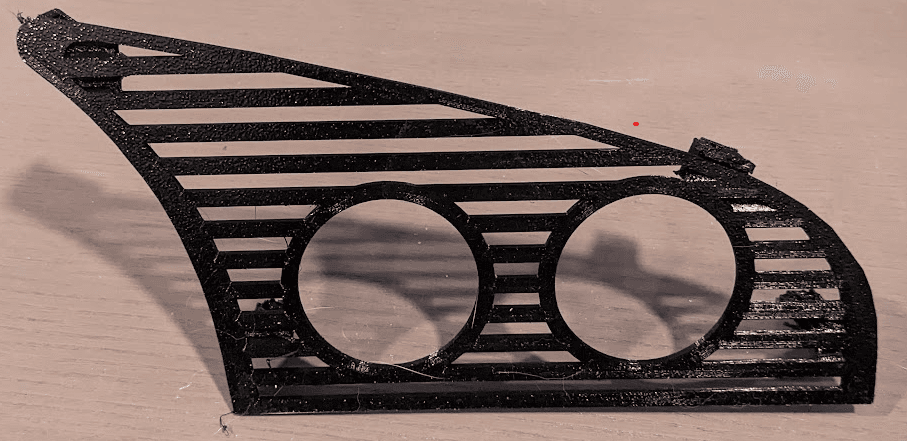

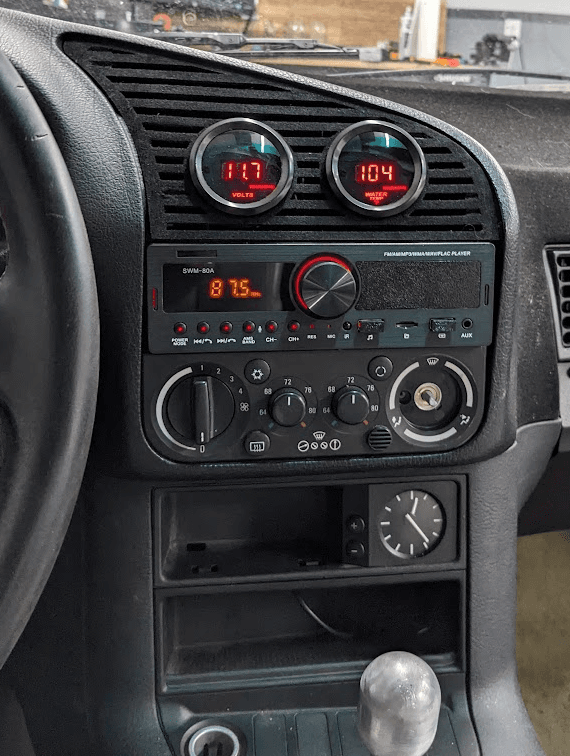

Two-gauge replacement for the BMW E36 centre vent. Only the physically printed and installed double-52 mm variant is retained from the source; its other untested variants are excluded. Confirm gauge depth, wiring, visibility and remaining demist airflow.

View original source ↗
