52 mm Driver-Side Vent Gauge Mount

ABS · PETGMULTI-PART2 FILESCC-BY-NCDashboard

PART RECORDREF 1175

PART: 52 mm Driver-Side Vent Gauge Mount
OEM: —
FITS: 3 Series E36

Loading 3D viewer...

PART ID · BIMMER-3D / 1175QTY 2 · STLHANDLE · NO SUPPORTS

Field photographs

5 PLATES

PLATE 01 / 05No caption recorded

Build sheet

MAN-1175

[01]BMW e36 Vent Gauge 52 mm (AEM style).stlBMW e36 Vent Gauge 52 mm (AEM style).stl.STL
[02]BMW e36 Vent Gauge 52 mm (Generic).stlBMW e36 Vent Gauge 52 mm (Generic).stl.STL
[03]Bounding box121.778 × 115.063 × 67.429 mm
[04]Volume119,145.299 mm³

Field notes

BY BLTNOLETTUCE

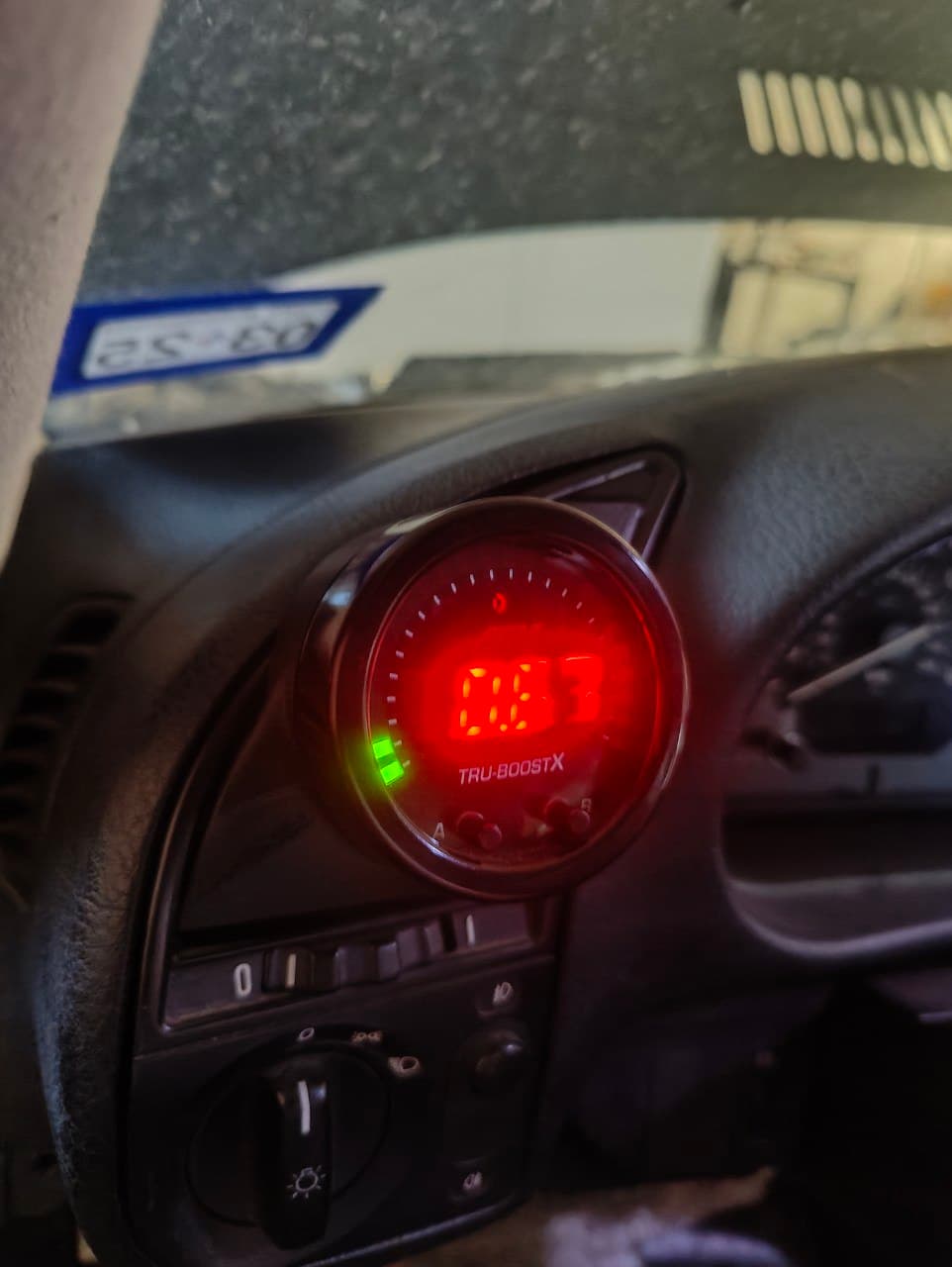

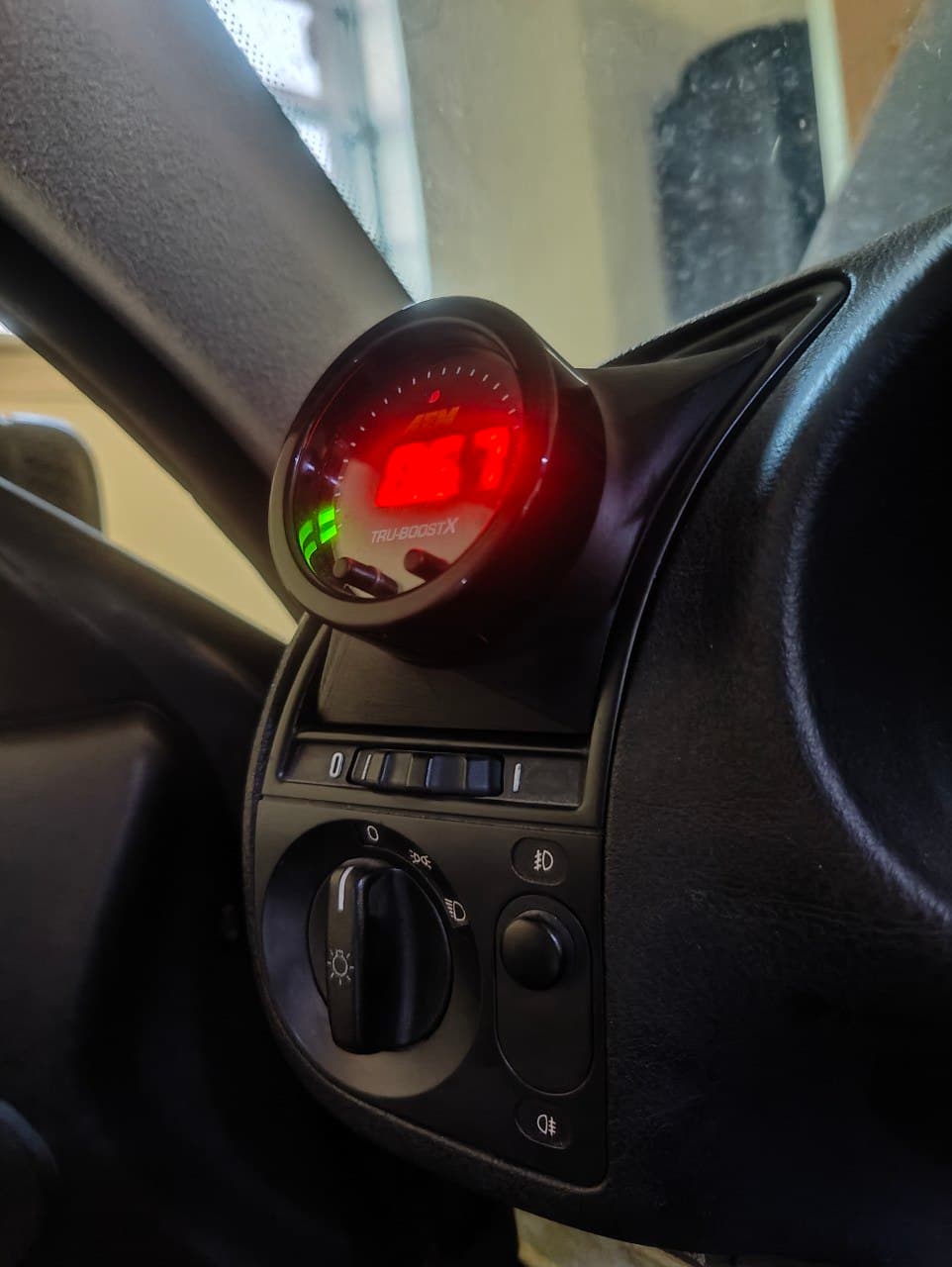

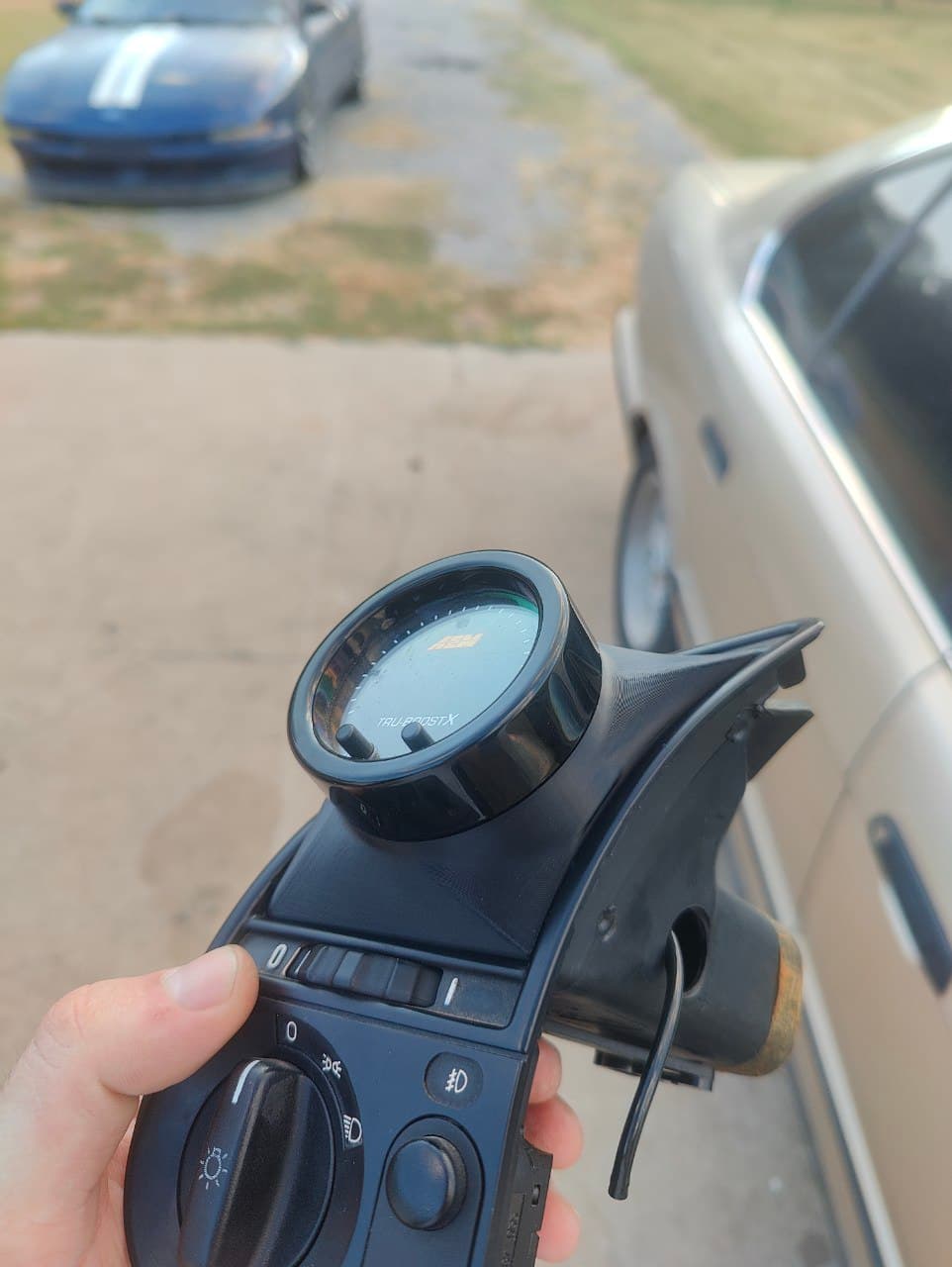

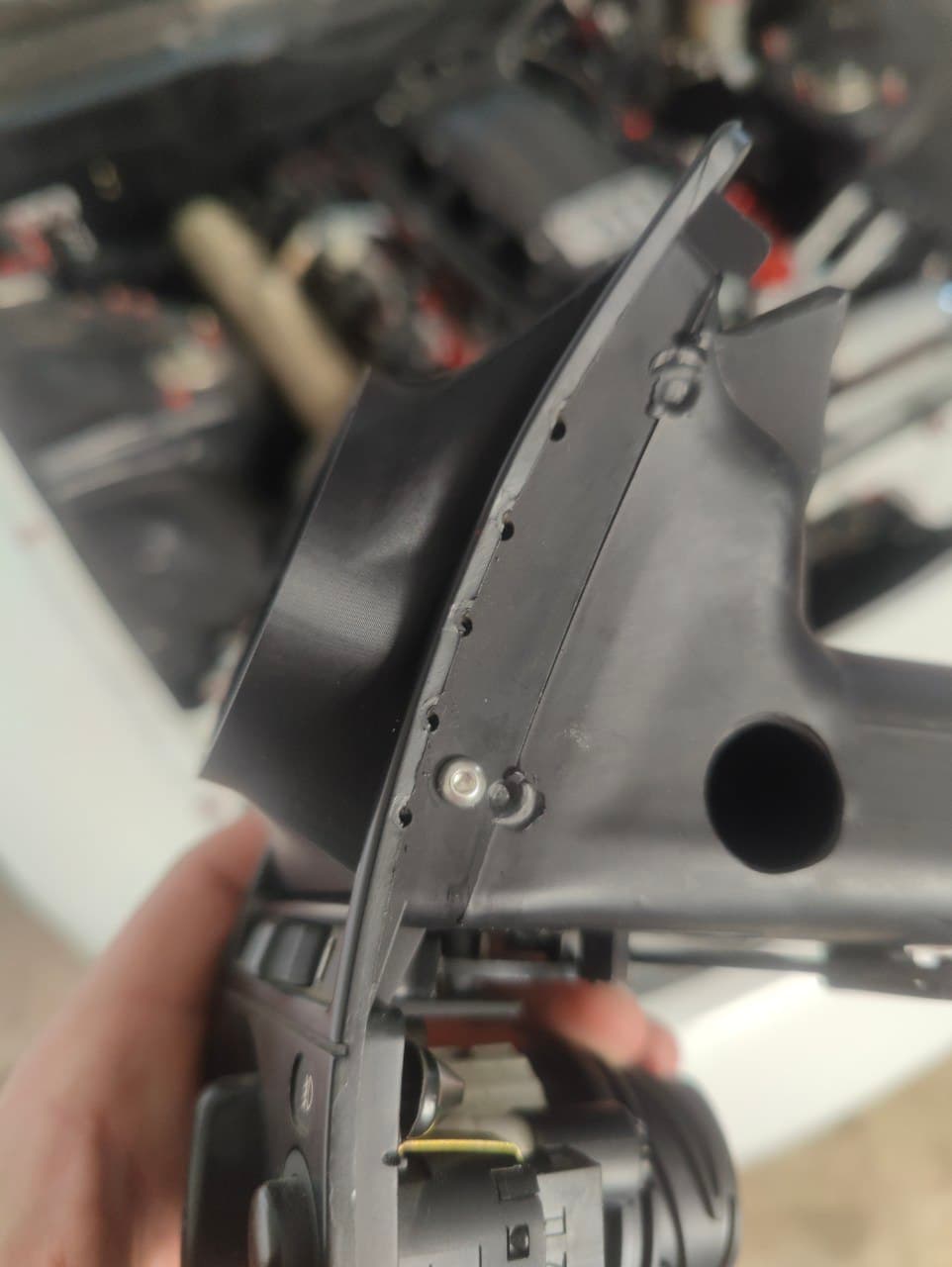

Two-file AEM-style and generic 52 mm gauge mount for the BMW E36 driver-side vent, physically installed and photographed. It preserves the centre vent but replaces airflow at this position. Verify gauge depth, wiring, sightline and steering clearance.
