Power-Window Switch Inner Rocker

ABS · PETG1 FILEPublic DomainElectrical

PART RECORDREF 1171

PART: Power-Window Switch Inner Rocker
OEM: —
FITS: 3 Series E36

Loading 3D viewer...

PART ID · BIMMER-3D / 1171QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

3 PLATES

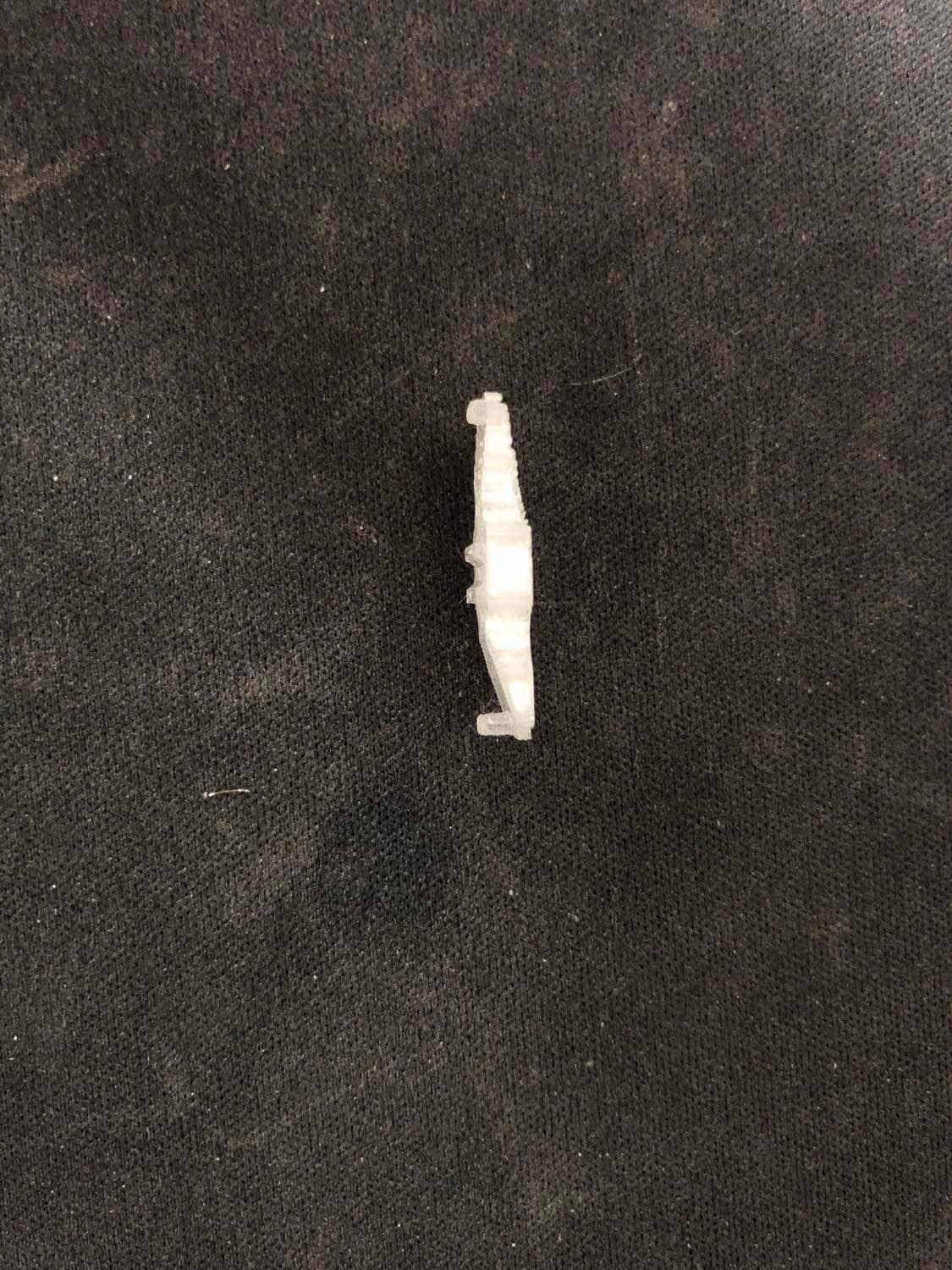

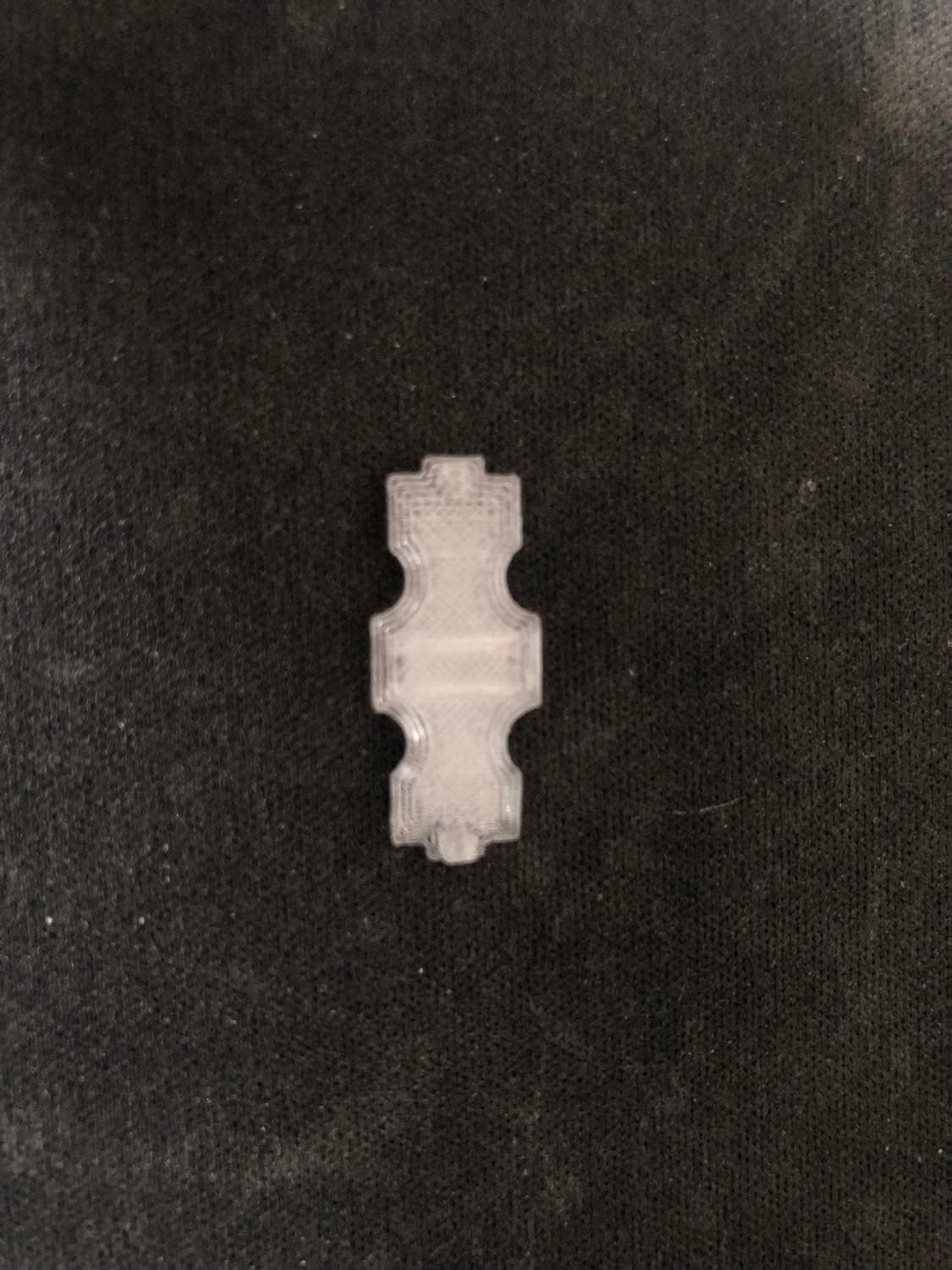

PLATE 01 / 03No caption recorded

Build sheet

MAN-1171

[01]E36 window switch inner piece.3mfE36 window switch inner piece.3mf.STL
[02]Bounding box24.200 × 10.000 × 3.750 mm
[03]Volume447.002 mm³

Field notes

BY KONKEY DONG

Replacement inner translucent rocker for the BMW E36 power-window switch, physically compared with the original switch. The listed 61318365300 identifies the complete switch assembly, not this printed insert, so no OEM number is assigned. Use heat-resistant translucent material and verify return, illumination and anti-pinch operation.
