323ti Compact 52 mm Centre-Vent Gauge Insert

ABS · PETG1 FILECC-BY-NCDashboard

PART RECORDREF 1154

PART: 323ti Compact 52 mm Centre-Vent Gauge Insert
OEM: —
FITS: 3 Series E36

Loading 3D viewer...

PART ID · BIMMER-3D / 1154QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

4 PLATES

PLATE 01 / 04No caption recorded

Build sheet

MAN-1154

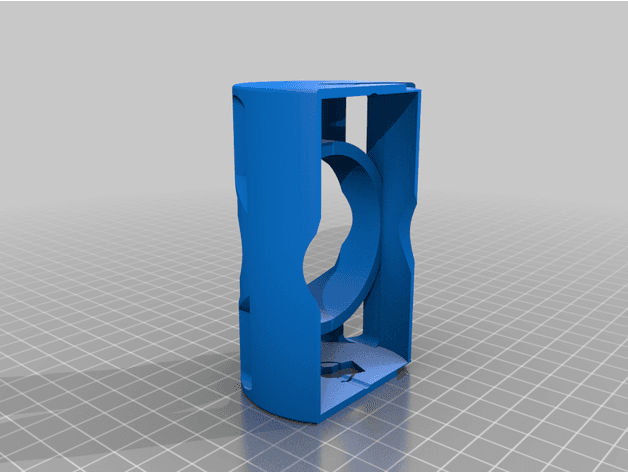

[01]airvent_e36_compact_52mm.stlairvent_e36_compact_52mm.stl.STL
[02]Bounding box93.000 × 56.998 × 43.500 mm
[03]Volume27,376.9 mm³

Field notes

BY PASCAL KIRCHHOFF (DRRAY)

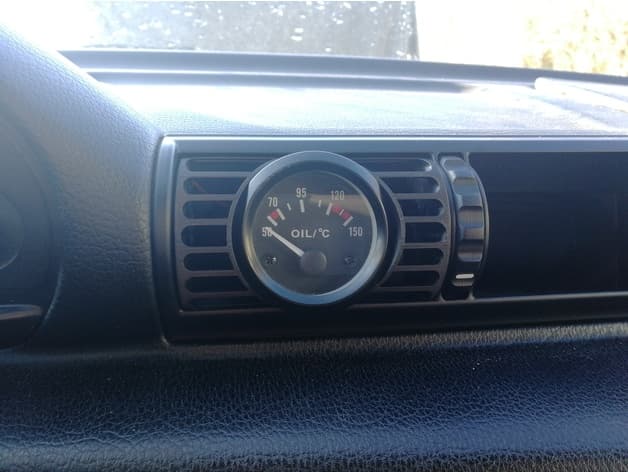

Replacement centre-vent insert measured from a BMW E36 323ti Compact and physically installed with a 52 mm gauge. It sacrifices vent airflow at that position; use cabin-heat-resistant material and verify gauge, wiring and dashboard clearance.
