Interior Door-Trim Attachment Clip

ABS · Nylon1 FILECC-BYTrim Clips

PART RECORDREF 1156

PART: Interior Door-Trim Attachment Clip
OEM: —
FITS: 3 Series E36

Loading 3D viewer...

PART ID · BIMMER-3D / 1156QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

2 PLATES

PLATE 01 / 02No caption recorded

Build sheet

MAN-1156

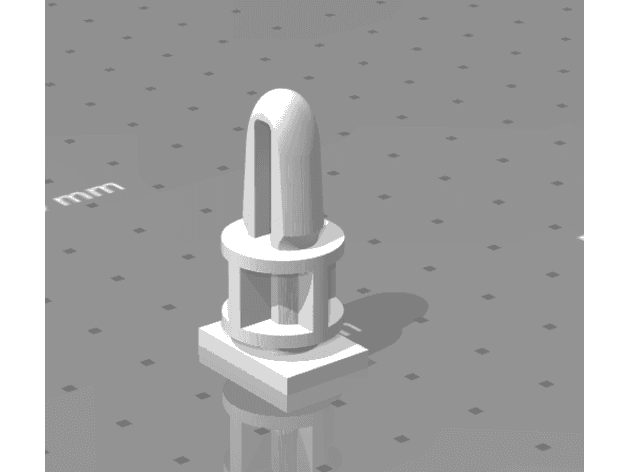

[01]E36_Clip_Trim.stlE36_Clip_Trim.stl.STL
[02]Bounding box30.205 × 15.520 × 12.993 mm
[03]Volume1,657.176 mm³

Field notes

BY AZRUDI MUSTAPHA (ALEDRUS)

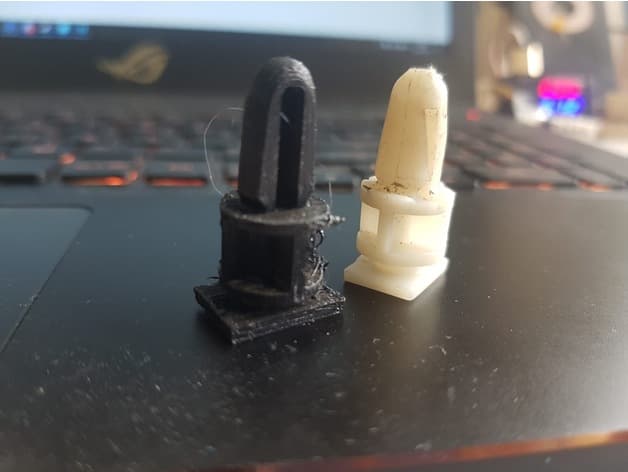

Replacement interior door-trim clip traced from the original and modified for strength. The source physically compares the printed clip with the original. Test one clip for panel alignment and removal before replacing the full set.
