A-Pillar Trim Clip Repair Bundle
ABS · NylonMULTI-PART3 FILESCC-BY-NCTrim Clips
- PART
- A-Pillar Trim Clip Repair Bundle
- OEM
- —
- FITS
- 3 Series E36
Loading 3D viewer...
PART ID · BIMMER-3D / 1167QTY 3 · STLHANDLE · NO SUPPORTS
Field photographs
5 PLATES
PLATE 01 / 05No caption recorded
Build sheet

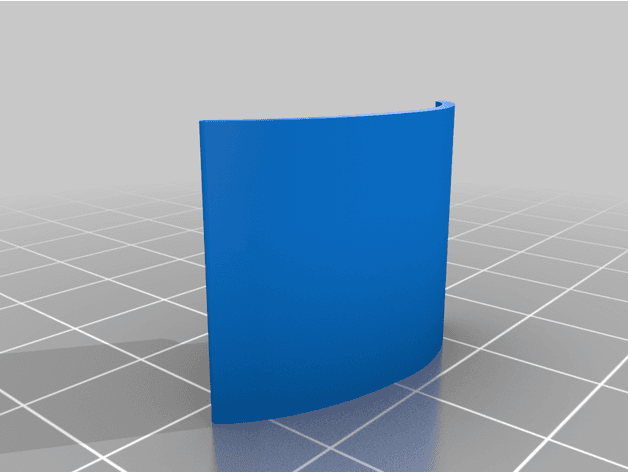

MAN-1167- [01]bmw_a_pillar_cover_fix_bot.stlbmw_a_pillar_cover_fix_bot.stl.STL

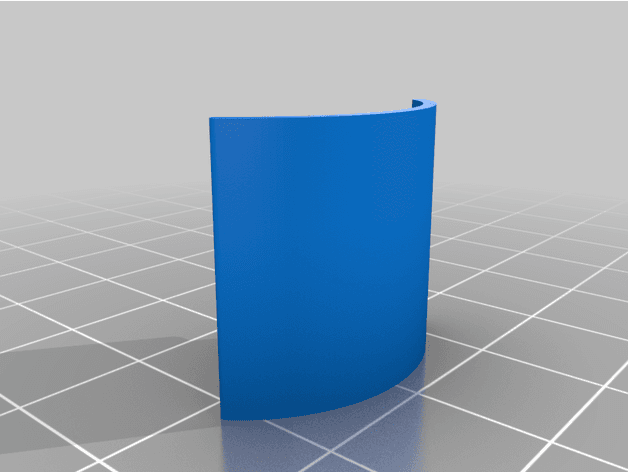

- [02]bmw_a_pillar_cover_fix_mid.stlbmw_a_pillar_cover_fix_mid.stl.STL

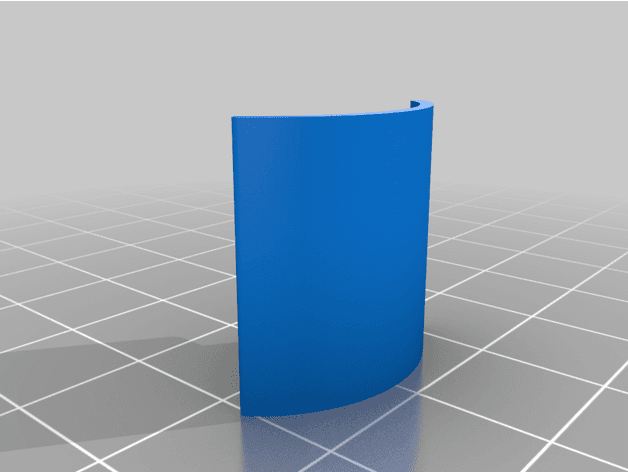

- [03]bmw_a_pillar_cover_fix_top.stlbmw_a_pillar_cover_fix_top.stl.STL
- [04]Bounding box69.665 × 20.000 × 16.503 mm
- [05]Volume2,824.654 mm³
Field notes

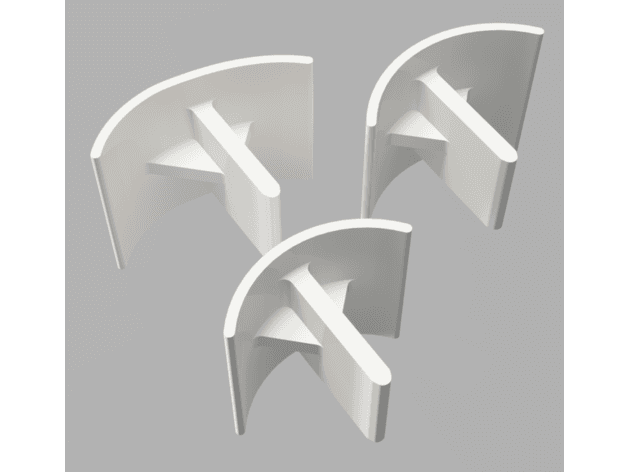

BY SEMEN KORNYUKHIN (BELLESLETTRES)Three glue-in repair bases for the different upper, middle and lower clip positions on BMW E36 A-pillar trim. The source physically shows the damaged trim and provides position-specific geometry. Mark each original location and verify the trim remains secure around any curtain-free wiring or seals.
