Coupe Door-Panel Repair Rail Set

ABS · NylonMULTI-PART8 FILESCC-BYDoors

PART RECORDREF 1153

PART: Coupe Door-Panel Repair Rail Set
OEM: —
FITS: 3 Series E36

Loading 3D viewer...

PART ID · BIMMER-3D / 1153QTY 8 · STLHANDLE · NO SUPPORTS

Field photographs

6 PLATES

PLATE 01 / 06No caption recorded

Build sheet

MAN-1153

[01]BMW_door_repair_L1.stlBMW_door_repair_L1.stl.STL
[02]BMW_door_repair_L2.stlBMW_door_repair_L2.stl.STL
[03]BMW_door_repair_L3.stlBMW_door_repair_L3.stl.STL
[04]BMW_door_repair_L4.stlBMW_door_repair_L4.stl.STL
[05]BMW_door_repair_R1.stlBMW_door_repair_R1.stl.STL
[06]BMW_door_repair_R2.stlBMW_door_repair_R2.stl.STL
[07]BMW_door_repair_R3.stlBMW_door_repair_R3.stl.STL
[08]BMW_door_repair_R4.stlBMW_door_repair_R4.stl.STL
[09]Bounding box208.604 × 148.620 × 32.000 mm
[10]Volume617,013.395 mm³

Field notes

BY JOSÉ ANJOS (ANJOZE)

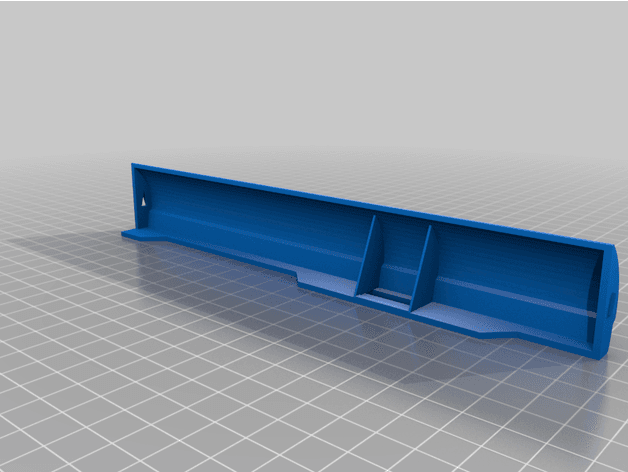

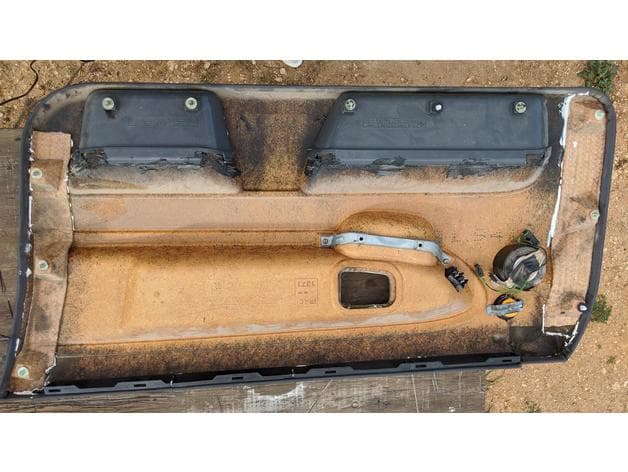

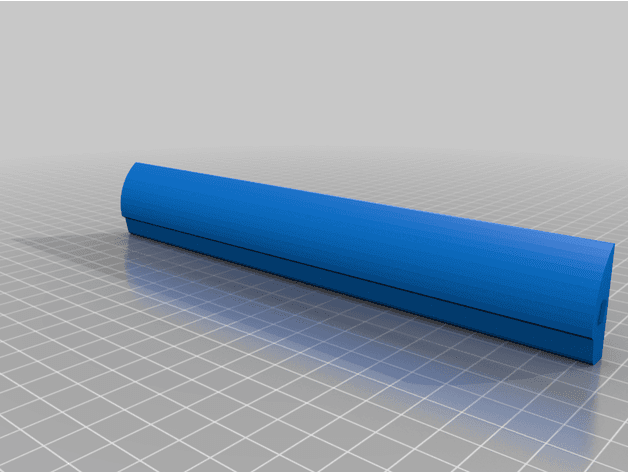

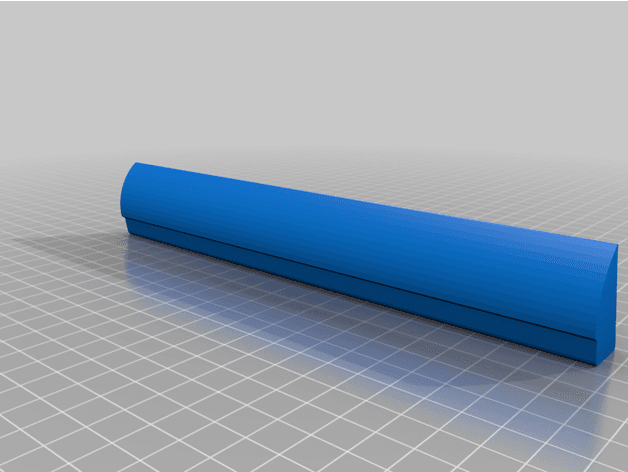

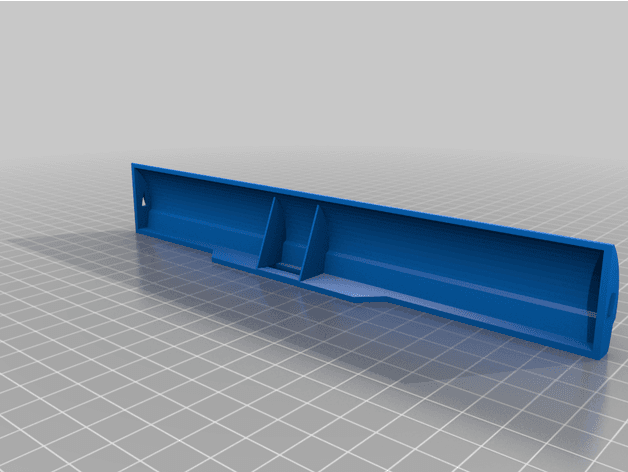

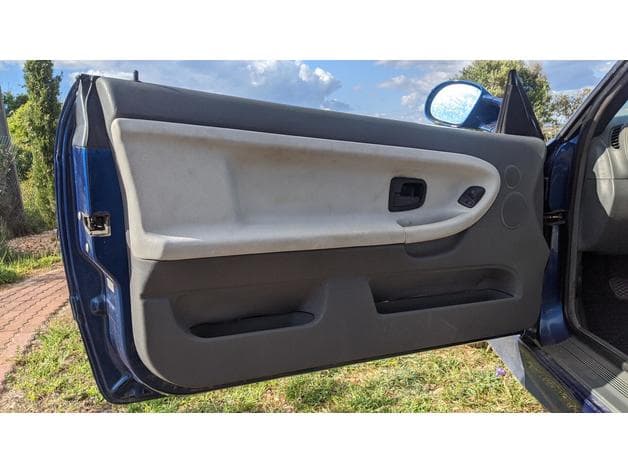

Eight left/right repair rails for broken BMW E36 Coupe and M3 Coupe door-panel attachment areas. The source documents the physical repair and installed door panel. Bond and clamp each section on the correct side, allow full cure, and verify window and latch clearance.
