Bumper-Inlet Airbox Duct

ABS · NylonMULTI-PART4 FILESCC-BYMechanical

PART RECORDREF 1176

PART: Bumper-Inlet Airbox Duct
OEM: —
FITS: 3 Series E36

Loading 3D viewer...

PART ID · BIMMER-3D / 1176QTY 4 · STLHANDLE · NO SUPPORTS

Field photographs

3 PLATES

PLATE 01 / 03No caption recorded

Build sheet

MAN-1176

[01]bottom-intake-part.stlbottom-intake-part.stl.STL
[02]coupler.stlcoupler.stl.STL
[03]middle-intake-part.stlmiddle-intake-part.stl.STL
[04]top-intake-part.stltop-intake-part.stl.STL
[05]Bounding box23.752 × 5.933 × 3.804 mm
[06]Volume24.878 mm³

Field notes

BY ULTRAREIGN

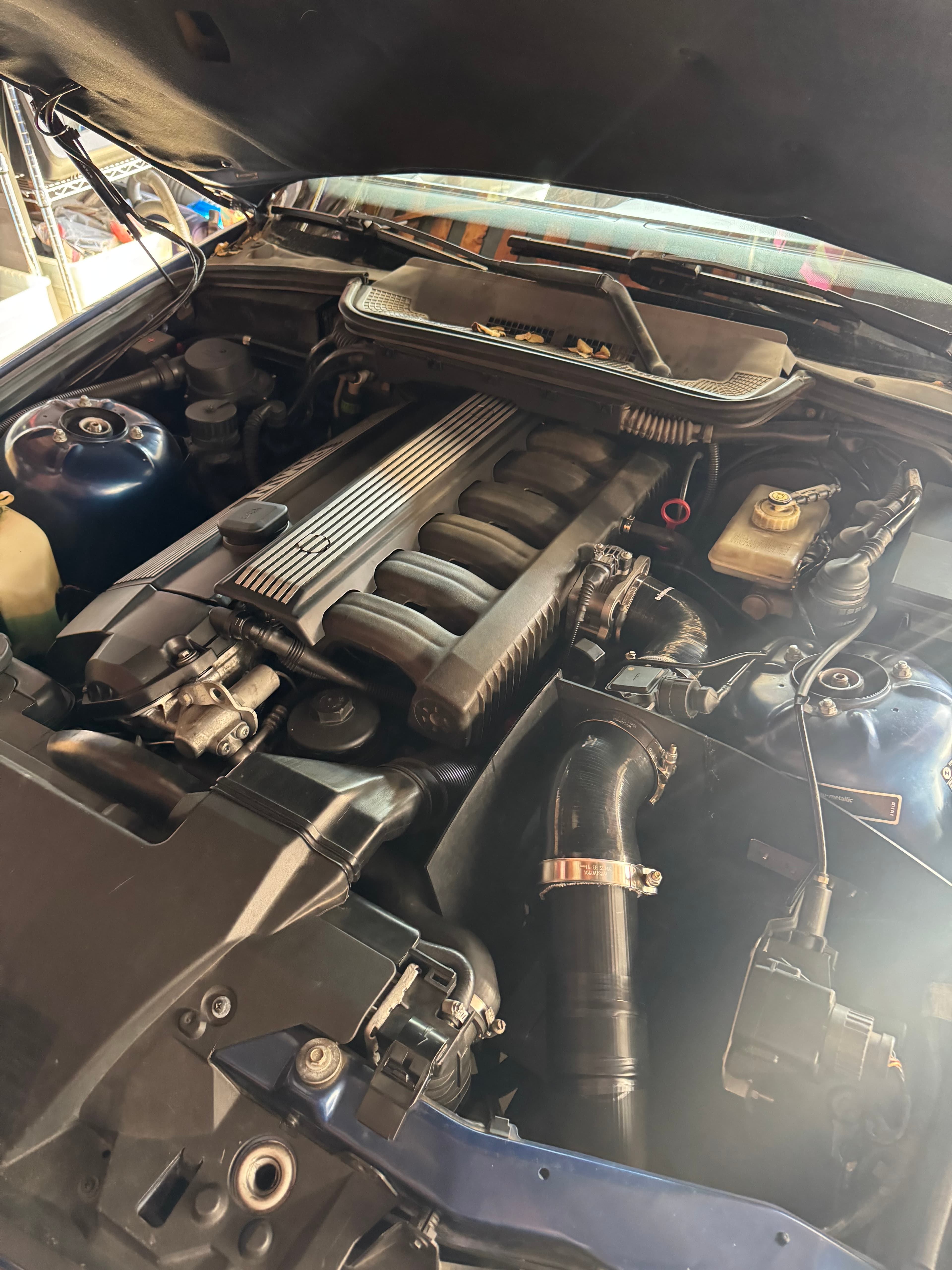

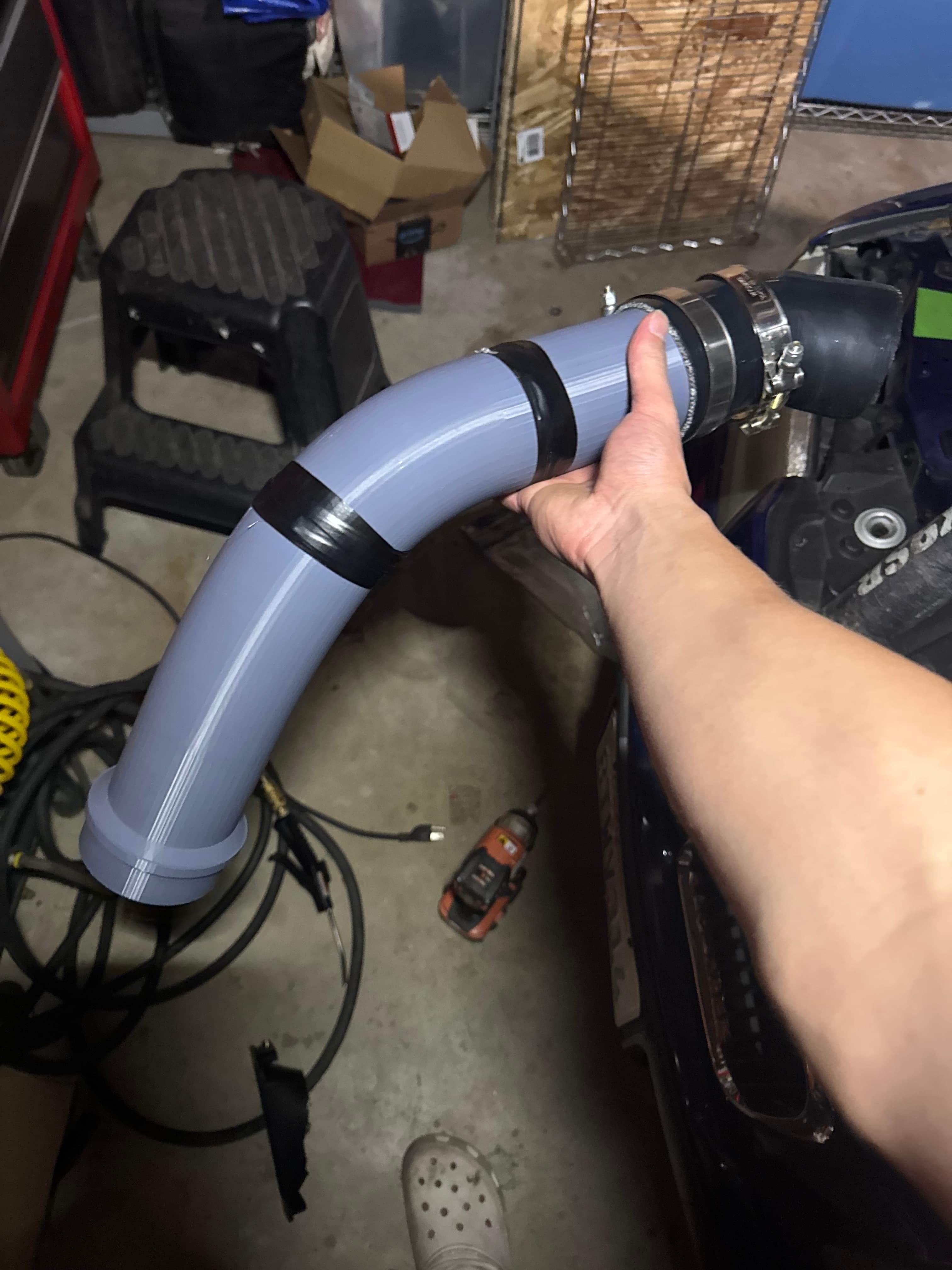

Four-piece E36 bumper-inlet duct inspired by the Dinan layout and physically shown installed between the bumper opening and air filter. Print in heat- and impact-resistant material, bond the sections securely, and verify filter, fan, belt, water-ingress and road-clearance conditions on the exact car.
