Coupe Sunroof-Motor Cover

ABS · PETGMULTI-PART3 FILESCC-BY-NCHeadlining

PART RECORDREF 1173

PART: Coupe Sunroof-Motor Cover
OEM: —
FITS: 3 Series E36

Loading 3D viewer...

PART ID · BIMMER-3D / 1173QTY 3 · STLHANDLE · NO SUPPORTS

Field photographs

3 PLATES

PLATE 01 / 03No caption recorded

Build sheet

MAN-1173

[01]bmw_e36_sunroof_motor_cover_coupe.3mfbmw_e36_sunroof_motor_cover_coupe.3mf.STL

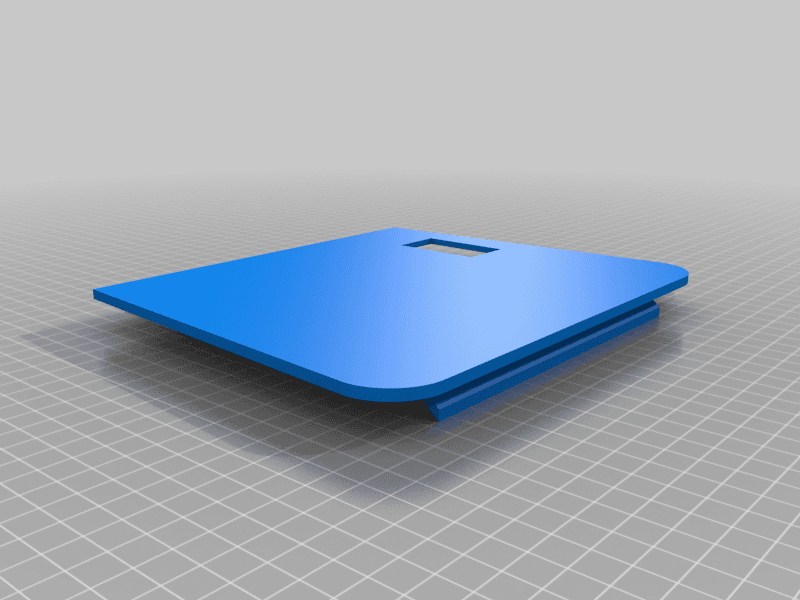

[02]bmw_e36_sunroof_motor_cover_coupe_-_with_switch_cutout.stlbmw_e36_sunroof_motor_cover_coupe_-_with_switch_cutout.stl.STL
[03]bmw_e36_sunroof_motor_cover_coupe_-_without_switch_cutout.stlbmw_e36_sunroof_motor_cover_coupe_-_without_switch_cutout.stl.STL
[04]Bounding box203.168 × 173.150 × 50.850 mm
[05]Volume341,941.388 mm³

Field notes

BY RICHARD FRANKS

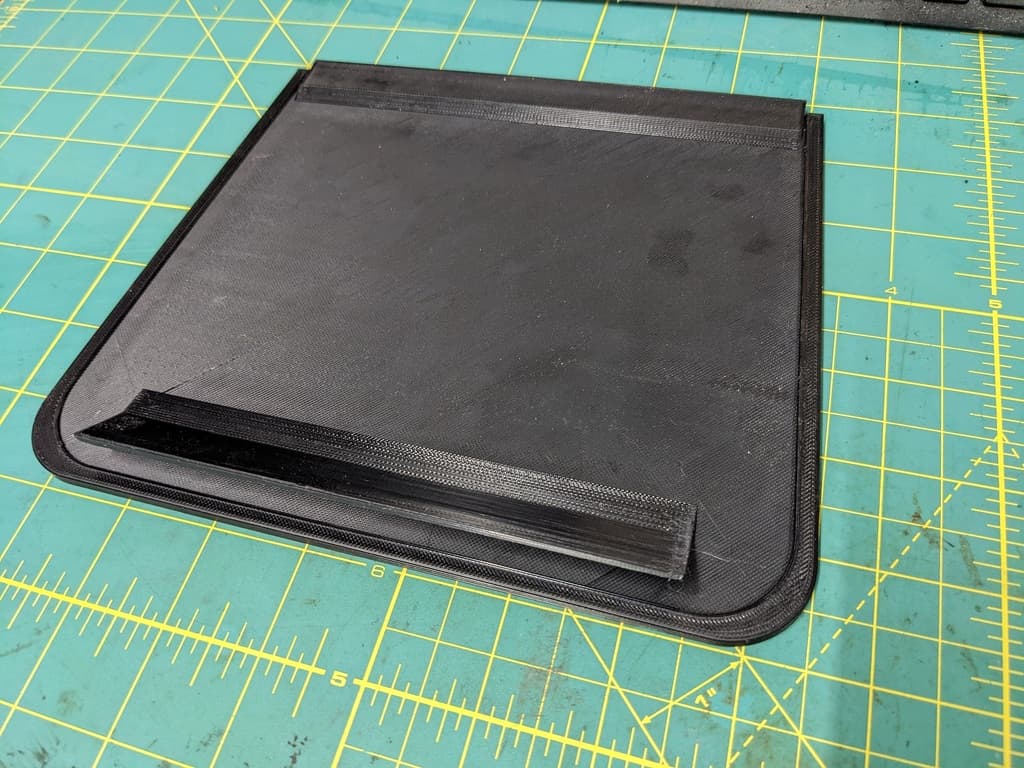

Replacement sunroof-motor cover for BMW E36 Coupe, with separate switch-cutout and plain versions plus the source 3MF. The source shows a finished print and physical installation. Use cabin-heat-resistant material and verify switch, motor, headliner and retaining-clip clearance.

View original source ↗
