Sunroof Slider-Rail Repair Clip

ABS · Nylon1 FILECC-BY-NCHeadlining

PART RECORDREF 1158

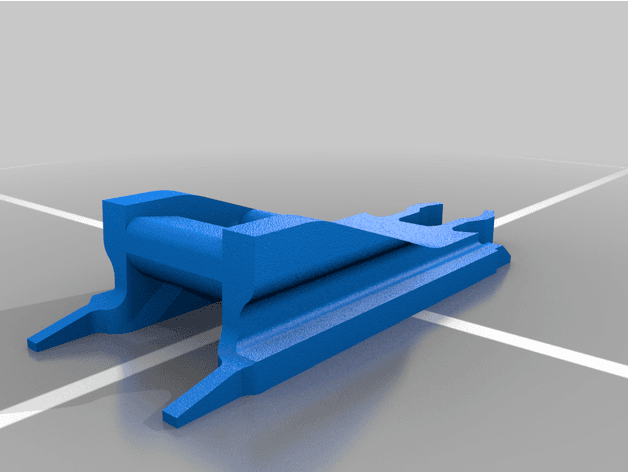

PART: Sunroof Slider-Rail Repair Clip
OEM: —
FITS: 3 Series E36, 3 Series E46, 5 Series E39, X5 E53

Loading 3D viewer...

PART ID · BIMMER-3D / 1158QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

2 PLATES

PLATE 01 / 02No caption recorded

Build sheet

MAN-1158

[01]Slider_clip_v4.stlSlider_clip_v4.stl.STL
[02]Bounding box5.431 × 2.050 × 1.100 mm
[03]Volume3.677 mm³

Field notes

BY ADRIAN MARTINESCU (SOMETHIN6)

Fourth-iteration replacement for the small slider-rail clip used in creator-listed E36, E39, E46 and E53 sunroofs. The source shows the physical print and a working demonstration. Use heat-resistant material and verify full sunroof travel, anti-pinch operation and water sealing before driving.

View original source ↗
