Grille and License-Plate Grommet

REPLACES OEM51131840154

PETG · TPU1 FILECC-BYTrim Clips

PART RECORDREF 1117

PART: Grille and License-Plate Grommet
OEM: 51131840154
FITS: 3 Series E30, 3 Series E36, 3 Series E46, 3 Series E90 / E91 / E92 / E93

Loading 3D viewer...

PART ID · BIMMER-3D / 1117QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

4 PLATES

PLATE 01 / 04No caption recorded

Build sheet

MAN-1117

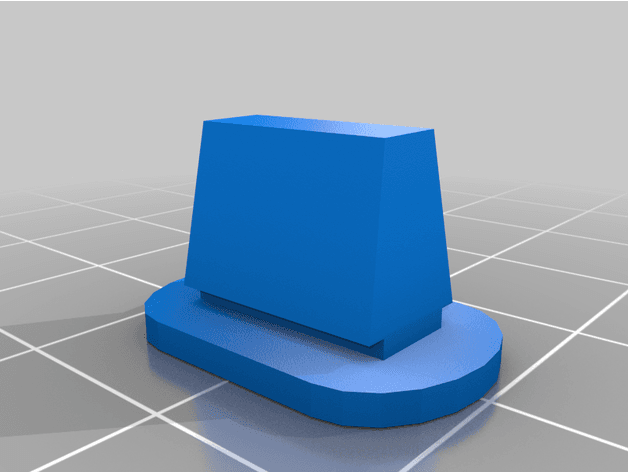

[01]51131840154.stl51131840154.stl.STL
[02]Bounding box19.000 × 12.000 × 11.092 mm
[03]Volume724.714 mm³

Field notes

BY AZMI MAASSARANI (KENSHIN861)

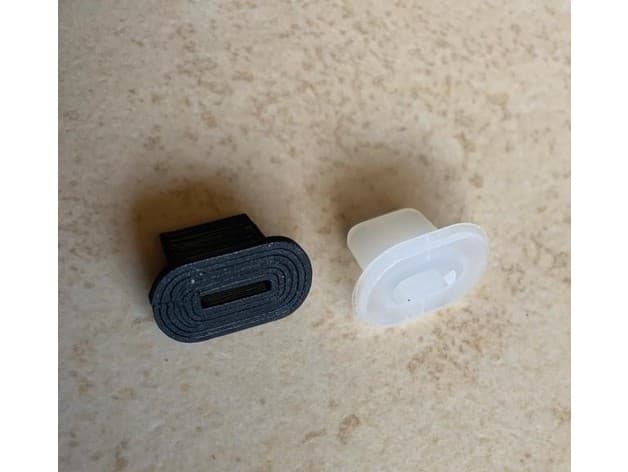

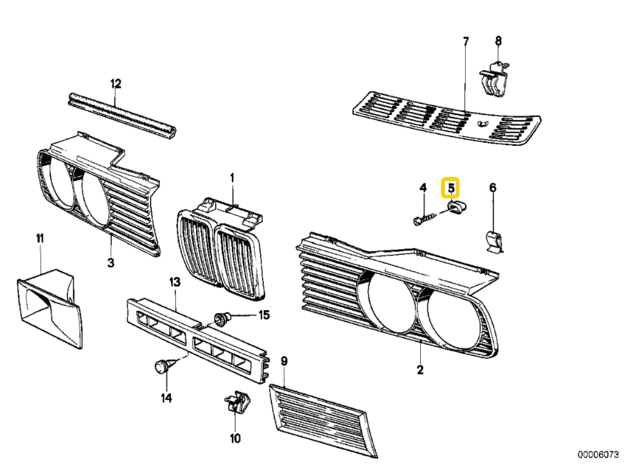

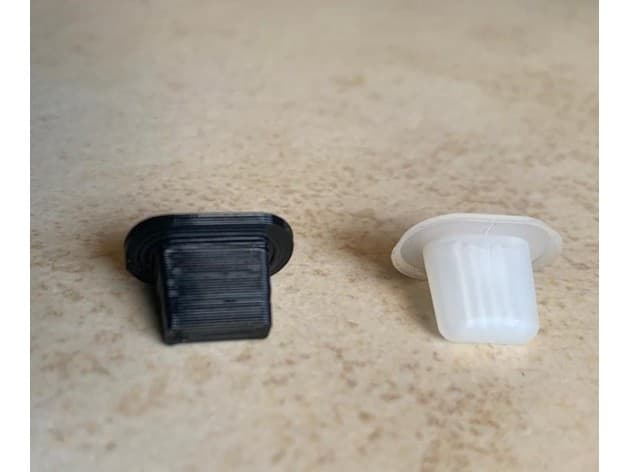

Replacement plastic grommet used at E30 grille and rear license-plate mounting points, physically compared with the original. The creator also lists E36, E46, E90 and E92 applications; BMWFans confirms grommet 51131840154.

View original source ↗
