BMW 3 Series E90 / E91 / E92 / E93 3D-printable parts

Direct replacement cap for the automatic-headlight rotary switch used in BMW E82 and E88 1 Series, E90/E91/E92/E93 3 Series, and E84 X1 interiors. The keyed hex and rotation stop reproduce the functional interface, and the creator shows the printed knob installed. Reuse the original switch mechanism; no complete headlight-switch assembly is included.

Round and splined clutch-alignment tool variants designed for BMW N55 cars with the GS6 manual transmission. The creator printed the tool for a 2015 F22 M235i clutch replacement and verified the splined version during installation. Source fitment also names N55 E82, E9x, F3x, F10/F11, and F22/F23 cars. Use only on the specified engine/transmission combination, compare pilot and spline dimensions before use, and do not treat the printed tool as a torque-bearing service tool.

Replacement plastic grommet used at E30 grille and rear license-plate mounting points, physically compared with the original. The creator also lists E36, E46, E90 and E92 applications; BMWFans confirms grommet 51131840154.

Contour spacer demonstrated with aftermarket side repeaters on BMW bodywork. The creator lists E36 from October 1996, E46 sedan/Touring, E60/E61, E81/E82/E87/E88 and E90–E93 applications. Test one side before mirroring and verify the repeater remains weather-sealed and positively retained.

The BMW E92 has under-seat air-con vents which are prone to getting small objects kicked down them by rear seat passengers. Worse, there a small gap between them through which coins and the like can end up under the carpet where they then rattle annoyingly. Getting them out is a real pain an requires the seat, and possibly the speaker under it, to be removed. These simple grills clip over the vents preventing small objects going where they shouldn't. Use cabin-heat-resistant material, dry-fit the part and verify secure retention and unobstructed operation.

I broke my bonnet release for my e92 so printed a new one with the BMW logo in it. It is considerably stronger if printed in PETG and it a perfect fit Use exterior-rated material and verify secure retention and adjacent-panel clearance.

This tool perfectly aligns the clutch friction plate for a BMW E90 325i with dual mass flywheel and self adjusting clutch. On the gearbox side of the tool there is a 7.1mm dia hole so that it can be tapped to M8. I recommend printing in PLA with 100% infill. Use the tool only for the documented engine or transmission, keep it square and follow the BMW service procedure and torque values.

Here I leave the headlight cover, located on the mudguard of the front wheel, is a piece very easy to lose and so I leave here the model to be able to print the fleeces own covers. Mine is already 1 month and I have not lost it or left, my BMW is an E91, but I think it serves in all E90 series. I leave the files in solidworks if they want to improve. Good impressions !! Greetings BMW Confirm body and lamp variant, secure retention, weather sealing and legal lamp operation before driving.

12.03.2019 2mm wider version added. it is suitable for 2005-2009 e90/e91 BMW. it is right side, but you may mirror the item by using Cura's x or y axis mirroring feature. i did not test for left side. But it should be. 3D PRINTING SETTINGS infill %15 layer 0.20mm 0.80mm, perimeter 2, 0.4mm nozzle Please share your photos, i will appreciate to you, it is really important for me. Confirm body and lamp variant, secure retention, weather sealing and legal lamp operation before driving.

This is the cap for the positive battery terminal for a BMW E90. It should fit just about any BMW. Use automotive-rated wiring and connectors, retain fuse protection, insulate every terminal and verify unobstructed operation.

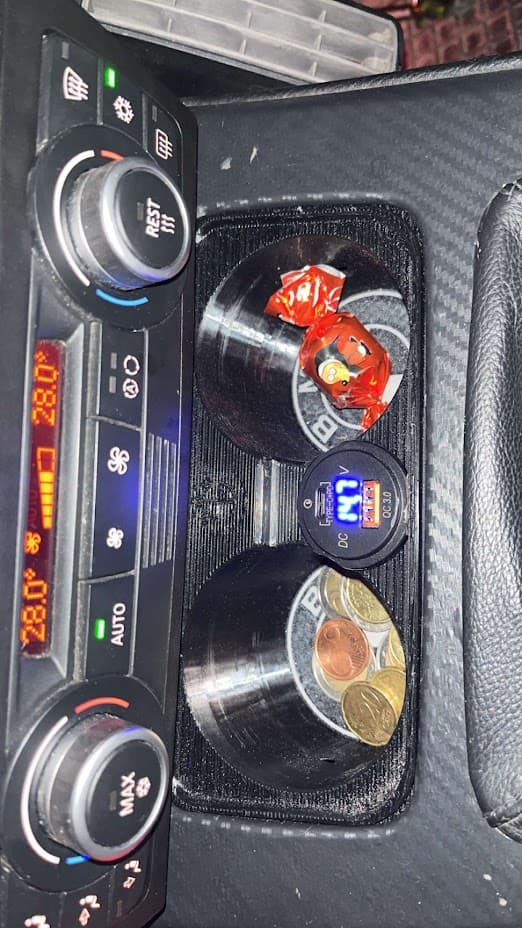

When I bought my e91 it had no front console cigarette lighter which meant I had to use an after market accessory plugged into the armrest socket. The unit was then wedged between the console and the passenger seat. Less than ideal. This plate fits in the ashtray hole and has a cut-out to accept an after market twin socket adapter which can be commonly found online or in value stores. I desinged this in sketchup and have included the SKP file in case anyone would like to remix it. Happy Printing Use cabin-heat-resistant material, dry-fit the part and verify secure retention and unobstructed operation.

The cup holders in my 325i are small and work with anything bigger then a 12oz can. I designed this cup holder fit large insulated tumblers like the Yeti. The top 2 pieces need to be glued together. Gorilla glue works well, but any plastic glue should work. I used a hot glue gun to secure the base to the center console of the car. The hot glue works well and can be removed without any damage to your car. Use cabin-heat-resistant material, dry-fit the part and verify secure retention and unobstructed operation.

This is my first 3D design. I needed this to plug holes in my bumper without buying parking sensors. It fits nicely, although I used some epoxy glue to be sure it stays in. Use exterior-rated material and verify secure retention and adjacent-panel clearance.

The is a model of a BMW E90 plastic nut. These nuts are used in the undertray, splashguard and several other places in the vehicle. The nut itself is unthreaded since it is screwed onto a thread cutting fastener. The inner diameter of the nut is 4.25mm. The nut fits a 10mm wrench. Use cabin-heat-resistant material, dry-fit the part and verify secure retention and unobstructed operation.

Shift knob designed for e90 but may fit others. Clips on and does not rotate (careful of breakage if you try to twist it!) Fits fine, but is a bit light. Would be a nice print in transparent colors. Difficult to remove without breaking the teeth! (the knob teeth not yours) Please share your makes :) Use cabin-heat-resistant material, dry-fit the part and verify secure retention and unobstructed operation.

Seat belt hook attachment for BMW E92. Simply attach with a high quality double sided tape. Confirm normal seat, belt and presenter movement and keep the printed part outside the restraint load path.

Clutch alignment tool for BMW E90 - engine type n47tu - place some tape around the spindle on the tool to make a firm fitting. Custom designed in TinkerCAD, whipped it up in about 15 minutes after googling the dimensions and worked great!!! Originally bought a kit with multiple sizes of spindle and none of the sizes supplied fitted, so, 3D printed this instead and worked better than spending £25 at my local auto-parts dealer for the kit!! Use the tool only for the documented engine or transmission, keep it square and follow the BMW service procedure and torque values.

OBD2-Cover for BMW e90/e91 Use cabin-heat-resistant material, dry-fit the part and verify secure retention and unobstructed operation.

In my BMW E91 were the Air Vent Levers missing. The original replacements cost a fortune, so i designed some by myself. Print them with PETG or similar. I recommend to print the fork with hinge part. Use the Fork and the Lock File only if you want to print them separately. For the stripe you may want to change the color, so i made it one part for manual color change by a certain height and two parts for MMU printing. You should add a raft under the Leverpart for better bed adhesion on the very small parts lying on the bed. Print them in the provided orientation Use cabin-heat-resistant material, dry-fit the part and verify secure retention and unobstructed operation.

hi this is my custum made for led back cover lights bmw e90 318i valeo lci ligts please use support my paypal is: sezgin9716@hotmail.com thanks :) Confirm body and lamp variant, secure retention, weather sealing and legal lamp operation before driving.

Dies ist ein Dosenhalter, der für Red Bull Dosen designt wurde. Der Durchmesser der Öffnung für die Dose ist 55mm. Der Halter ist nur nutzbar, wenn kein iDrive vorhanden ist, da er dort platziert wird wo die Steuerungseinheit ist! Dauer: 12h 3 min Maße: 74.8 x 135.1 x 72.4 mm Use cabin-heat-resistant material, dry-fit the part and verify secure retention and unobstructed operation.

This is a fix that I made for my 2007 BMW 320D air intake back in 2014. The M47N2 engine air intake hose has rubber ends which start to break over time, so instead of spending >30€ on a new OEM part (13717795284), I decided to make a fix of my own, as I had a 3D printer at home at that time. People keep asking me for the STL, and since I no longer have my own server, I decided that it's time to upload it here. NOTE: it's a tight fit so you'll most likely have to remove the whole 3 connecting parts of the intake as a single unit when trying to get to the engine (only 4 screws though, so it's not a big deal). Use the tool only for the documented engine or transmission, keep it square and follow the BMW service procedure and torque values.

BMW Toolkit screwdriver. I designed this for E90 toolkit, as they stopped supplying these in the trunk after E46's. I spent ~$10 for a Phillips/flathead screwdriver from an online OEM supplier. This vehicle uses solely Torx fasteners, so a Phillips/flathead does me no good. This design allows you to use an off the shelf 2" long 1/4" bit extender. Then you can add whatever bit you'd like. Such as any size Torx bit, any size Phillips, or a flathead. It doesn't quite fit in the toolkit, some trimming would be required as the extender is thicker than the stock neck. However it will fit nicely, and the trimming is easy. The extender is a friction fit, but using an 0.2[mm] nozzle, it is TIGHT. It is also worth noting that this screwdriver has a 10mm box wrench on the bottom, and an 8mm box wrench on the top, but you have to remove the extender to use that one. Replaces BMW PN 71111179629 Shoul Use the tool only for the documented engine or transmission, keep it square and follow the BMW service procedure and torque values.

So I was looking for a fitting cupholder for my BMW E90 tray and couldn't find one which wasn't too big. This one fits to your BMW E90 without the big navi and without the iDrive knob. I made 3 versions which can fit 250ml, 330ml or 500ml cans (Germany/EU). With the big one, the walls might get too thin, read below. It fits very good to the tray, I use it everyday. This was designed to be printed with PLA, if you use ABS you might upscale it. Also, you can print it on the flat surface with my tag without supports. If you like the design, leave a tip :) *** Update 27.06.20 Someone requested a wider hole (currently 57mm) for norwegian 500ml cans. Uploaded another version with 66mm. Walls get very thin and cut, NO guarantee for good results as I won't try it! *** Update 11.07.20 Was shopping a german/EU 330ml can and couldn't fit it. So I made the hole slightly wider (59mm) to fit these. Ha Use cabin-heat-resistant material, dry-fit the part and verify secure retention and unobstructed operation.

Can be installed in preexisting holes, no drilling necessary. BOM: 2 x M4x10 screws 1 x M4x50 screw 3 x M4 nuts Use cabin-heat-resistant material, dry-fit the part and verify secure retention and unobstructed operation.

REPLACEMENT TRAY FOR USELESS PHONE CADDY watch this to learn how to remove that useless thing NOT MINE VIDEO ALL THE CREDIT TO THAT GENTLEMAN And then replace it wit the tray enjoy Use cabin-heat-resistant material, dry-fit the part and verify secure retention and unobstructed operation.

This is a nice update for us with older E90 BMW's This will allow you to mount a universal Inbay wireless charger. This seems to work well and looks like a factory addition. It will take place of the front pocket in the console or the ashtray if it was equipped. This bracket will mount directly inplace of the old insert. Powering up the device: I did not have the ashtray so I was able to wire this into the power of the usb in th back of the console. you can access this easily by removing the rear vent panel. you can also pull out the plastic rear vent tubing with a little force to more room. You will tap into the Brown/ Ground and the Red/ +12V going to the usb in the rear console. LED Light: As an option I have added some holes for the LED light on the side of the charger. you will need to source a thin fiber optic cable and use the included plastic insert to fit the bigger hole. you wi Use automotive-rated wiring and connectors, retain fuse protection, insulate every terminal and verify unobstructed operation.

Use exterior-rated material and verify secure retention and adjacent-panel clearance.

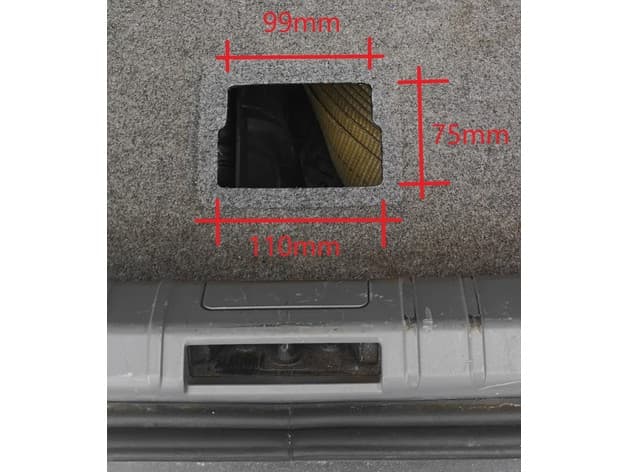

Hello, since the OEM handle was so expensive i decided to create my own. Let me know what you think. Supports are needed, i used roof support as well. WARNING be careful removing the supports you can break the top sections. Replacement part for OEM BMW handle. Part Number: 51477152356. Supersession(s): 51-47-7-152-356 (This product fits 123 vehicle variants. BMW: 12 models, 123 variants between 2004 and 2013.) BMW E90 Trunk Handle Replacement 2004-2013 by blackjet123 is licensed under a Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International License. First Thingiverse make! Let me know if i missed any useful information. Use exterior-rated material and verify secure retention and adjacent-panel clearance.

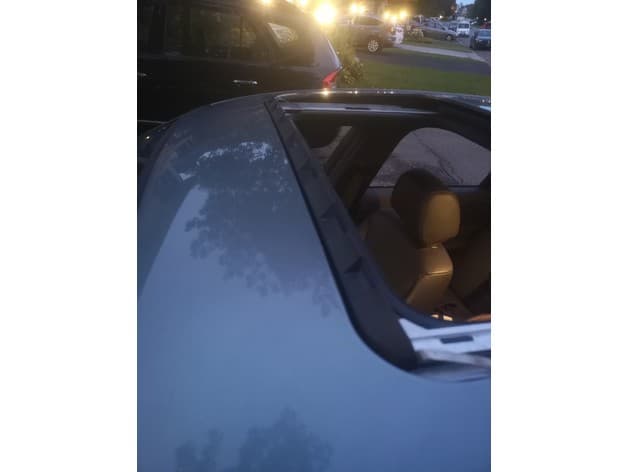

Hello, does your sunroof deflector make a weird noise or doesn't allow your sunroof to close sometimes. Well a section of it may be broken. Both of the side stoppers on my deflector were broken so i printed a replacement pieces. Supports are needed, i used roof support as well. Replacement part for OEM BMW handle. Part Number: 54107157449 Supersession(s): 54-10-7-157-449 This product fits 60 vehicle variants. BMW: 11 models, 60 variants between 2004 and 2012. BMW E90 Slipstream Deflector Replacement Clips/Stoppers 2004-2012 by blackjet123 is licensed under CC BY-NC-SA 4.0 CC Use exterior-rated material and verify secure retention and adjacent-panel clearance.

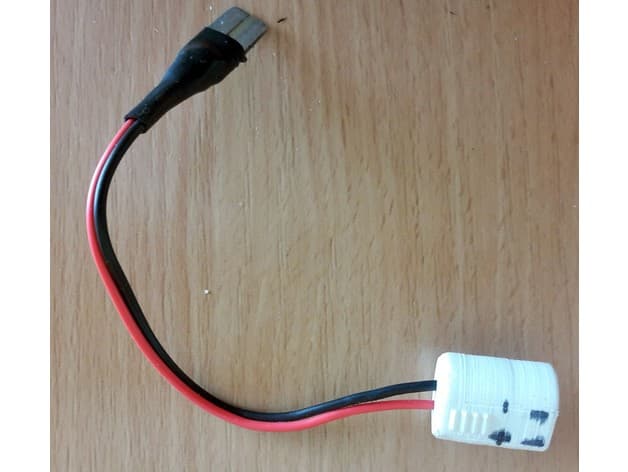

Adapter for side led blinker - bmw e90 Use automotive-rated wiring and connectors, retain fuse protection, insulate every terminal and verify unobstructed operation.

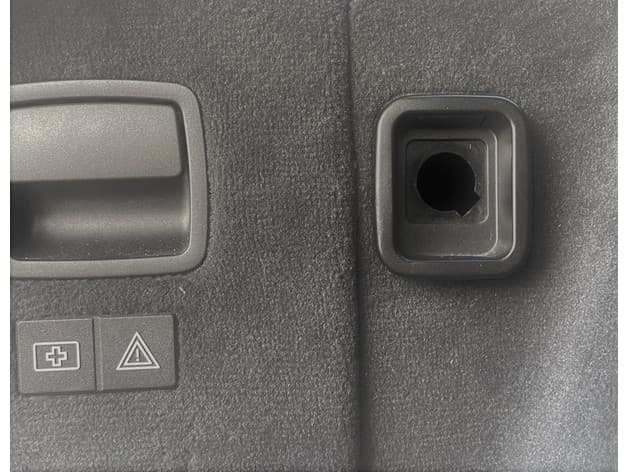

This is a cover to replace the 12v point in the boot/trunk of an E91 ( check for other models similar) with a blank plate. For fitment insert widest plastic tap to top and tap/hammer upwards. Then support the plastic of car from behind and push/hammer in. Push down to seat and stop it falling out. Cleaning up of carpet and plastic edge of hole may be required. Use cabin-heat-resistant material, dry-fit the part and verify secure retention and unobstructed operation.

The dashboard panel around the start button in my e92 began falling off due to a failed clip. I left it like this for quite awhile then the passenger door wood panel also fell off so I decided to design both clips to replace the broken ones as they cost more money than im willing to pay for original and aem ones dont last one use. I printed them with support on their sides so the opening is going up and down as this doesnt rely on layer adhesion for strength. "dash clip 1" is the dash clip "clip 3" is the door clip Use cabin-heat-resistant material, dry-fit the part and verify secure retention and unobstructed operation.

A little tool I printed to turn those pesky panel locks on my BMW E90 without instead of marring the edges with a big screwdriver. Use the tool only for the documented engine or transmission, keep it square and follow the BMW service procedure and torque values.

Socket for removing oil filter from BMW N52 engine. Adapts to 32mm 6 or 12-point socket. Likely works on other BMW engines as well - I just don't know which ones. I printed out of PETG and had no issues. Use the tool only for the documented engine or transmission, keep it square and follow the BMW service procedure and torque values.

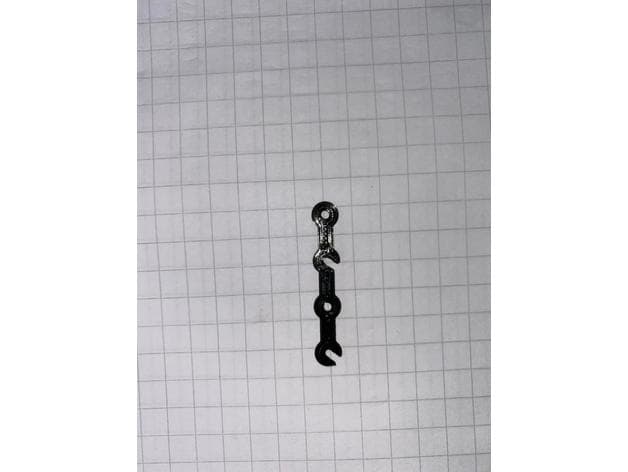

This connector moves all the louvers in the vent together. Originally is made of metal and super thin. Printed with 100% infill Use cabin-heat-resistant material, dry-fit the part and verify secure retention and unobstructed operation.

This is clutch alignment tool for BMW self-adjusting clutch. I used it on 2007 BMW E93 with M57 engine, but it could be used on other BMWs with SAC. You will need M6 bolt to use this tool. I print it with 50% infill using PETG, but PLA should work just fine, as you shouldn’t need much force to pull the tool out if you installed and torqued everything correctly. It has been printed on Prusa MK3S printer. Use the tool only for the documented engine or transmission, keep it square and follow the BMW service procedure and torque values.

MAF adapter for a 335d to a 4" flange cone filter. Takes the oval and turns it into a circle for mounting a cone filter. I used RTV silicone to attach it to the MAF (it's a very tight fit), once it sets clamp on your filter. Designed so the air is funneled in... Use the tool only for the documented engine or transmission, keep it square and follow the BMW service procedure and torque values.

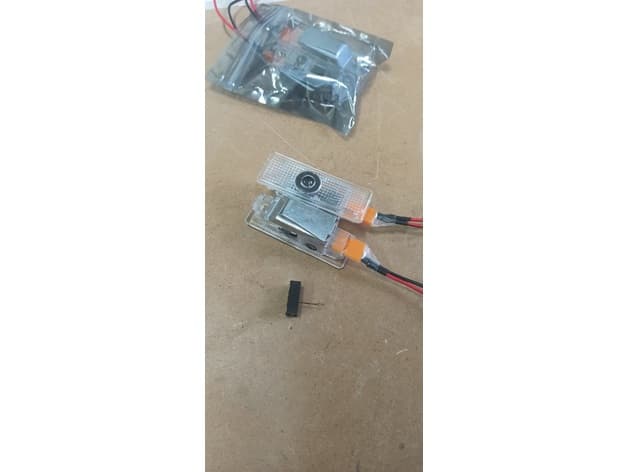

Compré unos proyectores para las puertas del E90 y estas no traen instalación ya que no cogí el pack de iluminación. He subido dos modelos que se ajustan al plafón de luces. En mi caso voy a utilizar el más grande. Luego he utilizado un peine de puentes de electrónica para utilizar la parte hembra que es donde conecta el plafón y la parte del macho he soldado positivo y negativo. He puesto termoretractil para que quede más seguro. Subo un sketchup por si se quiere modificar Use automotive-rated wiring and connectors, retain fuse protection, insulate every terminal and verify unobstructed operation.

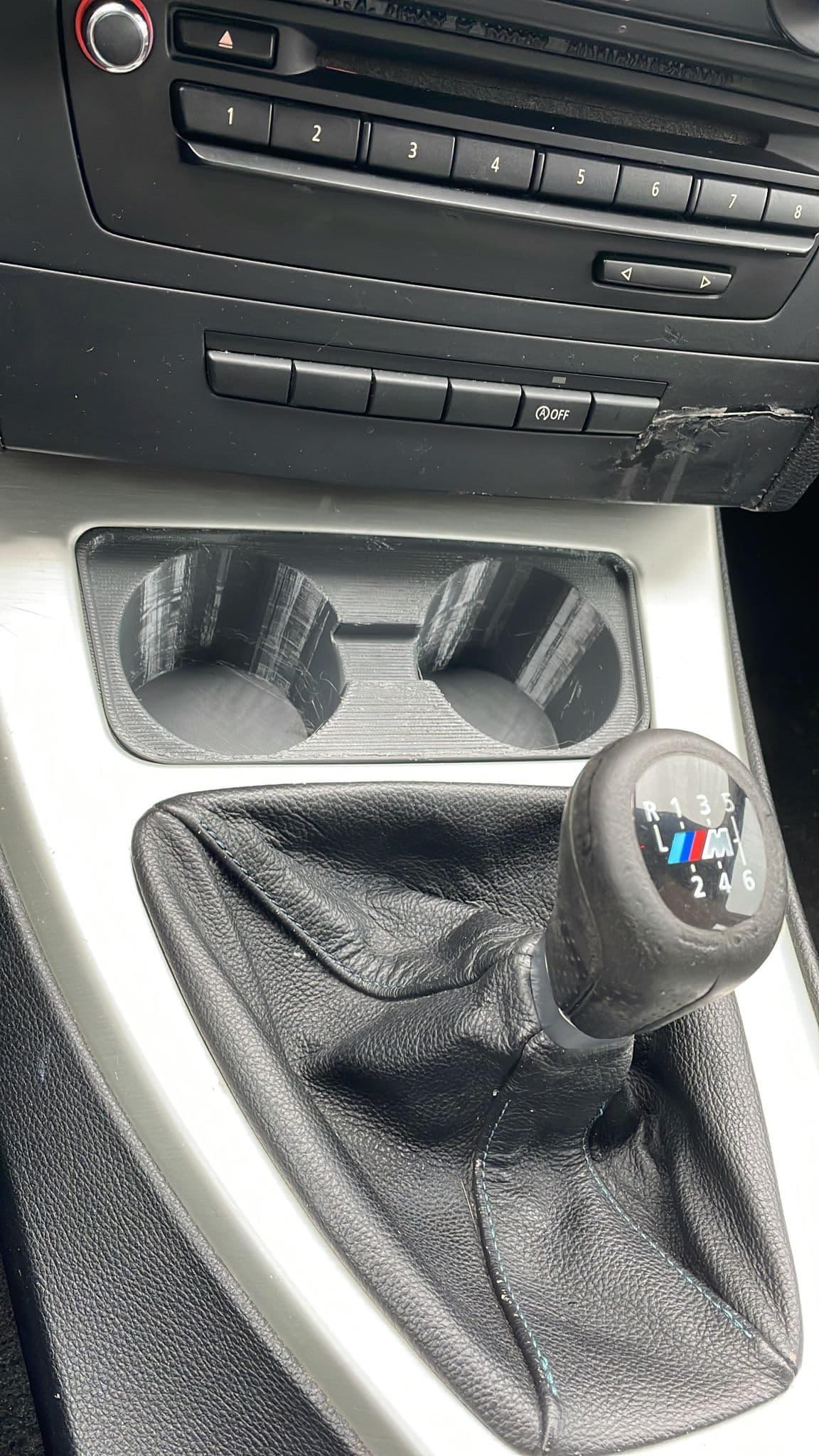

Adjusted the model for it to fit perfectly without cutting imporant parts of the car. Only thing to remove is the bracket where the electrical conntection for the ashtray connects to. Use cabin-heat-resistant material, dry-fit the part and verify secure retention and unobstructed operation.

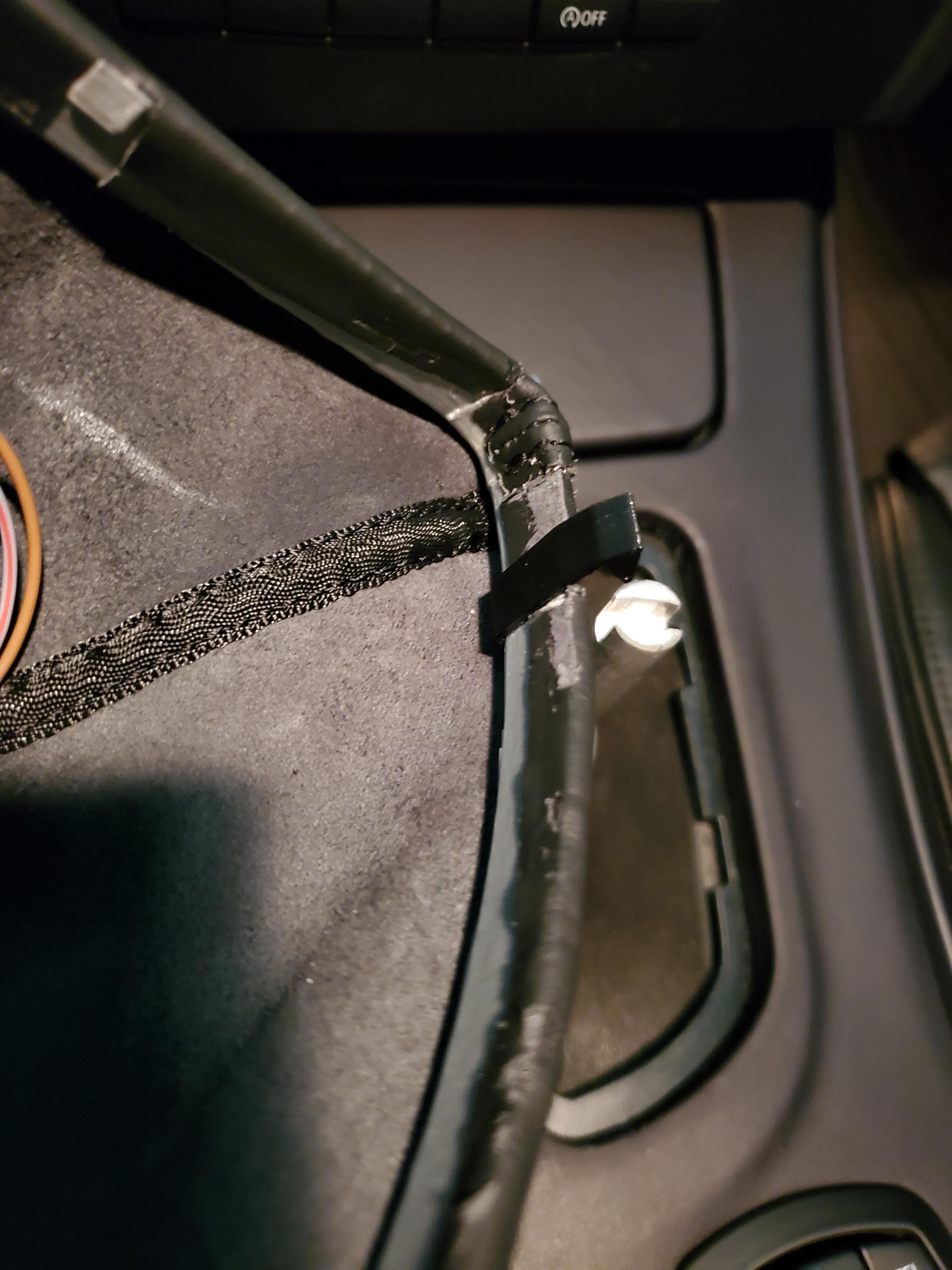

This replacement clip is designed for the BMW E9x M3 (E90, E92, E93) center console shifter boot. If your shifter boot keeps detaching or won’t stay secured, this clip is the perfect solution. Installation: This clip must be glued in place where the original clip was broken off. Once installed, it restores a snug fit and keeps your shifter boot securely attached. Features: Perfect Fit: Precisely modeled to match OEM dimensions for a secure hold. Durable Material: Recommended to print in PETG or ASA for strength, heat resistance, and longevity. Easy Repair: Simply glue it where the original clip was — no modifications needed. OEM-Style Design: Matches original fit and function without compromising appearance. Compatibility: BMW E90 M3 BMW E92 M3 BMW E93 M3 Use cabin-heat-resistant material, dry-fit the part and verify secure retention and unobstructed operation.

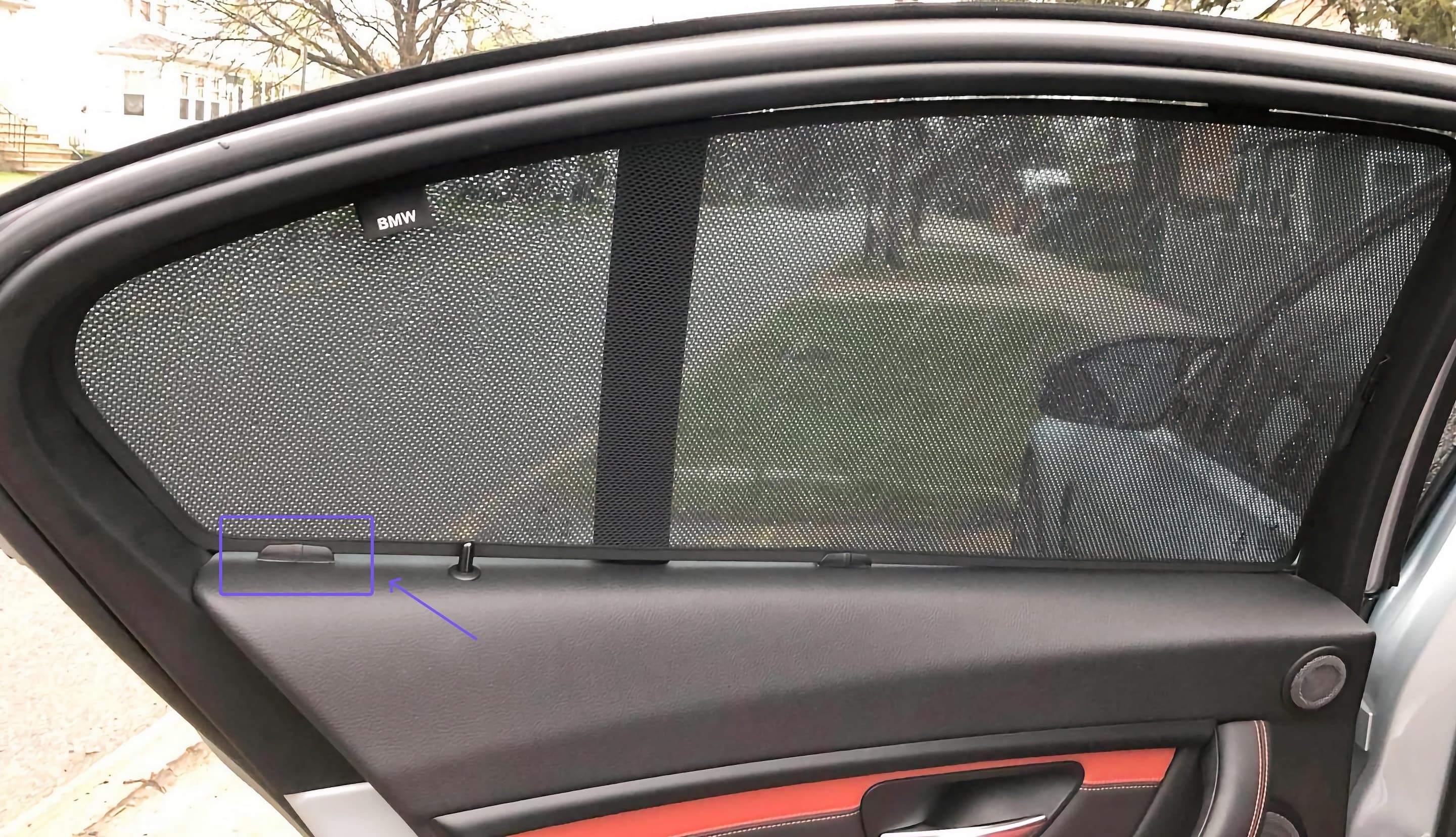

A friend of mine has an E90 and lost the clips that hold the (rear) window shades in, he was looking everywhere for them and couldn't find any at a reasonable price so I had a crack and modelling and printing them for him. They're pretty close to the original design and have similar properties when printed with PETG. I thought I'd share the model in case anyone else is also struggling to find them. If you encounter any issues let me know and I'll tweak the design for you. I'm unsure of their BMW part number, but the sun shade is 51462359741 . Use cabin-heat-resistant material, dry-fit the part and verify secure retention and unobstructed operation.

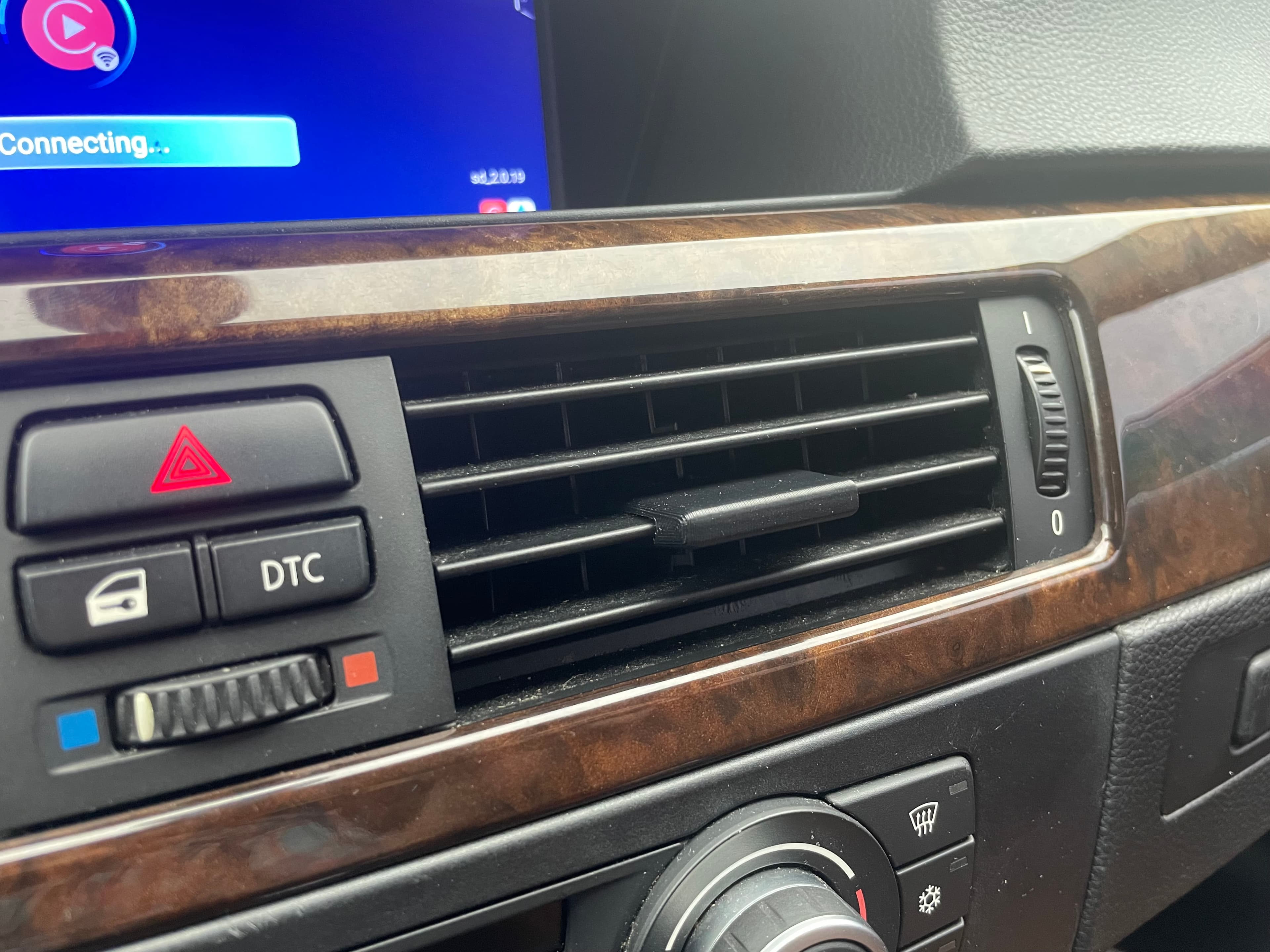

I created this for my 2011 E91, but it may fit others. Just pull the other parts out of the vent and snap this one on. Use cabin-heat-resistant material, dry-fit the part and verify secure retention and unobstructed operation.

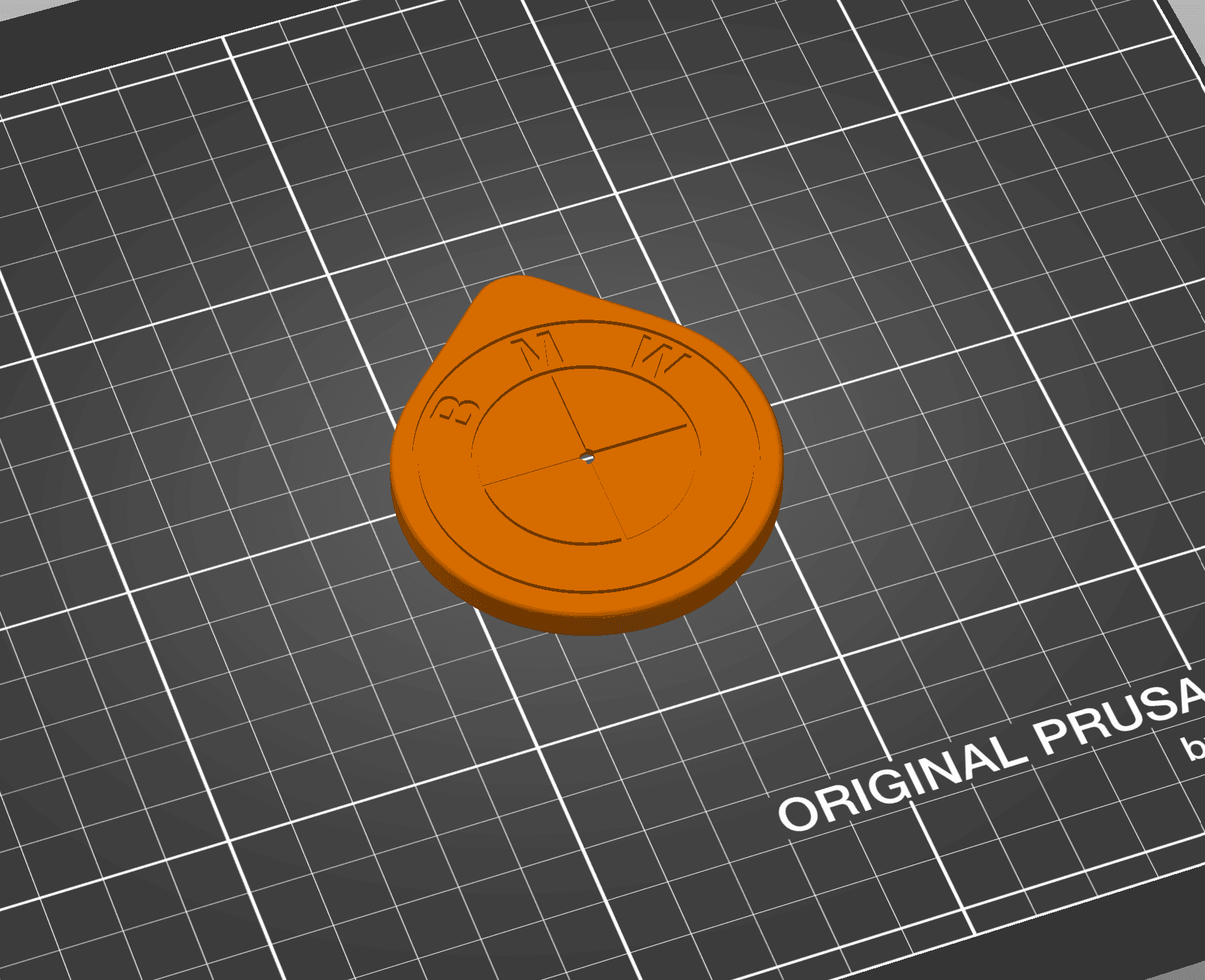

Just a replacement washer fluid reservoir cap for a BMW E92. Insert included if you would like to print in a contrasting colour. Recommend printing upside-down, flat on the print surface. I know these are cheap to buy but “I can 3D print that!” Use fluid-, heat- and UV-resistant material and verify full wiper and washer clearance.

I added a 29mm cigarette lighter hole and a bmw logo on top of Fix3D:s model. You should probably use the original model's slicer settings. I used mostly default settings and the print could have come out better:) The bottoms of the holes are pretty thin and the other one broke on me while removing from the print bed, so I printed some BMW coasters with a diameter of 65mm and put them in the holes to hold the drinks. Printed in PETG basic Use cabin-heat-resistant material, dry-fit the part and verify secure retention and unobstructed operation.

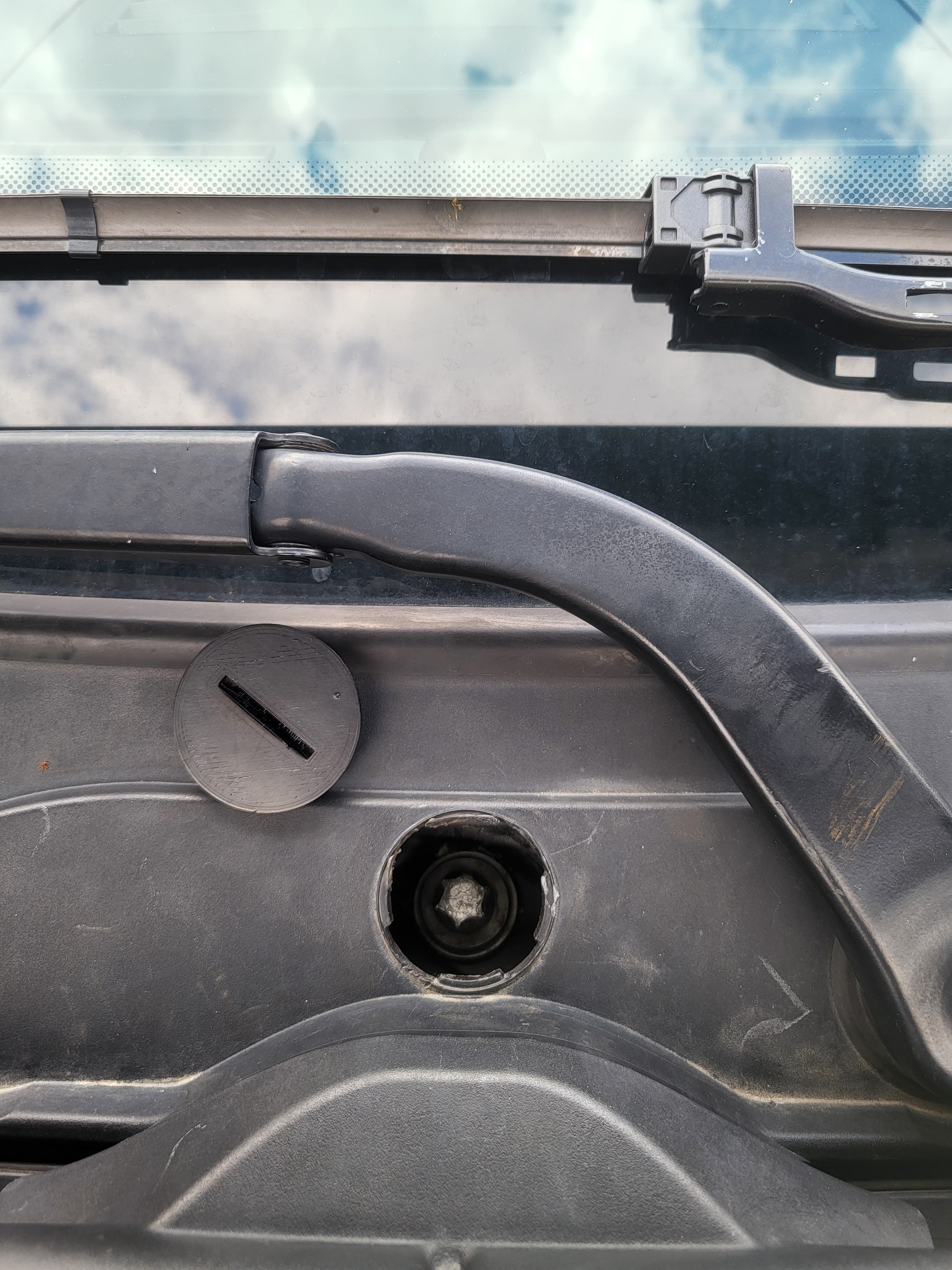

I used petg for this use organic supports Use fluid-, heat- and UV-resistant material and verify full wiper and washer clearance.

Use ABS preferably but it wont get that hot up top where this print is located so anything will work Use the tool only for the documented engine or transmission, keep it square and follow the BMW service procedure and torque values.

This is a centering tool designed for the precise installation of a SAC clutch disc between the flywheel and the pressure plate on a BMW E90 from the year 2011. Due to its adaptable design, the tool may also be compatible with models from earlier or later production years. To assist with model adjustments or integration, a STEP file of the tool has been provided. The tool was 3D printed using PLA+. Standard PLA should also be sufficient, as the component is not subjected to significant mechanical stress during use. After successfully mounting the preloaded SAC pressure plate, the centering tool must be removed before installing the transmission. This can be done by pulling it out using a screw or a pair of pliers. Use the tool only for the documented engine or transmission, keep it square and follow the BMW service procedure and torque values.

This model replaces the chrome cap of the BMW coupe E92 extender arm with a hook that grabs the seatbelt successfully much more often than the original design. Designed to be a near perfect fit with the OEM shape. I recommend printing in ASA or ABS for the high temperatures in a car. The OEM piece easily comes off with a pry tool, then you can attach the 3d printed models with a strong double sided adhesive ( Confirm normal seat, belt and presenter movement and keep the printed part outside the restraint load path.
