M57 Self-Adjusting Clutch Alignment Tool

ABS · PETG1 FILECC-BYMechanical

PART RECORDREF 1282

PART: M57 Self-Adjusting Clutch Alignment Tool
OEM: —
FITS: 3 Series E90 / E91 / E92 / E93

Loading 3D viewer...

PART ID · BIMMER-3D / 1282QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

5 PLATES

PLATE 01 / 05No caption recorded

Build sheet

MAN-1282

[01]Clutch_SAC_BMW_v2.stlClutch_SAC_BMW_v2.stl.STL
[02]Bounding box40.000 × 32.500 × 32.500 mm
[03]Volume25,056.865 mm³

Field notes

BY RADIM DUSEK (RADIMDUSEK)

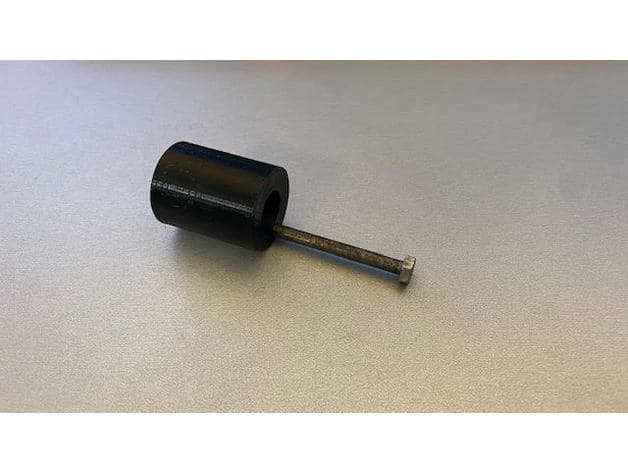

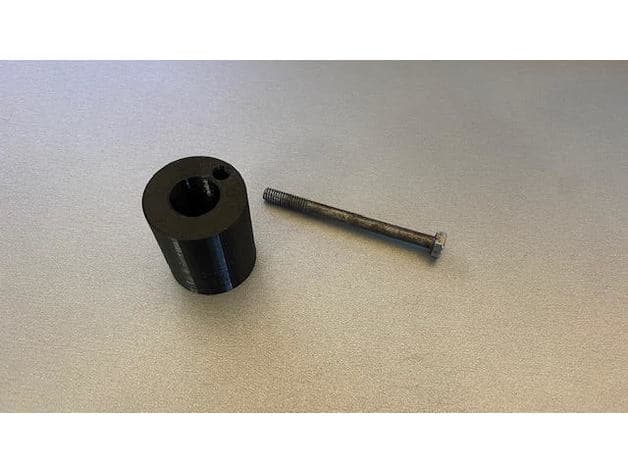

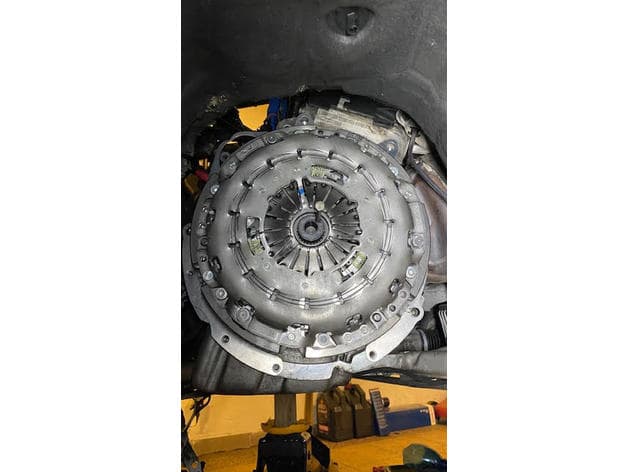

This is clutch alignment tool for BMW self-adjusting clutch. I used it on 2007 BMW E93 with M57 engine, but it could be used on other BMWs with SAC. You will need M6 bolt to use this tool. I print it with 50% infill using PETG, but PLA should work just fine, as you shouldn’t need much force to pull the tool out if you installed and torqued everything correctly. It has been printed on Prusa MK3S printer. Use the tool only for the documented engine or transmission, keep it square and follow the BMW service procedure and torque values.
