Rear Window-Sunshade Clips
ABS · PETGMULTI-PART2 FILESCC-BY-SADoors
- PART
- Rear Window-Sunshade Clips
- OEM
- —
- FITS
- 3 Series E90 / E91 / E92 / E93
Loading 3D viewer...
PART ID · BIMMER-3D / 1287QTY 2 · STLHANDLE · NO SUPPORTS
Field photographs
3 PLATES
PLATE 01 / 03No caption recorded
Build sheet

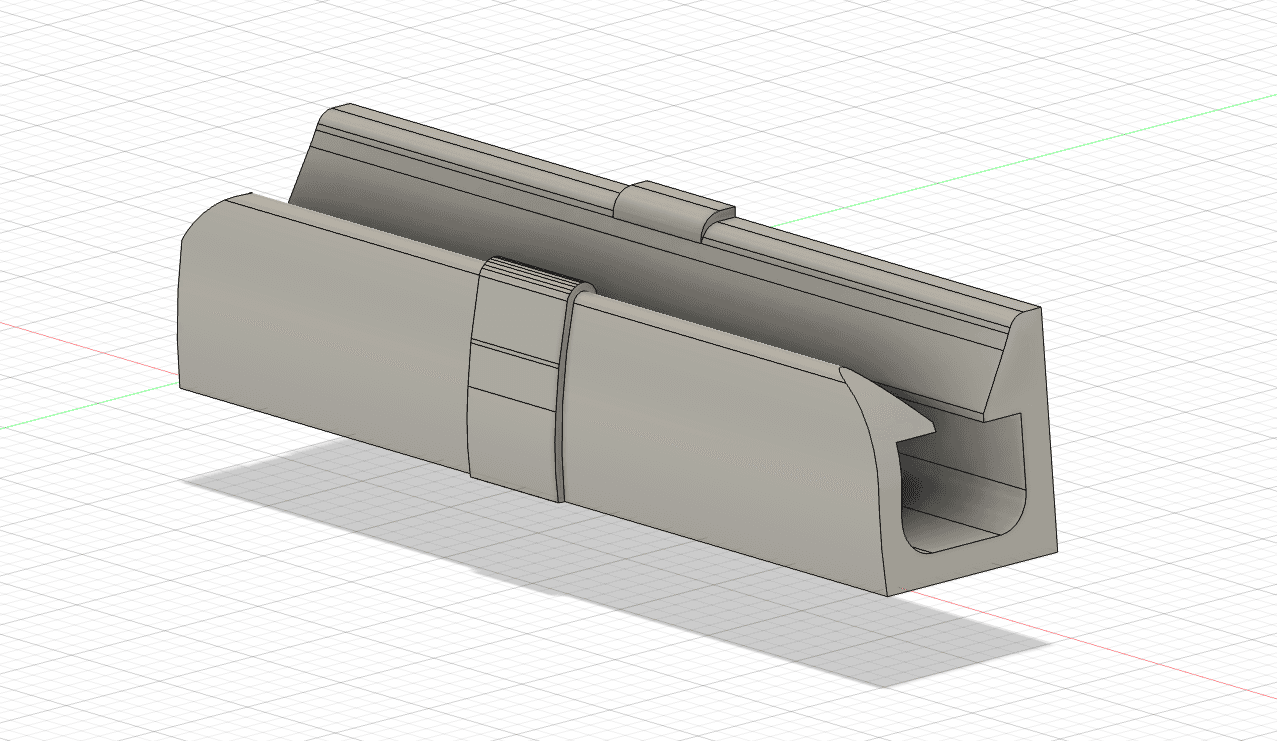

MAN-1287- [01]BMW E90 Rear Window Shade Clips v33.2.stepBMW E90 Rear Window Shade Clips v33.2.step.STL
- [02]BMW E90 Rear Window Shade Clips v33.2.stlBMW E90 Rear Window Shade Clips v33.2.stl.STL
Field notes

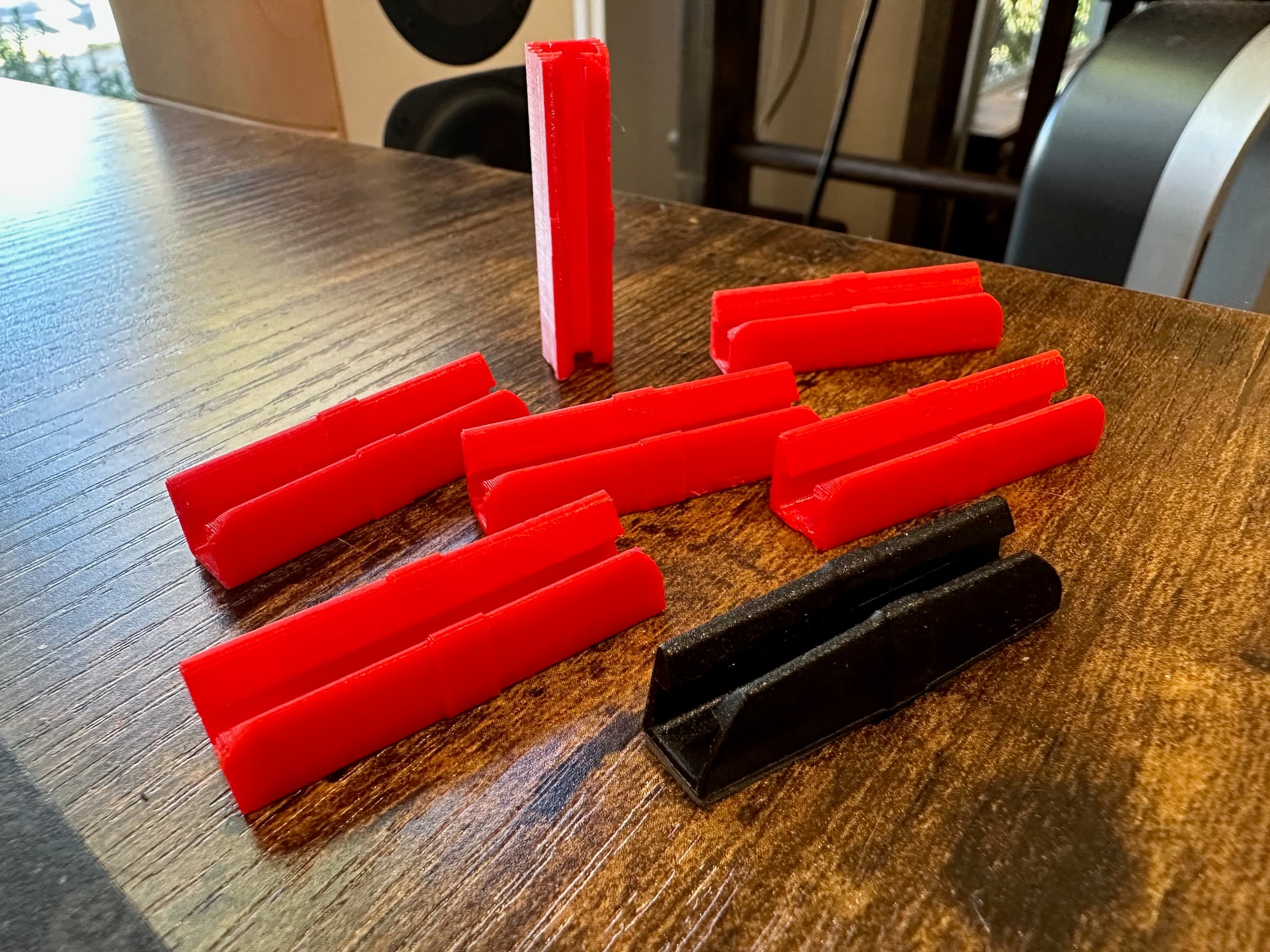

BY SAM MCLEODA friend of mine has an E90 and lost the clips that hold the (rear) window shades in, he was looking everywhere for them and couldn't find any at a reasonable price so I had a crack and modelling and printing them for him. They're pretty close to the original design and have similar properties when printed with PETG. I thought I'd share the model in case anyone else is also struggling to find them. If you encounter any issues let me know and I'll tweak the design for you. I'm unsure of their BMW part number, but the sun shade is 51462359741 . Use cabin-heat-resistant material, dry-fit the part and verify secure retention and unobstructed operation.
