Dashboard Air-Vent Adjuster

ABS · PETG1 FILECC-BY-NCDashboard

PART RECORDREF 1288

PART: Dashboard Air-Vent Adjuster
OEM: —
FITS: 3 Series E90 / E91 / E92 / E93

Loading 3D viewer...

PART ID · BIMMER-3D / 1288QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

2 PLATES

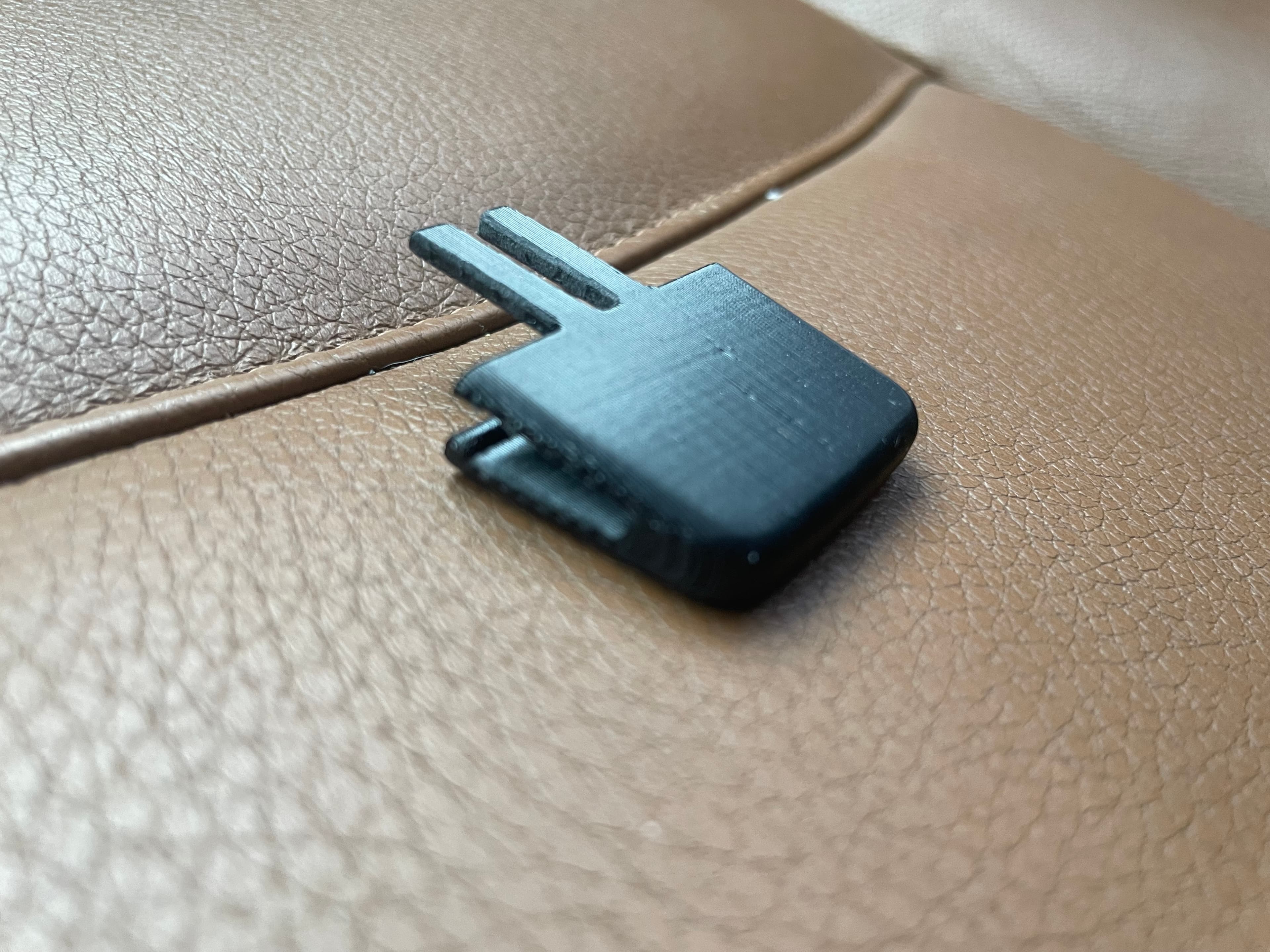

PLATE 01 / 02No caption recorded

Build sheet

MAN-1288

[01]Adjuster.STLAdjuster.STL.STL
[02]Bounding box41.446 × 35.474 × 8.859 mm
[03]Volume4,480.129 mm³

Field notes

BY MITCH MUSKE

I created this for my 2011 E91, but it may fit others. Just pull the other parts out of the vent and snap this one on. Use cabin-heat-resistant material, dry-fit the part and verify secure retention and unobstructed operation.
