Sunroof Wind-Deflector Stop Repair
ABS · PETGMULTI-PART2 FILESCC-BY-NC-SABody
- PART
- Sunroof Wind-Deflector Stop Repair
- OEM
- —
- FITS
- 3 Series E90 / E91 / E92 / E93
Loading 3D viewer...
PART ID · BIMMER-3D / 1275QTY 2 · STLHANDLE · NO SUPPORTS
Field photographs
9 PLATES
PLATE 01 / 09No caption recorded
Build sheet
MAN-1275- [01]BMW_SunRoof_DriverSide.stlBMW_SunRoof_DriverSide.stl.STL
- [02]BMW_SunRoof_PassengerSide.stlBMW_SunRoof_PassengerSide.stl.STL

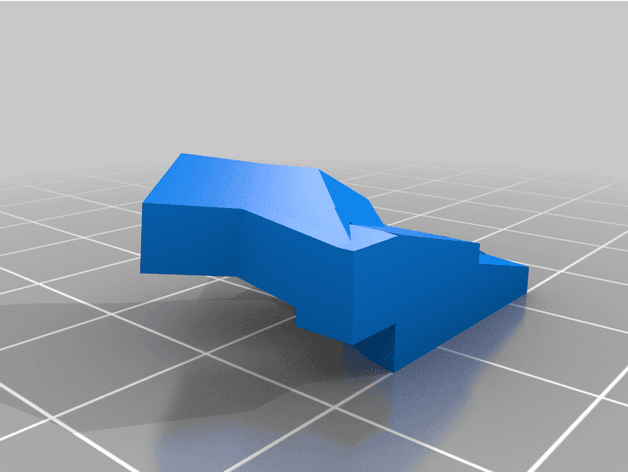

- [03]Bounding box25.731 × 21.016 × 20.012 mm
- [04]Volume2,742.876 mm³
Field notes

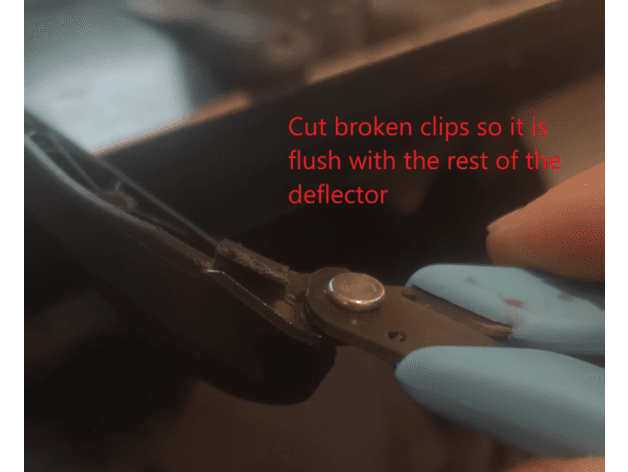

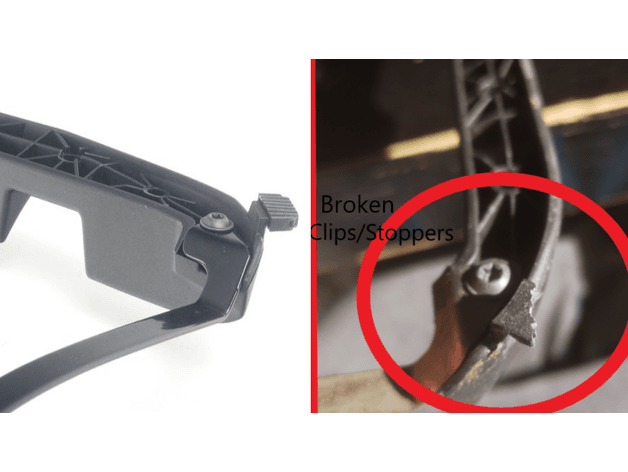

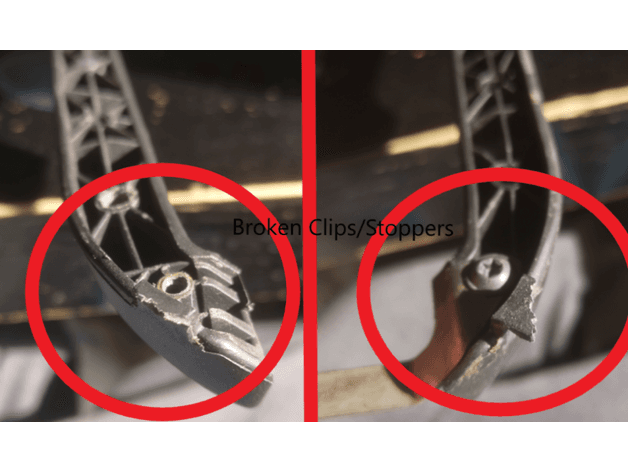

BY JUSTIN RULE (BLACKJET123)Hello, does your sunroof deflector make a weird noise or doesn't allow your sunroof to close sometimes. Well a section of it may be broken. Both of the side stoppers on my deflector were broken so i printed a replacement pieces. Supports are needed, i used roof support as well. Replacement part for OEM BMW handle. Part Number: 54107157449 Supersession(s): 54-10-7-157-449 This product fits 60 vehicle variants. BMW: 11 models, 60 variants between 2004 and 2012. BMW E90 Slipstream Deflector Replacement Clips/Stoppers 2004-2012 by blackjet123 is licensed under CC BY-NC-SA 4.0 CC Use exterior-rated material and verify secure retention and adjacent-panel clearance.
