Dashboard Trim Retaining Clip

ABS · PETGMULTI-PART2 FILESPublic DomainTrim Clips
PART RECORDREF 1278
PART
Dashboard Trim Retaining Clip
OEM
FITS
3 Series E90 / E91 / E92 / E93
BIMMER-3D · PART RECORDREV 2026

Loading 3D viewer...

PART ID · BIMMER-3D / 1278QTY 2 · STLHANDLE · NO SUPPORTS
Field photographs
2 PLATES

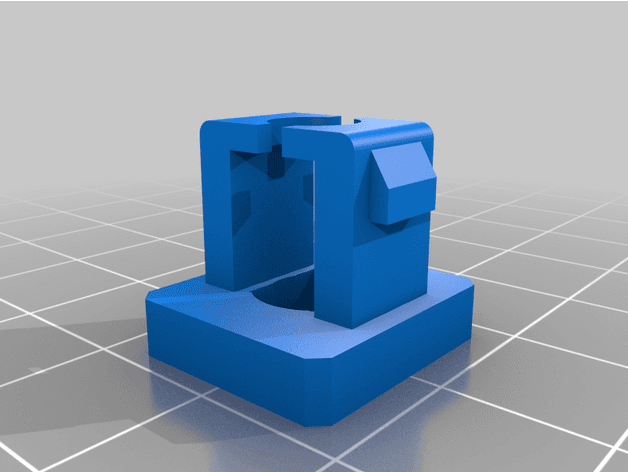

Plate 1 of 2
PLATE 01 / 02No caption recorded
Build sheet
MAN-1278
  • [01]clip_3.stl.STL
  • [02]dash_clip_1.stl.STL
  • [03]Bounding box26.424 × 17.200 × 15.500 mm
  • [04]Volume2,447.588 mm³
Field notes
BY LUCAS PRESTON (MRHAZE222)

The dashboard panel around the start button in my e92 began falling off due to a failed clip. I left it like this for quite awhile then the passenger door wood panel also fell off so I decided to design both clips to replace the broken ones as they cost more money than im willing to pay for original and aem ones dont last one use. I printed them with support on their sides so the opening is going up and down as this doesnt rely on layer adhesion for strength. "dash clip 1" is the dash clip "clip 3" is the door clip Use cabin-heat-resistant material, dry-fit the part and verify secure retention and unobstructed operation.
