Non-iDrive Console Cup Holder

ABS · PETGMULTI-PART3 FILESCC-BY-NCInterior
PART RECORDREF 1269
PART
Non-iDrive Console Cup Holder
OEM
FITS
3 Series E90 / E91 / E92 / E93
BIMMER-3D · PART RECORDREV 2026

Loading 3D viewer...

PART ID · BIMMER-3D / 1269QTY 3 · STLHANDLE · NO SUPPORTS
Field photographs
6 PLATES
Plate 1 of 6
PLATE 01 / 06No caption recorded
Build sheet
MAN-1269
  • [01]CuphodlerE90.stl.STL
  • [02]CupholderE90_59mm.stl.STL
  • [03]CupholderE90_66mm.stl.STL
  • [04]Bounding box236.616 × 143.278 × 73.500 mm
  • [05]Volume565,319.737 mm³
Field notes
BY FABIAN TRE (FLATSIXGUY)

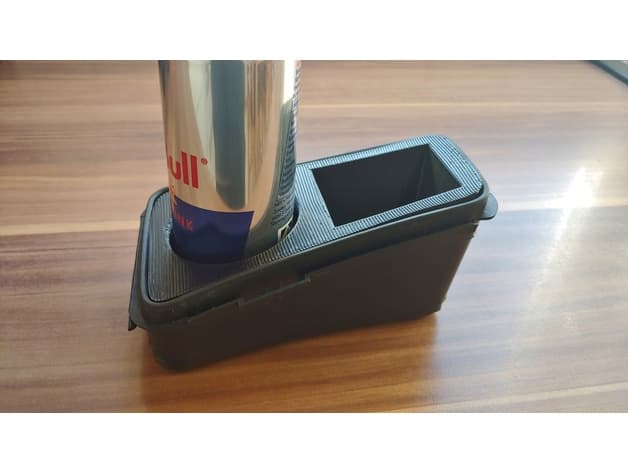

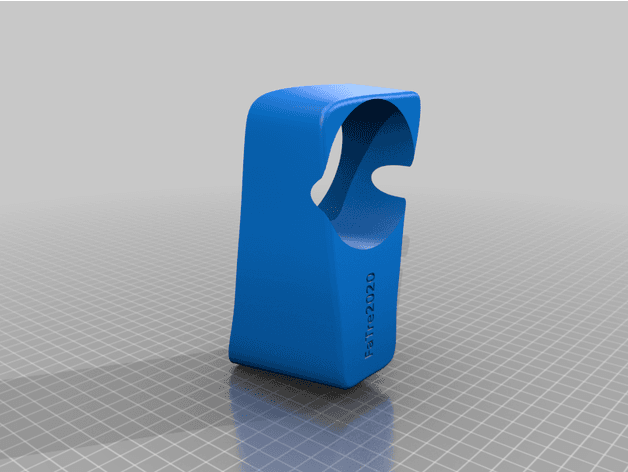

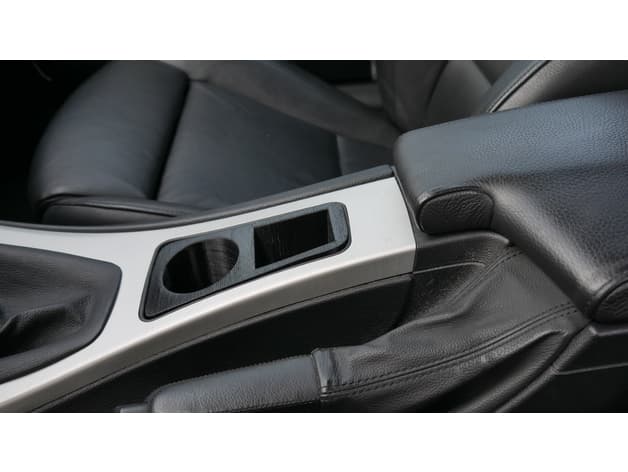

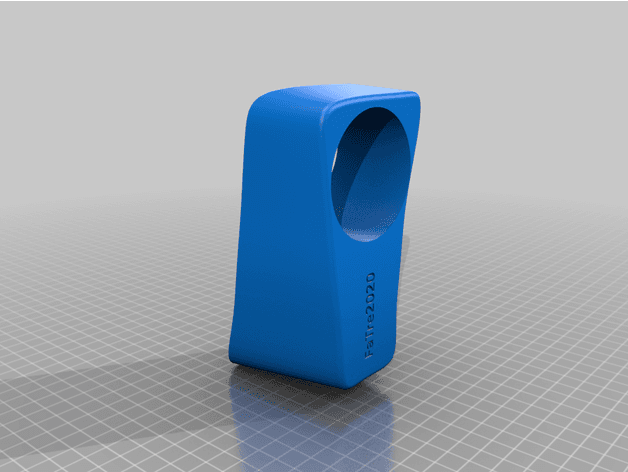

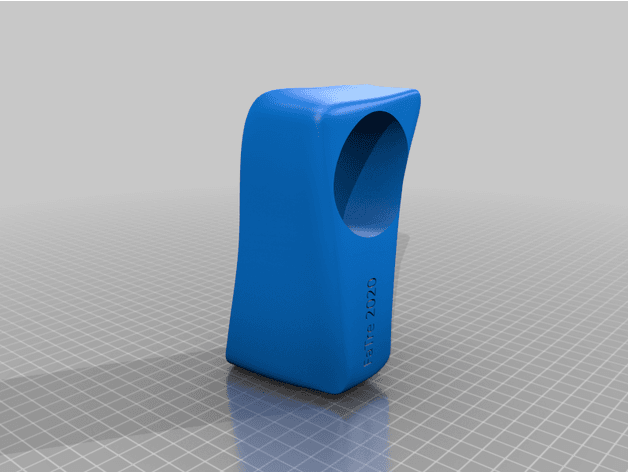

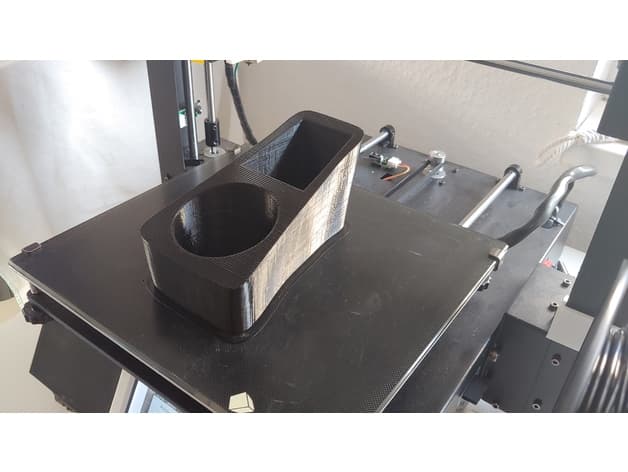

So I was looking for a fitting cupholder for my BMW E90 tray and couldn't find one which wasn't too big. This one fits to your BMW E90 without the big navi and without the iDrive knob. I made 3 versions which can fit 250ml, 330ml or 500ml cans (Germany/EU). With the big one, the walls might get too thin, read below. It fits very good to the tray, I use it everyday. This was designed to be printed with PLA, if you use ABS you might upscale it. Also, you can print it on the flat surface with my tag without supports. If you like the design, leave a tip :) *** Update 27.06.20 Someone requested a wider hole (currently 57mm) for norwegian 500ml cans. Uploaded another version with 66mm. Walls get very thin and cut, NO guarantee for good results as I won't try it! *** Update 11.07.20 Was shopping a german/EU 330ml can and couldn't fit it. So I made the hole slightly wider (59mm) to fit these. Ha Use cabin-heat-resistant material, dry-fit the part and verify secure retention and unobstructed operation.
