Manual Shift Knob
ABS · PETGMULTI-PART3 FILESCC-BYInterior
- PART
- Manual Shift Knob
- OEM
- —
- FITS
- 3 Series E90 / E91 / E92 / E93
Loading 3D viewer...
PART ID · BIMMER-3D / 1260QTY 3 · STLHANDLE · NO SUPPORTS
Field photographs
5 PLATES
PLATE 01 / 05No caption recorded
Build sheet
MAN-1260- [01]Insert.stlInsert.stl.STL
- [02]Shift_Knob_Body.stlShift_Knob_Body.stl.STL

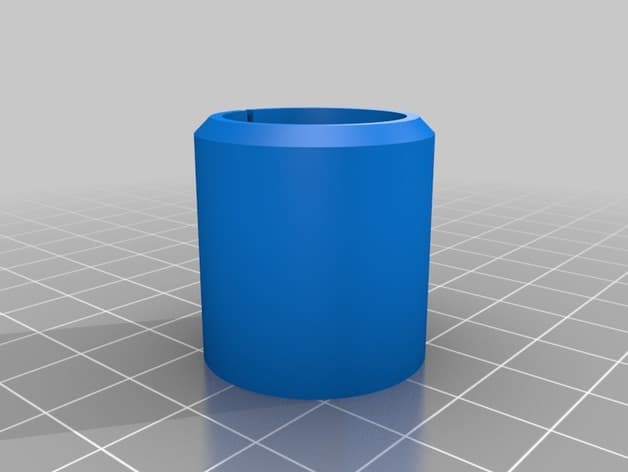

- [03]collar.stlcollar.stl.STL
- [04]Bounding box110.795 × 48.523 × 48.520 mm
- [05]Volume58,902.226 mm³
Field notes
BY EARNEST T BASS (THECADMAN99)Shift knob designed for e90 but may fit others. Clips on and does not rotate (careful of breakage if you try to twist it!) Fits fine, but is a bit light. Would be a nice print in transparent colors. Difficult to remove without breaking the teeth! (the knob teeth not yours) Please share your makes :) Use cabin-heat-resistant material, dry-fit the part and verify secure retention and unobstructed operation.
