PART №1294
FROMBIMMER-3D-PARTSDESTWORKBENCH31 JUL 2026
E92 Seat-Belt Presenter Extension Hook
ABS · PETGMULTI-PART2 FILESPublic DomainSeats
- PART
- E92 Seat-Belt Presenter Extension Hook
- OEM
- —
- FITS
- 3 Series E90 / E91 / E92 / E93
Loading 3D viewer...
PART ID · BIMMER-3D / 1294QTY 2 · STLHANDLE · NO SUPPORTS
Field photographs
4 PLATES
PLATE 01 / 04No caption recorded
Build sheet
MAN-1294- [01]e92-seatbelt-extender-driver.stle92-seatbelt-extender-driver.stl.STL
- [02]e92-seatbelt-extender-passenger.stle92-seatbelt-extender-passenger.stl.STL
- [03]Bounding box76.450 × 47.622 × 46.319 mm
- [04]Volume17,743.338 mm³
Field notes

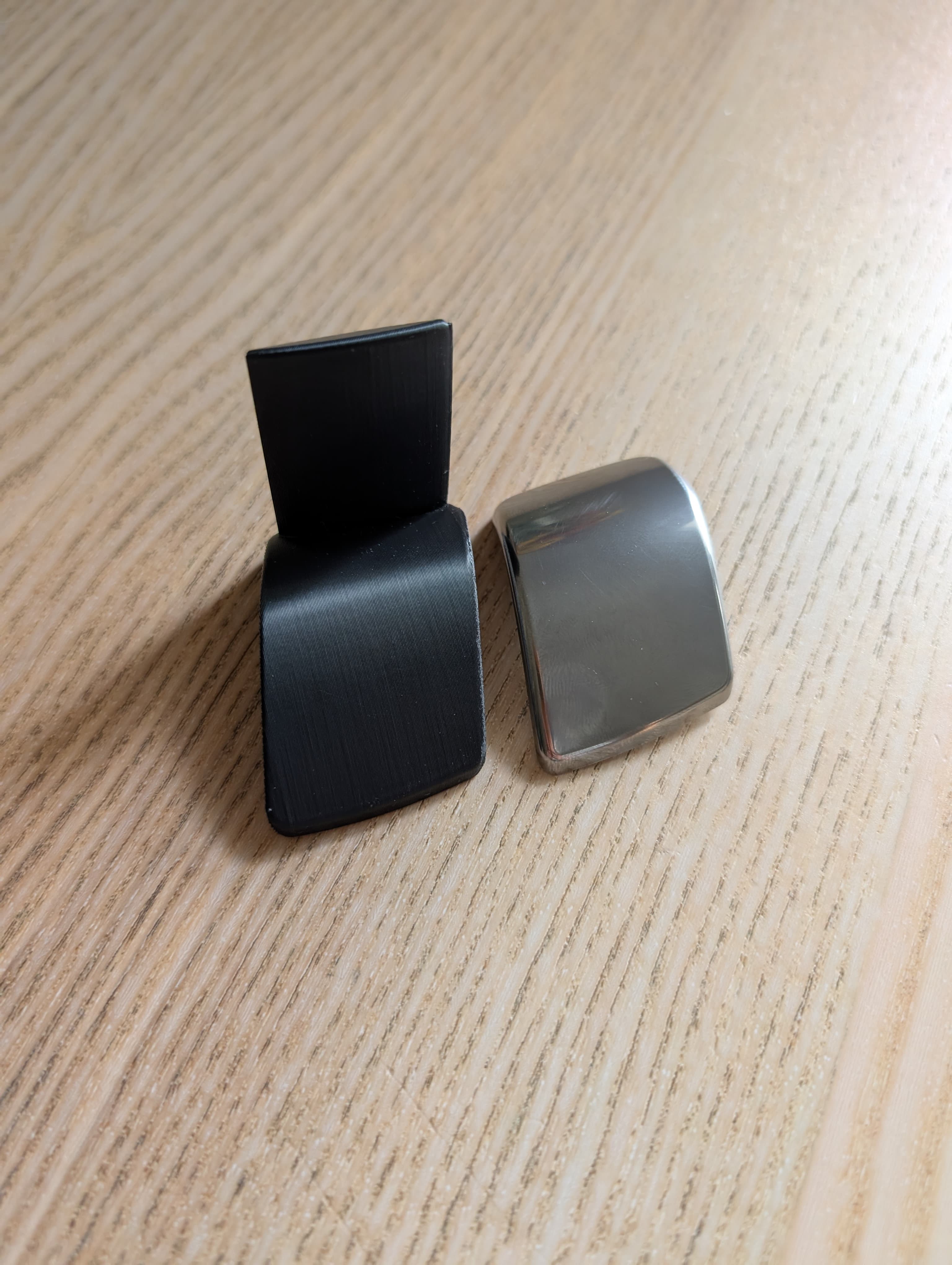

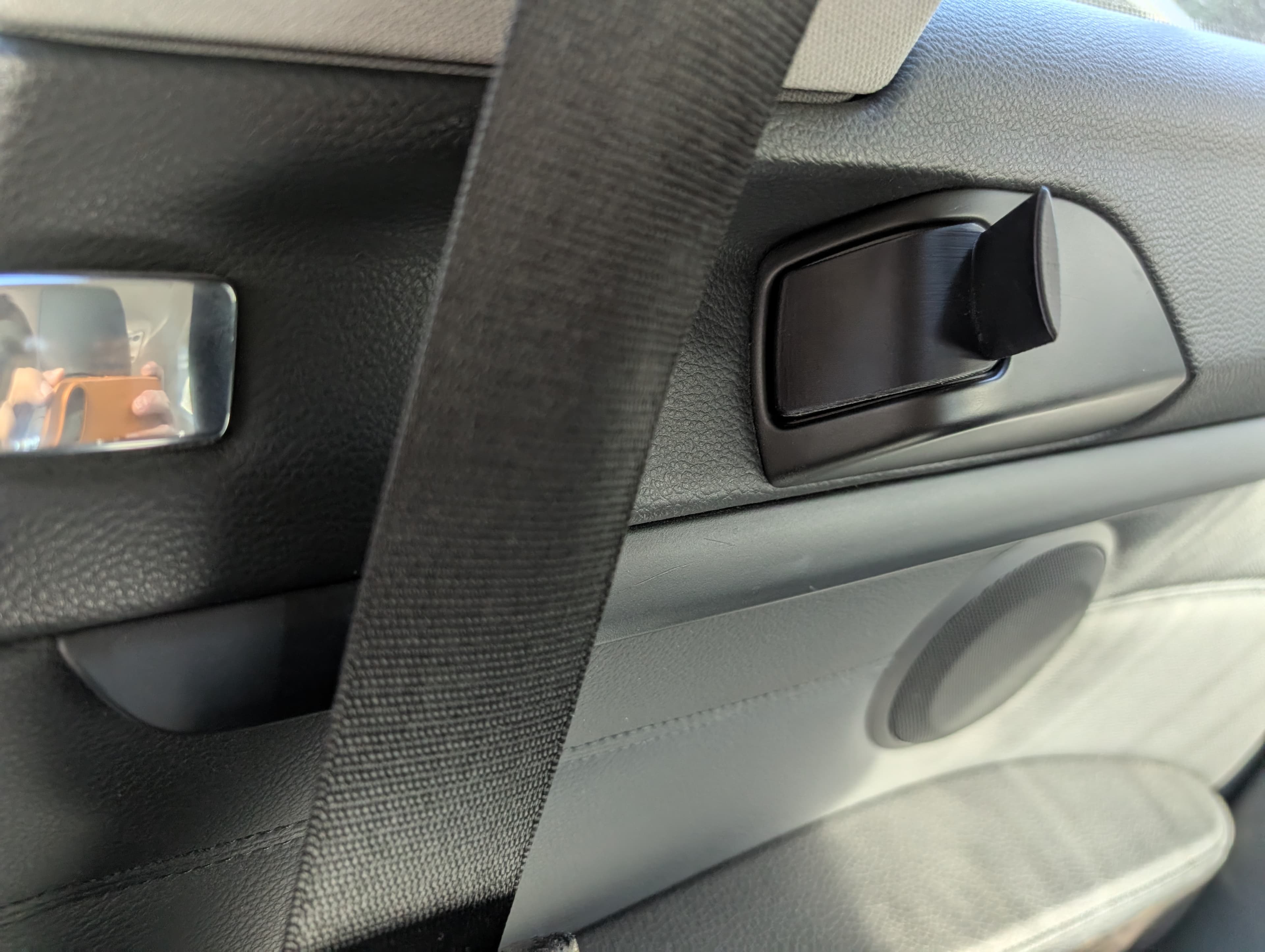

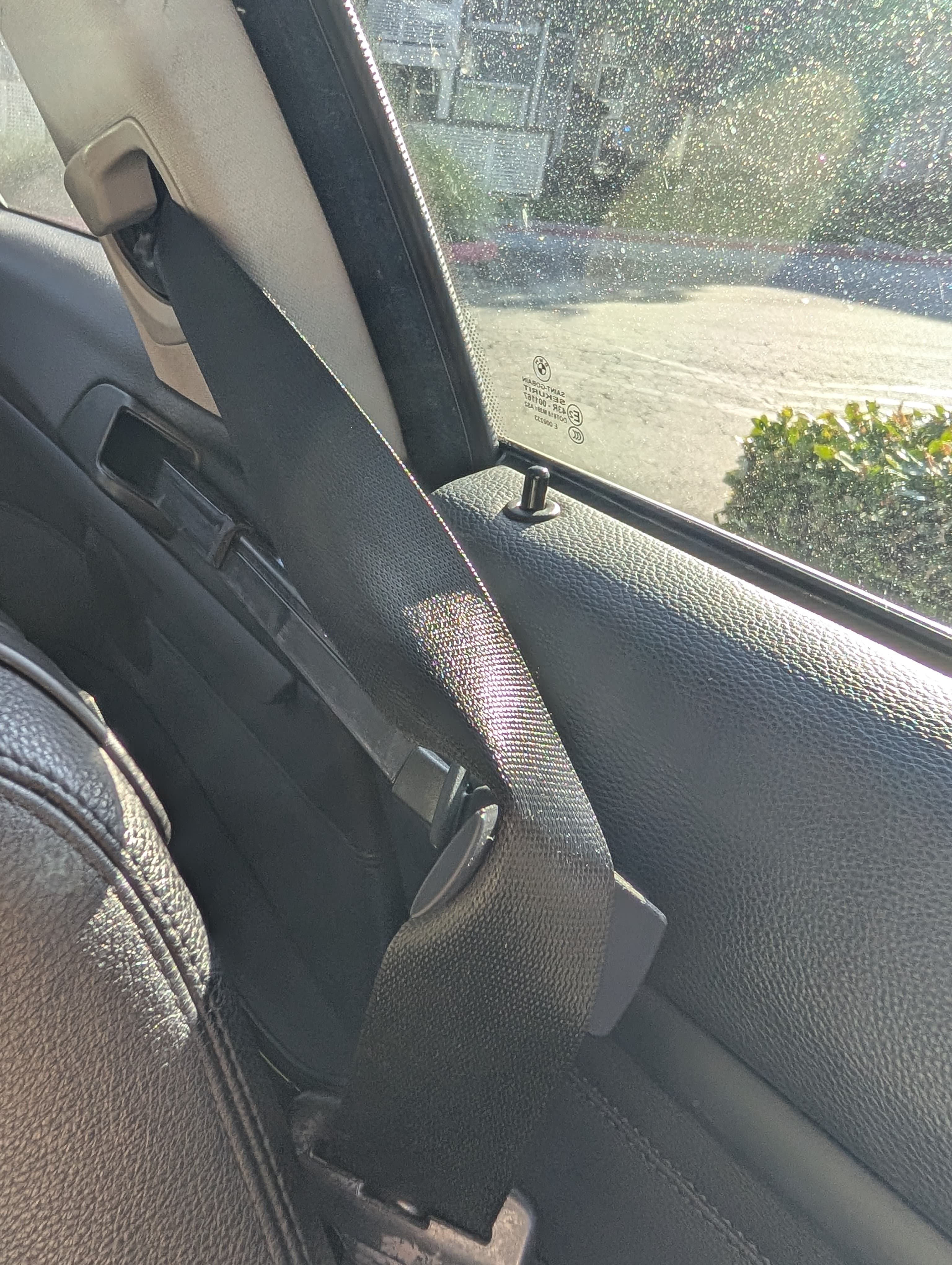

BY STYASTThis model replaces the chrome cap of the BMW coupe E92 extender arm with a hook that grabs the seatbelt successfully much more often than the original design. Designed to be a near perfect fit with the OEM shape. I recommend printing in ASA or ABS for the high temperatures in a car. The OEM piece easily comes off with a pry tool, then you can attach the 3d printed models with a strong double sided adhesive ( Confirm normal seat, belt and presenter movement and keep the printed part outside the restraint load path.
