Air-Vent Louver Linkage

ABS · PETG1 FILECC-BYDashboard

PART RECORDREF 1281

PART: Air-Vent Louver Linkage
OEM: —
FITS: 3 Series E90 / E91 / E92 / E93

Loading 3D viewer...

PART ID · BIMMER-3D / 1281QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

2 PLATES

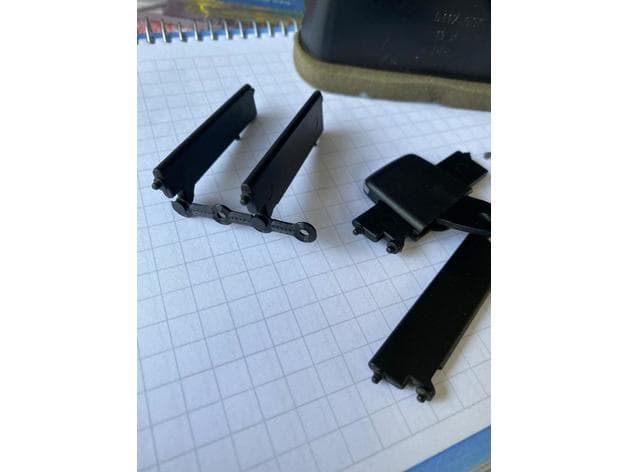

PLATE 01 / 02No caption recorded

Build sheet

MAN-1281

[01]BMW_vent_clip_2_v3.stlBMW_vent_clip_2_v3.stl.STL
[02]Bounding box40.200 × 6.000 × 1.500 mm
[03]Volume185.547 mm³

Field notes

BY STEFANO STOCCHERO (SS_SCL)

This connector moves all the louvers in the vent together. Originally is made of metal and super thin. Printed with 100% infill Use cabin-heat-resistant material, dry-fit the part and verify secure retention and unobstructed operation.

View original source ↗
