BMW X5 3D-printable parts

Replacement beauty cap for M50, M52 and M54 engine-cover fasteners, physically shown on the engine. BMWFans identifies the exact component as cap 11121726089 and confirms E34, E36, E38, E39, E46, E53, E60/E61, E65/E66, E83, E85 and Z3 applications. Use engine-bay-rated material and keep it clear of hot or moving parts.

Fourth-iteration replacement for the small slider-rail clip used in creator-listed E36, E39, E46 and E53 sunroofs. The source shows the physical print and a working demonstration. Use heat-resistant material and verify full sunroof travel, anti-pinch operation and water sealing before driving.

Repair bushing for the E46 and E53 window regulator, physically assembled and load-tested by the creator with an M6 thread. The creator warns that ordinary PLA failed in summer heat. Use heat-resistant automotive material, dry-fit before fastening, and verify glass, latch, wiring and trim clearance through full operation.

Four clip-in replacement gear-knob shapes for the BMW E34 and the creator-listed classic BMW chassis. The design was developed around the common BMW latching stem and includes an installed physical example. Confirm the lever's clip profile and preserve full shift travel before driving; the grouped API fitments reproduce only chassis families explicitly listed by the creator.

I designed it in a blender. Fits cars: BMW X5 E53, 1999-2007 BMW E39 series 5, 1995-2005 I printed it on cr-10 with .4 nozzle and .2 layer height Verify dimensions against the original part and confirm full operation before regular use.

Service wrench for the notched BMW fuel-tank screw cap used on E46, E60/E61, E63/E64, E65–E68, E83 and E53 vehicles. The creator tested the same interface on an R53 MINI and identified BMW screw cap 16116762417; BMW catalog cross-reference independently confirms that cap across the listed BMW chassis. The printed wrench is not the screw cap itself, so no OEM number is assigned. Use a stiff engineering polymer, hand tools only, and replace rather than reuse any visibly damaged print.

Replacement plus/minus volume rocker modeled after the creator's broken multifunction steering-wheel button and physically shown loose and installed. The creator documents direct fitment to X3 E83 and X5 E53. BMW services the surrounding switch assembly rather than this printed child button separately, so no parent assembly number is assigned. Use a durable heat-resistant material, preserve free button travel, and verify all steering-wheel controls operate without sticking before driving.

Clip-on cargo hook for the rear load-area rail, physically shown installed and documented by the creator as used reliably for more than a year. The creator directly lists X3 E83, 3 Series E46, X5 E53 and 5 Series E39 compatibility, so all four live generations are linked. This is an accessory rather than a reproduction of a BMW service part. Print in PETG as documented, observe sensible load limits, and confirm it cannot obstruct the rear seat or cargo cover.

Two-piece replacement dust cover for the steering-gear input shaft. The creator designed it specifically for the first-generation X5 steering rack and shows the printed cover installed around the shaft without removing the steering assembly. Print in a heat-resistant, tough material, secure the two halves as shown by the source, and verify full steering travel, shaft clearance and attachment security before driving. BMW does not catalog this input-shaft cover as a separately serviced child part, so no OEM number is assigned.

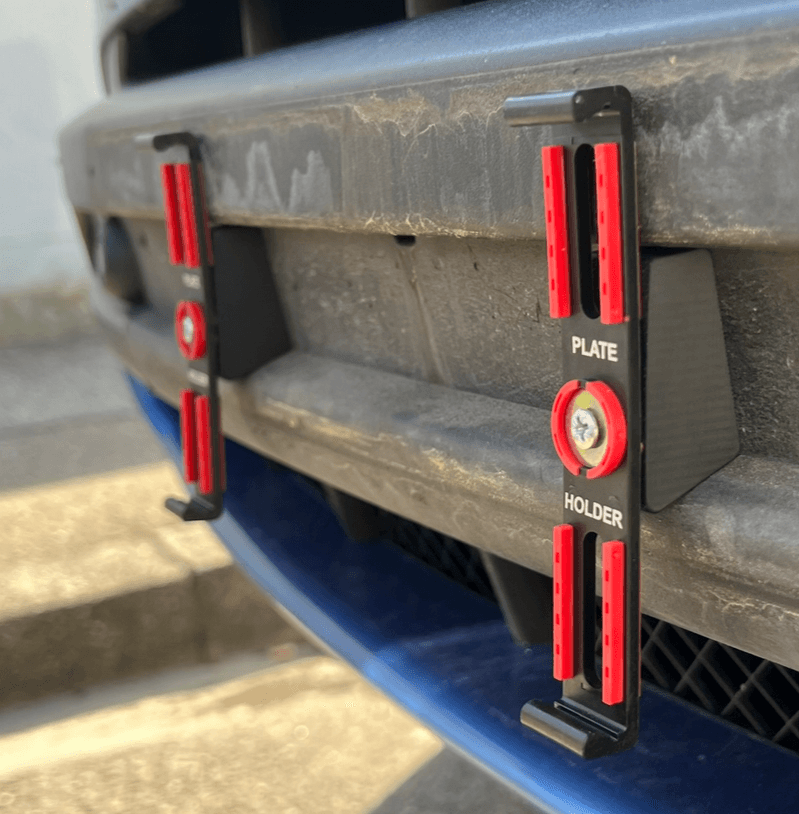

Tapered adapter for mounting an aftermarket frameless Plateholder bracket to the original front bumper mounting surface. The creator designed it for a short German plate after removing the wide factory plate carrier and shows the printed adapters installed on the vehicle. Print one adapter for each attachment point, use suitable exterior-grade material and hardware, and confirm bumper style, plate dimensions, local visibility rules and secure retention before road use. This interfaces with aftermarket hardware and is not assigned a BMW OEM number.

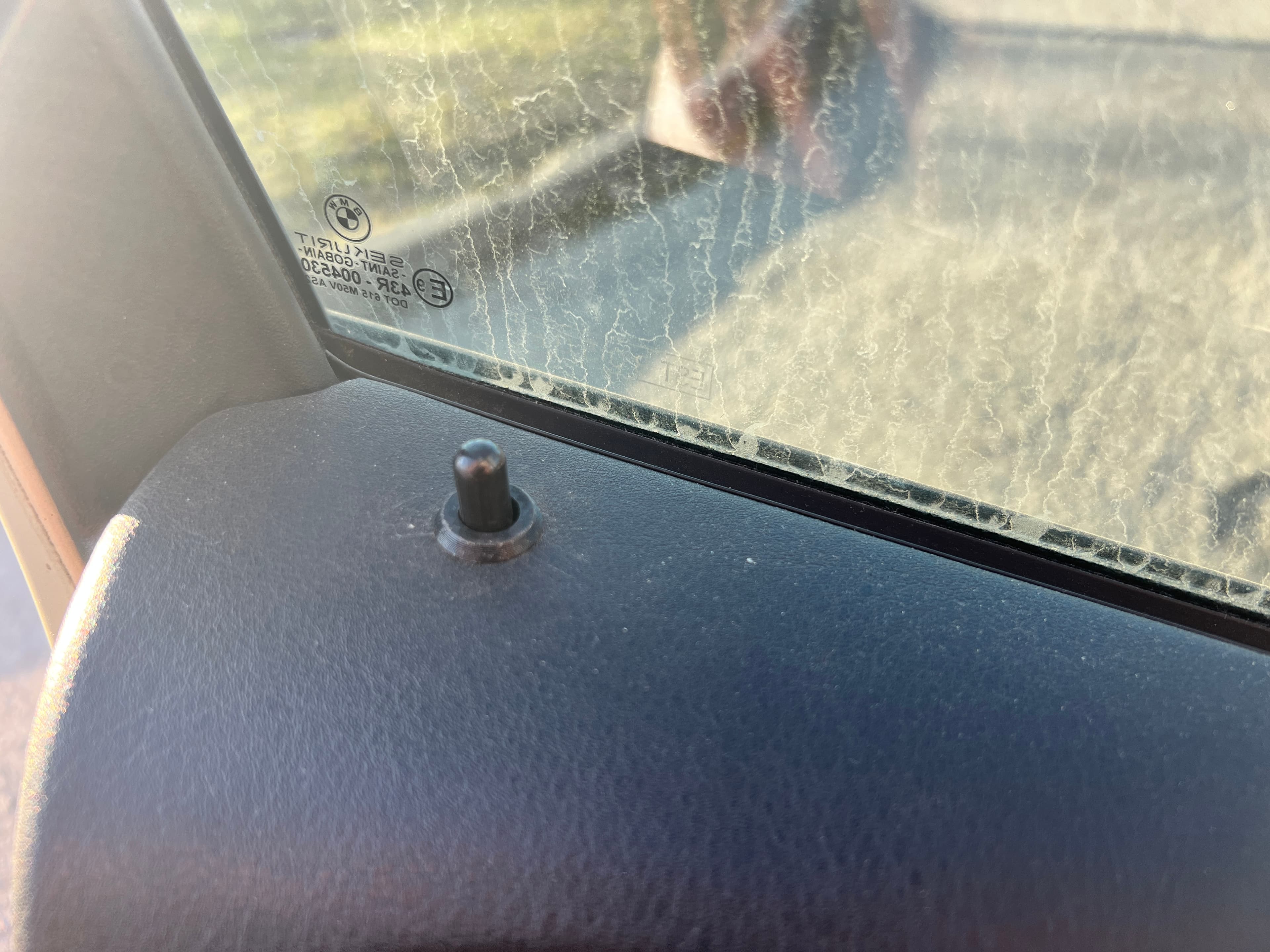

Replacement trim sleeve surrounding the interior door-lock pin. The creator modeled it as a solid, friction-fit alternative to the original slotted piece, physically compared the print with the original and shows it installed in the door top. It corresponds to BMW locking-button cover 51 41 8 408 567, used on front and rear E53 door trims. Print in a UV- and heat-resistant material, compare the sleeve and pin travel with the original, and ensure the lock pin moves freely before use.

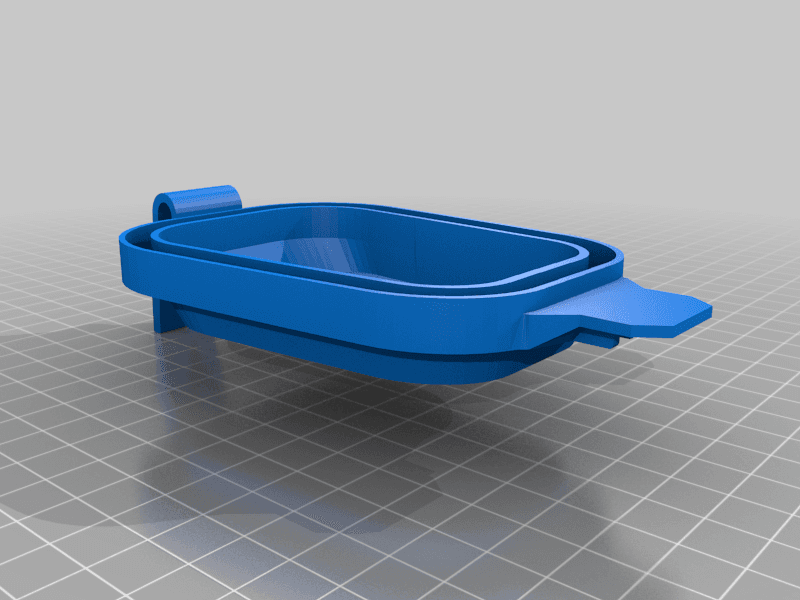

Replacement rear access cover for the high-beam bulb opening on facelift headlamp assemblies. The creator replicated a perished cover from a 2005 vehicle, physically printed the replacement in ABS and reused the original rubber seal. Public BMW catalog evidence identifies the serviced high-beam cover as 63 12 6 940 252 for facelift E53 headlamps. Use only on matching 10/2003-on headlamp assemblies, transfer an undamaged seal, use heat-resistant material and confirm a dry, secure seal before driving.

Replacement cap for the roof-rack system pictured by the creator, explicitly identified for first- and second-generation X5 applications. The source includes a physical printed cap and vehicle/rack context, but does not establish that every factory or aftermarket rail and crossbar profile uses the same interface. Compare the mating profile and dimensions with the missing cap, print in a UV-, heat- and weather-resistant material, and confirm secure retention before driving. No OEM number is assigned because the exact rack variant is not independently established.

Replacement upper carpet-retaining clip for the left luggage-compartment first-aid-kit recess. The creator identifies the design specifically for the second-generation X5, calls for two clips and documents physically printing it in PLA. Because the archived source provides CAD views rather than an installed comparison, verify the prong spacing, panel thickness and secure retention against the surviving clip before use; prefer a heat-resistant automotive material. No OEM number is assigned because the exact serviced clip identity is not established from the source.

Replacement blanking plate for the center-armrest storage opening after removal of the factory telephone cradle. The creator modeled it for the second-generation X5, shows it physically fitted and states that the friction-fit print replaces BMW cover 51 16 9 115 083 without reproducing the original clips. BMW catalog evidence also lists that cover for the contemporary X6 E71/E72. Confirm the telephone/storage-console configuration and applicable option equipment by VIN, use a heat-resistant material, and verify that the plate remains secure without interfering with adjacent wiring or sockets.

Two-size replacement clip set for retaining the windscreen-washer hose along the underside of the hood. The creator specifies three standard clips and two 8 mm clips for the second-generation X5, and provides both an installed hood view and loose physical prints. Print in a heat-, moisture- and fatigue-resistant material, compare each clip and hose diameter with the originals, route the hose without kinks, and confirm clearance before closing the hood. No OEM number is assigned because BMW public catalogs do not establish these modeled clips as separately serviced child parts; hose and nozzle parent assemblies are deliberately not used.

Honeycomb-pattern replacement pair for the red rear-bumper reflectors fitted to the US-market X5 M. The creator hand-measured the originals, reproduced the factory mounting features, also provides a flat adhesive-backed alternative, and documents the printed pair installed for one year. This fitment is limited to the F85 X5 M rear bumper; standard F15 bumpers and non-US configurations must be checked separately. The modeled pair replaces left reflector 63 14 7 850 005 and right reflector 63 14 7 850 006. Print in a UV- and heat-resistant automotive material, preserve rear parking-sensor clearance, and note that deleting mandated reflectors may be unlawful for road use in some markets.

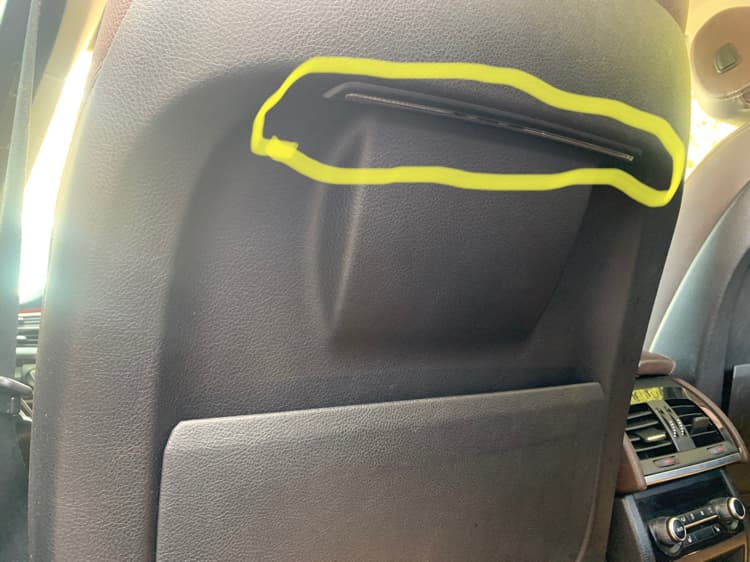

Frame and translucent diffuser for adding a slim legroom light along the upper rear seat-back panel. The creator identifies the design for the contemporary X5 and X6, supplies separate frame and diffuser files plus a combined-print alternative, states that both parts were printed in PETG, and shows the assembly physically installed. This is an electrical lighting retrofit rather than a verified replacement for a catalogued BMW component, so no OEM number is assigned. Confirm seat-back trim geometry, wiring, fuse protection, heat clearance and secure retention before use; never route wiring through seat airbag or adjustment paths.

Replacement retaining hook for the roller sunshade in a rear door. The creator modeled it for the fourth-generation X5, shows the printed clip next to the original, and documents it installed and holding the shade. The printed hook is intentionally slightly shorter than the original. BMW component 51 35 7 479 511 is catalogued for the G05 X5 and G06 X6 rear-door shade application, so both evidence-backed generations are linked. Fitment requires the rear side-window roller sunblind equipment; confirm door trim, shade and mounting geometry by VIN. Print in a heat-resistant automotive material and test smooth release and secure retention before road use.
