Hood Washer-Hose Clip Set

ABS · Nylon · PETGMULTI-PART2 FILESCC-BYWipers
PART RECORDREF 1513
PART
Hood Washer-Hose Clip Set
OEM
FITS
X5 E70
BIMMER-3D · PART RECORDREV 2026

Loading 3D viewer...

PART ID · BIMMER-3D / 1513QTY 2 · STLHANDLE · NO SUPPORTS
Field photographs
2 PLATES
Plate 1 of 2
PLATE 01 / 02No caption recorded
Build sheet
MAN-1513
  • [01]Hose_Clip.stl.STL
  • [02]Hose_Clip_8mm.stl.STL
  • [03]Bounding box40.000 × 27.085 × 23.364 mm
  • [04]Volume4,997.067 mm³
Field notes
BY ARAMAYIS ANTONYAN (266785)

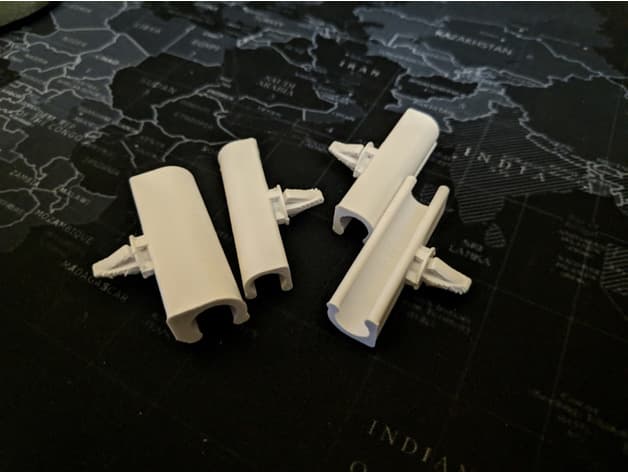

Two-size replacement clip set for retaining the windscreen-washer hose along the underside of the hood. The creator specifies three standard clips and two 8 mm clips for the second-generation X5, and provides both an installed hood view and loose physical prints. Print in a heat-, moisture- and fatigue-resistant material, compare each clip and hose diameter with the originals, route the hose without kinks, and confirm clearance before closing the hood. No OEM number is assigned because BMW public catalogs do not establish these modeled clips as separately serviced child parts; hose and nozzle parent assemblies are deliberately not used.
