Door-Lock Pin Trim

REPLACES OEM51418408567

ABS · Nylon · PETG1 FILECC-BY-NC-SATrim Clips

PART RECORDREF 1508

PART: Door-Lock Pin Trim
OEM: 51418408567
FITS: X5 E53

Loading 3D viewer...

PART ID · BIMMER-3D / 1508QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

4 PLATES

PLATE 01 / 04No caption recorded

Build sheet

MAN-1508

[01]Door_Lock_Pin_Trim.stlDoor_Lock_Pin_Trim.stl.STL
[02]Bounding box17.000 × 17.000 × 14.000 mm
[03]Volume879.361 mm³

Field notes

BY MINILOGIQUE

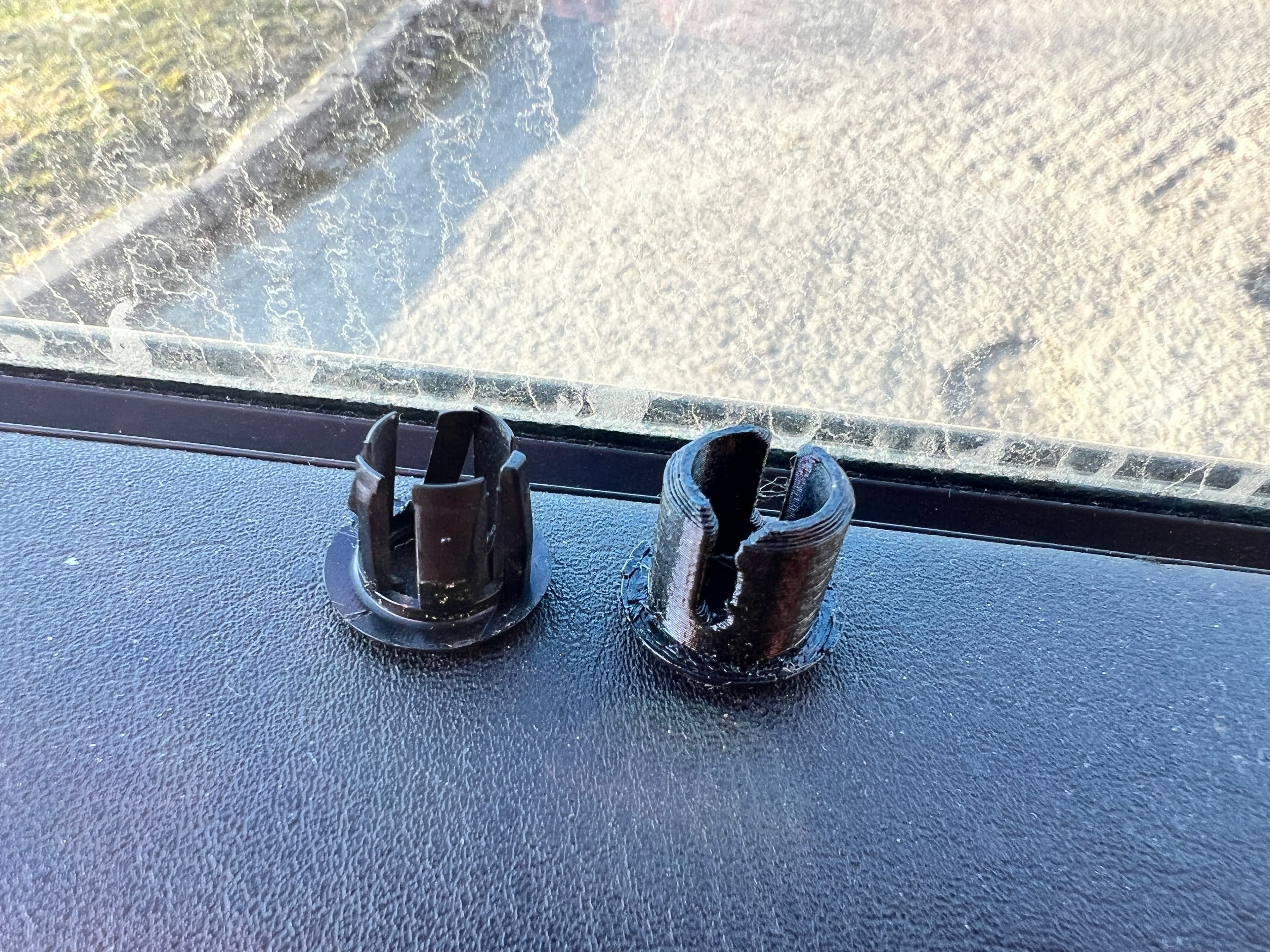

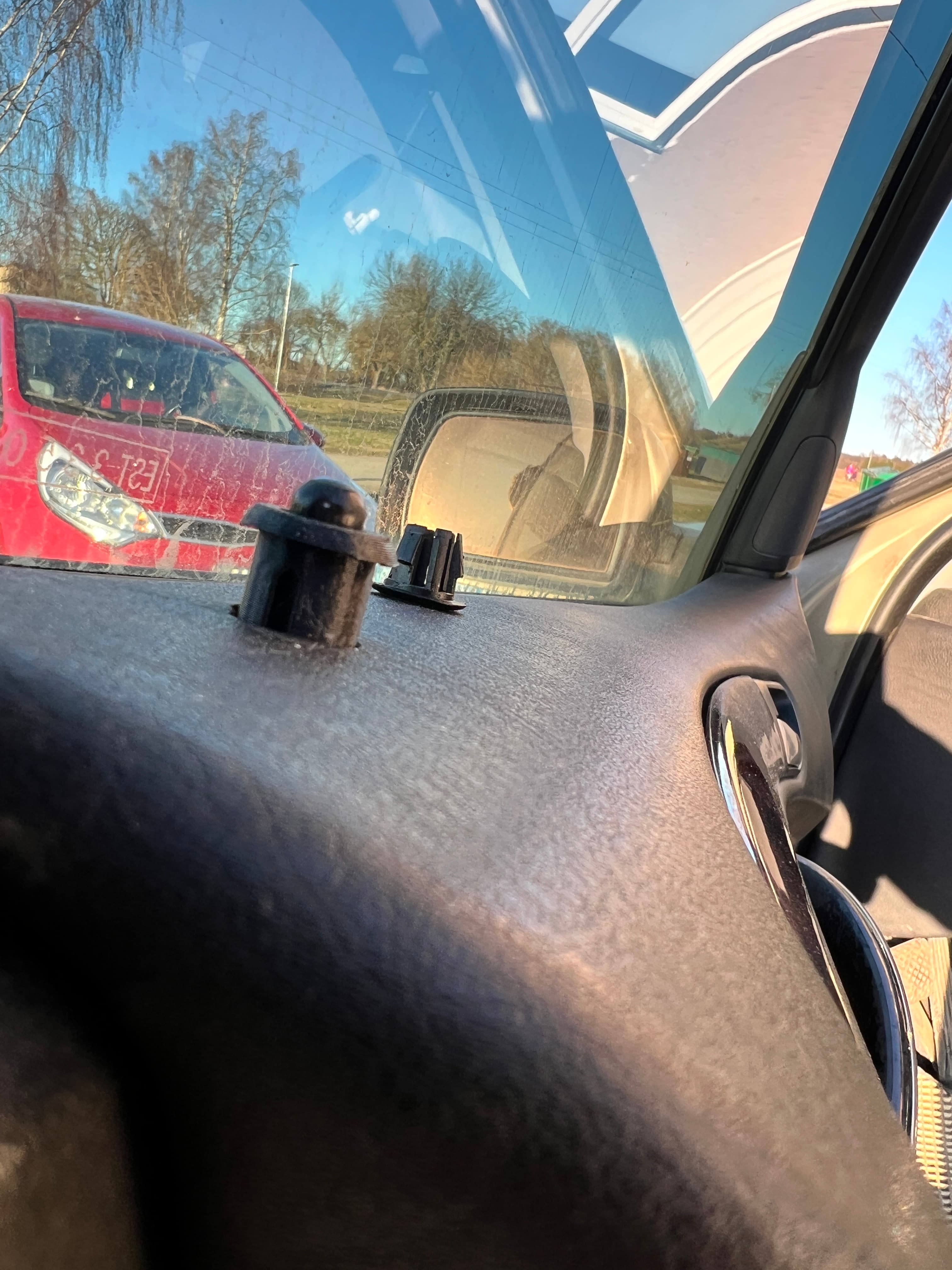

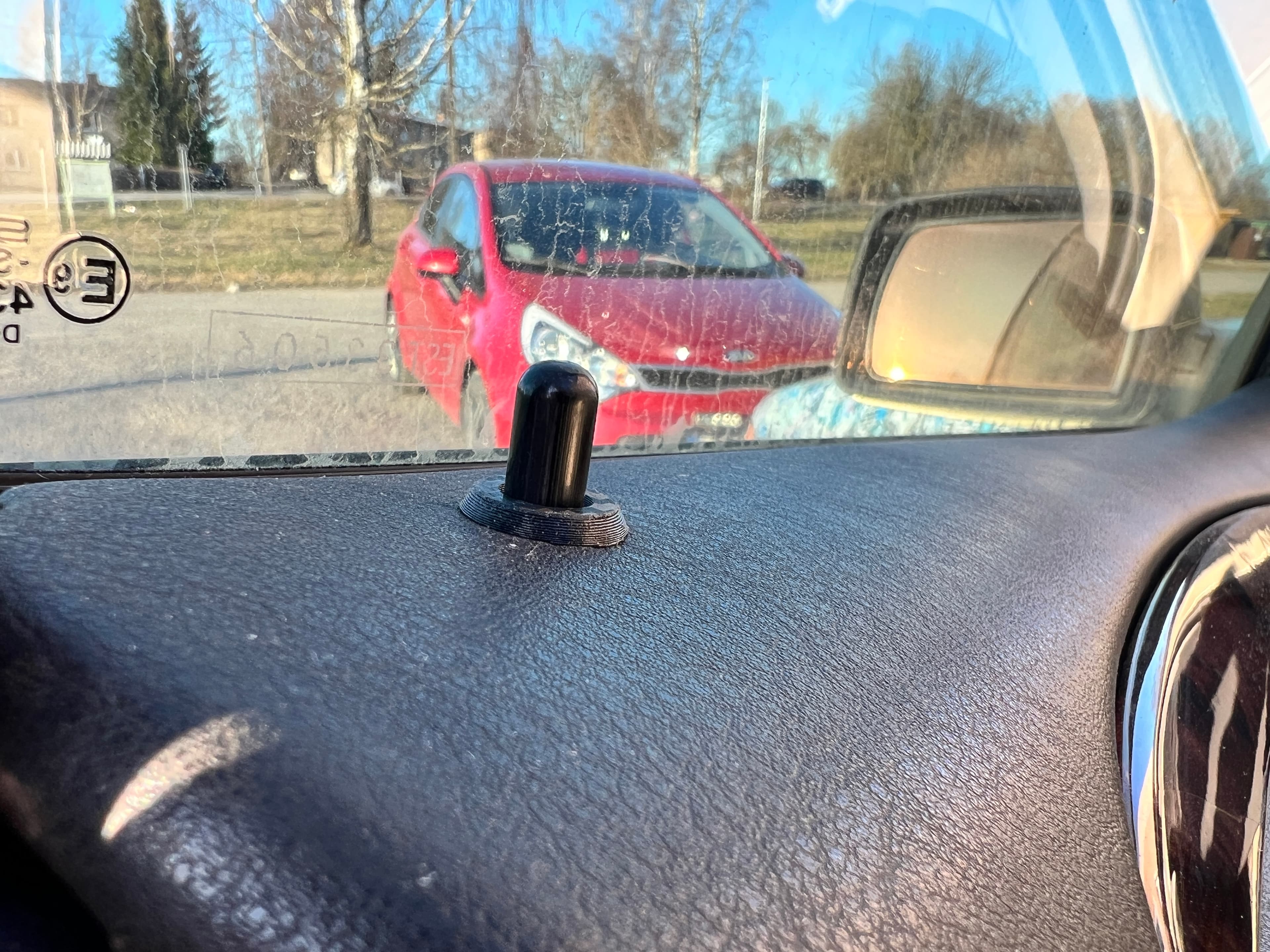

Replacement trim sleeve surrounding the interior door-lock pin. The creator modeled it as a solid, friction-fit alternative to the original slotted piece, physically compared the print with the original and shows it installed in the door top. It corresponds to BMW locking-button cover 51 41 8 408 567, used on front and rear E53 door trims. Print in a UV- and heat-resistant material, compare the sleeve and pin travel with the original, and ensure the lock pin moves freely before use.
