PART №1506
FROMBIMMER-3D-PARTSDESTWORKBENCH01 AUG 2026

Steering-Gear Input Dust Cover

ABS · Nylon · PETG1 FILECC-BY-NCMechanical
PART RECORDREF 1506
PART
Steering-Gear Input Dust Cover
OEM
FITS
X5 E53
BIMMER-3D · PART RECORDREV 2026

Loading 3D viewer...

PART ID · BIMMER-3D / 1506QTY 1 · STLHANDLE · NO SUPPORTS
Field photographs
2 PLATES
Plate 1 of 2
PLATE 01 / 02No caption recorded
Build sheet
MAN-1506
  • [01]steering-dust-cap.stl.STL
  • [02]Bounding box77.500 × 64.750 × 8.000 mm
  • [03]Volume8,247.369 mm³
Field notes
BY JC

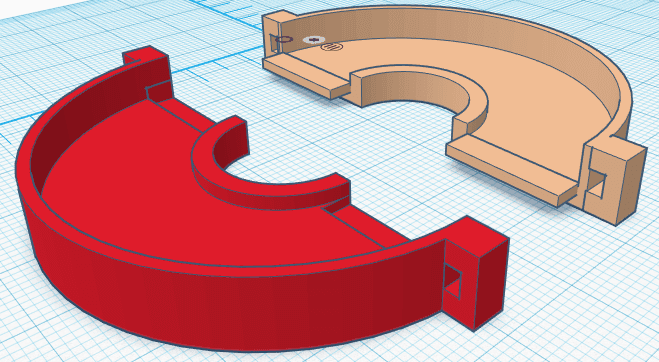

Two-piece replacement dust cover for the steering-gear input shaft. The creator designed it specifically for the first-generation X5 steering rack and shows the printed cover installed around the shaft without removing the steering assembly. Print in a heat-resistant, tough material, secure the two halves as shown by the source, and verify full steering travel, shaft clearance and attachment security before driving. BMW does not catalog this input-shaft cover as a separately serviced child part, so no OEM number is assigned.

Service log
0 entries · open log
