Roof-Rack Cover Cap

ABS · Nylon · PETG1 FILECC-BYExterior
PART RECORDREF 1510
PART
Roof-Rack Cover Cap
OEM
FITS
X5 E53, X5 E70
BIMMER-3D · PART RECORDREV 2026

Loading 3D viewer...

PART ID · BIMMER-3D / 1510QTY 1 · STLHANDLE · NO SUPPORTS
Field photographs
2 PLATES
Plate 1 of 2
PLATE 01 / 02No caption recorded
Build sheet
MAN-1510
  • [01]bmwx5roofrackcap_v19.stl.STL
  • [02]Bounding box40.000 × 32.897 × 20.397 mm
  • [03]Volume6,785.864 mm³
Field notes
BY A O

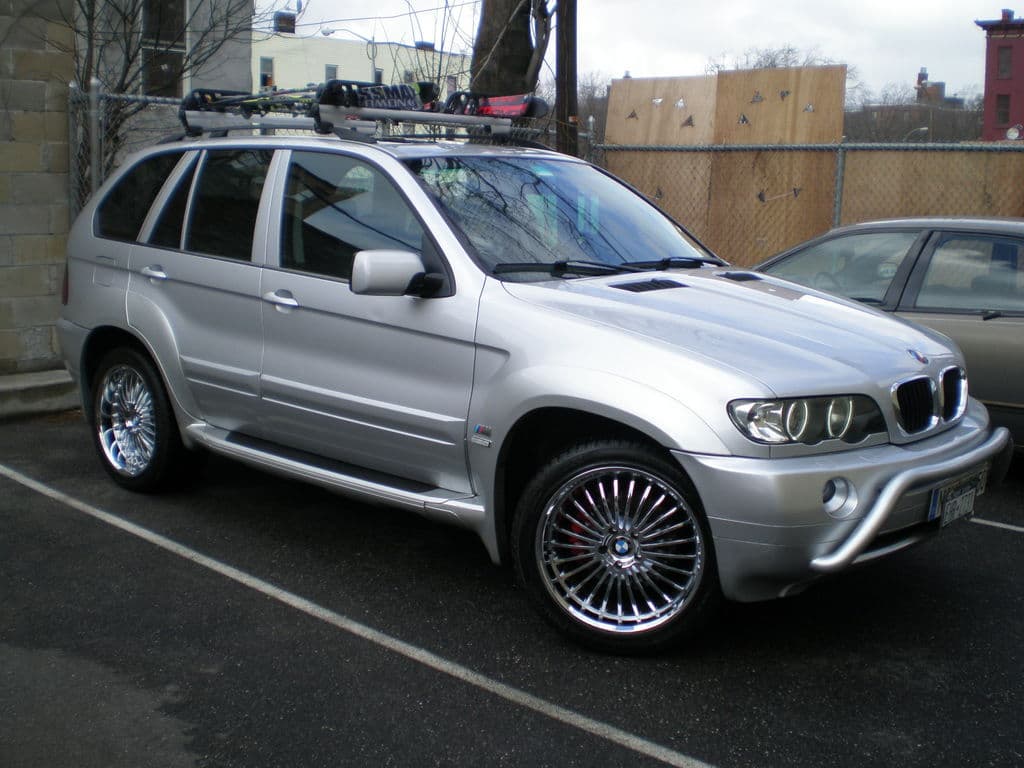

Replacement cap for the roof-rack system pictured by the creator, explicitly identified for first- and second-generation X5 applications. The source includes a physical printed cap and vehicle/rack context, but does not establish that every factory or aftermarket rail and crossbar profile uses the same interface. Compare the mating profile and dimensions with the missing cap, print in a UV-, heat- and weather-resistant material, and confirm secure retention before driving. No OEM number is assigned because the exact rack variant is not independently established.
