PART №1187
FROMBIMMER-3D-PARTSDESTWORKBENCH31 JUL 2026
Window Regulator Bushing
REPLACES OEM51338242760
ABS · PETG1 FILECC-BYDoors
- PART
- Window Regulator Bushing
- OEM
- 51338242760
- FITS
- 3 Series E46, X5 E53
Loading 3D viewer...
PART ID · BIMMER-3D / 1187QTY 1 · STLHANDLE · NO SUPPORTS
Field photographs
10 PLATES

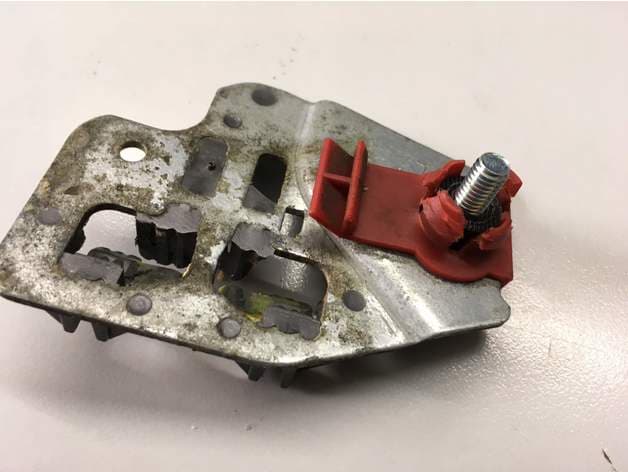

PLATE 01 / 10No caption recorded
Build sheet

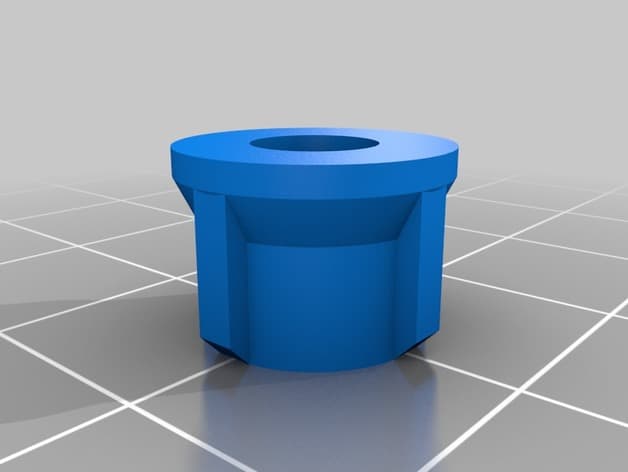

MAN-1187- [01]BMW_e46_bushing.stlBMW_e46_bushing.stl.STL
- [02]Bounding box11.997 × 11.997 × 8.200 mm
- [03]Volume560.671 mm³
Field notes

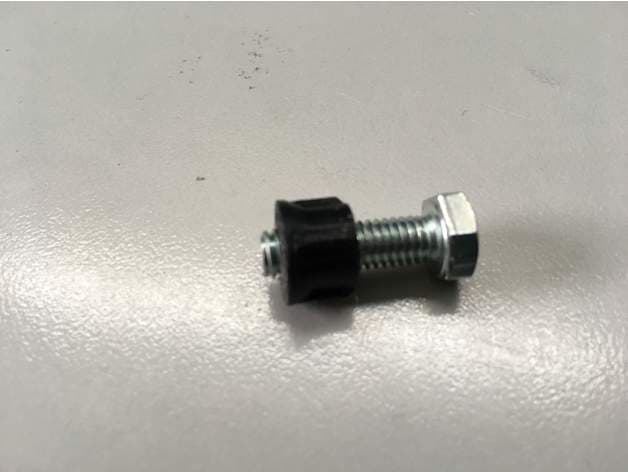

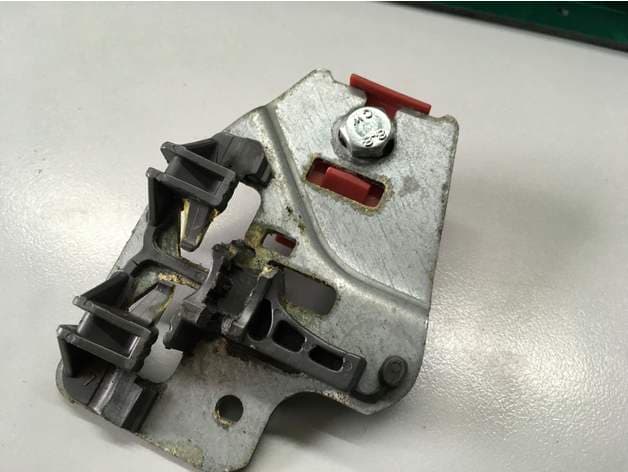

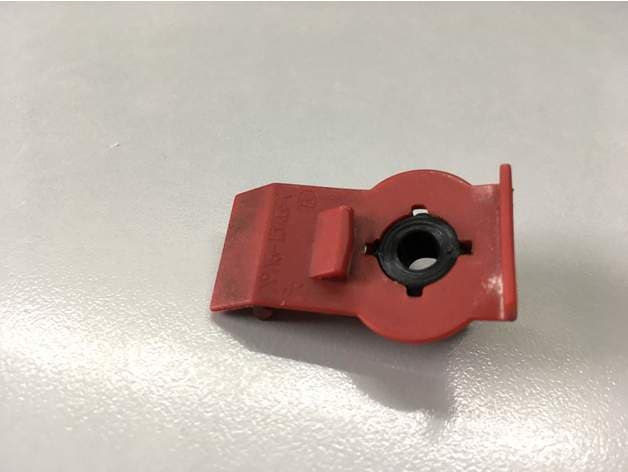

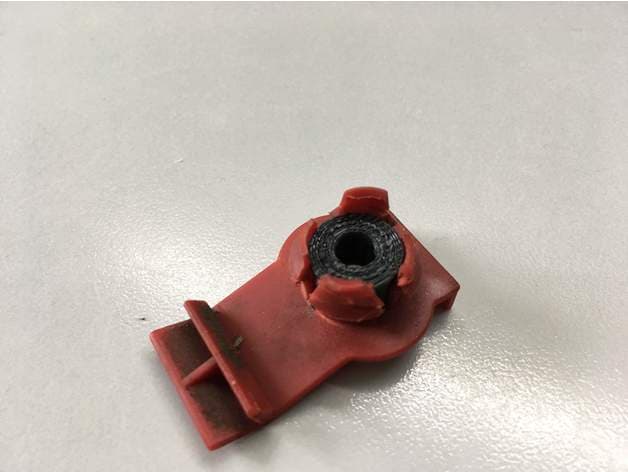

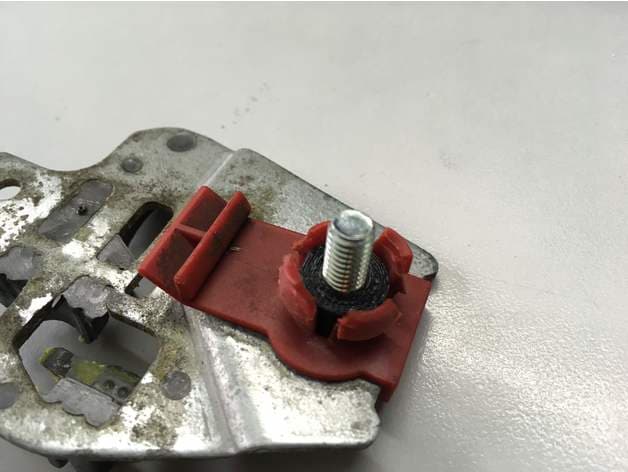

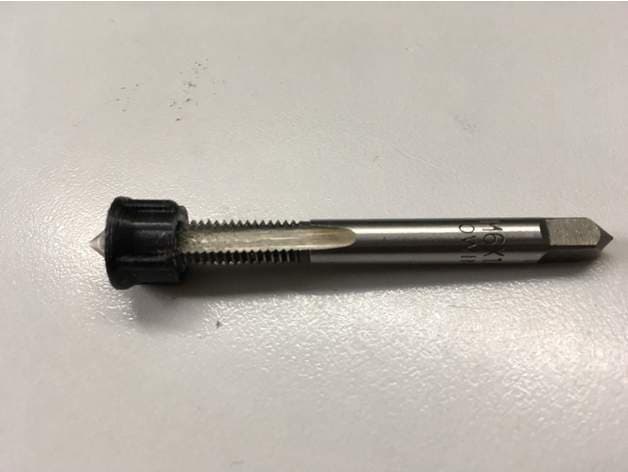

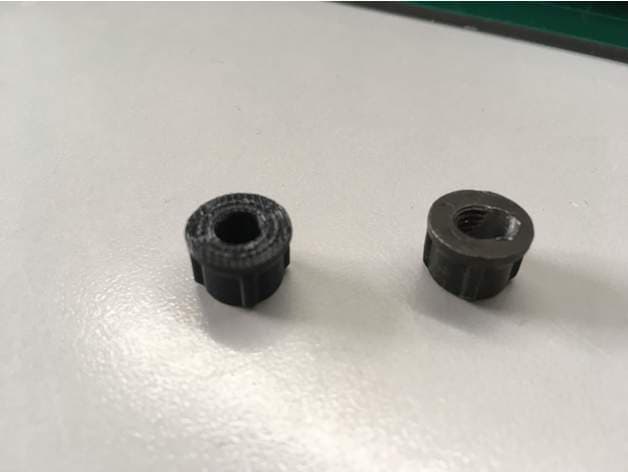

BY VLADIMIR RODMAN (WQWERTY)Repair bushing for the E46 and E53 window regulator, physically assembled and load-tested by the creator with an M6 thread. The creator warns that ordinary PLA failed in summer heat. Use heat-resistant automotive material, dry-fit before fastening, and verify glass, latch, wiring and trim clearance through full operation.
