PART №1515
FROMBIMMER-3D-PARTSDESTWORKBENCH01 AUG 2026
Rear-Seat Legroom LED Frame and Diffuser
ABS · Nylon · PETGMULTI-PART3 FILESCC-BYLights
- PART
- Rear-Seat Legroom LED Frame and Diffuser
- OEM
- —
- FITS
- X5 F15 / F85, X6 F16 / F86
Loading 3D viewer...
PART ID · BIMMER-3D / 1515QTY 3 · STLHANDLE · NO SUPPORTS
Field photographs
3 PLATES
PLATE 01 / 03No caption recorded
Build sheet
MAN-1515- [01]door_merc_light_main.stldoor_merc_light_main.stl.STL
- [02]door_merc_light_diffuser.stldoor_merc_light_diffuser.stl.STL
- [03]door_merc_light_whole.stldoor_merc_light_whole.stl.STL
- [04]Bounding box276.000 × 18.000 × 14.800 mm
- [05]Volume15,590.004 mm³
Field notes

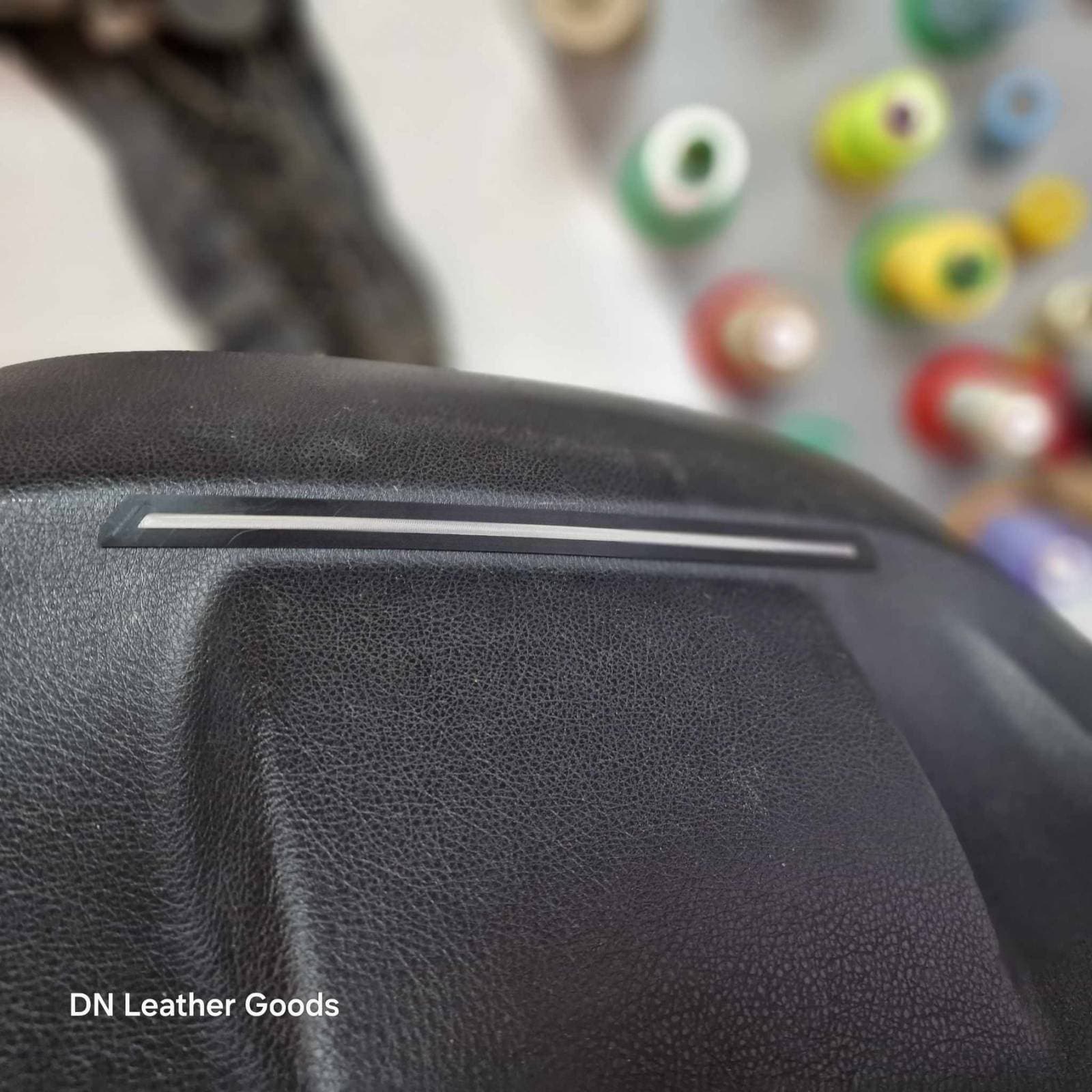

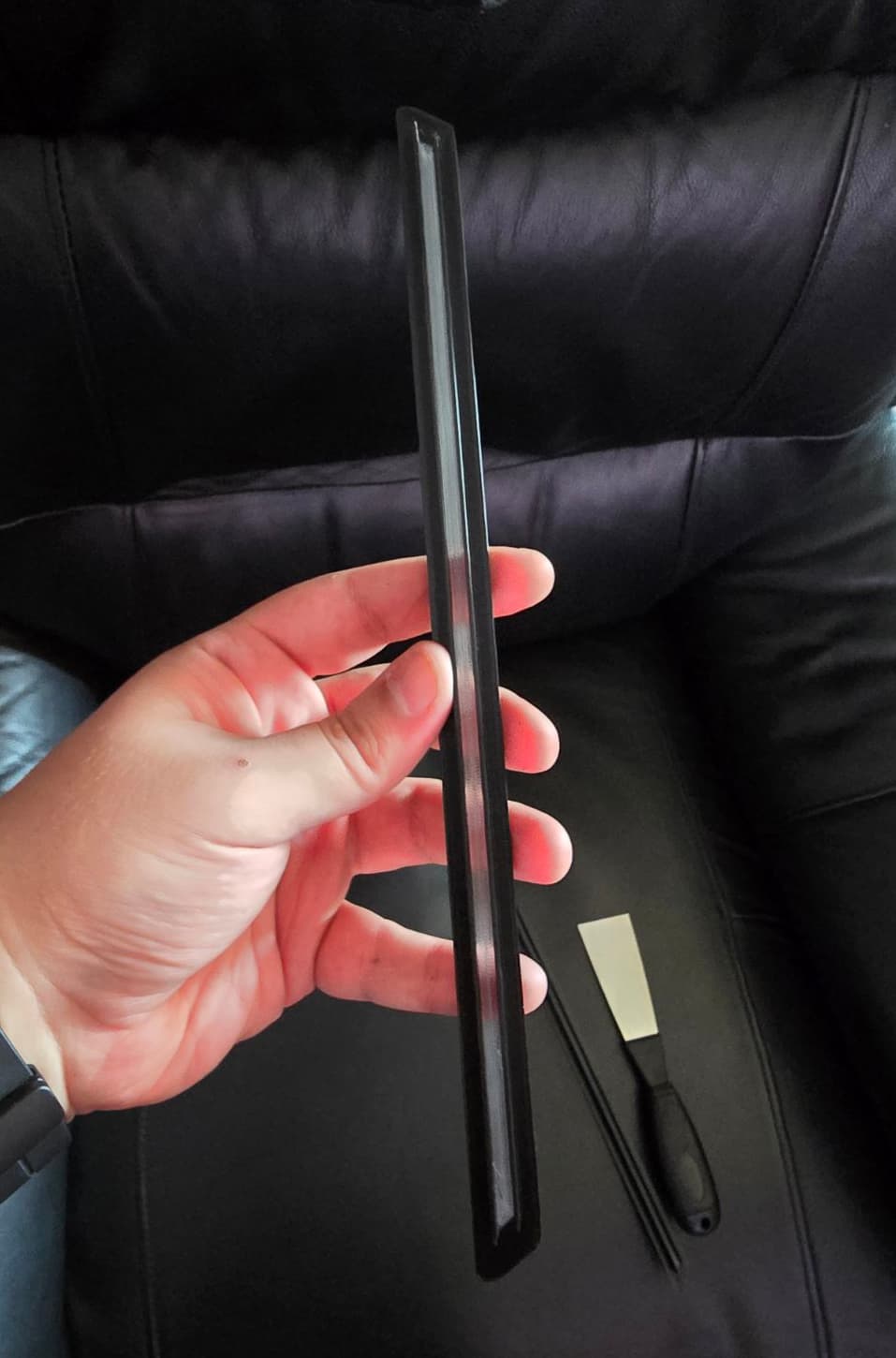

BY KIRIL KRASTEVFrame and translucent diffuser for adding a slim legroom light along the upper rear seat-back panel. The creator identifies the design for the contemporary X5 and X6, supplies separate frame and diffuser files plus a combined-print alternative, states that both parts were printed in PETG, and shows the assembly physically installed. This is an electrical lighting retrofit rather than a verified replacement for a catalogued BMW component, so no OEM number is assigned. Confirm seat-back trim geometry, wiring, fuse protection, heat clearance and secure retention before use; never route wiring through seat airbag or adjustment paths.
Service log
0 entries · open logIncoming…
