BMW i3 3D-printable parts

Replacement slider for the factory BMW wireless-charging cradle that increases usable phone length to approximately 168 mm. The creator documents F2x, F3x, F8x, and I01 cradle compatibility and shows the printed part installed and measured. Print in PETG, ASA, ABS, or another cabin-temperature-resistant material; verify latch engagement, charging operation, and secure phone retention before driving.

Flexible replacement for BMW rubber buffer 51466967605, creator-tested on an i3 and catalogued for F45, E81/E87, F20/F21, I01, and X1 E84. Print in approximately 85A TPU and cut out the temporary support tab after printing. Within the combined E8x generation, documented fitment is E81/E87 only.

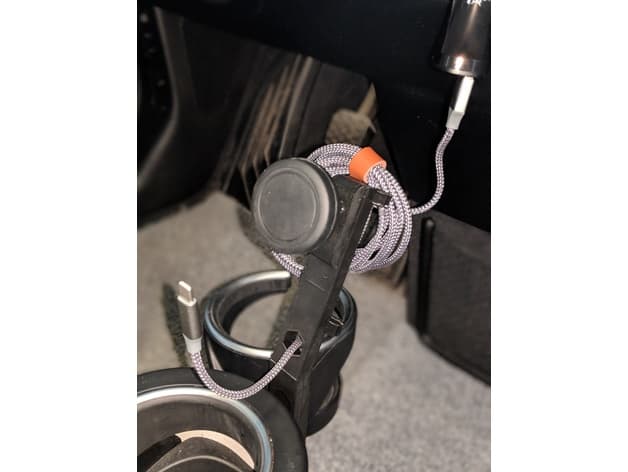

Cup-position mounting arm for a reusable magnetic phone head, with an integrated cable comb and cable pass-throughs. The creator physically printed the arm, adapted the threaded base and magnetic head from a generic mount, and shows the complete assembly installed in the center-console cup position. Use a cabin-heat-resistant material, confirm the threaded adapter and ball joint are secure, route cables clear of the controls, and verify that the device cannot interfere with driving.

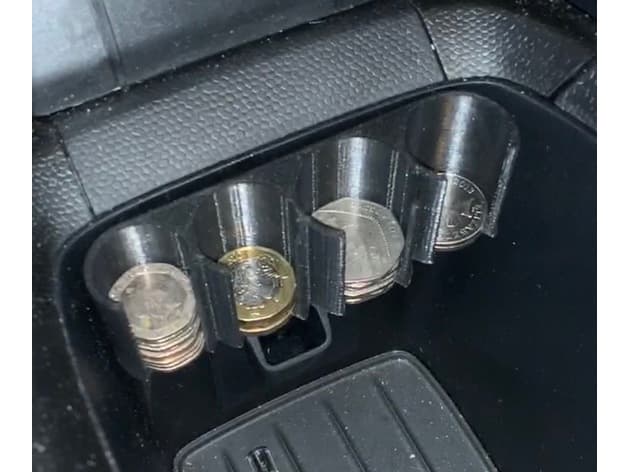

Curved organizer for UK 10p, 20p, 50p and £1 parking coins, with an optional separate lid. It mounts beneath the center armrest using double-sided foam tape; the source shows both the loaded organizer and the lid installed. This is UK-currency-specific accessory geometry rather than an original serviced component. Use automotive-grade tape and cabin-heat-resistant material, and confirm the organizer remains secure and does not obstruct the armrest mechanism.

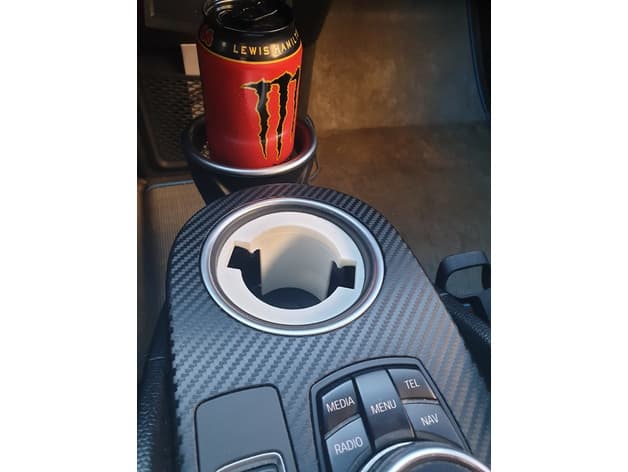

Insert for the fixed front cup position that supports a 330 ml can in a 59 mm opening and provides a 74 mm-wide phone slot when no drink is present. Three bore variants are included: nominal, +1 mm and +2 mm for coatings or fit adjustment. The source shows the nominal design installed beside a can. Use cabin-heat-resistant material, test the bore and seating before use, and keep the phone and drink clear of adjacent controls.

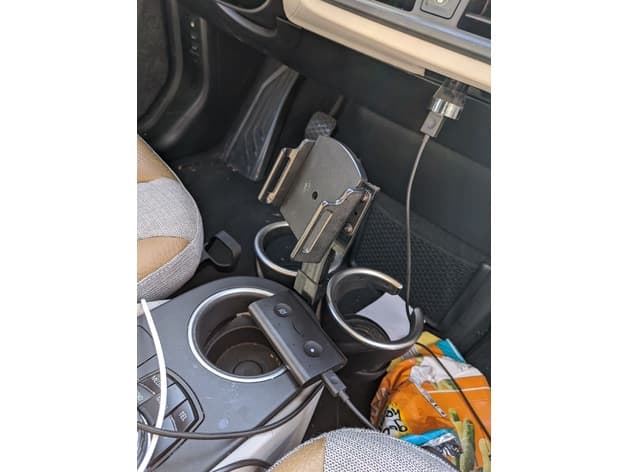

Two-piece center-console mount with the standard AMPS four-hole pattern for compatible phone or tablet cradles. The creator split the long arm for a 150 mm print bed and shows it installed with a device cradle without blocking the climate vents. Bond the two printed sections with a suitable structural adhesive, use a cabin-heat-resistant material, and verify the AMPS fasteners, bonded joint and cup-position fit before driving.

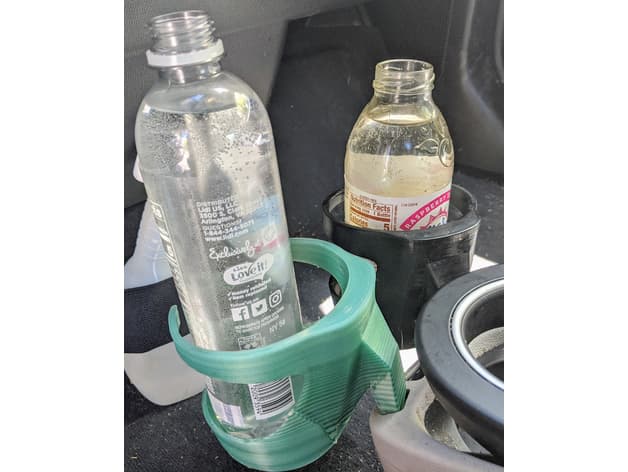

Two-piece auxiliary cup holder that prints as a base and upper ring and snaps together. The creator shows physical ABS and nylon prints, including installed use with narrow and large bottles. The OBJ and matching 3MF are retained. Use a cabin-heat-resistant material, inspect the snap joint for complete engagement, and confirm stable seating and beverage clearance before driving.

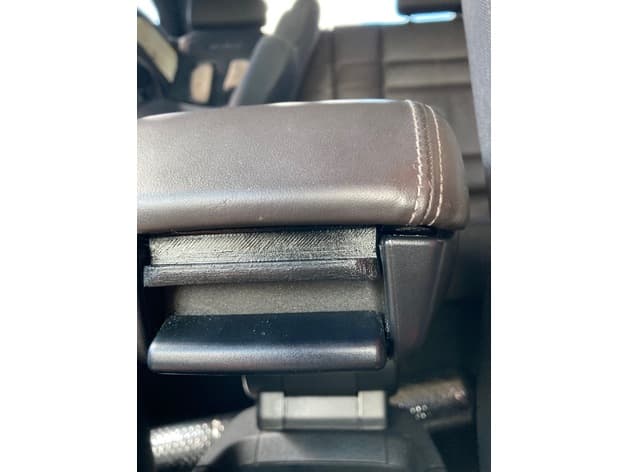

Replacement latch for the center armrest. The source provides installed views of the printed latch holding and releasing the armrest, plus a model view. No original child-component number is stated or independently established, so no surrounding armrest or console assembly number is assigned. Use cabin-heat-resistant material and verify smooth release, positive engagement and full armrest travel before regular use.

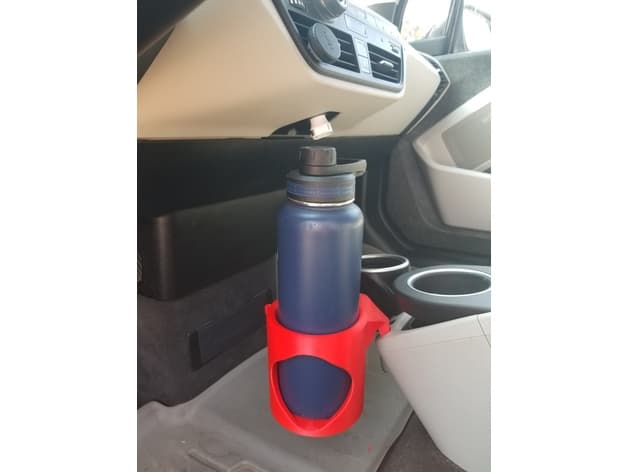

Cup-position adapter for carrying large 32 oz and 40 oz water bottles. The creator shows the physical print installed with a large bottle from several cabin angles. Print with strong walls and suitable infill in a cabin-heat-resistant material, then verify that the bottle is stable, does not obstruct the iDrive controller or adjacent cup positions, and cannot tip during vehicle movement.

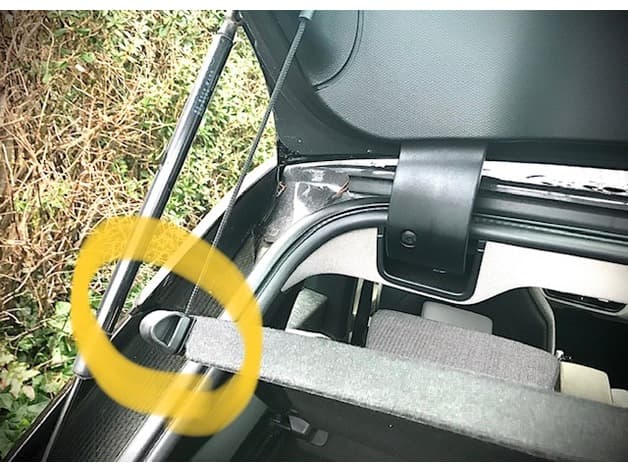

Replacement clip for attaching a tether or cord to the parcel shelf. The creator shows the clip installed on the shelf and recommends a shoelace-style cord as an easier-to-release substitute. The source mentions BMW number 51466967605 only for the separate rubber shelf buffer, not this clip, so that number is not assigned. Print upright with a brim as recommended and verify tether retention and hatch/shelf clearance.

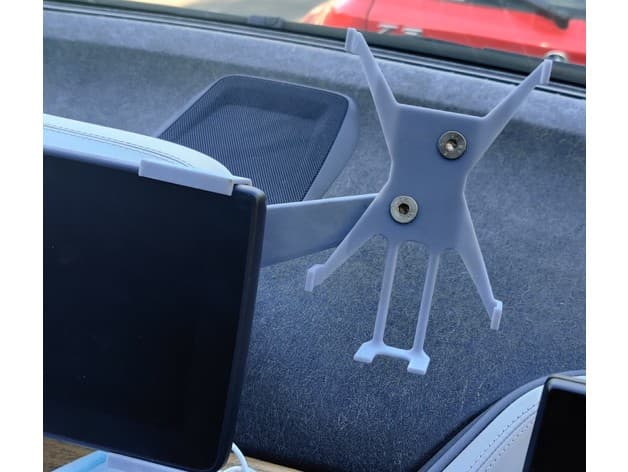

Three-piece phone holder comprising a display clamp, articulated arm and phone clamp. The source shows the printed assembly installed on the central display from inside and outside the vehicle. Use cabin-heat-resistant material and protective contact pads, avoid excessive clamp force on the display housing, keep the device clear of sight lines and airbags, and verify secure retention before driving.

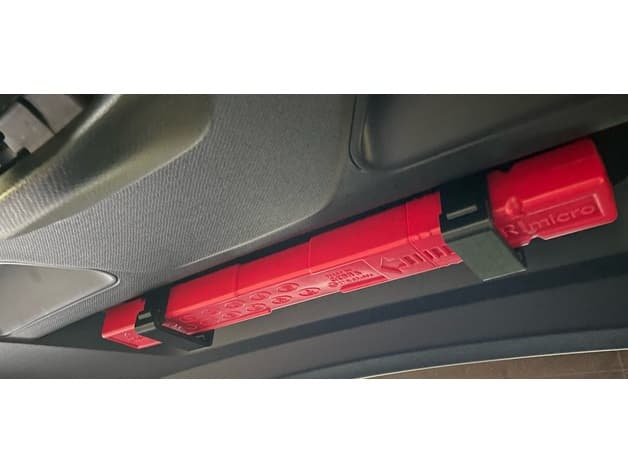

Hatch-mounted warning-triangle bracket with longer screw holes and a hinged retaining flap. The files include a print-in-place combined version and separate bracket/flap parts for snap assembly. The creator shows the printed hinge components and the complete bracket installed in the original hatch mounting points. Use a cabin-heat-resistant material and verify hinge movement, screw engagement, triangle retention and hatch-panel clearance.

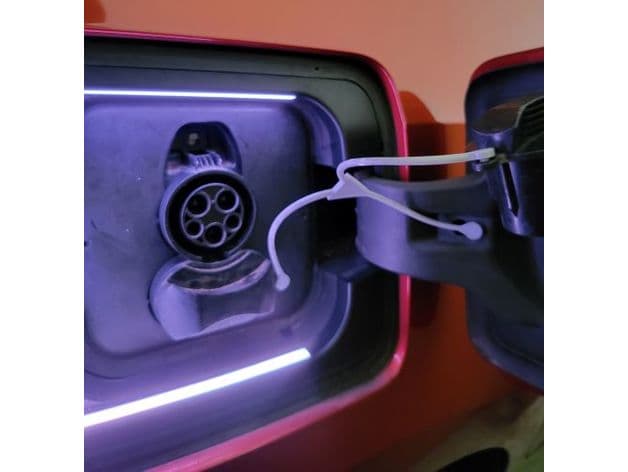

Flexible replacement tether joining the AC and DC fast-charge port caps to the inside of the charge door on CCS-equipped vehicles. The creator shows the printed strap installed on both caps and compares it with the original tether. Print in a durable UV- and weather-resistant flexible material, confirm that all ends seat fully, and check that the strap cannot foul the inlet, caps, hinge or door seal.

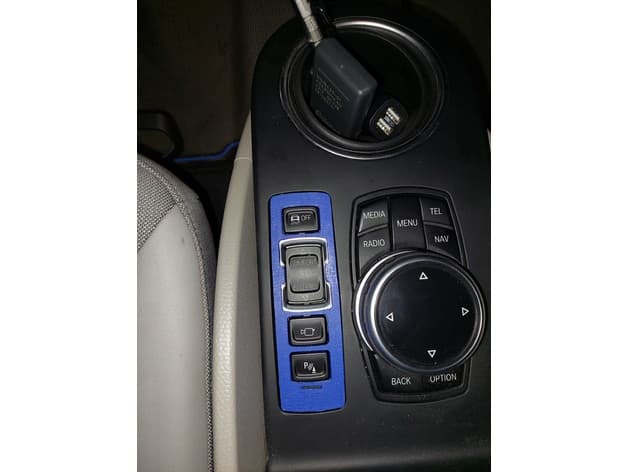

Center-console switch faceplate with an added opening for a retrofitted Dynamic Traction Control button from an i8. The source shows the ASA print installed around the complete switch bank and notes reinforced side clips. This is retrofit trim, not a stock I01 faceplate, so no switch-bank or i8 parent number is assigned. Confirm the retrofit wiring separately, use cabin-heat-resistant material, and verify button travel and clip engagement.

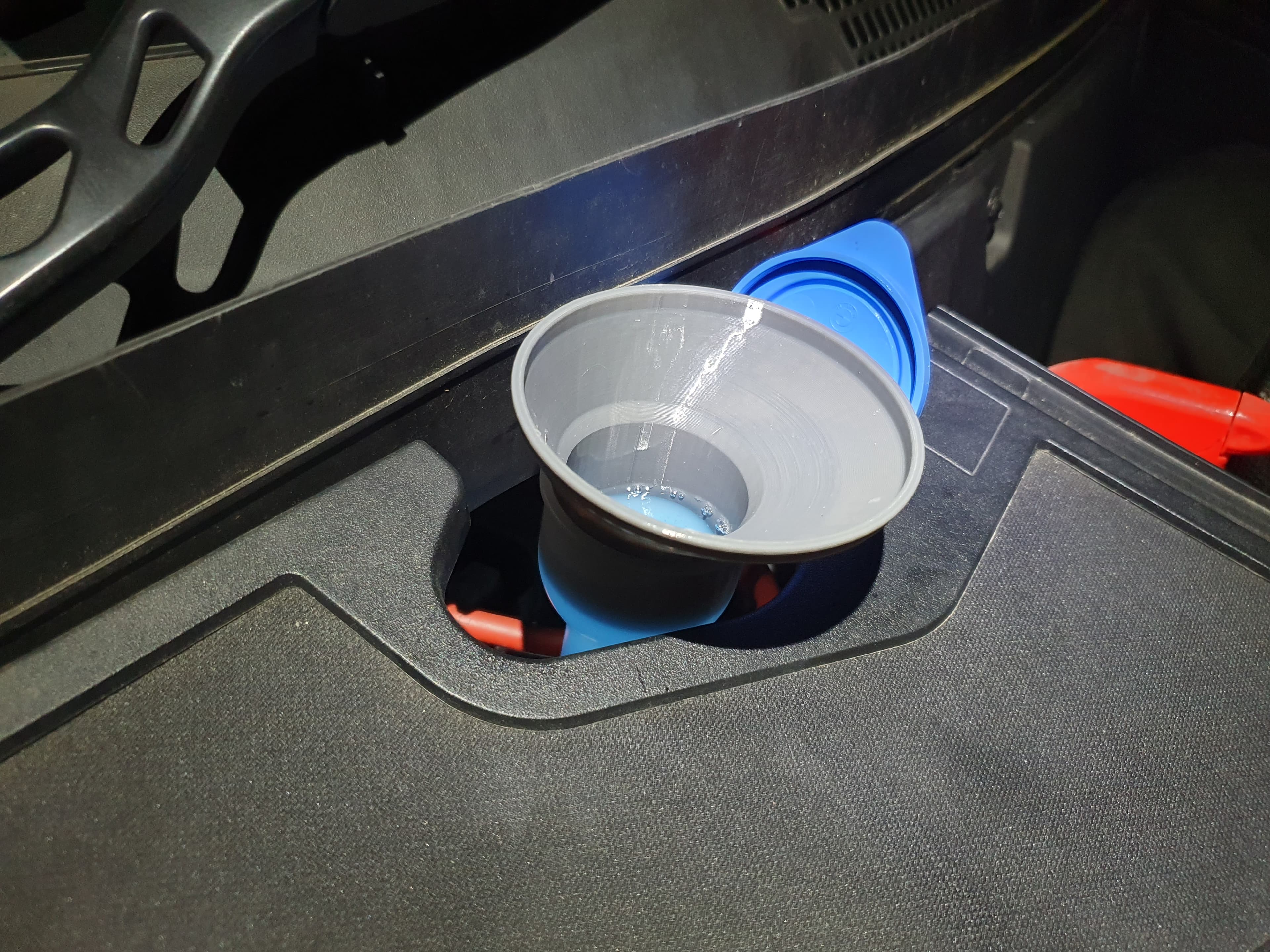

Eccentric 48 mm funnel shaped to clear the surrounding structure at the windshield-washer reservoir opening. The creator shows the physical funnel seated in the fill neck from two angles and designed it to print support-free. This is a service accessory rather than the reservoir, filler neck or cap, so no parent number is assigned. Confirm the neck fit before pouring and keep debris and incompatible fluids out of the washer system.

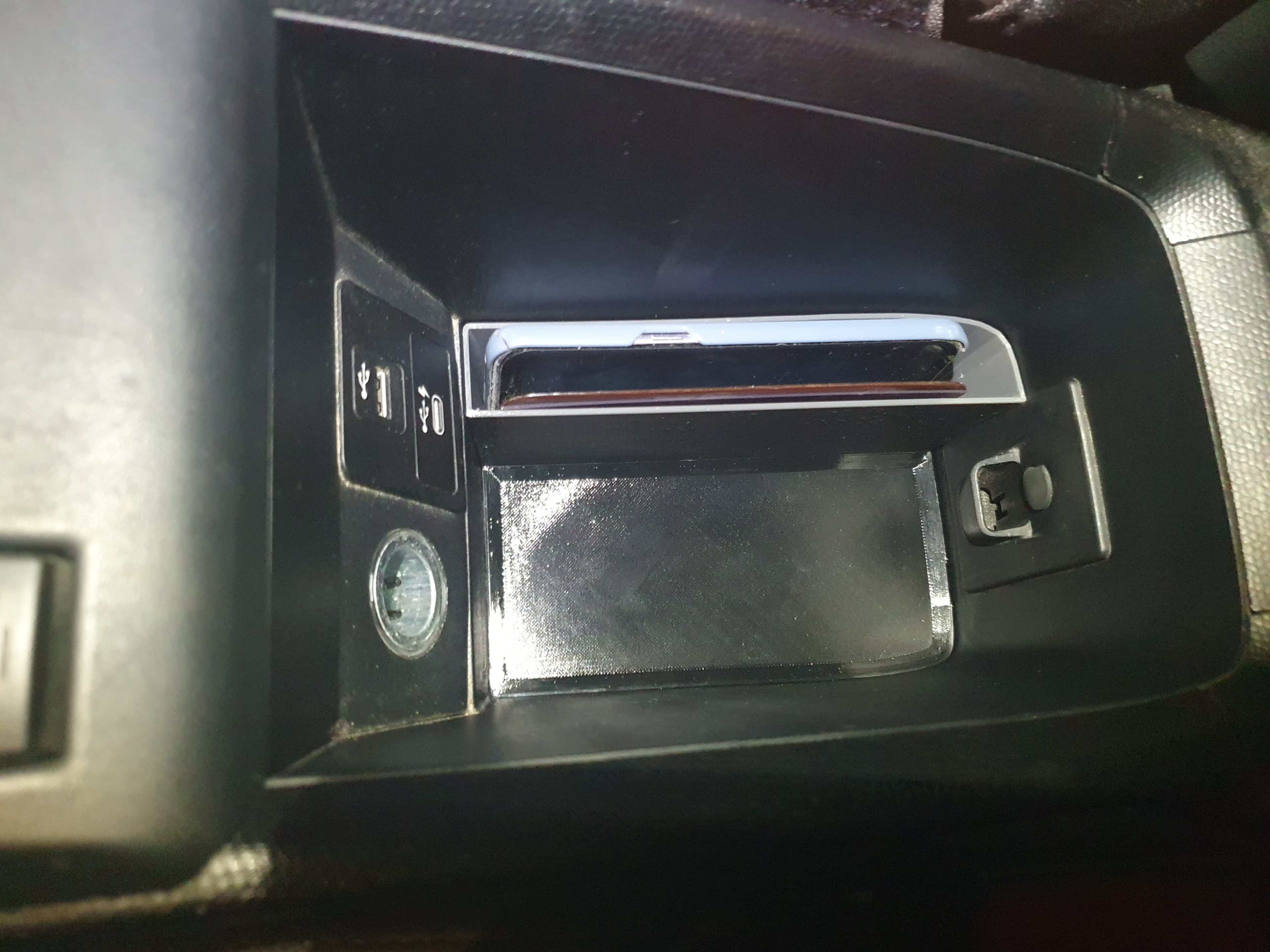

Organizer for the small storage compartment below the armrest, with a rigid body, two optional flexible pads and a single-piece multimaterial variant. The source shows the physical pieces and the organizer installed both loaded and empty. Print the body in PETG or another cabin-heat-resistant rigid material and the pads in TPU; verify stable seating and unobstructed access to the adjacent 12 V and USB connections.

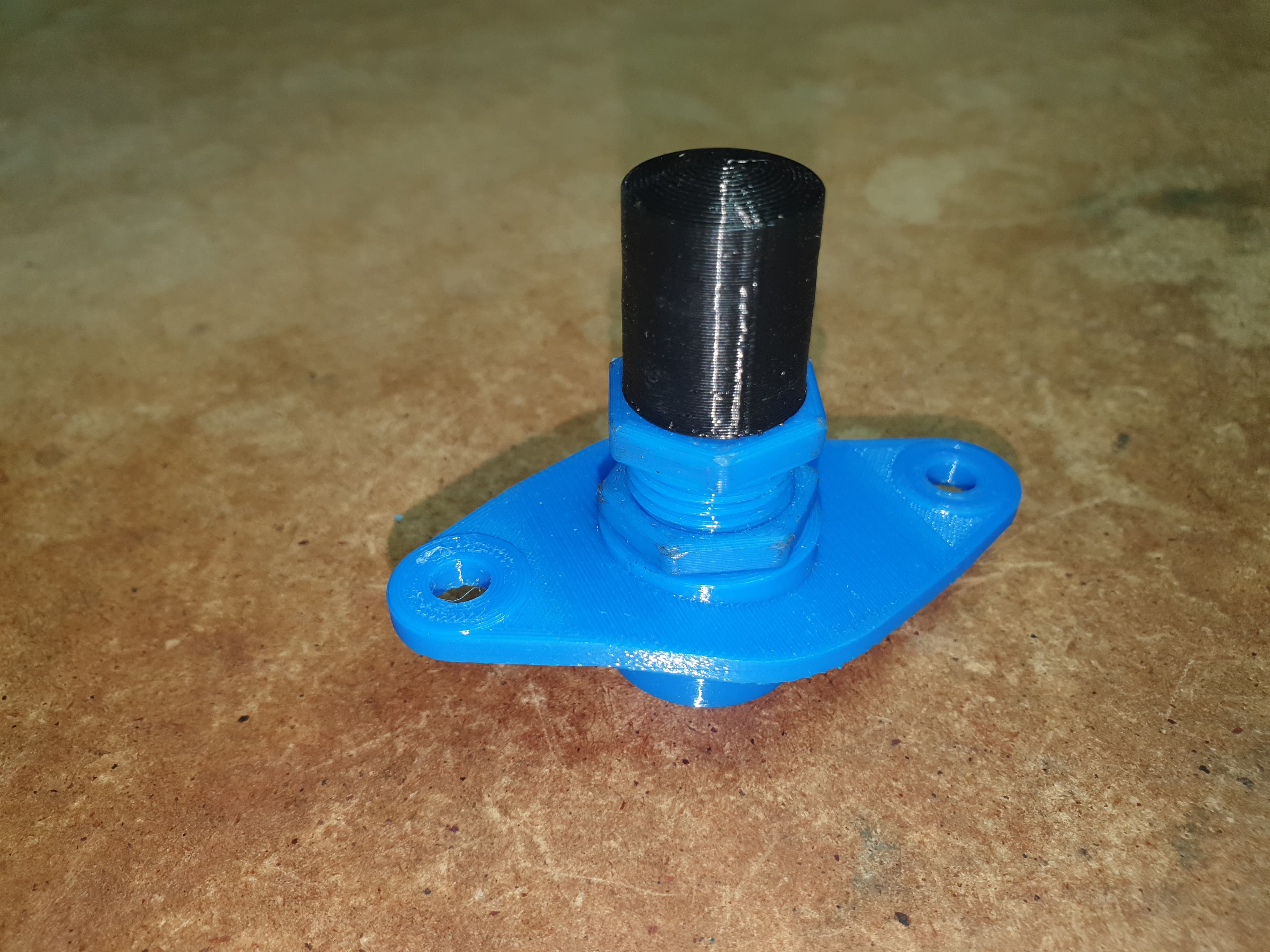

Four-piece adjustable rear-hatch stop with a flexible buffer, modeled and trial-fitted on a 2020 120Ah vehicle to eliminate play and rattling at the closed hatch. It recreates the function of BMW adjustment element 51247361955, originally used on earlier cars, for later LCI vehicles whose lock-integrated rubber has worn. Print two assemblies as the creator specifies, use TPU for the buffer and heat-resistant rigid material for the body, screw and nut, then adjust symmetrically without preloading or misaligning the hatch.

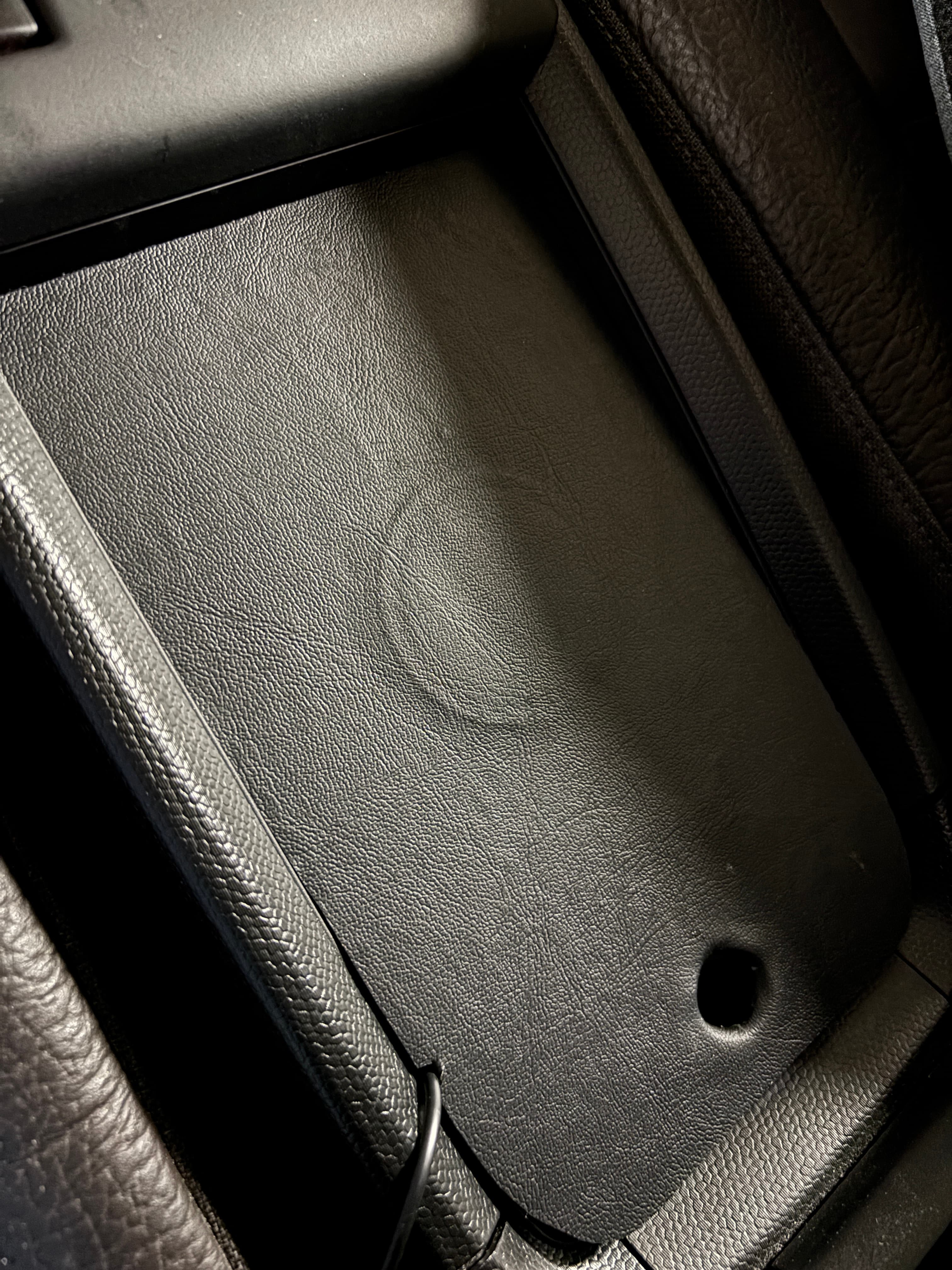

Removable center-console cover with an integrated opening for an Apple MagSafe puck, remixed from the original storage cover. The source shows the physical cover installed and provides model views of the puck opening and underside support. It fits non-braided-cable pucks directly; braided-cable versions may require a small amount of adhesive. Use cabin-heat-resistant material, secure the puck and cable, and verify charging temperature and clearance.

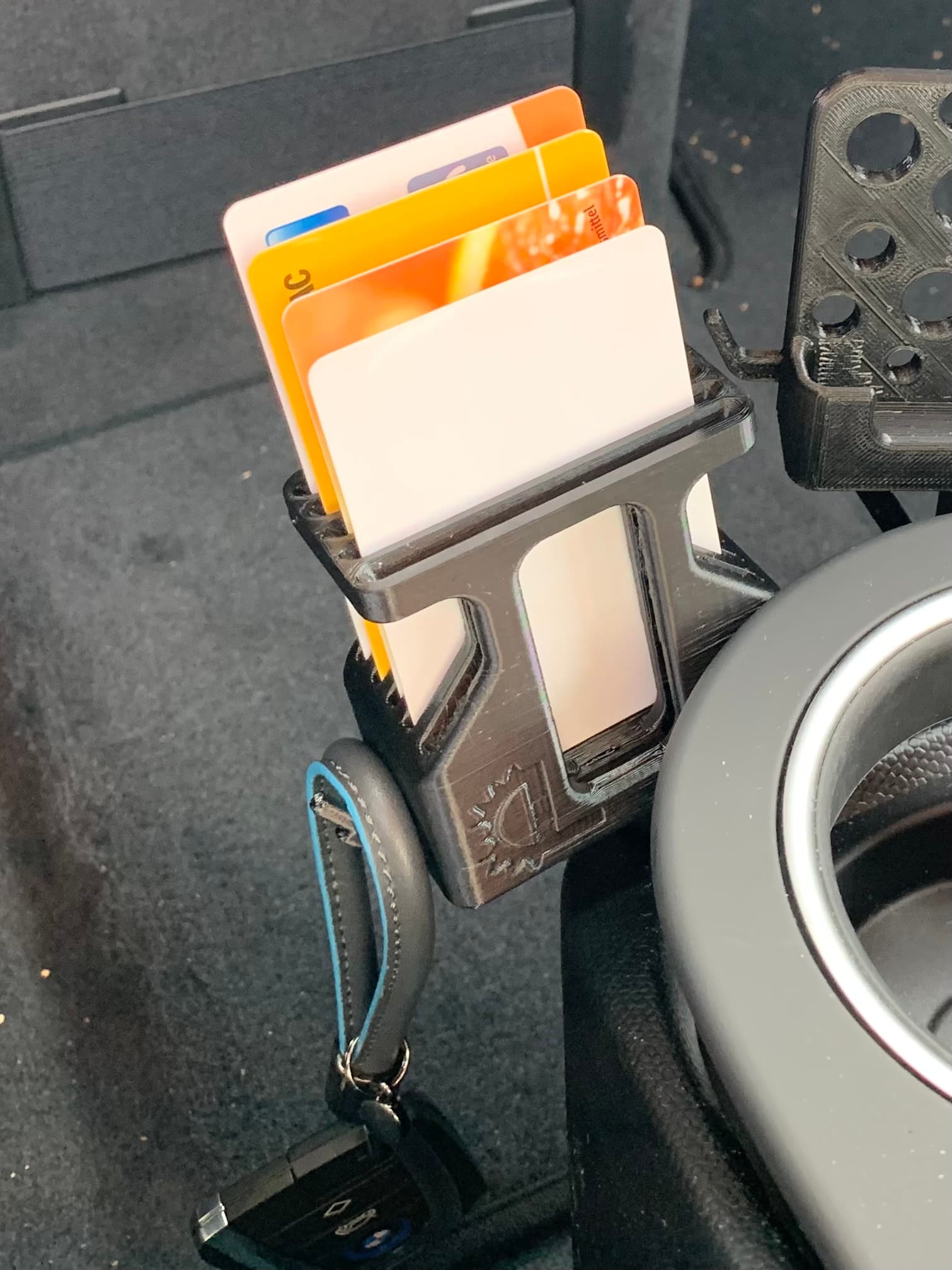

Organizer for multiple EV charging cards that plugs into a center-console cup-holder slot. The source shows the physical organizer installed and loaded with cards. This is an accessory rather than a serviced console component. Use PETG, ABS or another cabin-heat-resistant material, confirm a secure cup-slot fit, and keep the cards and organizer clear of adjacent controls and loose-object hazards.

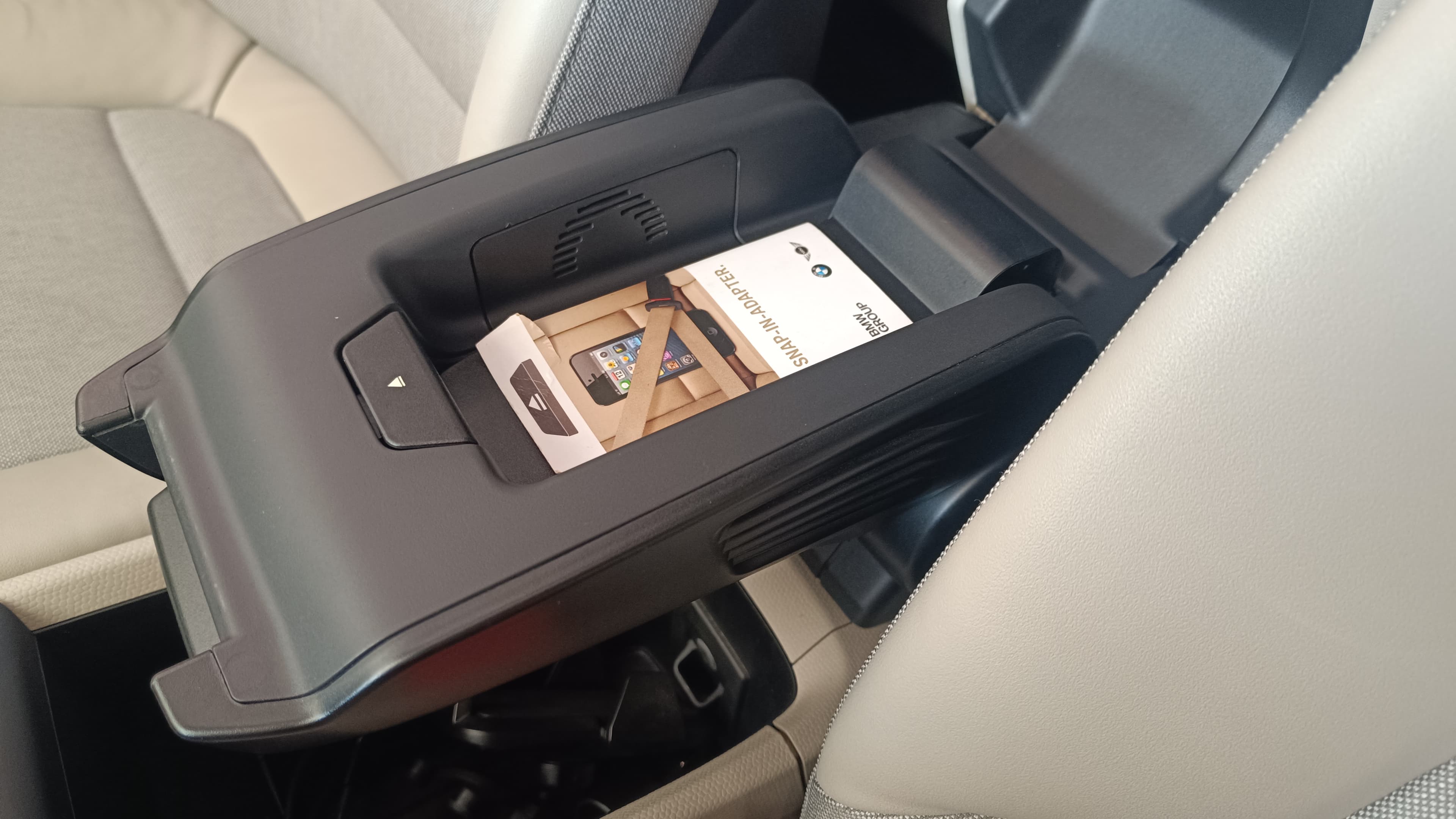

Deep storage tray that replaces the obsolete phone snap-in adapter in the center armrest while retaining the existing mounting cavity. The creator designed the tray for support-free printing, recommends PETG or ABS/ASA with at least 30% infill, and shows it fitted empty and loaded as well as beside the removed adapter. No snap-in adapter or armrest parent number is assigned. Verify flush seating, secure retention and full armrest movement.

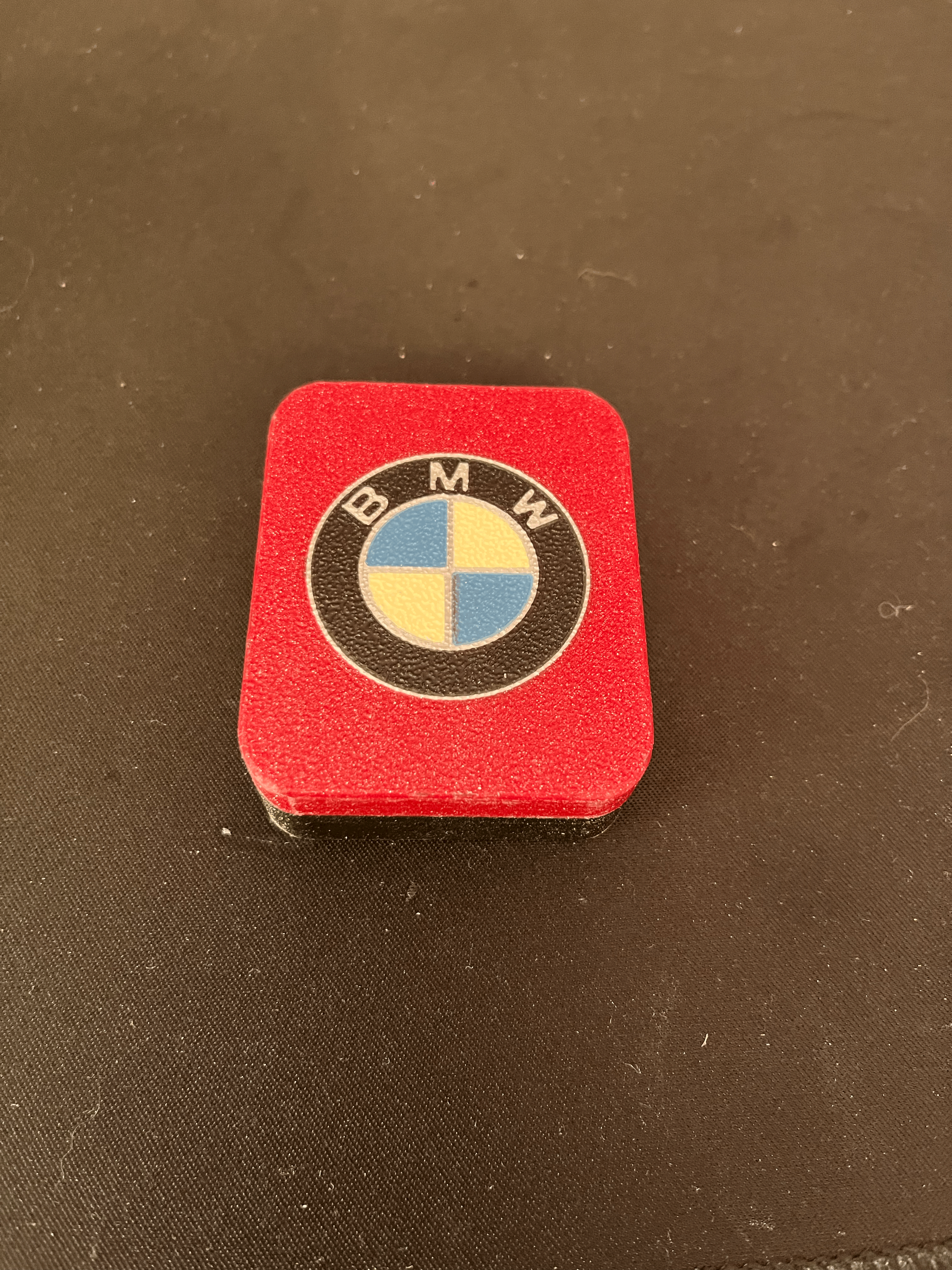

Three-piece key-fob box with a separate insert, bottom and lid, designed to prevent accidental button presses while carried in a pocket. The source shows the complete physical case closed, open and holding the I01 key fob. This is a protective accessory rather than the key housing itself. Check that the fob fits without continuously loading any button and that the lid remains secure during normal carrying.

Tool set for I01 outer-door-panel hardware: a deep and standard adjustment-element wrench plus seven clip-saver sizes for printer-tolerance matching. The creator shows the physical tools on the relevant clip and explains that the saver may recover clips that survive warm-weather panel removal. Numbers 51007355279 and 51007378101 identify the serviced clip and adjustment element, not these printed tools, so neither is assigned. Do not reuse cracked or distorted one-time clips; verify panel alignment and secure retention after service.

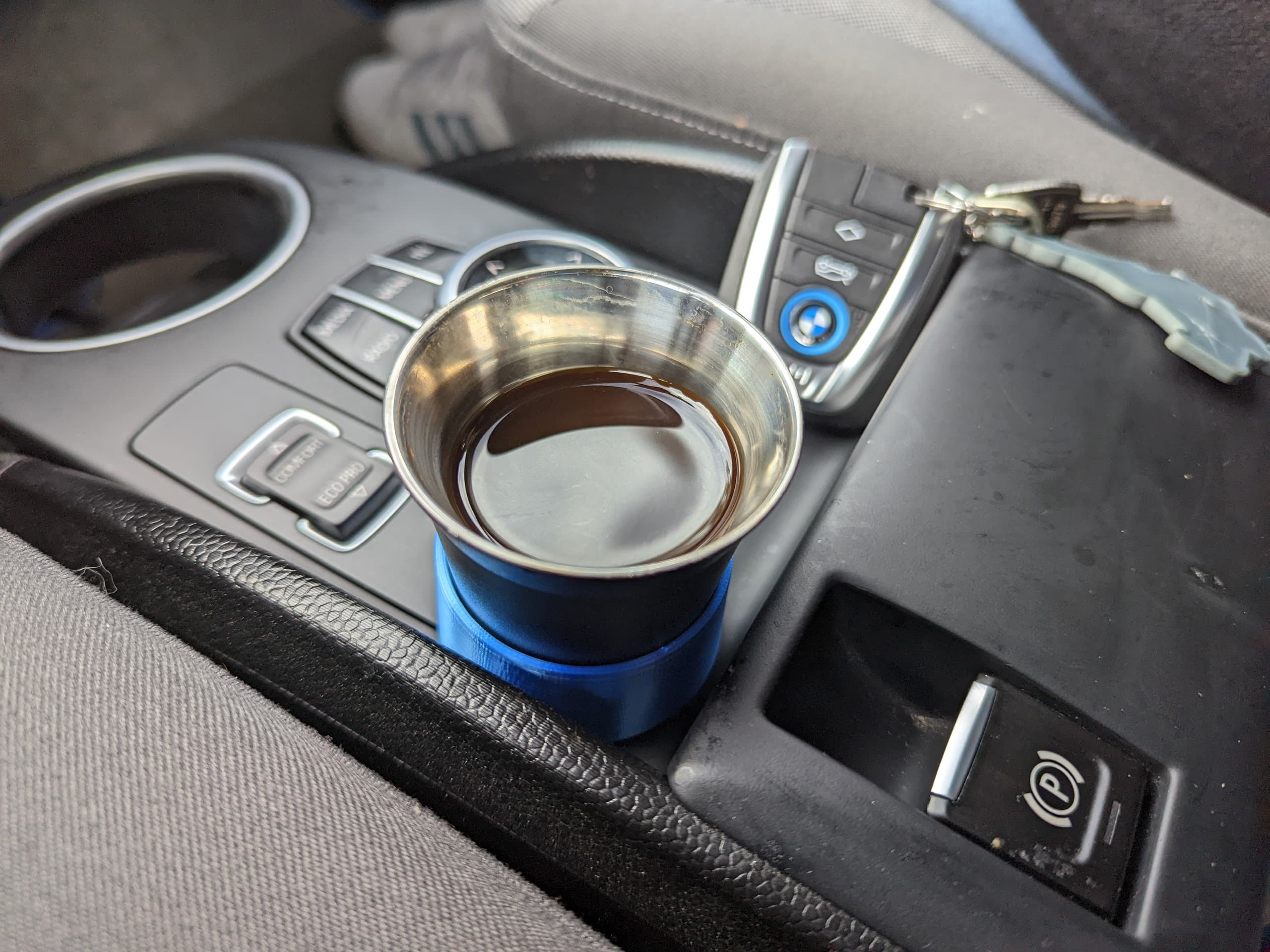

Anti-tip adapter for the source-linked small espresso cup, shaped for the center-console cup position. The creator shows the physical adapter seated in the vehicle and with the matching cup. Print in PETG, ABS or another cabin-heat-resistant material, verify both the cup and console fit, and keep hot liquids securely contained and clear of controls while the vehicle is moving.

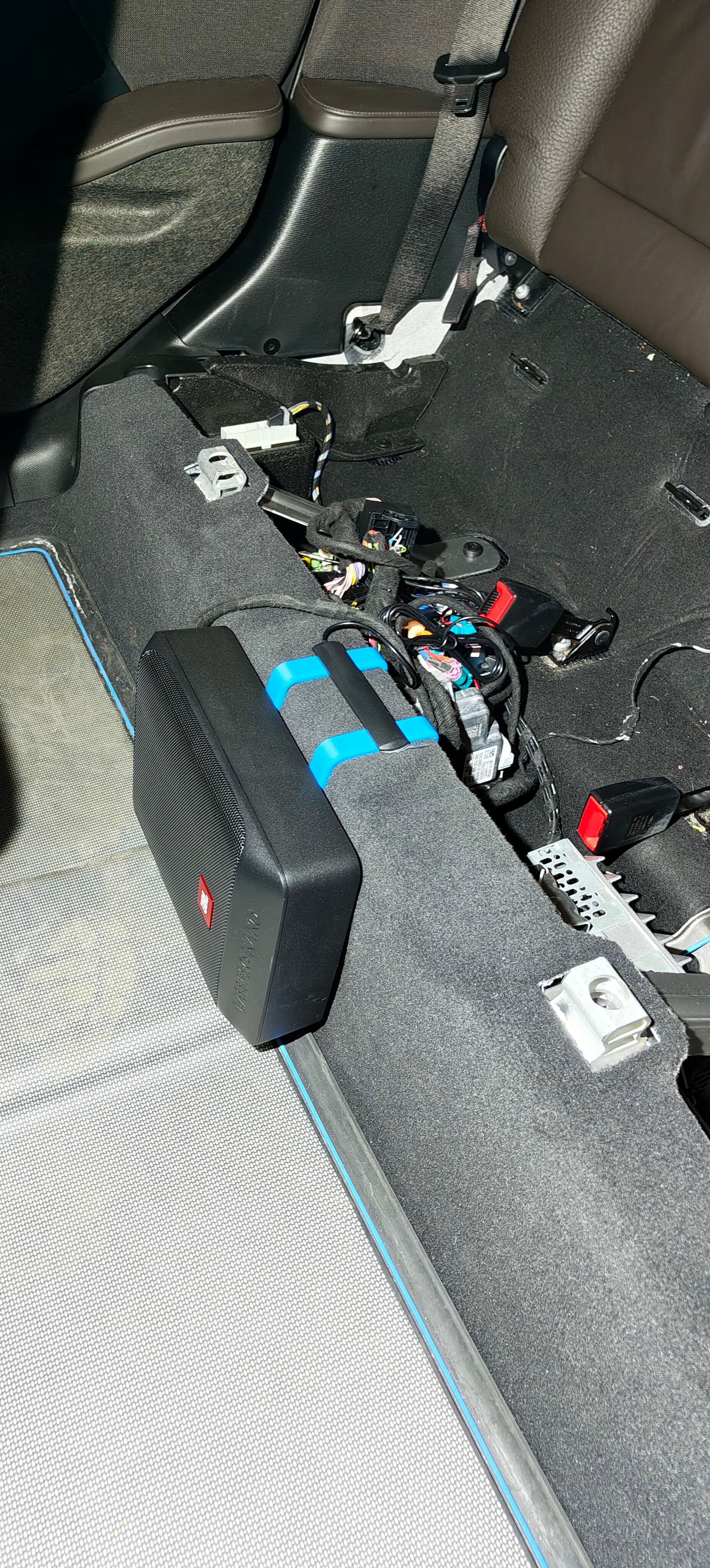

Pair of compact brackets for hanging a JBL BassPro Nano under the rear-seat frame where the optional amplifier is not installed. The creator printed two in PETG at 50% infill, fastened them with the subwoofer's original screws, and shows the installed unit and bracket locations. Confirm the vehicle lacks the conflicting amplifier, protect wiring, use thread-safe fasteners, and verify seat movement, ventilation and secure retention before driving.
