Display-Mounted Phone Holder

ABS · PETGMULTI-PART3 FILESCC-BYDashboard
PART RECORDREF 1461
PART
Display-Mounted Phone Holder
OEM
FITS
i3 I01
BIMMER-3D · PART RECORDREV 2026

Loading 3D viewer...

PART ID · BIMMER-3D / 1461QTY 3 · STLHANDLE · NO SUPPORTS
Field photographs
3 PLATES
Plate 1 of 3
PLATE 01 / 03No caption recorded
Build sheet
MAN-1461
  • [01]arm.stl.STL
  • [02]phoneclamp.stl.STL
  • [03]screen_clamp.stl.STL
  • [04]Bounding box132.000 × 80.000 × 65.087 mm
  • [05]Volume46,466.938 mm³
Field notes
BY VIBOR PARAVIC (TEXBID)

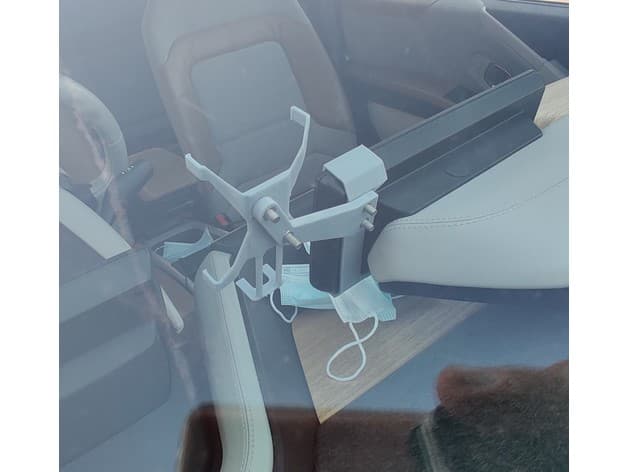

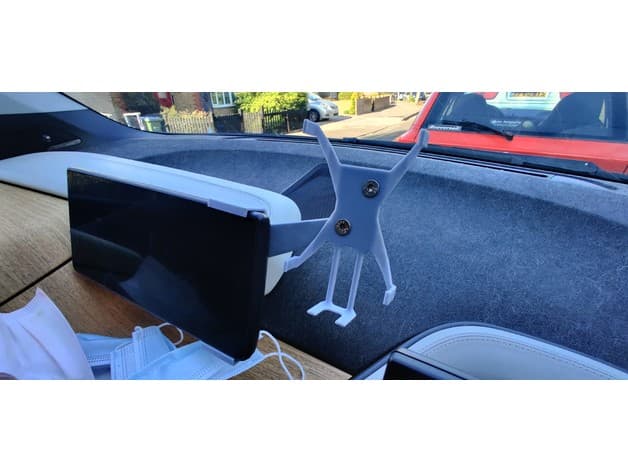

Three-piece phone holder comprising a display clamp, articulated arm and phone clamp. The source shows the printed assembly installed on the central display from inside and outside the vehicle. Use cabin-heat-resistant material and protective contact pads, avoid excessive clamp force on the display housing, keep the device clear of sight lines and airbags, and verify secure retention before driving.

Service log
0 entries · open log
