Center-Console Organizer Insert

PETG · TPUMULTI-PART4 FILESCC-BY-NC-SAInterior
PART RECORDREF 1466
PART
Center-Console Organizer Insert
OEM
FITS
i3 I01
BIMMER-3D · PART RECORDREV 2026

Loading 3D viewer...

PART ID · BIMMER-3D / 1466QTY 4 · STLHANDLE · NO SUPPORTS
Field photographs
4 PLATES
Plate 1 of 4
PLATE 01 / 04No caption recorded
Build sheet
MAN-1466
  • [01]ConsoleInsert-Body.3mf.STL
  • [02]ConsoleInsert-Pad1.3mf.STL
  • [03]ConsoleInsert-Pad2.3mf.STL
  • [04]ConsoleInsert-multimaterial.3mf.STL
Field notes
BY NTRUCHSESS

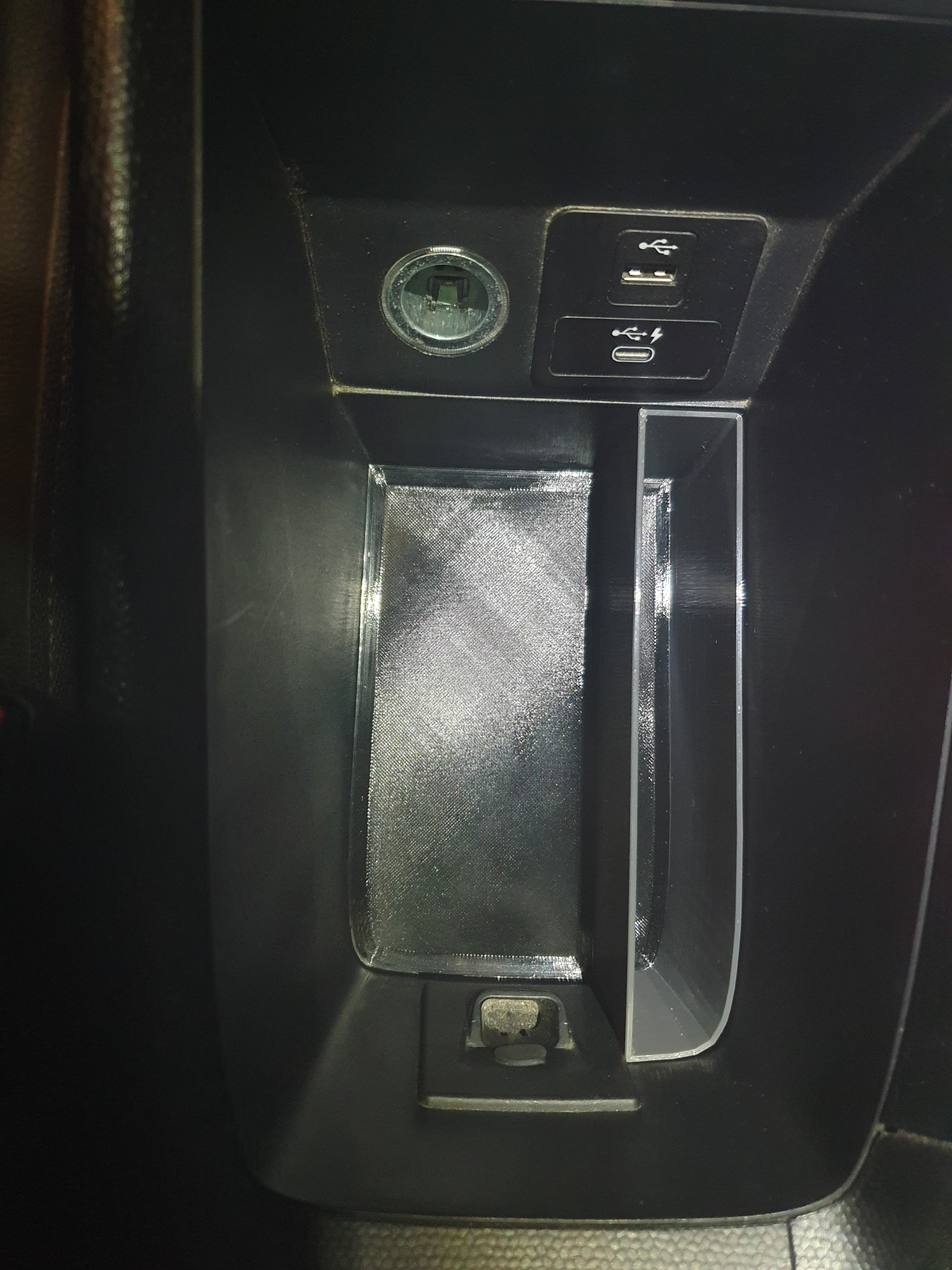

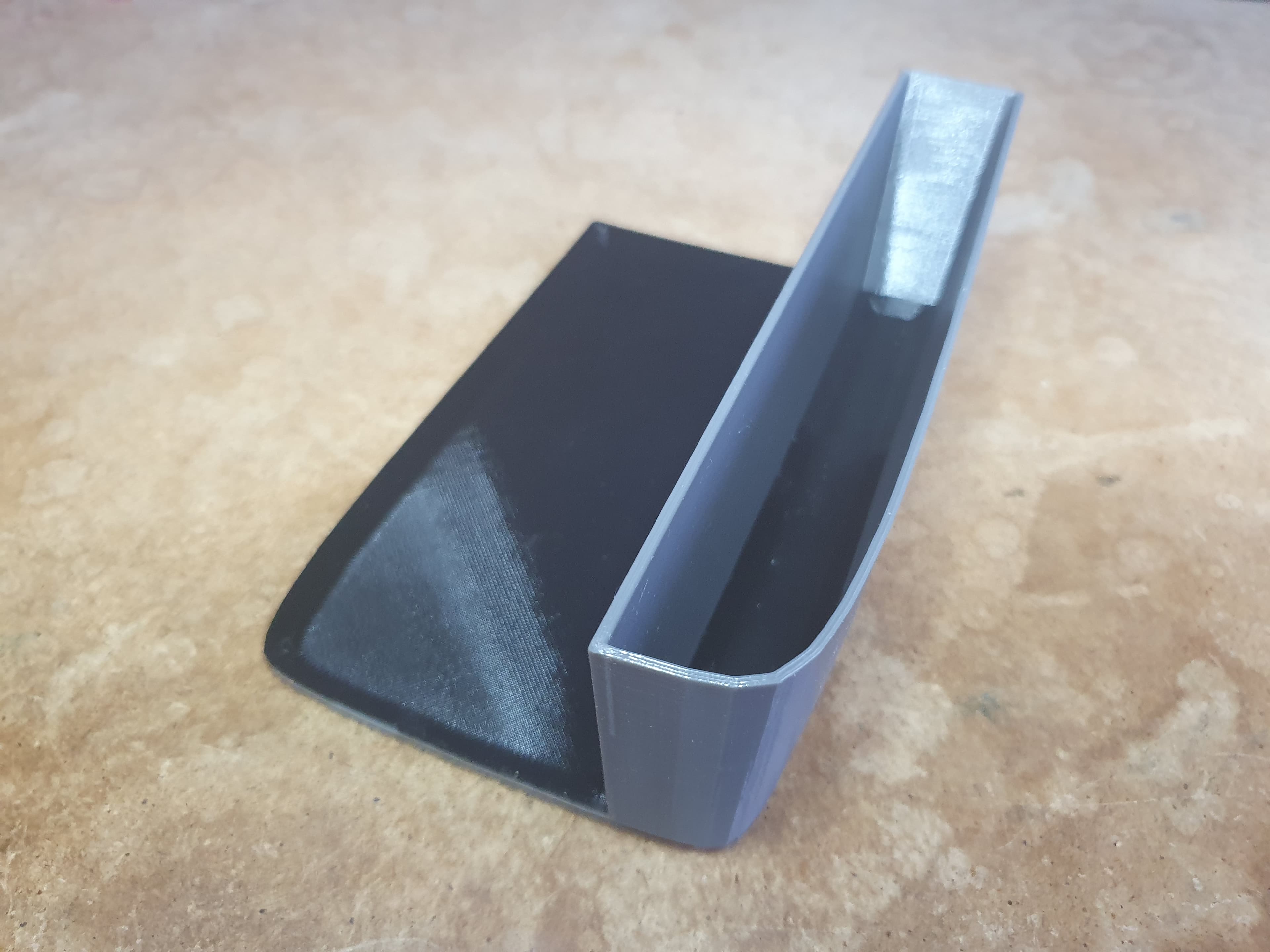

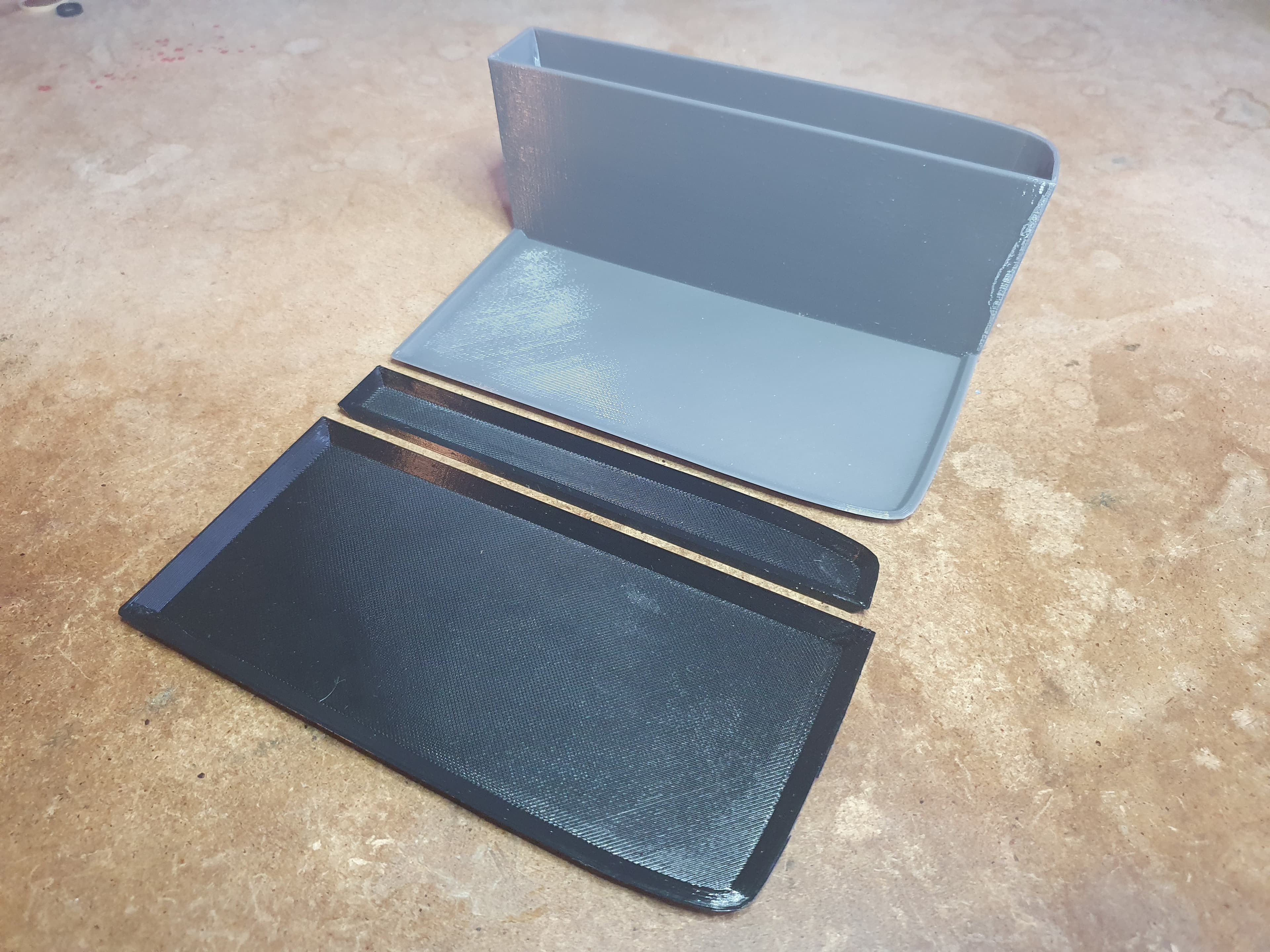

Organizer for the small storage compartment below the armrest, with a rigid body, two optional flexible pads and a single-piece multimaterial variant. The source shows the physical pieces and the organizer installed both loaded and empty. Print the body in PETG or another cabin-heat-resistant rigid material and the pads in TPU; verify stable seating and unobstructed access to the adjacent 12 V and USB connections.
