Extended Wireless-Charger Slider

ABS · Nylon · PETG1 FILECC-BYElectrical
PART RECORDREF 1059
PART
Extended Wireless-Charger Slider
OEM
FITS
1 Series F20 / F21, 2 Series F22 / F23 / F87, 3 Series F30 / F31 / F34 / F80, 4 Series F32 / F33 / F36 / F82 / F83, i3 I01
BIMMER-3D · PART RECORDREV 2026

Loading 3D viewer...

PART ID · BIMMER-3D / 1059QTY 1 · STLHANDLE · NO SUPPORTS
Field photographs
3 PLATES
Plate 1 of 3
PLATE 01 / 03No caption recorded
Build sheet
MAN-1059
  • [01]wireless_charging_mod_bmw_f2x_f3x_i01.stl.STL
  • [02]Bounding box73.150 × 24.683 × 20.000 mm
  • [03]Volume7,263.03 mm³
Field notes
BY TOM

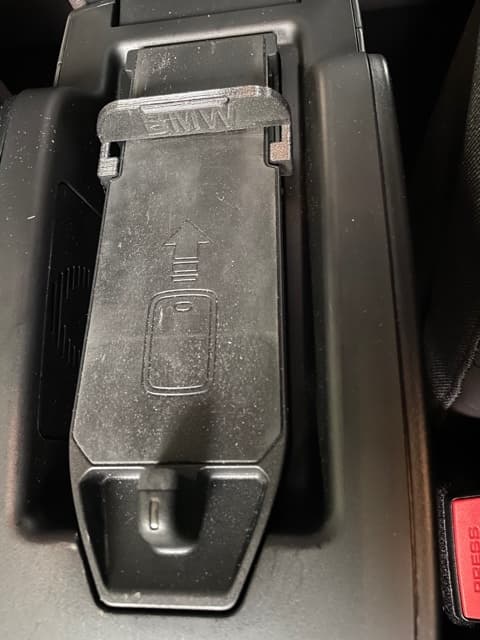

Replacement slider for the factory BMW wireless-charging cradle that increases usable phone length to approximately 168 mm. The creator documents F2x, F3x, F8x, and I01 cradle compatibility and shows the printed part installed and measured. Print in PETG, ASA, ABS, or another cabin-temperature-resistant material; verify latch engagement, charging operation, and secure phone retention before driving.
