AMPS Cup-Position Device Mount

ABS · PETG1 FILECC-BYDashboard
PART RECORDREF 1456
PART
AMPS Cup-Position Device Mount
OEM
FITS
i3 I01
BIMMER-3D · PART RECORDREV 2026

Loading 3D viewer...

PART ID · BIMMER-3D / 1456QTY 1 · STLHANDLE · NO SUPPORTS
Field photographs
4 PLATES
Plate 1 of 4
PLATE 01 / 04No caption recorded
Build sheet
MAN-1456
  • [01]updatedi3.stl.STL
  • [02]Bounding box135.078 × 112.490 × 27.205 mm
  • [03]Volume59,322.121 mm³
Field notes
BY NICHOLAS NGUYEN (OSUNICK)

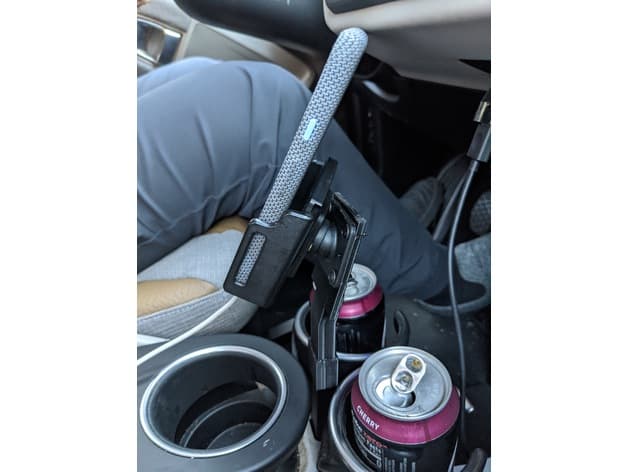

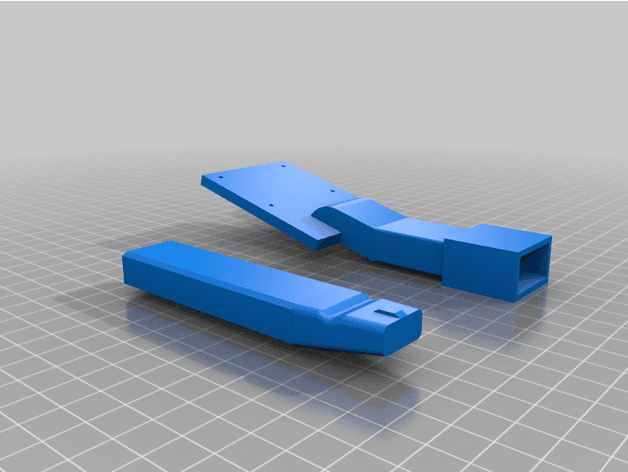

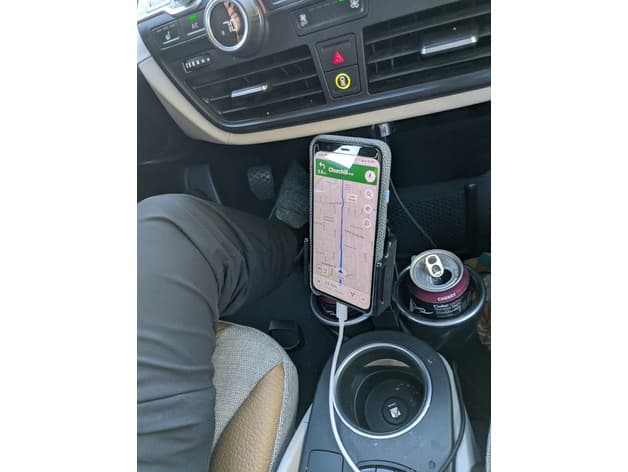

Two-piece center-console mount with the standard AMPS four-hole pattern for compatible phone or tablet cradles. The creator split the long arm for a 150 mm print bed and shows it installed with a device cradle without blocking the climate vents. Bond the two printed sections with a suitable structural adhesive, use a cabin-heat-resistant material, and verify the AMPS fasteners, bonded joint and cup-position fit before driving.

Service log
0 entries · open log
