Armrest Storage Tray

ABS · PETG1 FILECC-BY-NC-SAInterior
PART RECORDREF 1470
PART
Armrest Storage Tray
OEM
FITS
i3 I01
BIMMER-3D · PART RECORDREV 2026

Loading 3D viewer...

PART ID · BIMMER-3D / 1470QTY 1 · STLHANDLE · NO SUPPORTS
Field photographs
8 PLATES
Plate 1 of 8
PLATE 01 / 08No caption recorded
Build sheet
MAN-1470
  • [01]BMW i3 Armrest Storage Tray.stl.STL
  • [02]Bounding box194.192 × 80.000 × 61.000 mm
  • [03]Volume92,875.027 mm³
Field notes
BY NEVERICAN

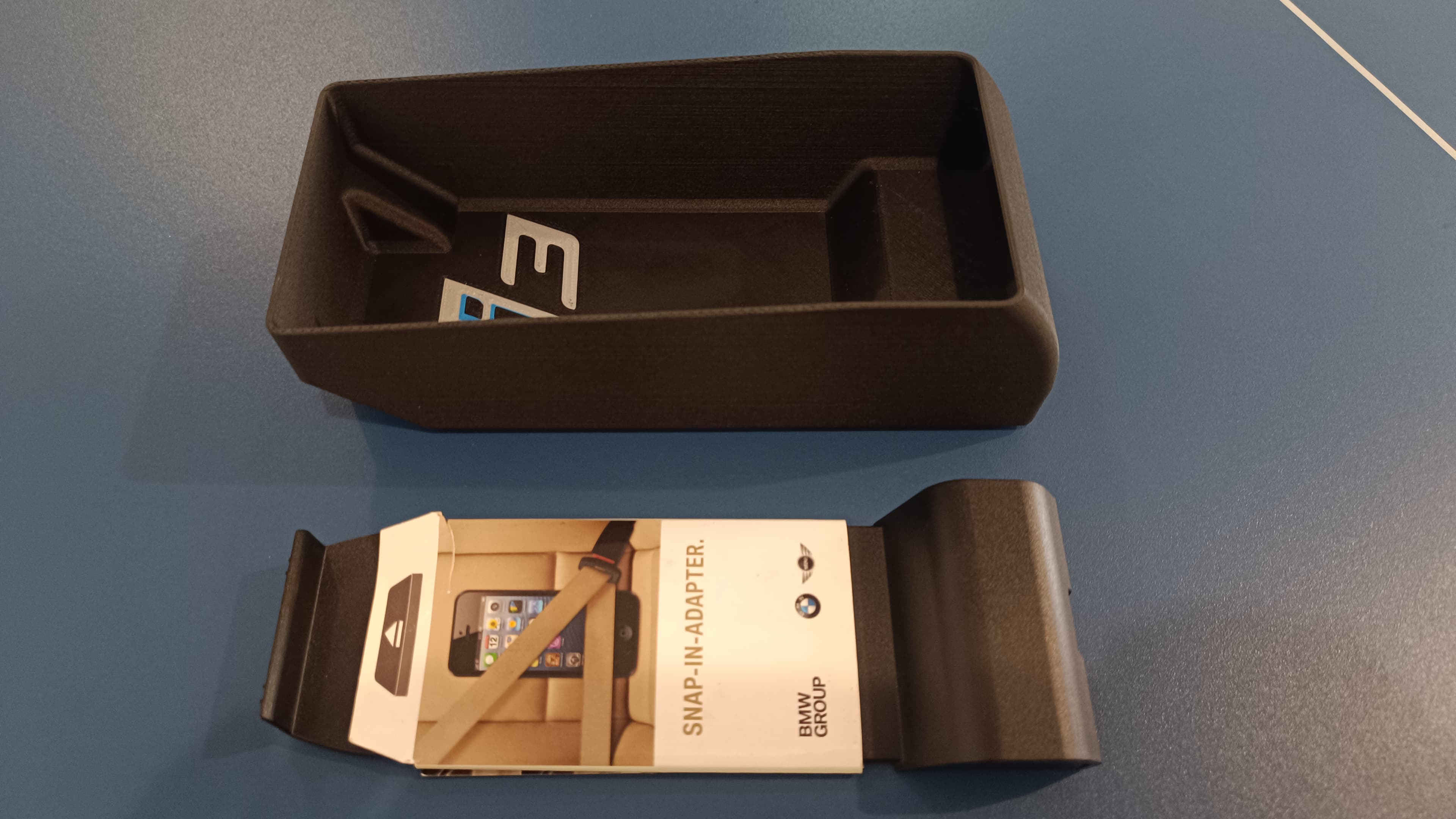

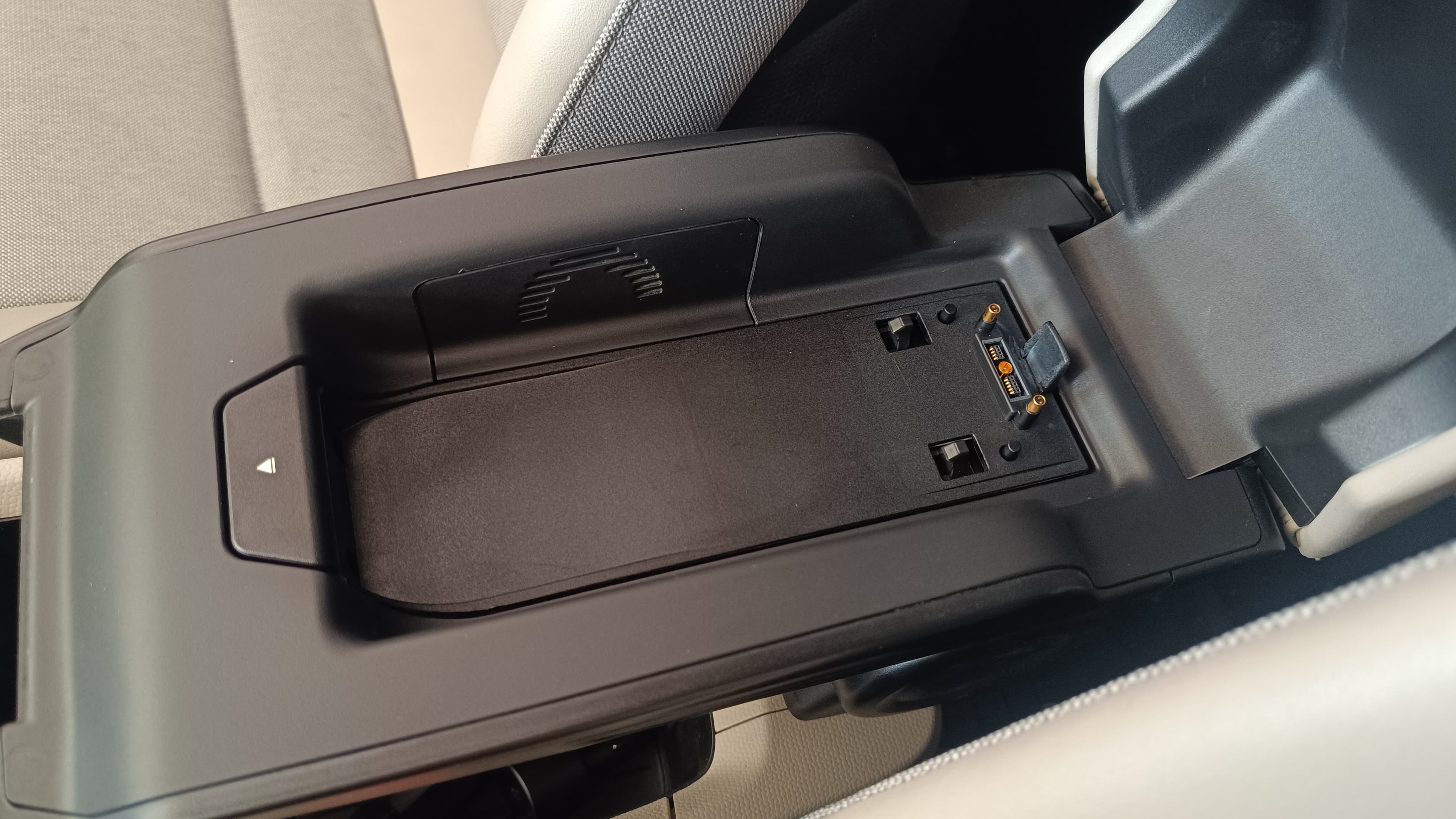

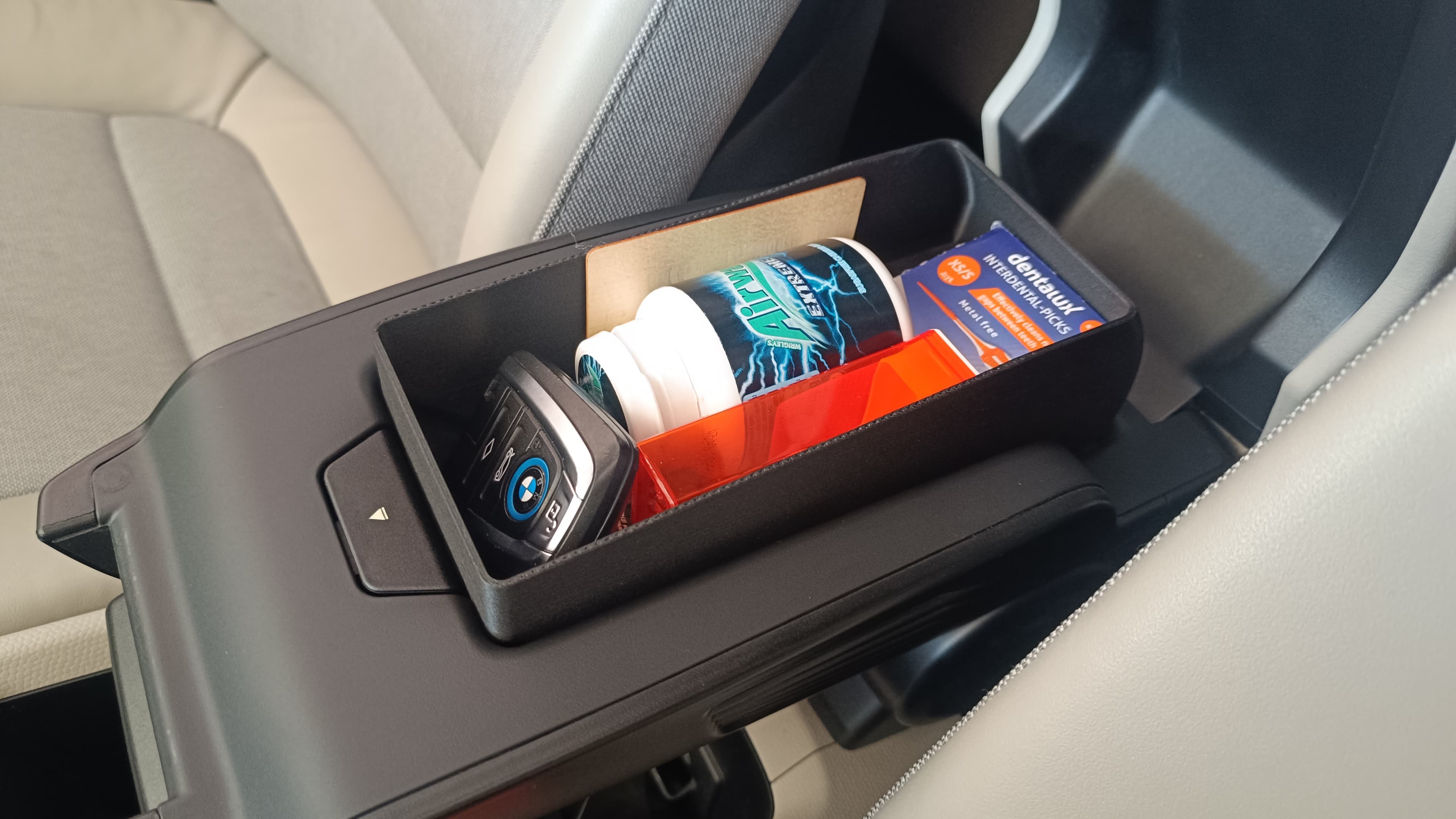

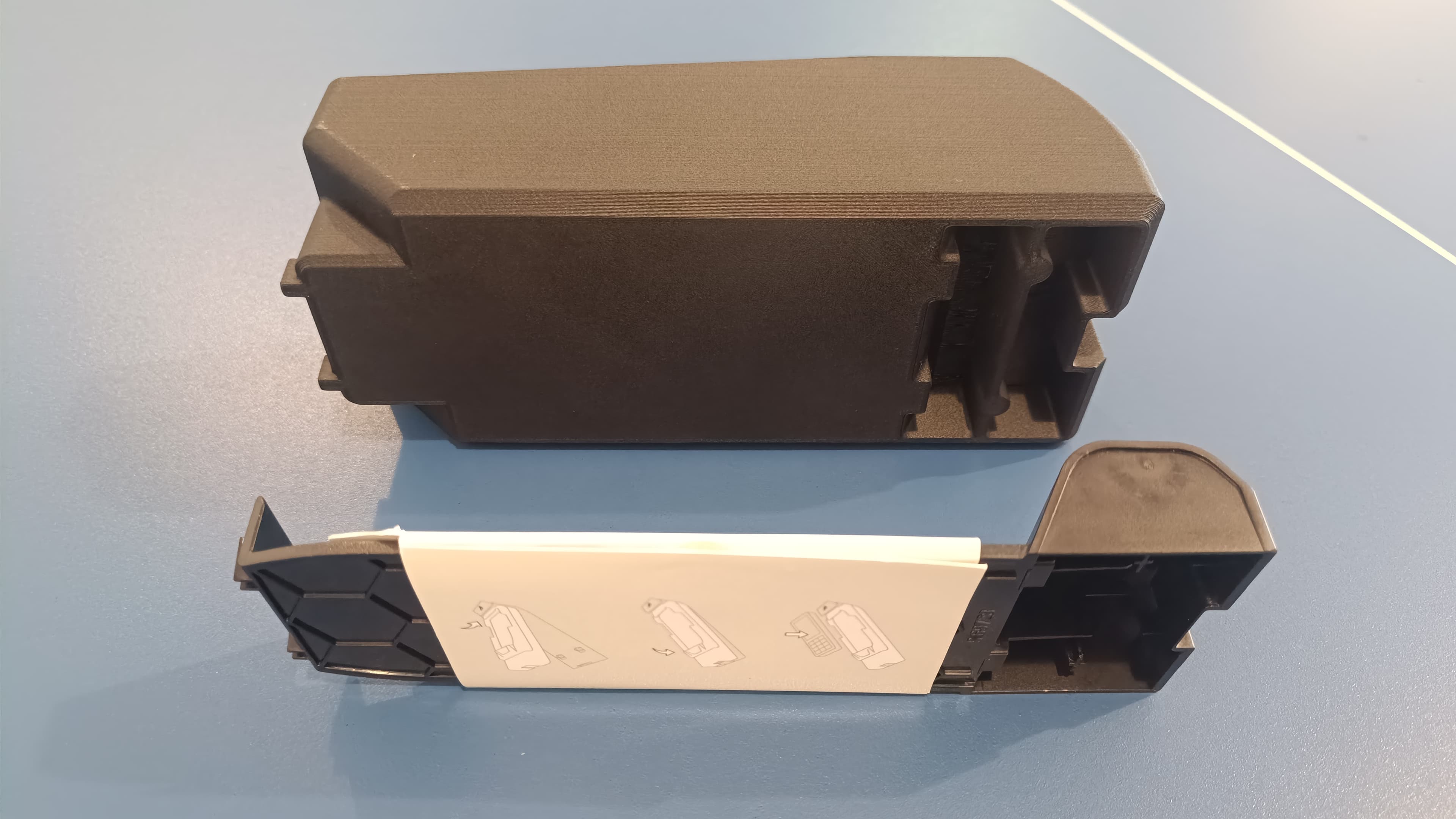

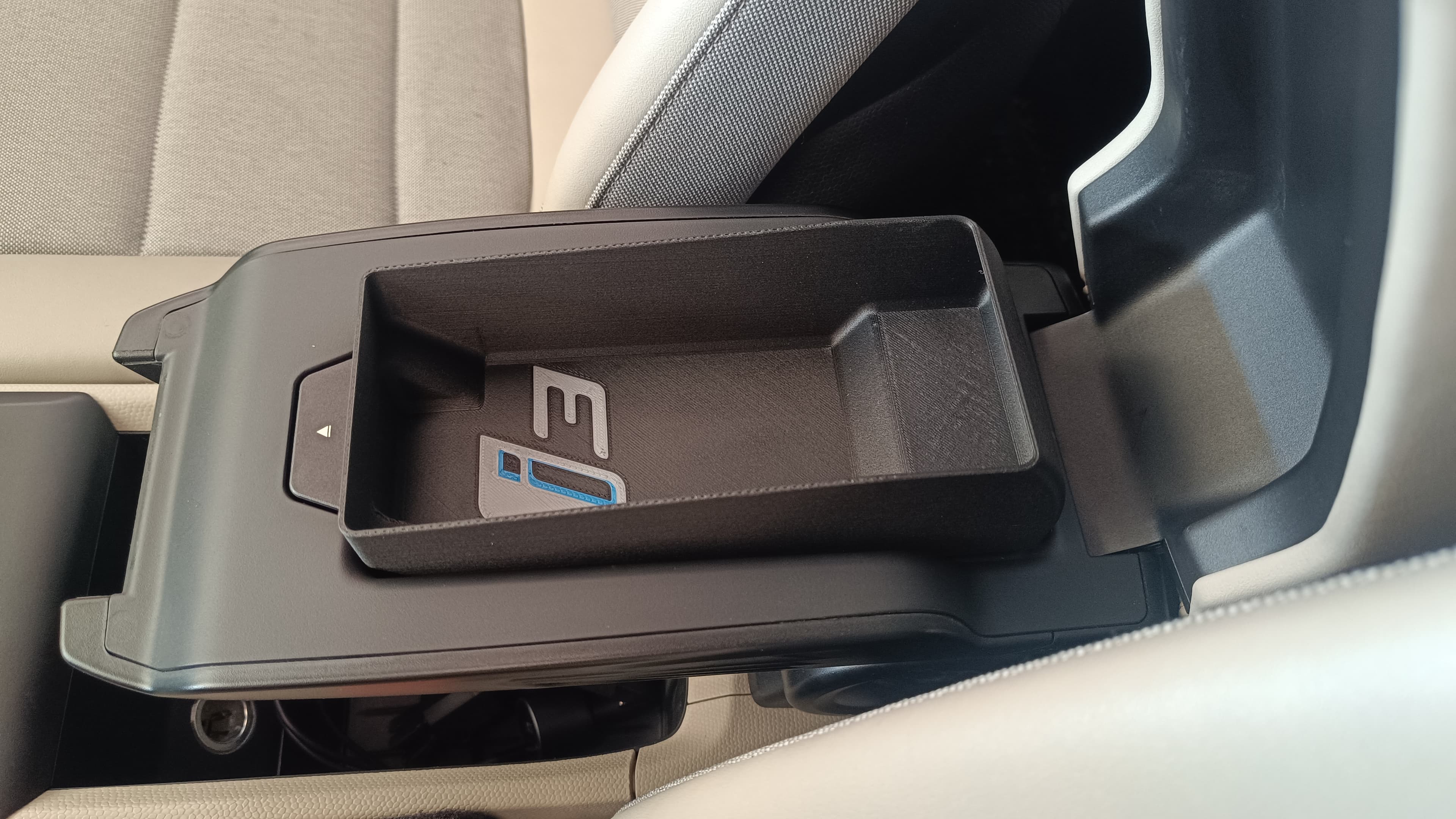

Deep storage tray that replaces the obsolete phone snap-in adapter in the center armrest while retaining the existing mounting cavity. The creator designed the tray for support-free printing, recommends PETG or ABS/ASA with at least 30% infill, and shows it fitted empty and loaded as well as beside the removed adapter. No snap-in adapter or armrest parent number is assigned. Verify flush seating, secure retention and full armrest movement.

Service log
0 entries · open log
