Under-Seat Subwoofer Brackets

PETG1 FILECC-BY-NC-SAElectrical
PART RECORDREF 1474
PART
Under-Seat Subwoofer Brackets
OEM
FITS
i3 I01
BIMMER-3D · PART RECORDREV 2026

Loading 3D viewer...

PART ID · BIMMER-3D / 1474QTY 1 · STLHANDLE · NO SUPPORTS
Field photographs
3 PLATES
Plate 1 of 3
PLATE 01 / 03No caption recorded
Build sheet
MAN-1474
  • [01]Subwoofer mount.stl.STL
  • [02]Bounding box94.873 × 38.958 × 20.000 mm
  • [03]Volume13,658.615 mm³
Field notes
BY ALEKOY

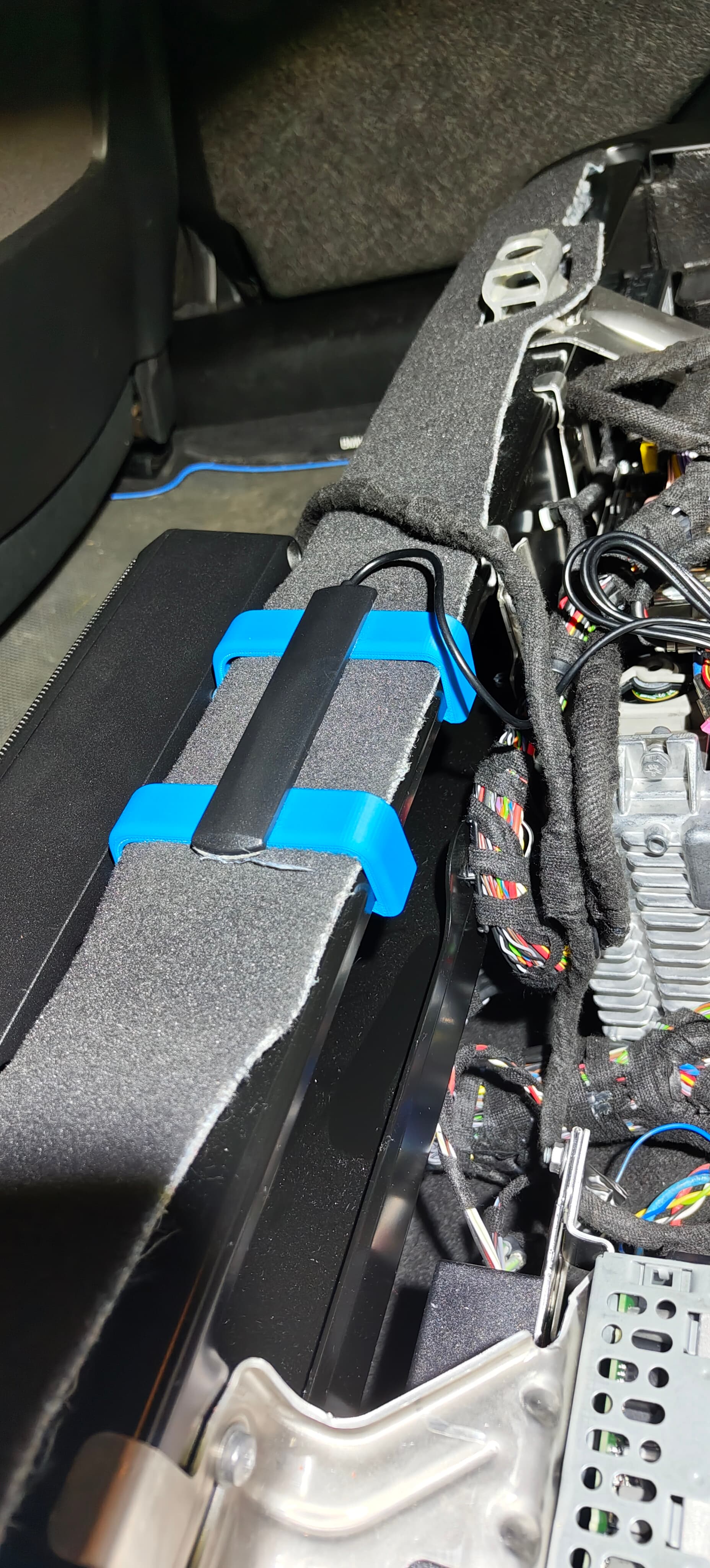

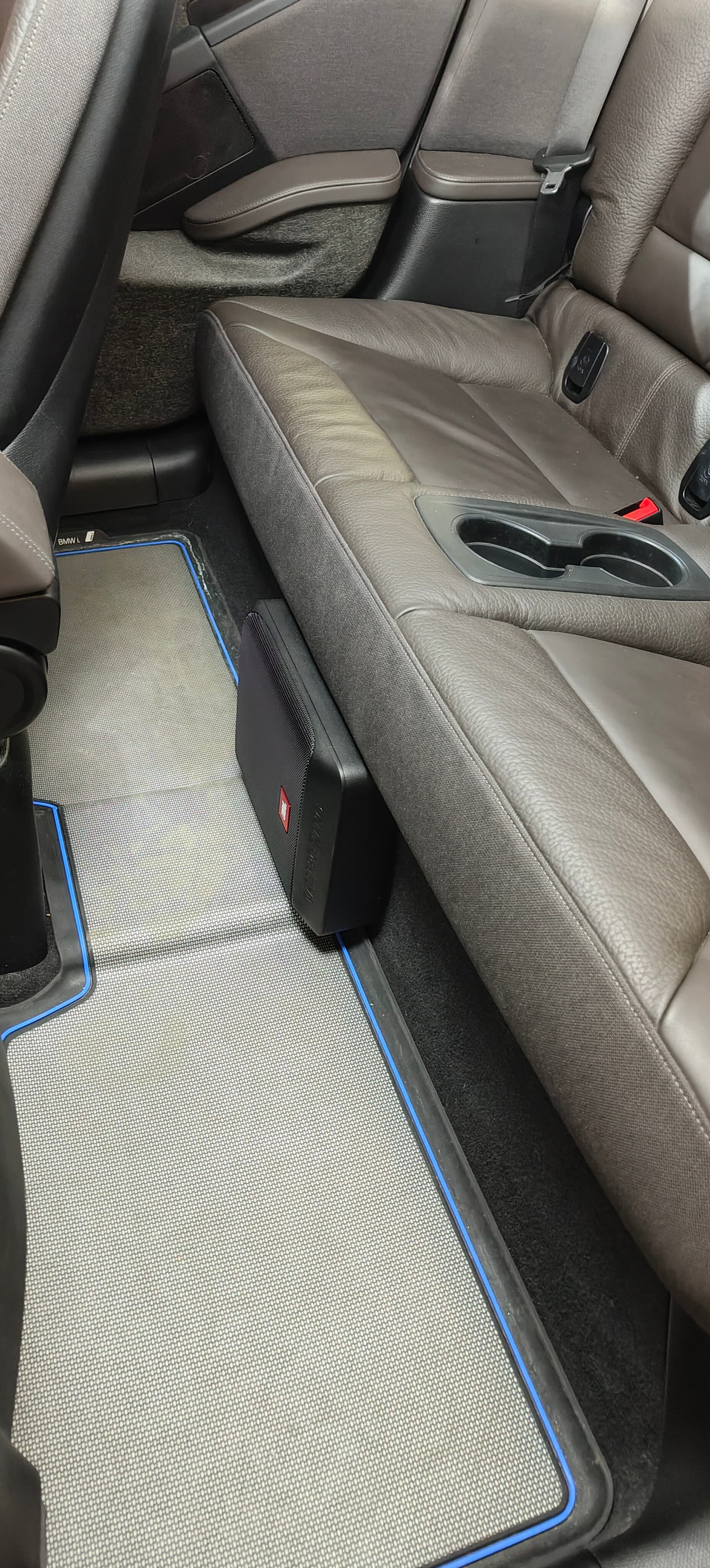

Pair of compact brackets for hanging a JBL BassPro Nano under the rear-seat frame where the optional amplifier is not installed. The creator printed two in PETG at 50% infill, fastened them with the subwoofer's original screws, and shows the installed unit and bracket locations. Confirm the vehicle lacks the conflicting amplifier, protect wiring, use thread-safe fasteners, and verify seat movement, ventilation and secure retention before driving.
