Cup-Position Magnetic Phone Mount

ABS · PETG1 FILECC-BYDashboard
PART RECORDREF 1453
PART
Cup-Position Magnetic Phone Mount
OEM
FITS
i3 I01
BIMMER-3D · PART RECORDREV 2026

Loading 3D viewer...

PART ID · BIMMER-3D / 1453QTY 1 · STLHANDLE · NO SUPPORTS
Field photographs
6 PLATES
Plate 1 of 6
PLATE 01 / 06No caption recorded
Build sheet
MAN-1453

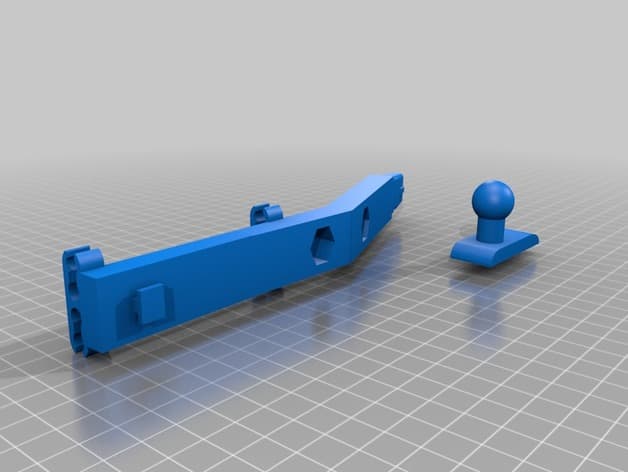

  • [01]i3_Ball_Joint.stl.STL
  • [02]Bounding box206.320 × 90.074 × 35.458 mm
  • [03]Volume52,851.584 mm³
Field notes
BY ROSS MA (FIXMYLIGHT)

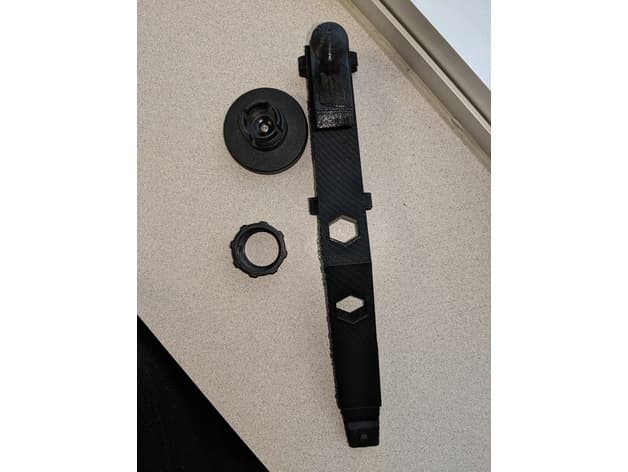

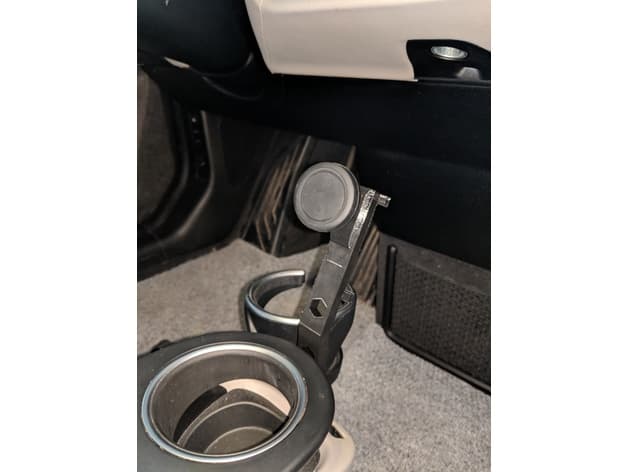

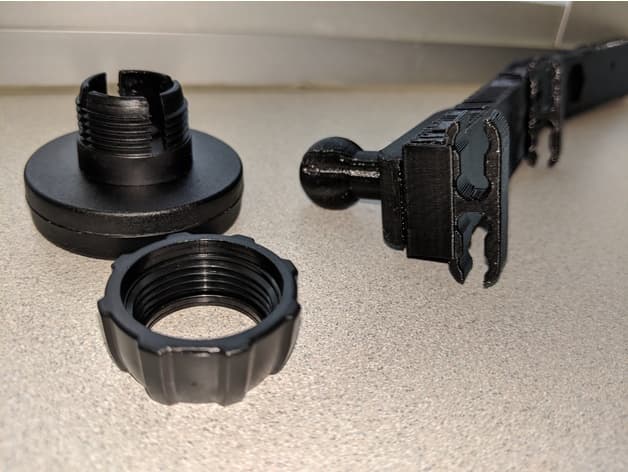

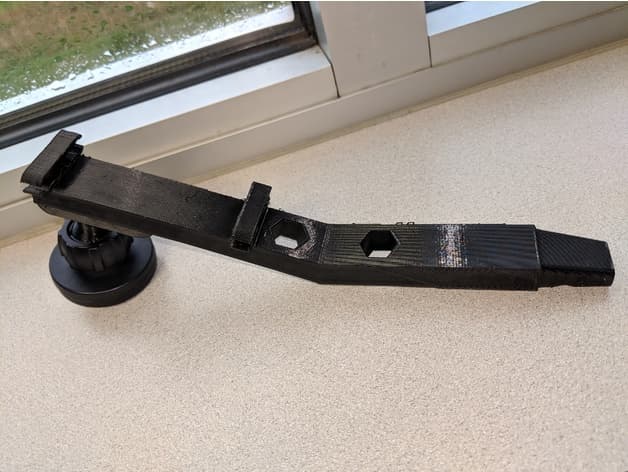

Cup-position mounting arm for a reusable magnetic phone head, with an integrated cable comb and cable pass-throughs. The creator physically printed the arm, adapted the threaded base and magnetic head from a generic mount, and shows the complete assembly installed in the center-console cup position. Use a cabin-heat-resistant material, confirm the threaded adapter and ball joint are secure, route cables clear of the controls, and verify that the device cannot interfere with driving.
